Sure, thanks! And thanks to you too, bassgasser.
Won't have much time to do stuff tonight. My main comp crashed bigtime and I have to reinstall everything, so that will be my focus tonight.
Enjoy the benefits of a premium membership!
Upgrade Account
-
TalkBass has been independent since 1998. Add your voice.
Create a free account to reply to discussions, view embedded media, and browse with fewer display ads.
Join free Log in
Want zero display ads or expanded classifieds tools? Compare plans.
If you have a 1990's Ampeg 810...
- Thread starter JimmyM
- Start date
Won't have much time to do stuff tonight. My main comp crashed bigtime and I have to reinstall everything, so that will be my focus tonight.
Looks like it............. I missed that, pics and all......... oh well.
We have a '96, in Jimmy's sweet spot of time, with a 10324 type, and a 451010-1 number
Then we have a later 2005 unit with 451041-10 number, no type number given. Looks like could be same company, but may be a different cone number. but I'm not 'up" on the cone numbers.
Kunte Kinte, I have found you!!!
Now we have something to go on...I just now got online again with my home computer, but I will try to contact Anthony Lucas as soon as I can get back up. He's been very helpful in the past.
Got about 40 gigs of programs to reinstall first. Oh well, it needed optimizing...reinstalling everything is one way to do it
And thanks again, Jerrold, for your knowledge. You've been a big help!
Now we have something to go on...I just now got online again with my home computer, but I will try to contact Anthony Lucas as soon as I can get back up. He's been very helpful in the past.
Got about 40 gigs of programs to reinstall first. Oh well, it needed optimizing...reinstalling everything is one way to do it
And thanks again, Jerrold, for your knowledge. You've been a big help!
Naw Jerrold, sorry the later speakers are type 10324A..... We have the number.
So Jimmy's golden speakers are the 10324... The heavy duty 100 watters are the 10324A.
Now I have to pull a speaker out of the 810 where I swapped speakers, my guess is they were 10324's... SO we could actually get a date range. I believe my original 810EN cab was a 2000-01-02... I will have to find the plate and get serial and pull a speaker from the 810E I transfered the drivers too.
We had an explosion of a server at the office today and I'm still running a restore.
I retired this week, and got the new guy going, we're both on this project the call came at 7:10AM, Jimmy knows what the world looks like at 7:10 AM... Dark and gloomy.
BOB
So Jimmy's golden speakers are the 10324... The heavy duty 100 watters are the 10324A.
Now I have to pull a speaker out of the 810 where I swapped speakers, my guess is they were 10324's... SO we could actually get a date range. I believe my original 810EN cab was a 2000-01-02... I will have to find the plate and get serial and pull a speaker from the 810E I transfered the drivers too.
We had an explosion of a server at the office today and I'm still running a restore.
I retired this week, and got the new guy going, we're both on this project the call came at 7:10AM, Jimmy knows what the world looks like at 7:10 AM... Dark and gloomy.
BOB

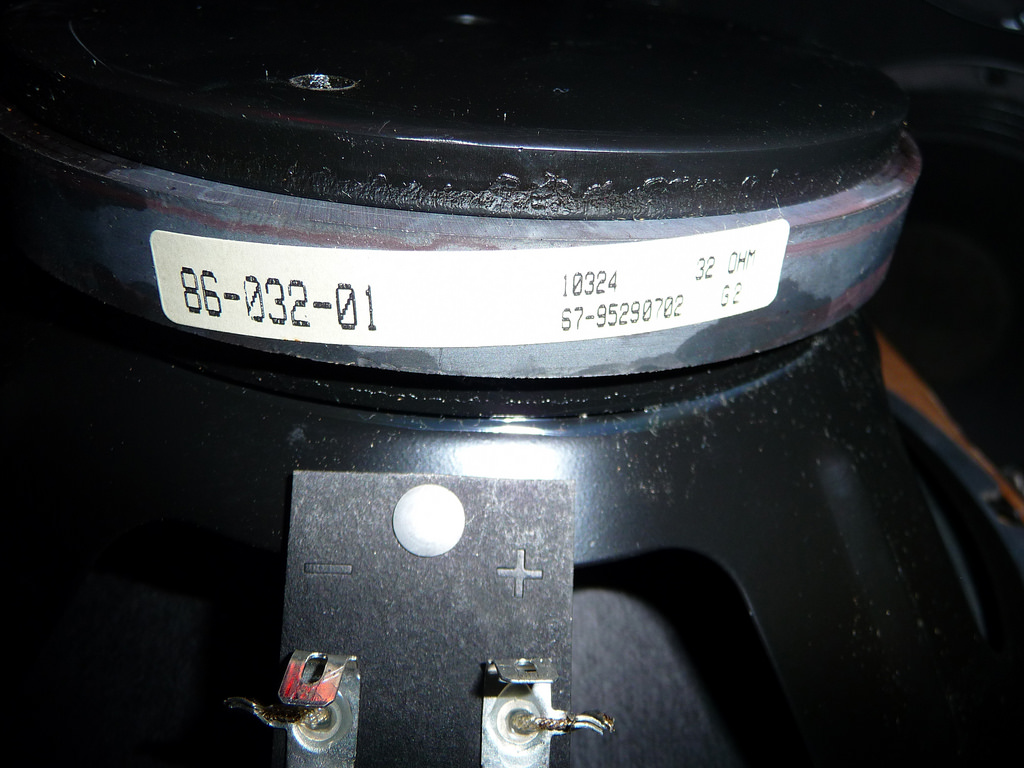

Well ... I received the speakers I ordered, I pulled the speakers our of the cabinet and here's what on the drivers: 86-032-01 Then 10324, Then 67-95290702 ...what's printed on the speaker cone is 451010-1, and below it is 265 , I'll start a new thread in the switching out the Eminence drivers to the Jensen Mods, as not to clutter this thread
So it's the cone and not merely the high power?
Thanks and congrats on your retirement, Bob! Now it's time to set some heads on fire with bass!
Thanks to everyone once again!
Thanks and congrats on your retirement, Bob! Now it's time to set some heads on fire with bass!
Thanks to everyone once again!
Could be, and as expected if so.
That last one looks like a 1995 product, and it has the same numbers as WVbass' unit.
looks like 451010-1 cone and 10324 type is Jimmy's fave, while 451041-10 cone and 10324A type is not.
BTW, R Bonner.... the high power is all of them, the power didn't change, presumably the cones did.
I'm going to dig around for speaker data, but I'm not expecting to find these, as I didn't get directly involved with the 810 and parts for it.
That last one looks like a 1995 product, and it has the same numbers as WVbass' unit.
looks like 451010-1 cone and 10324 type is Jimmy's fave, while 451041-10 cone and 10324A type is not.
BTW, R Bonner.... the high power is all of them, the power didn't change, presumably the cones did.
I'm going to dig around for speaker data, but I'm not expecting to find these, as I didn't get directly involved with the 810 and parts for it.
If only I could have taken these skills like being able to hear the difference between cones and perfect pitch and being an all around musical genius and figured out how to make money I did, however get another song played on the Howard Stern show Wednesday morning. Wrote and recorded it in an hour Tuesday night after my gig, sent them an MP3, and it was on the next show!
But that don't pay squat
I did, however get another song played on the Howard Stern show Wednesday morning. Wrote and recorded it in an hour Tuesday night after my gig, sent them an MP3, and it was on the next show!But that don't pay squat
Sho 'nuff.....
being a "bass gear pusher" sure paid better than being a "bass gear user"......
Lots of "users" got in with our "gang" and became "pushers" as well.....
Ain't that the way it always goes?
being a "bass gear pusher" sure paid better than being a "bass gear user"......
Lots of "users" got in with our "gang" and became "pushers" as well.....
Ain't that the way it always goes?
That's a drag, Bob. Just think...she could have played Wheel of Beetlejuice and touched a naked midget
86-032-01 Spec 10324 (OLD one, not made any more)
Rdc= 25.7
fs= 55
Qm=6.11
Qe=.87
Qt=.76
VAS=1.33 ft^3
top plate 0.312
magnet 30 oz
VC
dia 2.0
There are some other specs which are not so obvious, which I am not giving. It's not my store to give away. The ones above are measurable/observable, so they can't be considered secret.
Rdc= 25.7
fs= 55
Qm=6.11
Qe=.87
Qt=.76
VAS=1.33 ft^3
top plate 0.312
magnet 30 oz
VC
dia 2.0
There are some other specs which are not so obvious, which I am not giving. It's not my store to give away. The ones above are measurable/observable, so they can't be considered secret.
OK, finally I had a gig where they supplied a mid-90's SVT-CL and 810e for another band on the show (The Original Comets). King Center, Melbourne, FL.
I am now firmly convinced that the earlier 810e's are WAY WAY better sounding than the ones since around the turn of the millenium.
I brought my 69 SVT/810 and I played my upright and electric out of both. I was shocked at how similar the tones were.
The CL rig was only slightly less ass-kicking than my rig. It was real SVT tone with 5k just like mine.
Naturally I couldn't pull it apart and look at the drivers, but I imagine it had the 86-032-01's. Huge difference in tone with the earlier ones. As Paris Hiton would say, HUUUUUUUUUGE!
I am now firmly convinced that the earlier 810e's are WAY WAY better sounding than the ones since around the turn of the millenium.
I brought my 69 SVT/810 and I played my upright and electric out of both. I was shocked at how similar the tones were.
The CL rig was only slightly less ass-kicking than my rig. It was real SVT tone with 5k just like mine.
Naturally I couldn't pull it apart and look at the drivers, but I imagine it had the 86-032-01's. Huge difference in tone with the earlier ones. As Paris Hiton would say, HUUUUUUUUUGE!
With my net nanny at work, I can't get to the online version of WINIsd but it would be interesting to note what the predicted low end response is for that driver in a 1 cu. ft. enclosure (essentially 1/8th of an 8x10).
Just for fun, I have some drivers laying around from my '98 SVT810E. I figured I'd see what I have. (I took out ones with ruined cones and replaced with Jensen MOD10-50's.)
451010-1 on the cone. Indisdinguishable partial number underneath, ending with a 4
86-032-01 10324 with 67-94420199 G2
So, I have the yummy speakers? Too bad half of them were trash. Here's how it looks now. You don't see all if it's tolex-ripped off uber-punx ugliness in the photo, but get the idea.
451010-1 on the cone. Indisdinguishable partial number underneath, ending with a 4
86-032-01 10324 with 67-94420199 G2
So, I have the yummy speakers? Too bad half of them were trash. Here's how it looks now. You don't see all if it's tolex-ripped off uber-punx ugliness in the photo, but get the idea.

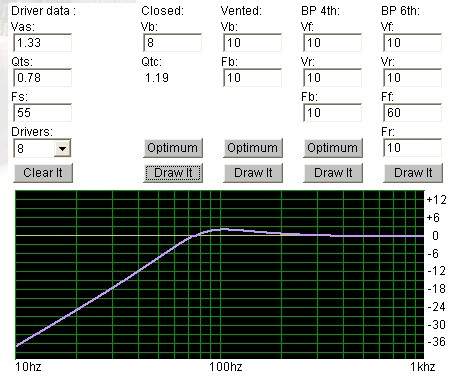

OK...here's what ISD online shows for the predicted response of an SVT-810. Sure sounds better than it looks (if one believes that we need response down to 30 or 40 Hz as the -3dB point is about 65 Hz)...
