Jazz Bass S1 Switch Install

Pedro Cofre

Pedro Cofre

Jun 22, 2018
71
156
33
Chile
#1
Hello everyone!
I am looking for a video tutorial or guide for the installation of the Jazz Bass S1 Switch Install.
All I've found so far is a diagram, but I'd like to see if anyone has any guidance.
The S1 Switch it's for my Squier Vintage Modified 77 of 2017
Greetings from Chile!

  • Like
Reactions: Yahboy and Swerve
#2
Last edited:
#3
LoveThatBass said:
Have you obtained a Fender S-1 switch for Jazz bass and the knob?

Here is the switch needed:
Fender S-1 Switch, 250K Pot for Tele, P-Bass , Jazz Bass

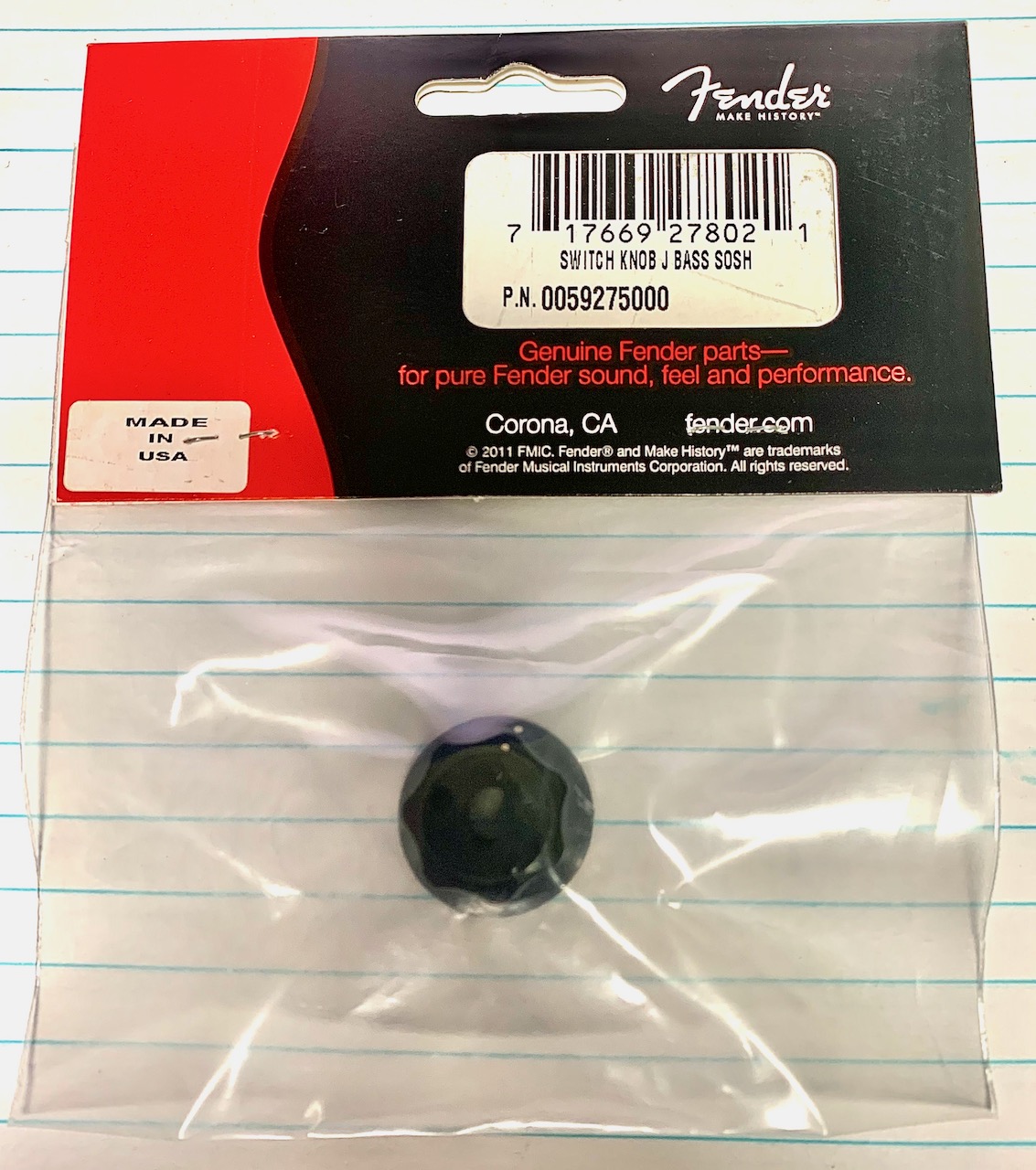

Here is the knob needed (it must include the center push portion)

Fender Jazz Bass S1 Knob , 0059275000, 0059274000 | Parts Is Parts - Guitar Parts, Amplifier Parts, Korg Keyboard Parts

The thing is unless you can actually find the knob and the center push button portion I do not recommend buying one. Fender seems to stop making the knobs
Click to expand...
This?

#6
Warpeg said:
Save yourself the hassle and just buy a push/pull pot.
Click to expand...
Or just install a mini D.P.D.T. Toggle Switch as I did. I typically preferred to use the Fender S-1. Easier to use and easier to wire up until recently I installed a mini switch because I needed room to put a battery in the control cavity to power the EMG BCT Preamp

Last edited:
  • Like
Reactions: Tim Skaggs and Warpeg
#8
Warpeg said:
Save yourself the hassle and just buy a push/pull pot.
Click to expand...
This.
The S-1 is great if you need a 4PDT switch for more elaborate wiring/switching. However, for simple series/parallel in a J, just get a push/pull.
The problems with the S-1
1. You have to get the proper pot that works with the knob/actuator. There is a 'solid shaft' version for the P/Tele/J and 'splined' for the Strat.
2. It's not a very hearty build. I installed an S1 on my P bass. With careful and infrequent use, it broke within 6 months. I then installed another and it's been holding up, but I also only play that bass once every several months vs every several days. I have also two friends that had their S1 switches go bad. 2 of the 3 were the thin pin that trips the switch, one was the whole pot going bad.
3. Expensive. A good quality push/pull is $15ish.
4. The knobs, finding the knobs!

#9
bigtone23 said:
This.
The S-1 is great if you need a 4PDT switch for more elaborate wiring/switching. However, for simple series/parallel in a J, just get a push/pull.
The problems with the S-1
1. You have to get the proper pot that works with the knob/actuator. There is a 'solid shaft' version for the P/Tele/J and 'splined' for the Strat.
2. It's not a very hearty build. I installed an S1 on my P bass. With careful and infrequent use, it broke within 6 months. I then installed another and it's been holding up, but I also only play that bass once every several months vs every several days. I have also two friends that had their S1 switches go bad. 2 of the 3 were the thin pin that trips the switch, one was the whole pot going bad.
3. Expensive. A good quality push/pull is $15ish.
4. The knobs, finding the knobs!
Click to expand...
Also, a standard D.P.D.T. mini toggle does the job too!
I had one S-1 go bad years ago but the other two no problems for the 5 years the last one was installed in. So yes they can be problematic but so can push/pull pots with switch.
