jazz wiring help needed(switching the tone for selector switch)

M

Mcfunkinstein

Jun 22, 2008
254
0
#1
anyone know how i would go about doing this? have an old flip switch from a les paul and i wanted to put it in my jazz and take out the tone knob since i mostly just keep it on max and adjust my sound with the amp or volume of each pup. im pretty new to bass wiring so im unsure of how to do this and cant find any diagrams online

#2

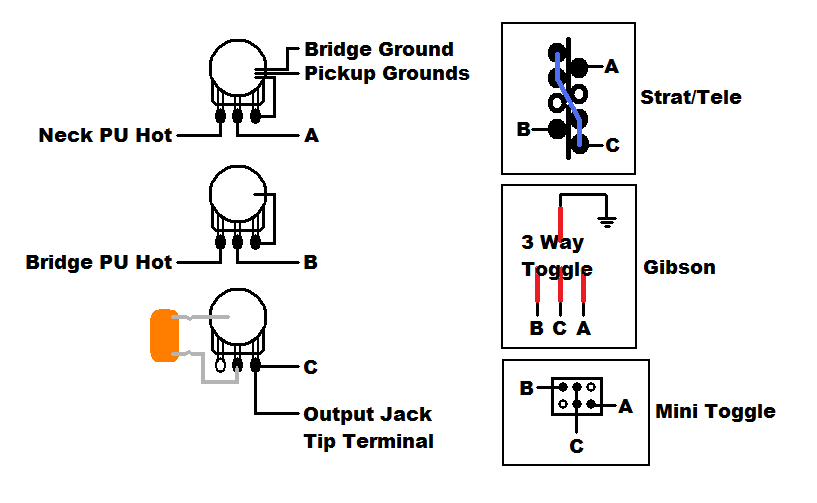

Follow this diagram, but skip the tone control.
