You mention these piezos on the ozbass forum:
http://www.ebay.com/itm/220718737968
They look interesting in my eyes. My ignorance of course, but I don't get whether they are drilled, screwed, glued, or whatever to sit firmly. As I get it, they don't necessarily have to sit right under the bridge.
Interesting project. I have a not too prestigious, all plywood, classical style guitar with a 23" scale and a fixed truss rod that may be a candidate for some experiments.
Klaus
From the manufacturer website...
Installation instructions.
Tools you will need;
A drill
A 3/8 drill bit
A small amount of super glue
Please note; The piezos must be handled with care during installation.
Installation;
1. Mark the desired location for the jack using a pencil.
2. Remove the strings to provide easier access inside the soundhole.
3. Carefully drill the hole using the 3/8 bit.
4. Remove the nut and washer from the jack.
5. Install the jack by pushing it through the hole from the inside.
6. You may want to experiment with the placement of the piezos before fixing them into place.
You can do this using a piece of masking tape to temporarily hold them in place. You will get a
different tone in different places on the guitar top.
7. Once you determine where you would like to mount the piezo's, attach them to the inside of the guitar top
by placing a drop of super-glue on each piezo (one at a time) and hold it in place for about 45 seconds.
The installation point that will result in the most amount of gain is directly under the saddle on the
bridgeplate.
8. Thats it! Replace strings, tune up, and plug it in!
We cannot accept any responsibility for guitar damage caused by installation.

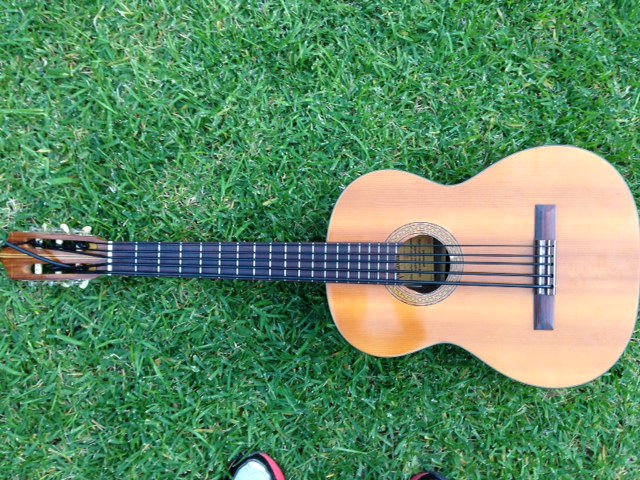

So I need to spend another 2.86 on superglue. The price just keeps on rising. I re-tuned it this morning. No string slippage, but like getting a new set of strings for the kala its going through its stretching phase - all strings were a tone to a tone and a half flat. Slipped the strings through the plastic ties not much more difficult to the u-bass. Just re-checked a few hours later and the tune was pretty good. Excellent playability, low action. Slightly tighter string tension compared to the kala but not unsimilar.
