Lateral Nut Position Wrong?

[Eric Nelson]

Looking @fretno 's closeup of my bridge, I can see the G string is not on the bridge saddle correctly. Putting that string in the bridge saddle helped the symmetry a little.



[fretno]

Yes for sure



[Eric Nelson]

Yes for sure

And a little business card shim and pulling on the neck while tightening the bolts did the trick. In fact, I went too far on my first attempt.



[Alex Masters]

Good job. What does it look like at the nut now? And at the pickups/bridge?



[Eric Nelson]

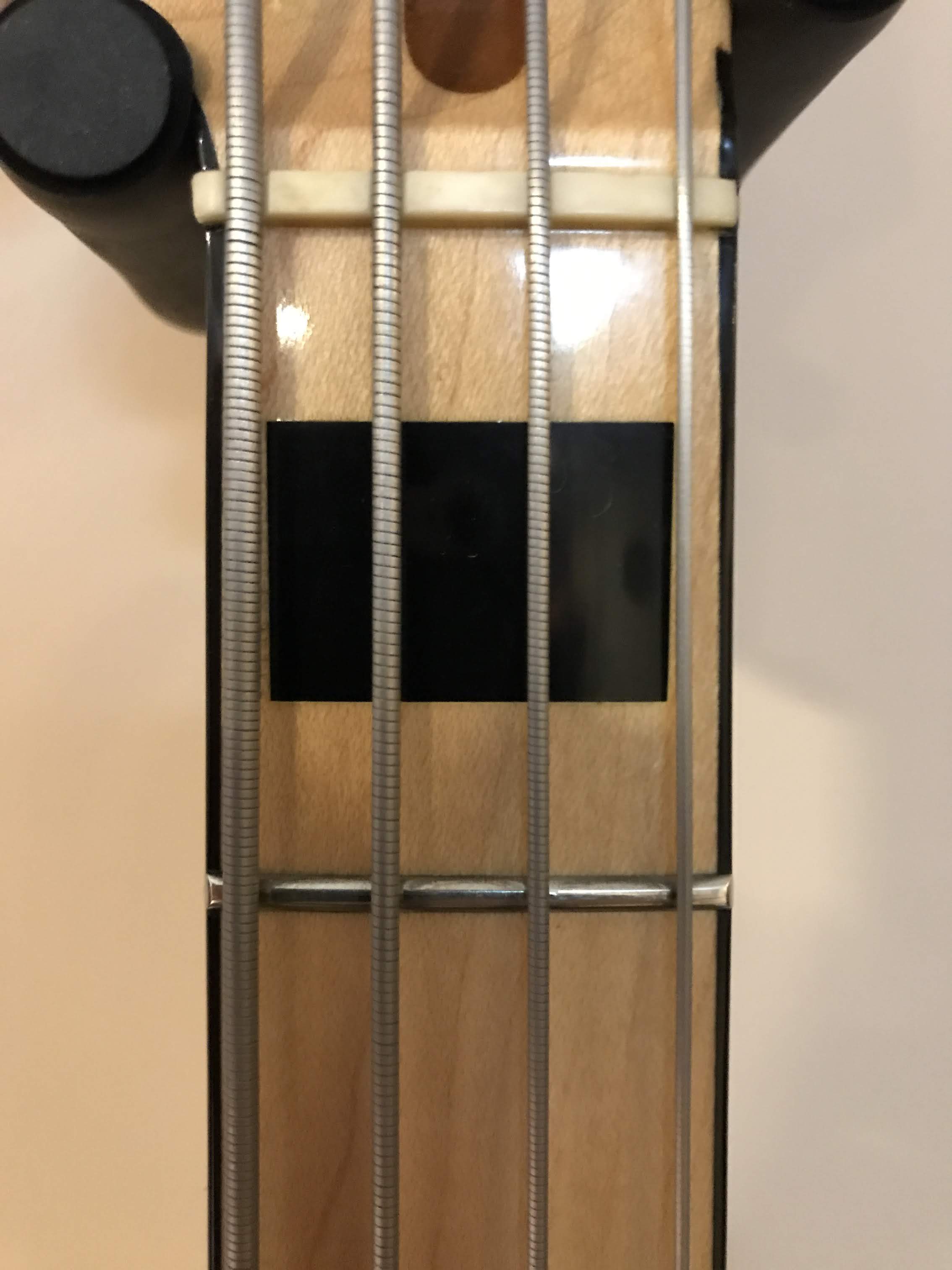

Not much changed at the nut - it still needs some work, but I just played it for an hour and had no problem with slipping the E string off the fretboard.



[Alex Masters]

Yep - that will work. Well done!

You might still look at getting the nut redone. I've found getting the string height at the 1st fret makes a massive difference in playability. Lower is better for me.



[fretno]

so to mostly wrap this up , it looks like the BA has had the saddles cut a little off . I would replace those saddles . Most BA's are unslotted . I personally don't slot them but rather just put a wee slice or 2 with a file just to keep the string in place and that's after I play it for awhile , the strings will mark the saddle where it naturally sits and you can go from there fine tweaking it out . I stick to the norm Fender spec string spacing while aligning all the pieces up more or less and done .

but I don't use those boat anchors any more . I use a standard Fender or KTS which are both light weight .

I also prefer the Fender BA clone over the BA , I like the single saddle slot and it's a little shorter , the BA can be so long it almost hangs off the body . The Fender is also cheaper . it's a great bridge . Have you seen the bridge ?



[Eric Nelson]

Love that one knob! Thanks for your help!
Where's that confounded bridge?



[basadam]

so to mostly wrap this up , it looks like the BA has had the saddles cut a little off . I would replace those saddles . Most BA's are unslotted . I personally don't slot them but rather just put a wee slice or 2 with a file just to keep the string in place and that's after I play it for awhile , the strings will mark the saddle where it naturally sits and you can go from there fine tweaking it out . I stick to the norm Fender spec string spacing while aligning all the pieces up more or less and done .

but I don't use those boat anchors any more . I use a standard Fender or KTS which are both light weight .

I also prefer the Fender BA clone over the BA , I like the single saddle slot and it's a little shorter , the BA can be so long it almost hangs off the body . The Fender is also cheaper . it's a great bridge . Have you seen the bridge ?

Alternatively OP can buy Hipshot Kickass saddle set (not the whole package, just the saddles). They drop right into BAII and they are adjustable.



[lug]

You may be able to just swap the saddles around till you find an orientation that works the best.
