Markbass Footswitch Dual - Known Alternatives

Discussion in 'Amps and Cabs [BG]' started by SlapLikeTheWind, Jan 31, 2021.


  1. Hello all,

    I’ve recently purchased a Markbass Little Mark Tube Vintage D2 bass amp head, and I CANNOT, for the life of me, find one of their dual foot switches for sale in the US (or anywhere, for that matter).

    I’d like to be able to use the boost, and the mute would be nice during setup/tuning and all that, so does anyone know of a compatible dual footswitch?

    Thanks!

    Keep on thumpin’ on!

  2. Wasnex

    Wasnex

    Dec 25, 2011

    Have you contacted Markbass Tech Support to see if they will offer any advice.

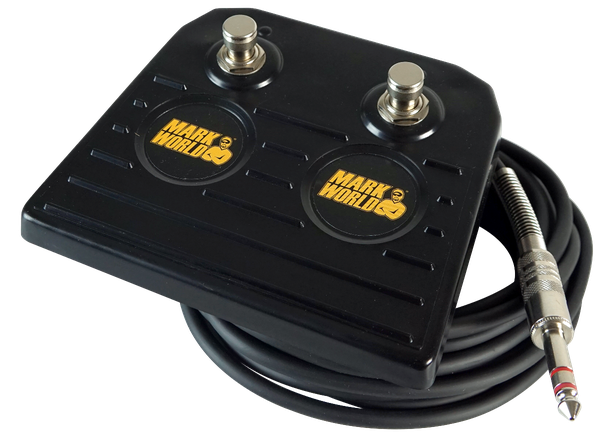

    The MarkBass store only offers this Dual Footswitch
    This is probably the right footswitch, but it would be good to confirm since I don't think it mentions your amp specifically. Also if the footswitch is not available in the US maybe they can send you a schematic or specs so you can buy a generic footswitch.

    Most likely the two switches are latching. One switch shorts the ring to the sleeve of the connector (ground) and the other switch shorts the tip to the sleeve.

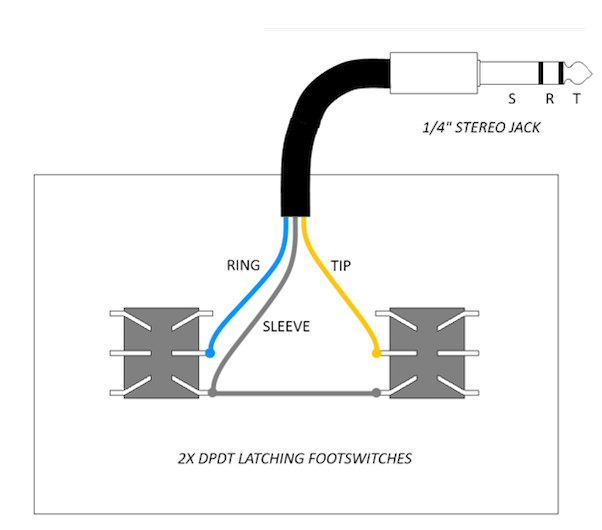

    Here is an image I found and modified slightly, that might be compatible:

    If Markbass will confirm this will work, it will be easy to find another footswitch that does this. If you want LEDs to indicate the status of each switch, it gets a bit more complicated. Best to contact Markbass so you can get a schematic, rather than buying a footswitch that might work for awhile and then damage your amp.


    Good luck!

  3. Do you think they’d provide such? I have to ask companies that question all the time at work, and almost always get turned away due to nondisclosure of intellectual property blah blah blah haha...

    If I had a schematic, I could build one myself!

    As an aside, where did you get the information for the schematic/graphic you’ve provided? I’d be eager to see if your source has any additional info!

    Worth a shot... thanks!

  4. agedhorse

    agedhorse Supporting Member Commercial User

    Feb 12, 2006
    Davis, CA (USA)
    Development Engineer-Mesa Boogie, Development Engineer-Genzler (pedals), Product Support-Genz Benz
    I looked to see if there was any information in the owner's manual and couldn't find anything helpful. You will need to contact the manufacturer, hopefully they will be able to find a solution for you.

  5. Wasnex

    Wasnex

    Dec 25, 2011
    Response varies by company and the situation. Doesn't hurt to ask.

    The source for the graphic is here: Obscure Footswitch Question It's not specific in any way to your amp.

    SlapLikeTheWind likes this.
  6. i saw this post trying to find a pedal for my Little Mark Vintage, turns out a Boss FS-6 in latch mode works fine with it, i would imagine it will work for your D2 as well.

    Wasnex likes this.
  7. Stranger Danger

    Stranger Danger Feel Like A Stranger Supporting Member

    Jan 3, 2010
    Texas
    Did you ever figure it out?
