Meazzi Hollywood (referenced) project

#524
KidAmnesia said:
What's the full name of that FGM color? I really like it for my next project, but tried to google it and ended up deeply disturbed by reports on Female Genital Mutilation practices.
Click to expand...

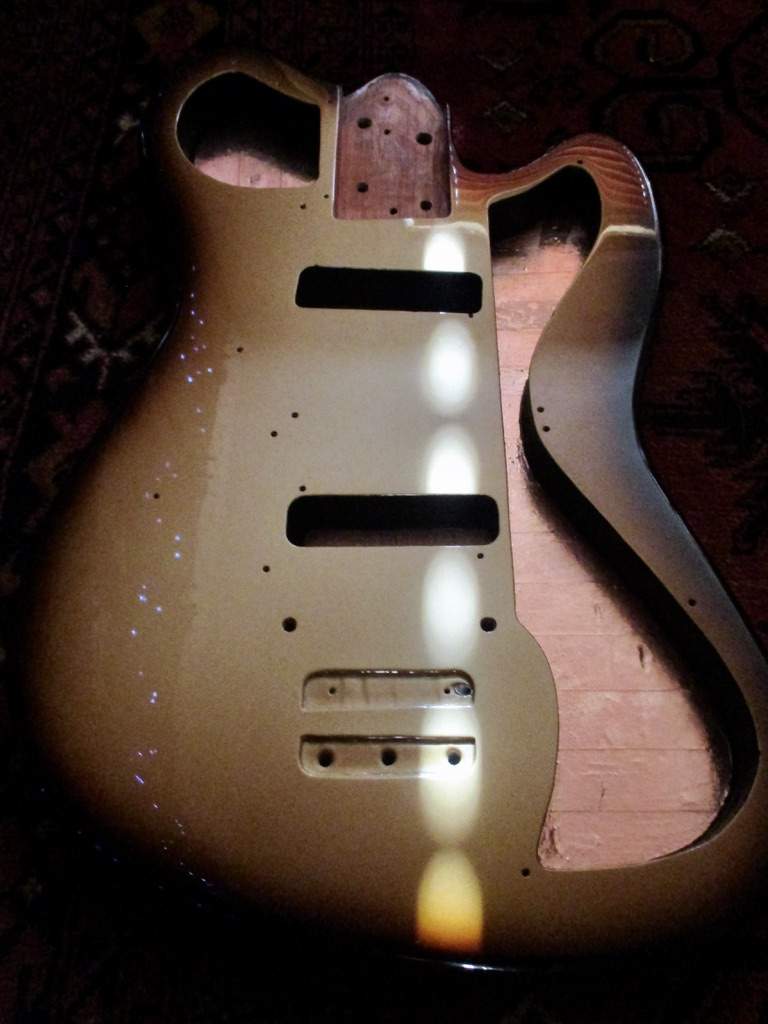

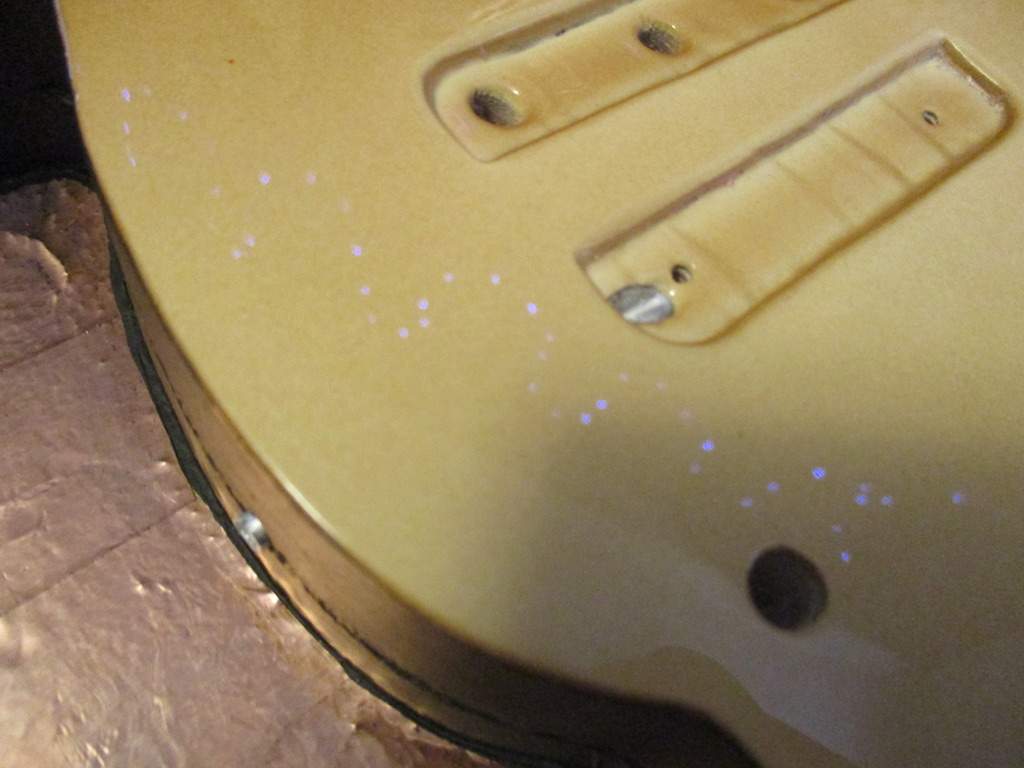

Firemist Gold Metallic - Lucite Dupont 4579L/Ditzler 22422

Replaced Shoreline Gold in 1965 (Shoreline is more muted and leans towards brown while Firemist leans more yellow and is brighter - I prefer Firemist personally)

  • Like
Reactions: God's Favorite Bass, KidAmnesia, JIO and 1 other person
#525

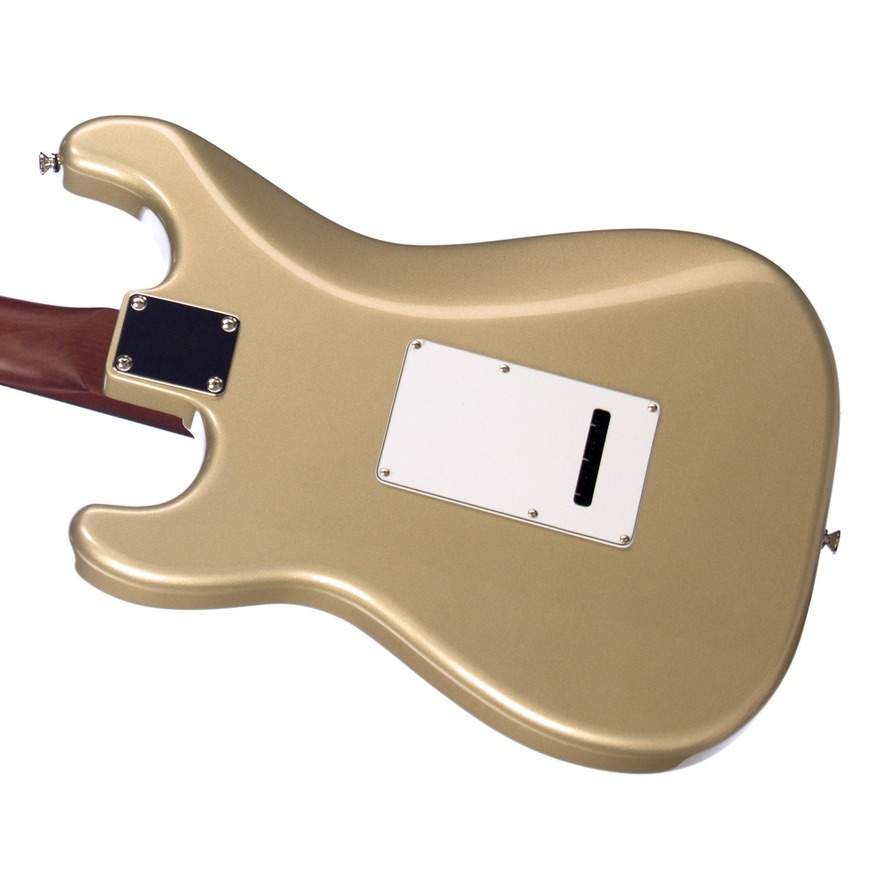

Shoreline Gold


  • Like
Reactions: God's Favorite Bass and Dynacord
#527
  • Like
Reactions: Retro, Bleecker and JIO
#528
JIO said:
View attachment 4782351

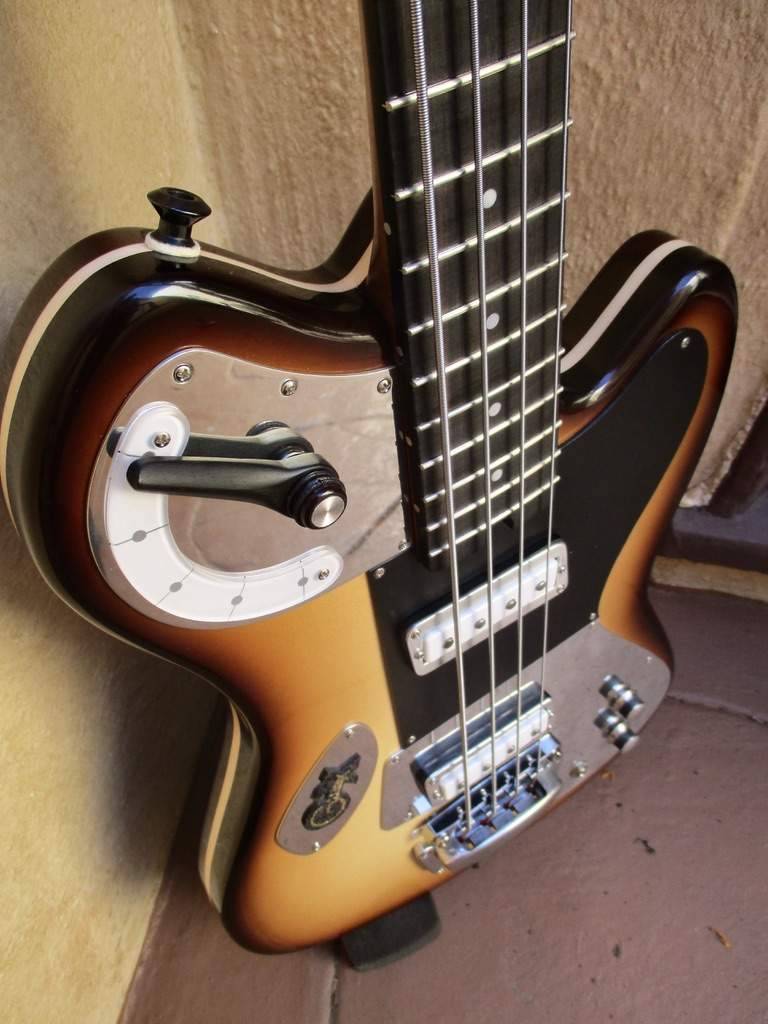

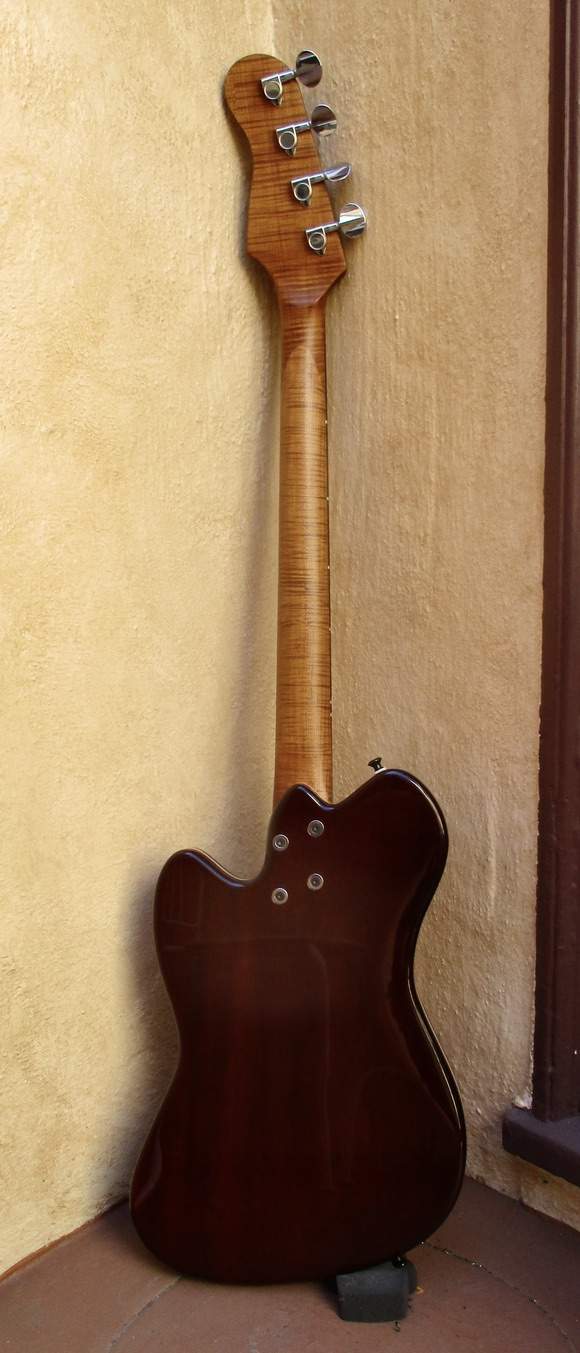

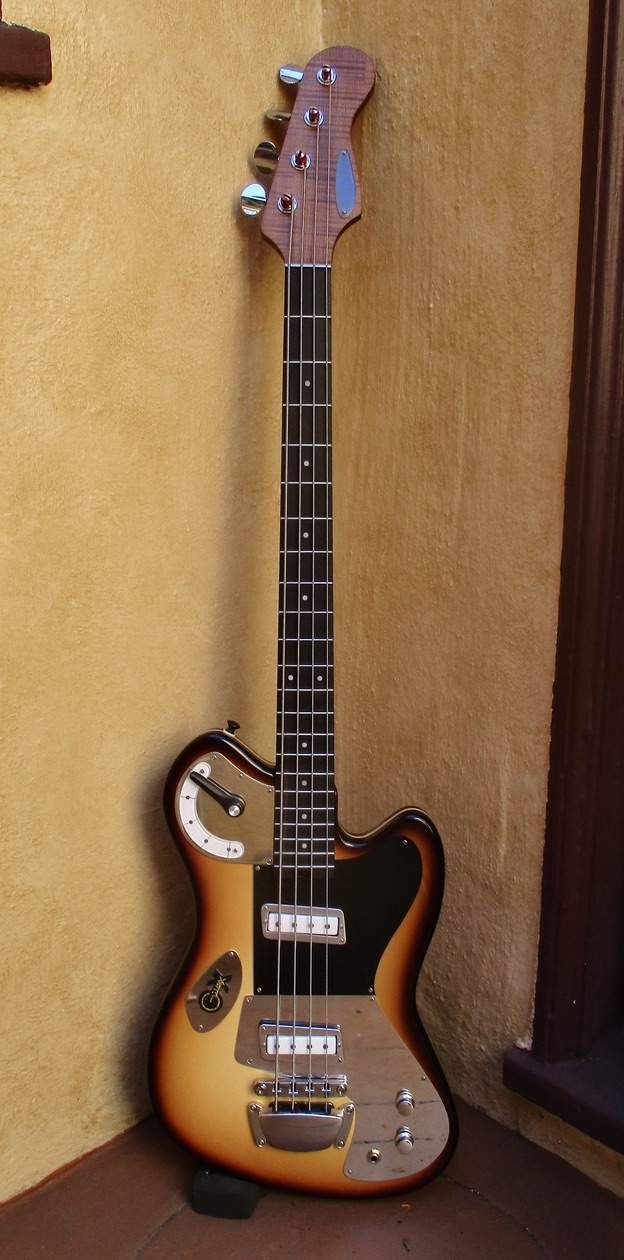

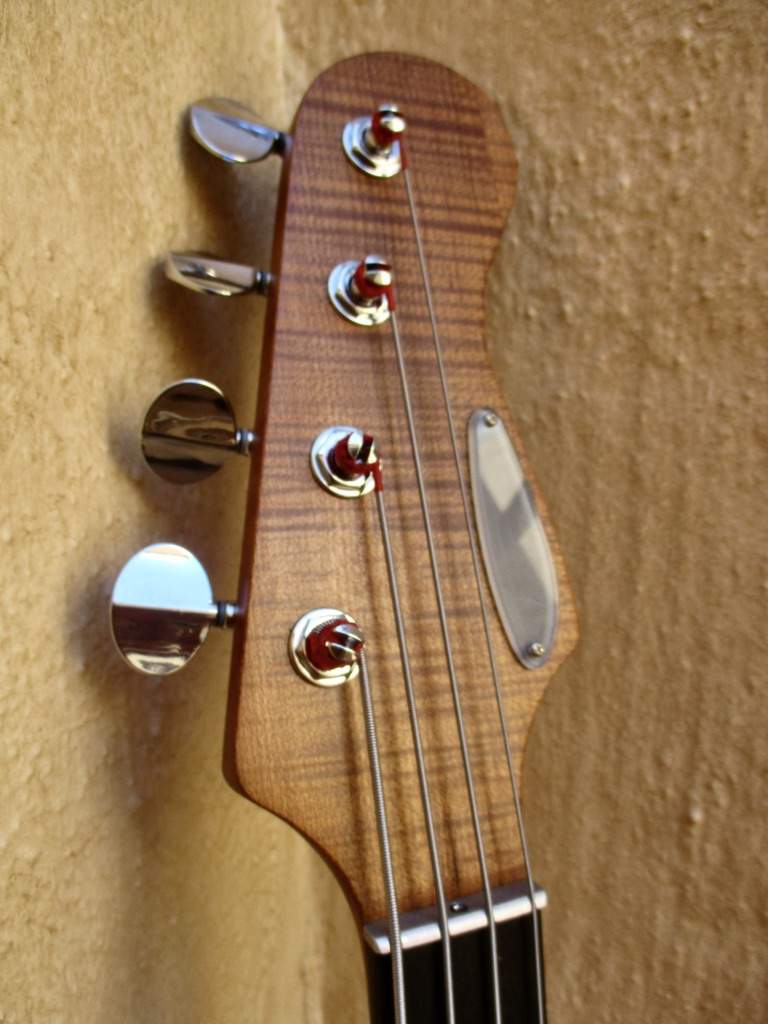

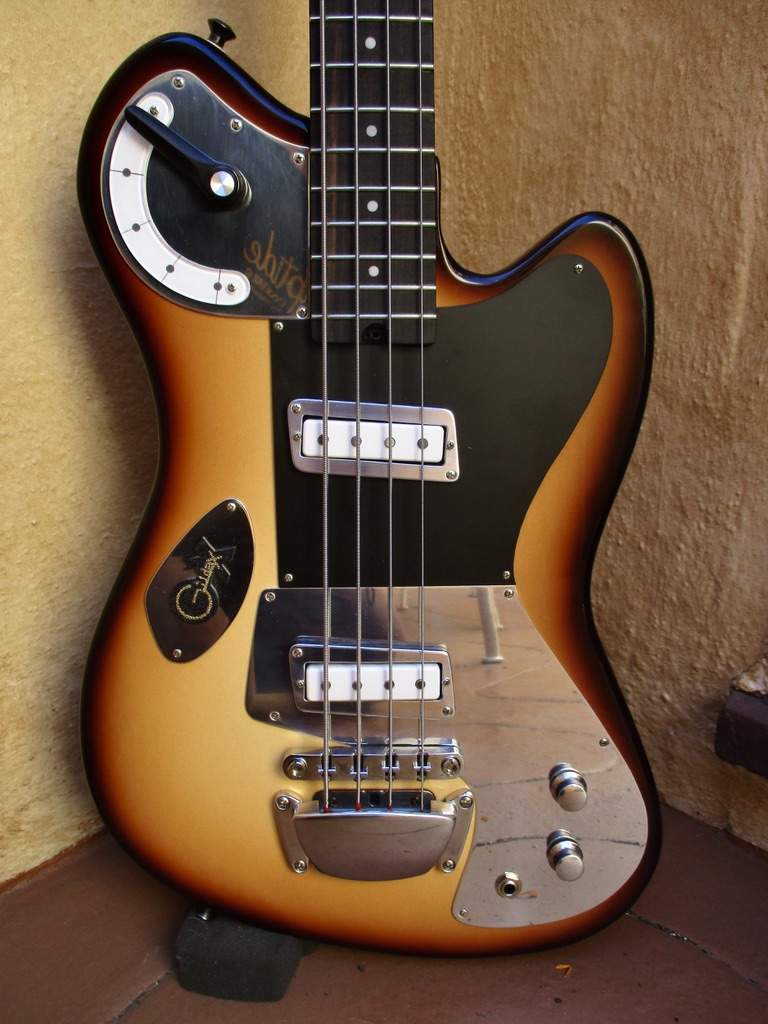

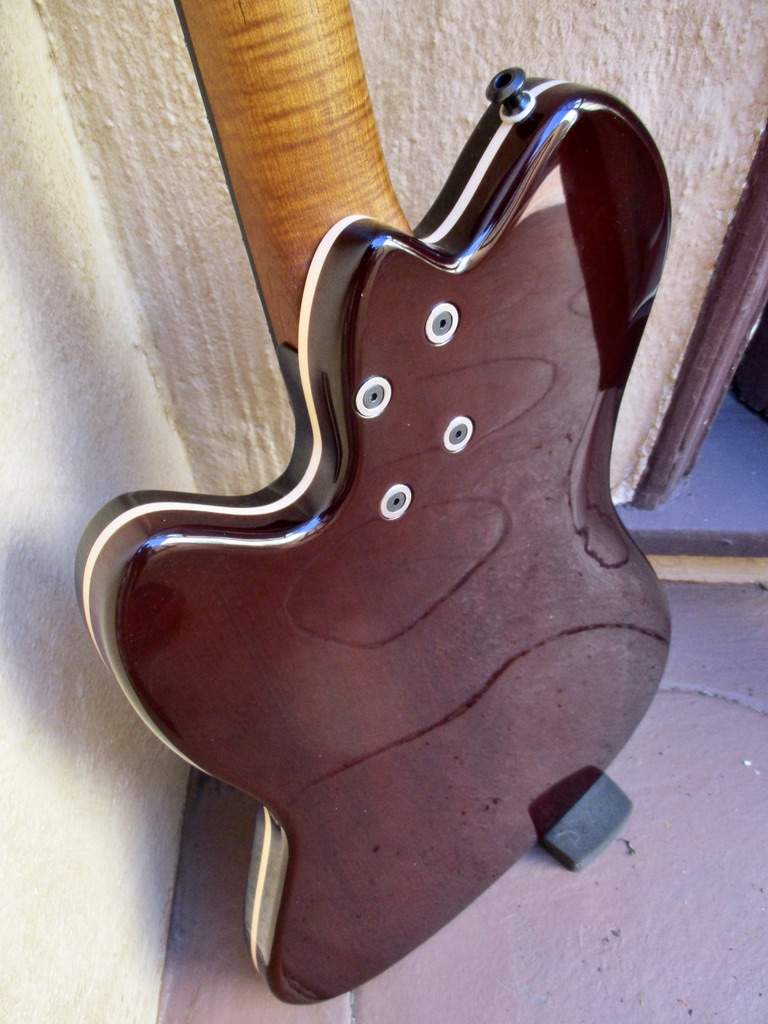

7lbs/13oz - medium scale - well balanced - very tonally harmonic. Only setting that isn't producing the desired change/effect is the push-pull tone pot "fuzz" cap, so a bit more trouble-shooting.

View attachment 4782352 View attachment 4782353 View attachment 4782354 View attachment 4782355 View attachment 4782399 View attachment 4782403 View attachment 4782407
Click to expand...

Well done, JIO!! That looks GREAT!!!!

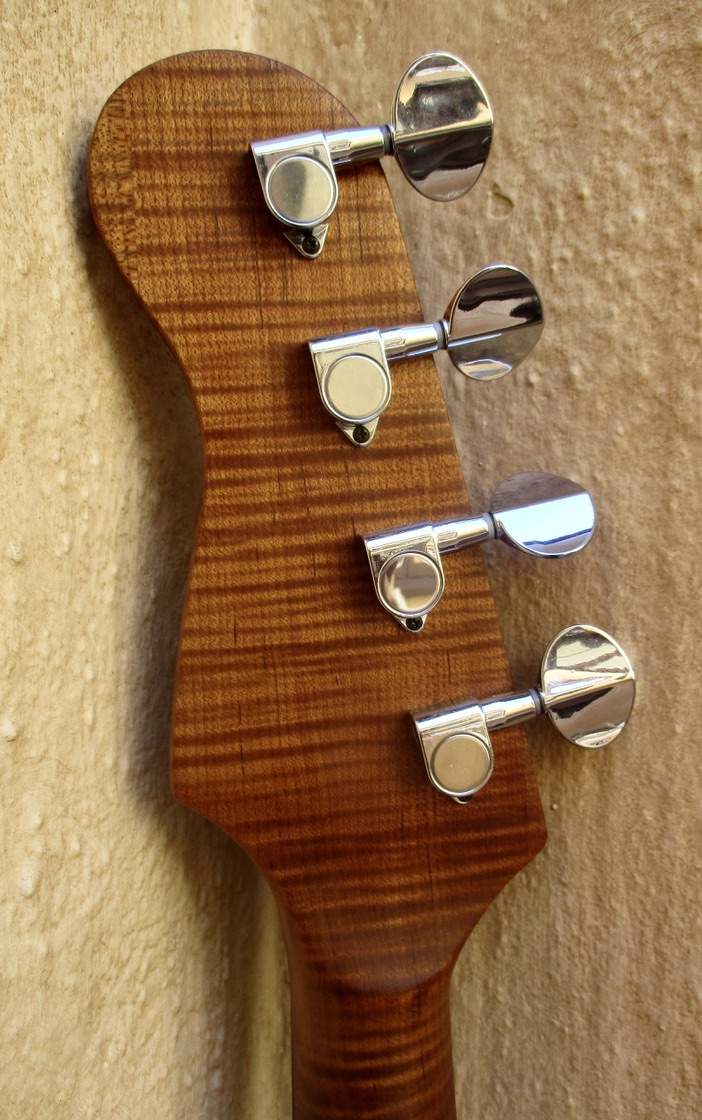

I love that grain on the neck. What a handsome instrument!

  • Like
Reactions: JIO
#529
  • Like
Reactions: JIO
#530
Apparently that 'fuzz' cap is working but being passive (no battery boost) and being only a capacitor, it's fairly subtle. I think it would be more effective in a guitar. In the 'series' setting it creates 'dirt', but not what I would call 'fuzz'. So 'dirtying up' the tone could come in handy depending on the need, but I was hoping for 'fuzz'. Oh well, I don't want a battery involved, so it is what it is.

Serek offers a built-in passive fuzz, but I can't find a pic of their electronics or have I heard how it sounds. If anyone has a Serek with the fuzz option - I'd appreciate a detailed pic of the harness.

Last edited:
  • Like
Reactions: Stugilliam, RichterScale, Indiedog and 1 other person
#531
So I decided the Underdrive 'fuzz' cap wasn't worth having a push-pull pot for it (since it doesn't do much of anything), so I ordered a ToneStyler Bass 6. They have one that goes to... 11, but it's quite a bit more $ and 6 tone variables should be sufficient. I had one in a bass and it has a good variety of tones.


  • Like
Reactions: Stugilliam, Retro, Dynacord and 3 others
#532

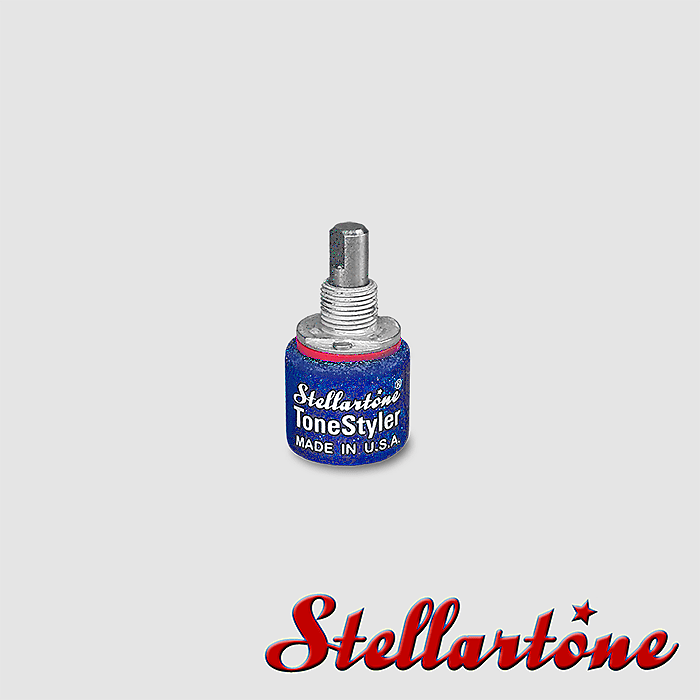

BASS SIX / CUSTOM SIX

The ToneStyler B-6 BASS SIX and C-6 CUSTOM SIX are brand-new six-position variations on our ToneStyler BASS TEN and CUSTOM models. These unique custom tone controls feature five contrasting capacitance circuits with uniform audio-taper spacing between tones, and the guaranteed quietest switching in this device class!

At full clockwise rotation #6, true bypass is selected. This circuit may be optionally configured for "virtual tone pot loading" during installation, by adding the resistor and capacitor included in each kit. 1/4" solid-shaft tip fits only 1/4" hole set-screw knobs. Capacitance ranges: TRUE BYPASS to .047µF / 5.6nF

Use one ToneStyler SIX in master volume guitars and basses such as the Fender Telecaster & Precision Bass. In four-knob guitars & basses, use one ToneStyler SIX to control one pickup plus the "both" pickups switch positions; you may leave the other pickup's tone pot "as-is"... or upgrade with a second ToneStyler SIX.

100% passive analog circuity - no batteries - zero noise! Includes mounting hardware and 1/2" hex nut driver. Hand-made in the U.S.A.

Last edited:
  • Like
Reactions: God's Favorite Bass, Stugilliam and Dynacord
#533
JIO said:
So I decided the Underdrive 'fuzz' cap wasn't worth having a push-pull pot for it (since it doesn't do much of anything), so I ordered a ToneStyler Bass 6. They have one that goes to... 11, but it's quite a bit more $ and 6 tone variables should be sufficient. I had one in a bass and it has a good variety of tones.

View attachment 4784138
Click to expand...

I've got one in a small pedal. Really like it. I kind of wish it indicated the value of each capacitor as it would then be a great way to test different capacitors on different basses for conventional installations. Some basses do seem to 'like' certain settings more than others. Cool device as is still the same!

  • Like
Reactions: God's Favorite Bass, JIO and Stugilliam
#534
Dynacord said:
I've got one in a small pedal. Really like it. I kind of wish it indicated the value of each capacitor as it would then be a great way to test different capacitors on different basses for conventional installations. Some basses do seem to 'like' certain settings more than others. Cool device as is still the same!
Click to expand...
Yeah, I have one I made in my old EB-0 clone, works nice; better than a tone pot in my opinion.

JIO said:
Apparently that 'fuzz' cap is working but being passive (no battery boost) and being only a capacitor, it's fairly subtle. I think it would be more effective in a guitar. In the 'series' setting it creates 'dirt', but not what I would call 'fuzz'. So 'dirtying up' the tone could come in handy depending on the need, but I was hoping for 'fuzz'. Oh well, I don't want a battery involved, so it is what it is.

Serek offers a built-in passive fuzz, but I can't find a pic of their electronics or have I heard how it sounds. If anyone has a Serek with the fuzz option - I'd appreciate a detailed pic of the harness.
Click to expand...

The passive fuzz relies on getting the signal voltage high enough to exceed the 'on' voltage of a diode to get clipping -- difficult to do with some pickups. With the pickups in series, you can get there more easily. You might get more of an effect with a diode with a lower 'on' voltage. This instructable talks about making a circuit like this.

As for the bass itself...:drool::drool::drool::drool::drool:

Last edited:
  • Like
Reactions: God's Favorite Bass, JIO, Reedt2000 and 1 other person
#535
Dynacord said:
I've got one in a small pedal. Really like it. I kind of wish it indicated the value of each capacitor as it would then be a great way to test different capacitors on different basses for conventional installations. Some basses do seem to 'like' certain settings more than others. Cool device as is still the same!
Click to expand...


  • Like
Reactions: God's Favorite Bass and Dynacord
#536
@JIO if you want a passive distortion circuit I’ve made one with (2) 1N34A diodes. Let me know if you want to try. That number came from old guy memory. I can verify when I get home. Just wire the diodes in “opposite” directions like you would in a fuzz pedal then attach just like you would a capacitor in a tone control. A friend looked up the specs on those diodes years ago after I told him about that circuit and he said they were kind of odd. They’re maybe the only diodes that will clip at passive pickup voltages. You get some volume drop if you turn the distortion all the way up but, depending on the application, it can sound good at lower settings.

  • Like
Reactions: God's Favorite Bass, Retro, JIO and 2 others
#537
Matt Liebenau said:
@JIO if you want a passive distortion circuit I’ve made one with (2) 1N34A diodes. Let me know if you want to try. That number came from old guy memory. I can verify when I get home. Just wire the diodes in “opposite” directions like you would in a fuzz pedal then attach just like you would a capacitor in a tone control. A friend looked up the specs on those diodes years ago after I told him about that circuit and he said they were kind of odd. They’re maybe the only diodes that will clip at passive pickup voltages. You get some volume drop if you turn the distortion all the way up but, depending on the application, it can sound good at lower settings.
Click to expand...
Yeah, 1n34a's would work; the voltage drop is about 0.3V, also the BAT-46 would work with a voltage drop of around 0.25V.

  • Like
Reactions: JIO, Dynacord, Matt Liebenau and 1 other person
#539
Matt Liebenau said:
@JIO if you want a passive distortion circuit I’ve made one with (2) 1N34A diodes. Let me know if you want to try. That number came from old guy memory. I can verify when I get home. Just wire the diodes in “opposite” directions like you would in a fuzz pedal then attach just like you would a capacitor in a tone control. A friend looked up the specs on those diodes years ago after I told him about that circuit and he said they were kind of odd. They’re maybe the only diodes that will clip at passive pickup voltages. You get some volume drop if you turn the distortion all the way up but, depending on the application, it can sound good at lower settings.
Click to expand...

Interesting - when you get a chance could you draw a diagram of it? I'm set on the ToneStyler pot but I might be able to work it in somehow.

  • Like
Reactions: Stugilliam
#540

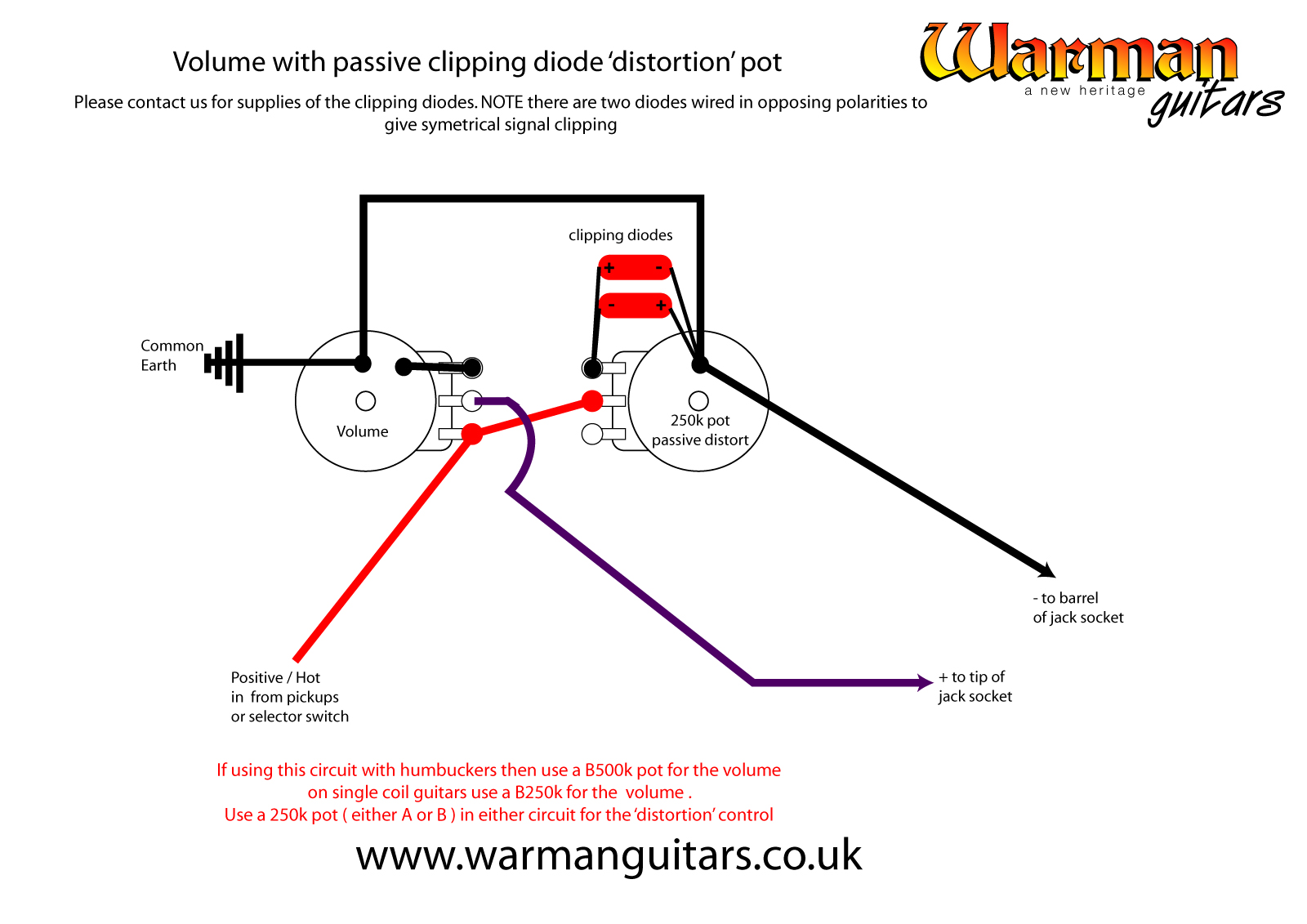

I couldn’t find my old sheet on it but here’s a picture and an article. I have not tried the 4 diode version. Might have to do that…

Passive Guitar Overdrive (Black Ice)



He doesn’t mention specific diodes in the article but the 1n34a will work and the one @Jon Clegg mentioned probably will to. You should be able to replace one of the caps on the DIY tonestyler with the diodes or parallel them with a cap. Experiment with what sounds best to you.

  • Like
Reactions: Dynacord, God's Favorite Bass and JIO
