Mojotone CTS Blender, Will it work w/ J Bass?

[PennyroyalWe]

Hey all, I’m looking into options for a blend pot for my newly acquired j bass. I found this, and I’m wondering if it’ll work for a j bass?Mojotone CTS Blender Potentiometer - 250k

The write up says it’s for a strat, but is there any reason it wouldn’t work for a jazz?



[SharpCat]

I don't want to say no, as there may be a way that I don't know about, but I haven't seen a circuit that uses a pot like that. Take a look at this thread for a great circuit discussion. I'm using the no_ground circuit without the no load mods to the pots, and it sounds great.



[ctmullins]

What the heck is that thing?

Normal blend pots are double-decker pots.



[PennyroyalWe]

Hmmm, so it sounds like this isn’t a common component for the blending.

I like the simple single pot, and the price of it. I sent the sweetwater sales people a message asking for details about it, wiring diagram, etc.

We’ll see what they get back with.



[Matt Liebenau]

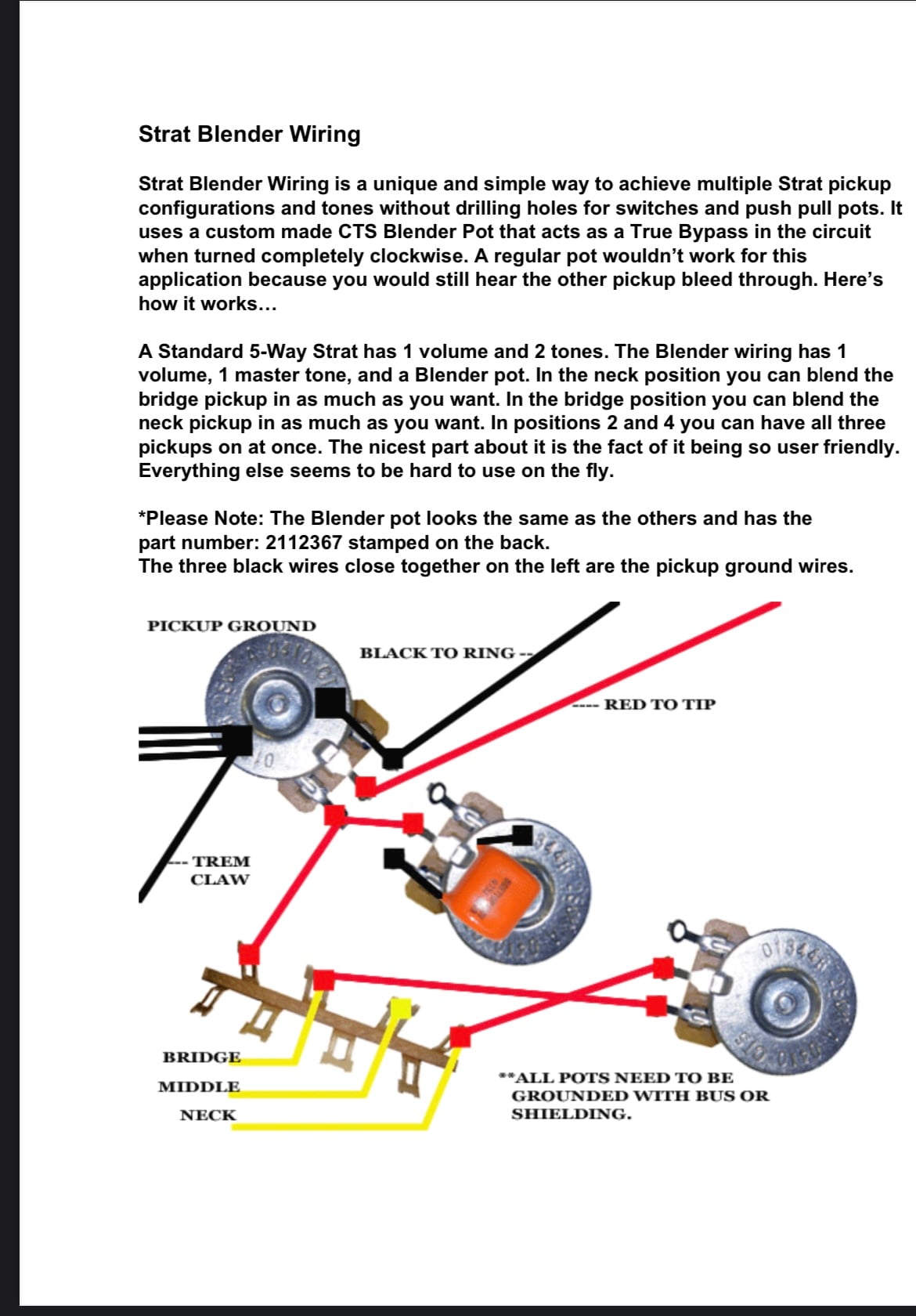

This is the wiring diagram from the Mojotone site. It looks like that pot is meant to add either the neck or bridge pickup when you’re switched (with a switch) to the other. The normal J bass blend setup uses a dual gang MN or AC taper potentiometer like Mr Mullins pictured.



[PennyroyalWe]

This is the wiring diagram from the Mojotone site. It looks like that pot is meant to add either the neck or bridge pickup when you’re switched (with a switch) to the other. The normal J bass blend setup uses a dual gang MN or AC taper potentiometer like Mr Mullins pictured.

View attachment 5223244

Ah, I see. Well that’s a bummer. Thanks!



[SharpCat]

Build a new control plate with MN250K blend pot and A500K tone, 0.047uF cap as a start, and your choice of B250K (for darker) or B500K (for a bit brighter) LINEAR volume, using @walterw schematic from the linked thread--you will not be disappointed.



[micguy]

Build a new control plate with MN250K blend pot and A500K tone, 0.047uF cap as a start, and your choice of B250K (for darker) or B500K (for a bit brighter) LINEAR volume, using @walterw schematic from the linked thread--you will not be disappointed.

500K's as volume pots are only brighter with the volume dimed - at lower volume settings, they are actually duller than 250K pots.



[Rolling Thunder]

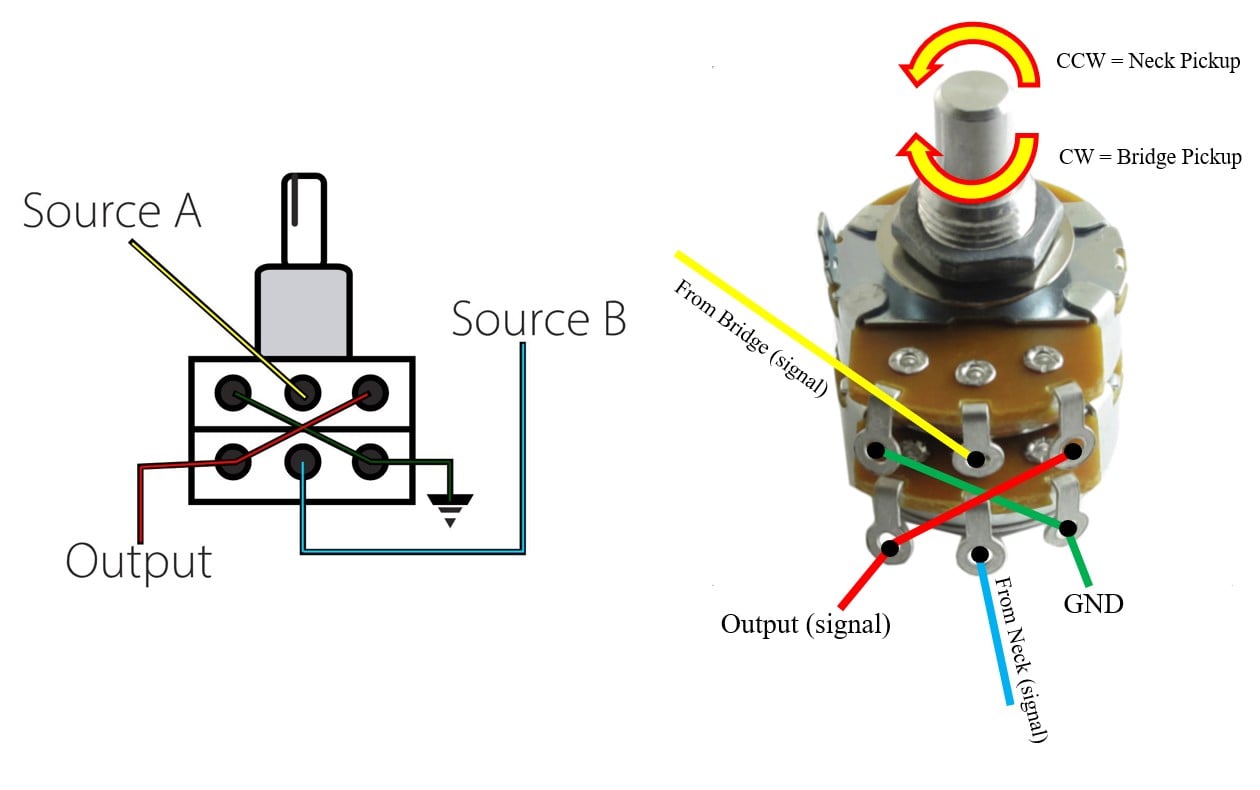

I'm pretty sure that's just a no-load 250k pot that is NOT a blender pot. I'm going to add a blender pot to a P/J bass I'm putting together. You need a single output (red) and crossed grounds so that as one is turned up the other goes to ground in an equal & opposing way (linear pots only, no audio pots). Here's a diagram I made yesterday (the one on the right):



[Rolling Thunder]

I'm pretty sure that's just a no-load 250k pot that is NOT a blender pot. I'm going to add a blender pot to a P/J bass I'm putting together. You need a single output (red) and crossed grounds so that as one is turned up the other goes to ground in an equal & opposing way (linear pots only, no audio pots). Here's a diagram I made yesterday (the one on the right):

View attachment 5223546

I have the pickups backwards in the above labeling. I want 100% CCW to be 100% neck pickup and 100% CW to be bridge. At least that seems intuitive to me.



[Rolling Thunder]

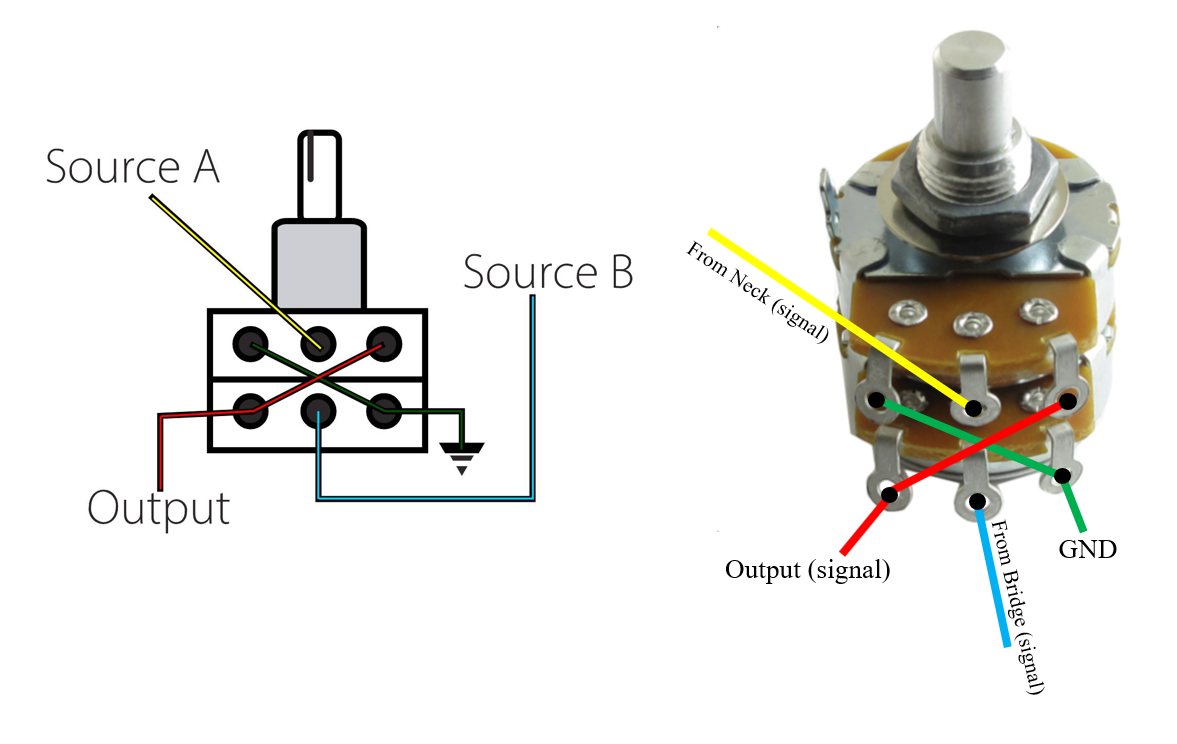

There, fixed it:



[J Wilson]

Aside from the can of worms it opens with The Traditionalists, I had my Squier Jazz rewired for vol, balance, tone, using CTS 250k pots from StewMac. Yielded a blend situation just like most active basses. Don't think the Mojotone is the same thing.



[PennyroyalWe]

Aside from the can of worms it opens with The Traditionalists, I had my Squier Jazz rewired for vol, balance, tone, using CTS 250k pots from StewMac. Yielded a blend situation just like most active basses. Don't think the Mojotone is the same thing.

I’m starting to even lean in the direction of 3-way switch, blend, tone push/pull as a kill switch.

Rarely to never do I actually need the volume for anything other than a mute on the bass, and the 3way switch would allow for isolated pickups w/o the resistance from the other pickup in the circuit at all. That is, if I understand this all correctly.
