my lane poor conversion

I just embedded an octave pedal into my wing bass (avatar), here. It took some time and patience, but totally doable.

Funny, I found this thread right after the first reply, and was thinking either an octaver or phaser would be the way to go. I might do an mxr 90 in there. Simple switch and knob and done. And I love that phaser. Thanks for the link!

i put a strap on it (haha sounds funny), and the thing is a little headstock heavy...slight neck dive. That 24 fret neck put the tuners 2 more inches out. I used a lighter wood body, so it's a little divey. had to order some ultralight hipshots. hopefully that 1/2 pound difference (x the extra length on the neck) will even it out.

Hi TinyE, where/how did you get a modified Bigsby B5 for your bass? I’m looking to use a Bigsby on a short-scale Gretsch bass and I can’t find any site that sells a modified Bigsby.

Thanks in advance!

Hi TinyE, where/how did you get a modified Bigsby B5 for your bass? I’m looking to use a Bigsby on a short-scale Gretsch bass and I can’t find any site that sells a modified Bigsby.

Thanks in advance!

Hey, it's just a standard B5, and I did the mods myself. I just held it still and drilled it! Not very scientific, but it worked. That said, a bigsby on a bass doesn't do a whole lot - doesn'tdive much in tone - but it looks cool. I cant remember where I found the 4 string bridge, but it wasn't easy! I think I googled forever. I may have found it on ebay! I'll see if I can dig it up.

Thanks! Did you just drill into every other hole of the 6 on the bigsby bar to enlarge them for the bass strings, or just drill new holes entirely on a separate side of the bar?

And I agree, the visual of the Bigsby is super cool, I was thinking of using either a mix of high-gauge guitar strings with low-gauge bass strings or piccolo strings to get a hybrid sound between a guitar and bass, which I feel could be fun to use a vibrato bar with.

  • Like
Reactions: Mister_GothFrak
Thanks! Did you just drill into every other hole of the 6 on the bigsby bar to enlarge them for the bass strings, or just drill new holes entirely on a separate side of the bar?

And I agree, the visual of the Bigsby is super cool, I was thinking of using either a mix of high-gauge guitar strings with low-gauge bass strings or piccolo strings to get a hybrid sound between a guitar and bass, which I feel could be fun to use a vibrato bar with.

From this post, I think I just drilled new holes. I honestly can't remember, but I do remember I at least drilled 2 new holes on the outside. The guitar holes were in too far/narrow for the bridge and pickup.

Please post a picture when done. Maybe we should start a bigsby bass club.

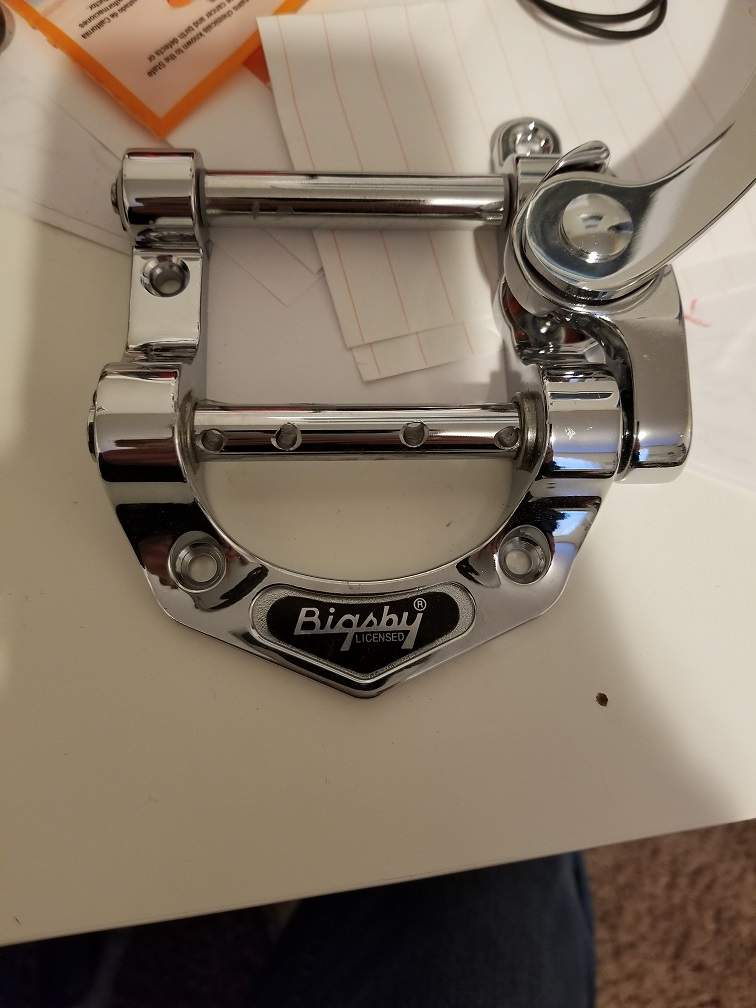

the neck arrived! I got the bigsby drilled, and measured the body. everything is going to fit. It's a close one, but it's going to work out!

To my dislike, I didn't get the holes lined up perfectly, but it's difficult drilling a tube with a hand drill. It's good enough for this proof of concept. The bigsby is really too narrow for a bass, so I had to edge in the outside strings just a skosh. I'm hoping to get that width back by customizing the width of the pieces on the roller bridge I'm working on. More on that to come in a few days.
View attachment 2840470

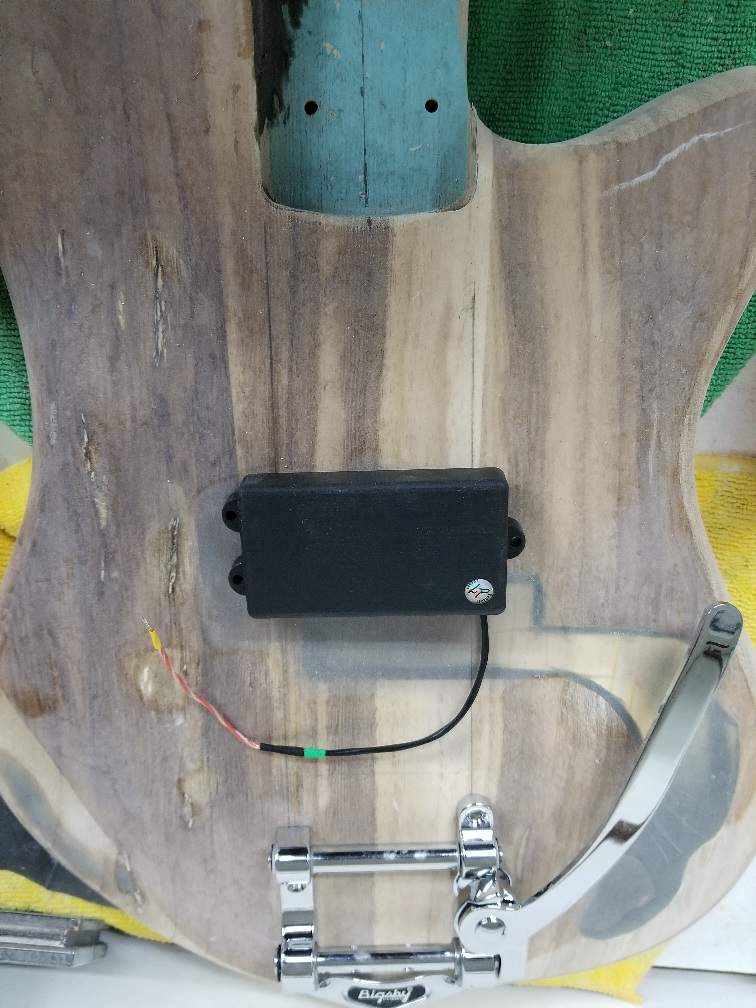

The pickup location looks really high, but it's placed in the picture at 13 1/8 center-to-center. I know it's because of the 24 fret neck i got. Just used to 20 fretters I guess. I may play around with the tone before I actually route out the hole. See where I think it sounds best.

View attachment 2840471

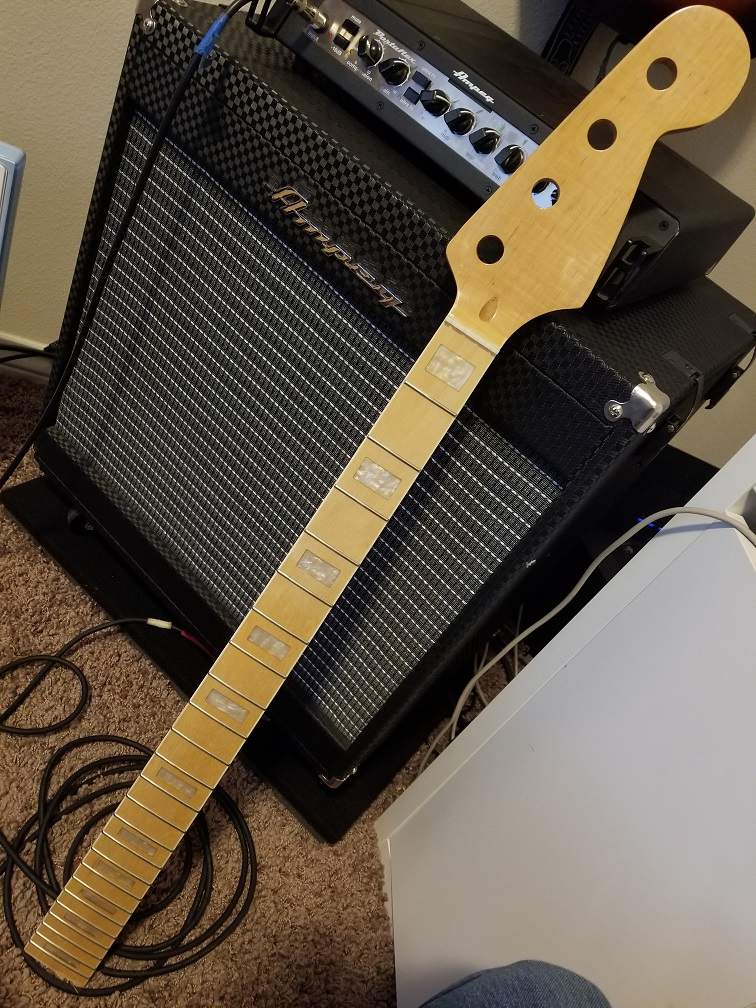

Here's the neck. The nut seems really high, and I wasn't crazy about the pearl inlays, but it was all I could find at short notice. Pretty sure I'm going to paint a matching headstock. I'm also debating about painting the neck. I've never played a painted neck, but I figure if I finish it correctly, it would feel just like a glossed neck. I wonder what big silver flake would look like on the fretboard....

View attachment 2840478

Did you have to add a shim or fix the intonation to account for the extra tension from the Bigsby? And a Bigsby club sounds awesome! I wish they were more common on basses.

I also was looking at some good humbuckers that could be used for coil-splitting. The bass uses default Gretsch mini-humbuckers, so I wasn’t sure if many companies made pickups that would fit into a smaller cavity like that. Any recommendations on that too would be greatly appreciated!

Did you have to add a shim or fix the intonation to account for the extra tension from the Bigsby? And a Bigsby club sounds awesome! I wish they were more common on basses.

I also was looking at some good humbuckers that could be used for coil-splitting. The bass uses default Gretsch mini-humbuckers, so I wasn’t sure if many companies made pickups that would fit into a smaller cavity like that. Any recommendations on that too would be greatly appreciated!


i have none, other than to tell you i love nordstrand and fralin pickups. :)

i didn't need to shim anything. it intonated perfectly. my strings went out of tune a lot at first though, stretching them with that bigsby, but other than that, it rocks. I played out quite a few times with that bass. people would catch me later in the crowd and asked who was playing the sparkly bass. lol.

i have none, other than to tell you i love nordstrand and fralin pickups. :)

i didn't need to shim anything. it intonated perfectly. my strings went out of tune a lot at first though, stretching them with that bigsby, but other than that, it rocks. I played out quite a few times with that bass. people would catch me later in the crowd and asked who was playing the sparkly bass. lol.

Thanks so much for the pickup recommendations! And that’s a relief that it didn’t need any extra work for the intonation.

I was also looking to maybe coil-split the pickups, have you had any experience with that working well on bass guitars?
