My "on the cheap" CNC router build
- Thread starter scottyd
- Start date
I bet it's not bad, They look solid, the electronics that I had from china were junk, but not TOO costly to replace with good ones. Whatever you do... be prepared to be hooked!
I have seen several different spindles, but you are probably correct in that the smaller machines use DC or single phase. Mine use a 1500W 3phase 230V spindle. All the outlets around here delivers 230V single phase, though. I don't think any of the 3040 sized machines use quite as big spindles. No point in it, really.
Hopkins
Commercial User
Either way it wouldn't be a big deal, I have 240v power in my shop so a VFD would be no big deal anyway. I haven't decided if I am going to pull the trigger on one of those small CNC's. I don't really need anything bigger, as I have no desire to stop making bodies and necks by hand, but I am also scared I may out grow it as far as other projects are concerned.
Hopkins
Commercial User
Learning the software is what scares the hell out of me lol
Were the electronics bad enough that they were unusable, or was it just a longevity issue?
The motor drivers I had were terrible, I went through two of the 6560 4 axis drivers. The first one never worked right it would glitch out. The second, worked well but quickly blew out a chip on the x axis, which I moved the motor to the A afterwards (not needing all 4 for my 3 axis machine) and it later blew another. The power supply that came with them was rated higher amps than what it was capable of.
I replaced the chinese 6560 drivers with a Gecko G540, and the power supply with a much better one and things started working better.
Hopkins
Commercial User
Cool, thanks for the info. If I go this rout, I will see if the drivers work ok, if they crap out its no big deal to replace them.

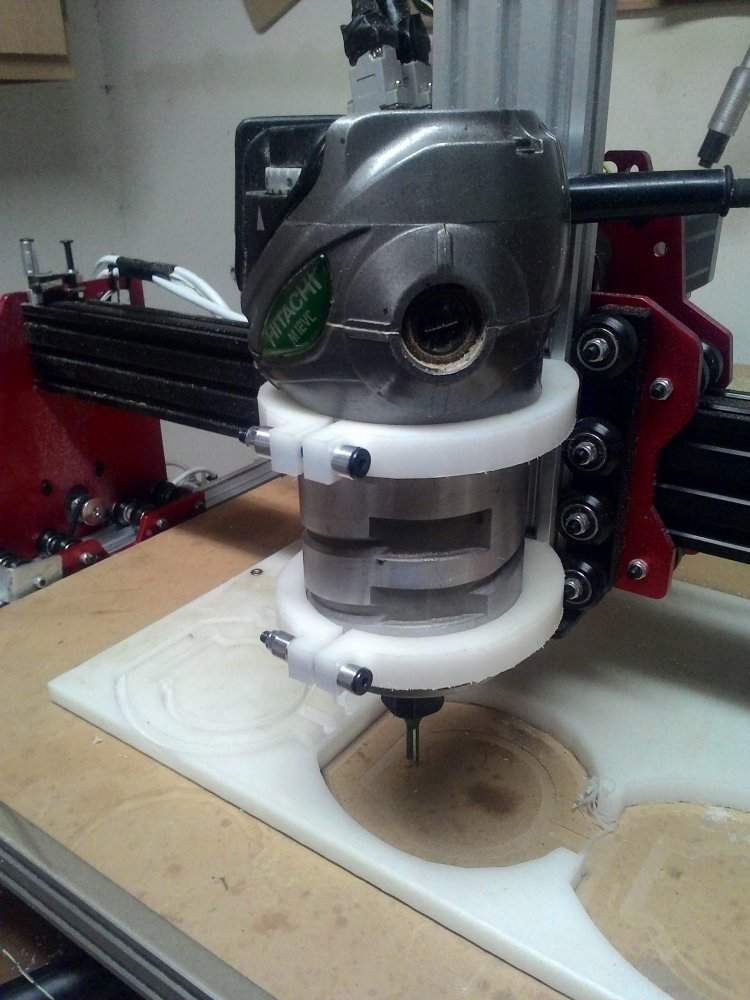

First job for this new machine was for it to create its own router clamps. I will try these delrin ones out and probably eventually cut some from aluminum. Tonight I will cut a dust shoe.
gotta love a machine which can make its own parts! Glad to see it working, fascinating!
Hopkins
Commercial User
That's how it starts, next thing you know they are farming us for energy, haven't you seen the Matrix? LOL
Last edited:
You only have to worry when it starts to realize its making parts for itself.
Hopkins
Commercial User
Whats scary is this one rooms and boards with all of my power saws..
You better stay on their good side, they may turn on you at any minute

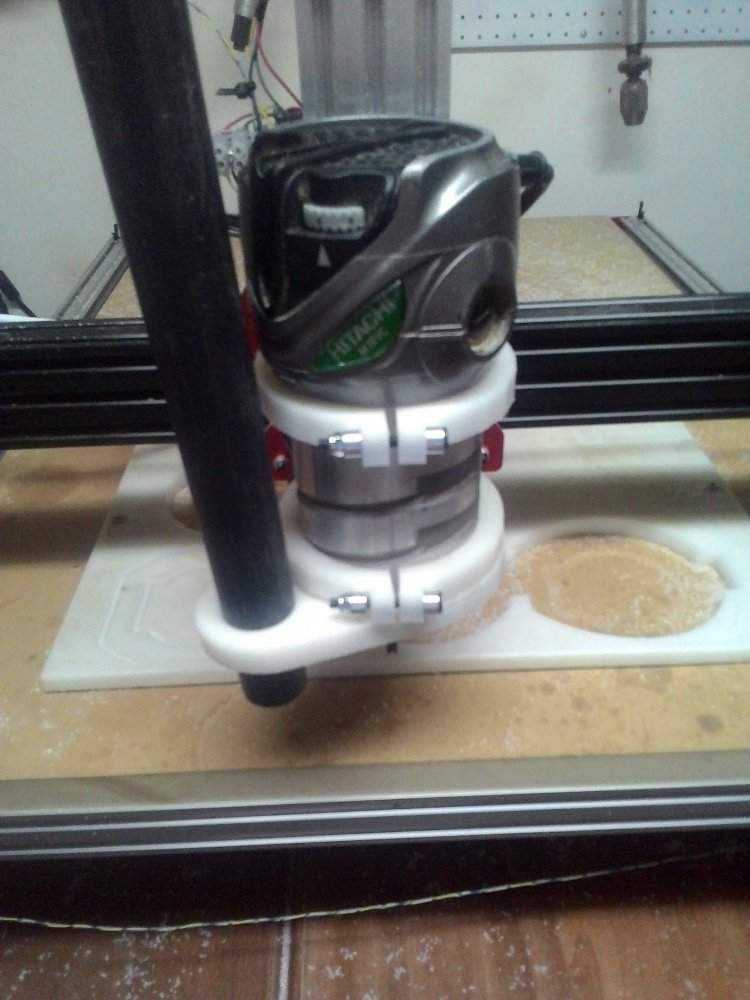

I get home last night to find that the CNC has started making its own dust shoe. At least it likes to keep itself clean.
I designed the dust boot plate to fit and attach to the lower router clamp, it will be held to the clamp with neodymium magnets. The black tube is the attachment for a wall vac that I keep in that corner of the shop. I may have to plumb the dust collector over to it, we'll see. There will be a skirting material that goes around the diameter of the plate to help catch debris. I was considering using the broom style brush material which seems to be the norm for this, but I think I would rather use a clear vinyl or similar so that I can see whats going on with the bit.... as I do not fully trust this thing....
I designed the dust boot plate to fit and attach to the lower router clamp, it will be held to the clamp with neodymium magnets. The black tube is the attachment for a wall vac that I keep in that corner of the shop. I may have to plumb the dust collector over to it, we'll see. There will be a skirting material that goes around the diameter of the plate to help catch debris. I was considering using the broom style brush material which seems to be the norm for this, but I think I would rather use a clear vinyl or similar so that I can see whats going on with the bit.... as I do not fully trust this thing....
Attachments
I'm pretty sure Mr Jones does all the design work in-house for this shop.
At least I hope he does, because I haven't seen him pull his weight in the actual build process
At least I hope he does, because I haven't seen him pull his weight in the actual build process
I'm pretty sure Mr Jones does all the design work in-house for this shop.
At least I hope he does, because I haven't seen him pull his weight in the actual build process
Oh yes, Mr Jones is all about stealing my glory... and my coffee.
