NBD ~ Reverend Sentinel!

[rojo412]

You would definitely be right to, off the bat. Though with it being a 3-way, I'm not exactly sure what the 3rd would be (unless this pickup were actually some sort of quad coil pickup and you could single out blades... but that's implausible to a certain degree).

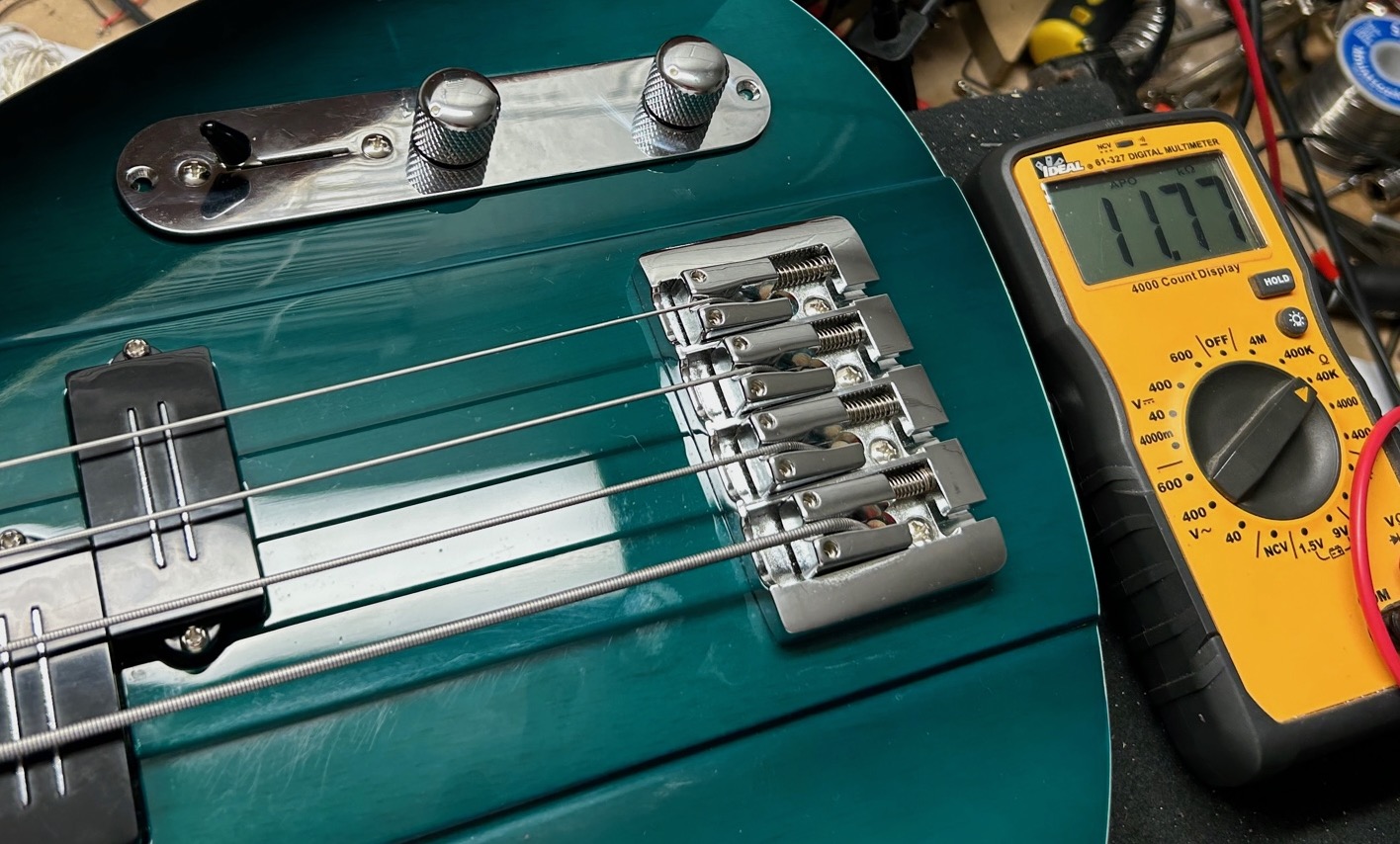

I did meter the pickup for DCR, using the output of the bass to do so and you can see that the switching does some pretty good changing of that:

Deep (front): 11.77k

Normal (middle): 25.65k

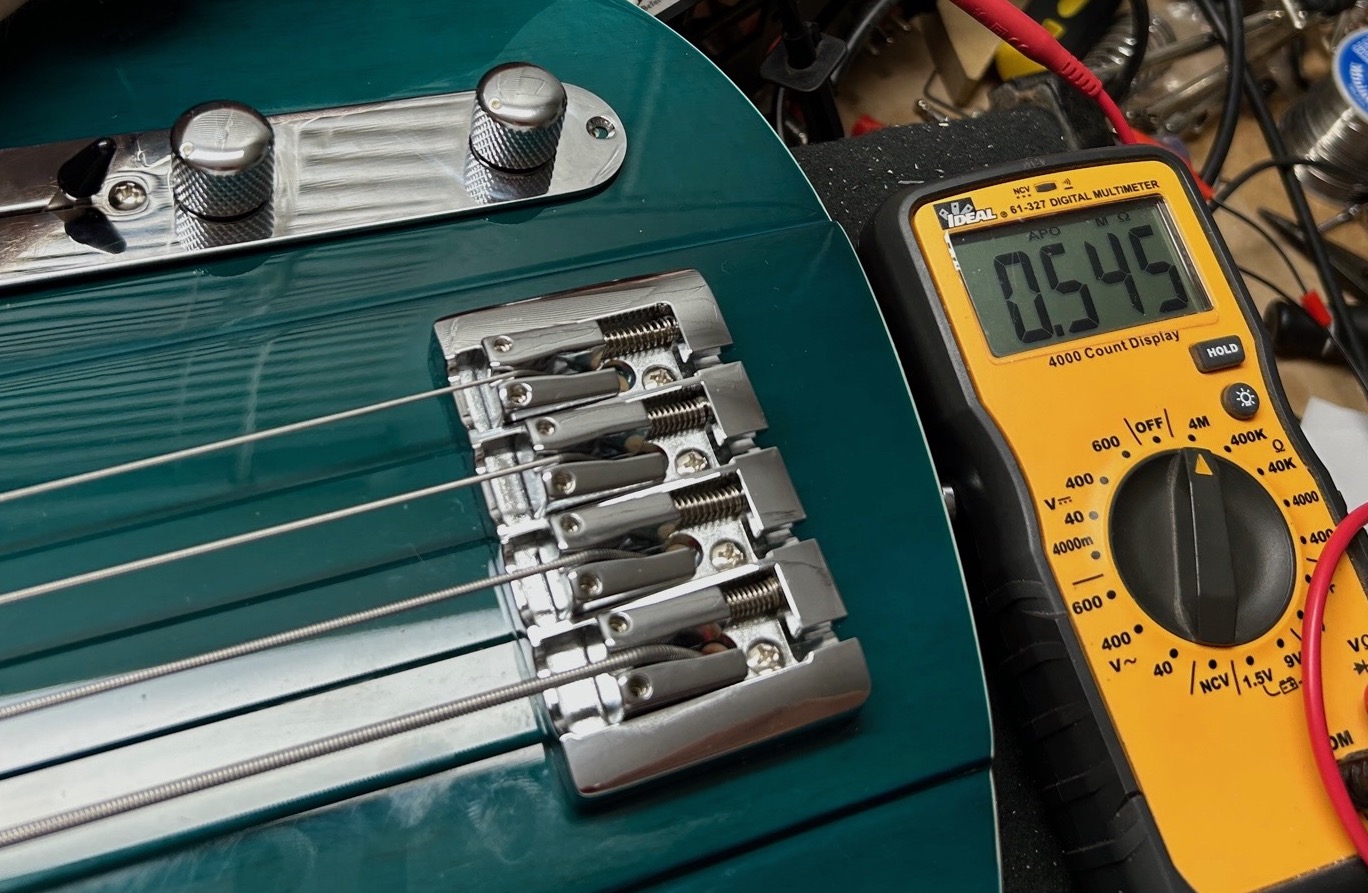

Bright (back): 545k!

(actually had to switch the meter to get a reading)

Again, not 100% sure what the explanation would be for what is going on electronically, but you definitely hear the difference in sound when it is switched.



[Kevin Doyle]

Is the switch essentially doing the same thing as the tone knob?



[rojo412]

No, it changes the "girth" of the pickup output, if I had to describe it. Deep is loud and meaty, normal sounds like more of a regular P, and bright seems thinner and slightly quieter. But they all have clarity which the tone knob can soften.



[Kevin Doyle]

Can anyone make recommendations for a soft case for the Sentinel? The guitar cases I have don’t fit in a long scale bass case is a roomie.



[shoulderpet]

Sorry for bumping an old thread

I also did the dcr test and got very similar readings, I would love to know what is going on, can't be series/parallel as if series was 25k that would make the parallel mode around 6k resistance
