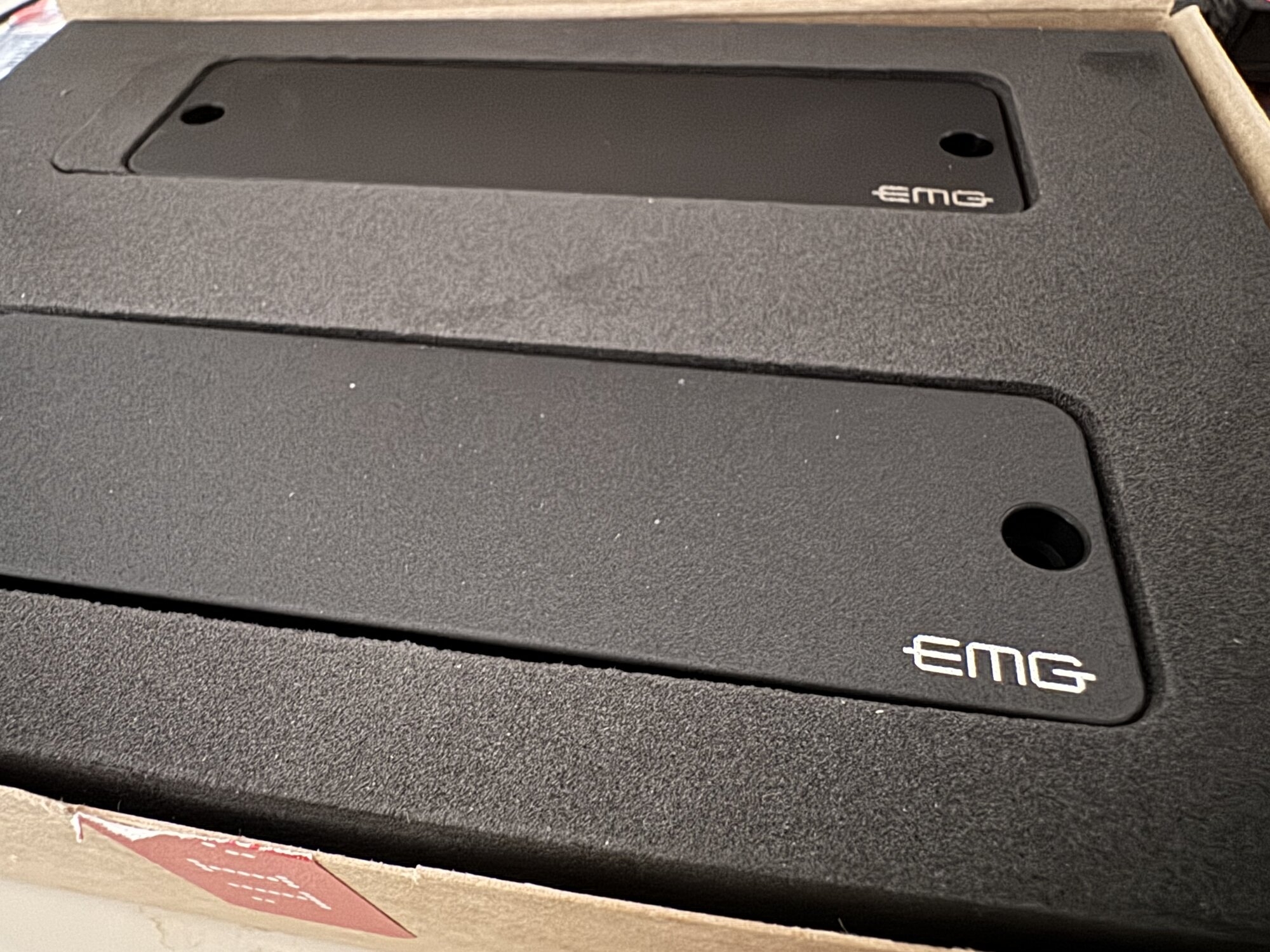

The EMG pickups arrived nicely packaged in foam rubbber.
I started the install by removing the strings from the bridge and then removing the pickups

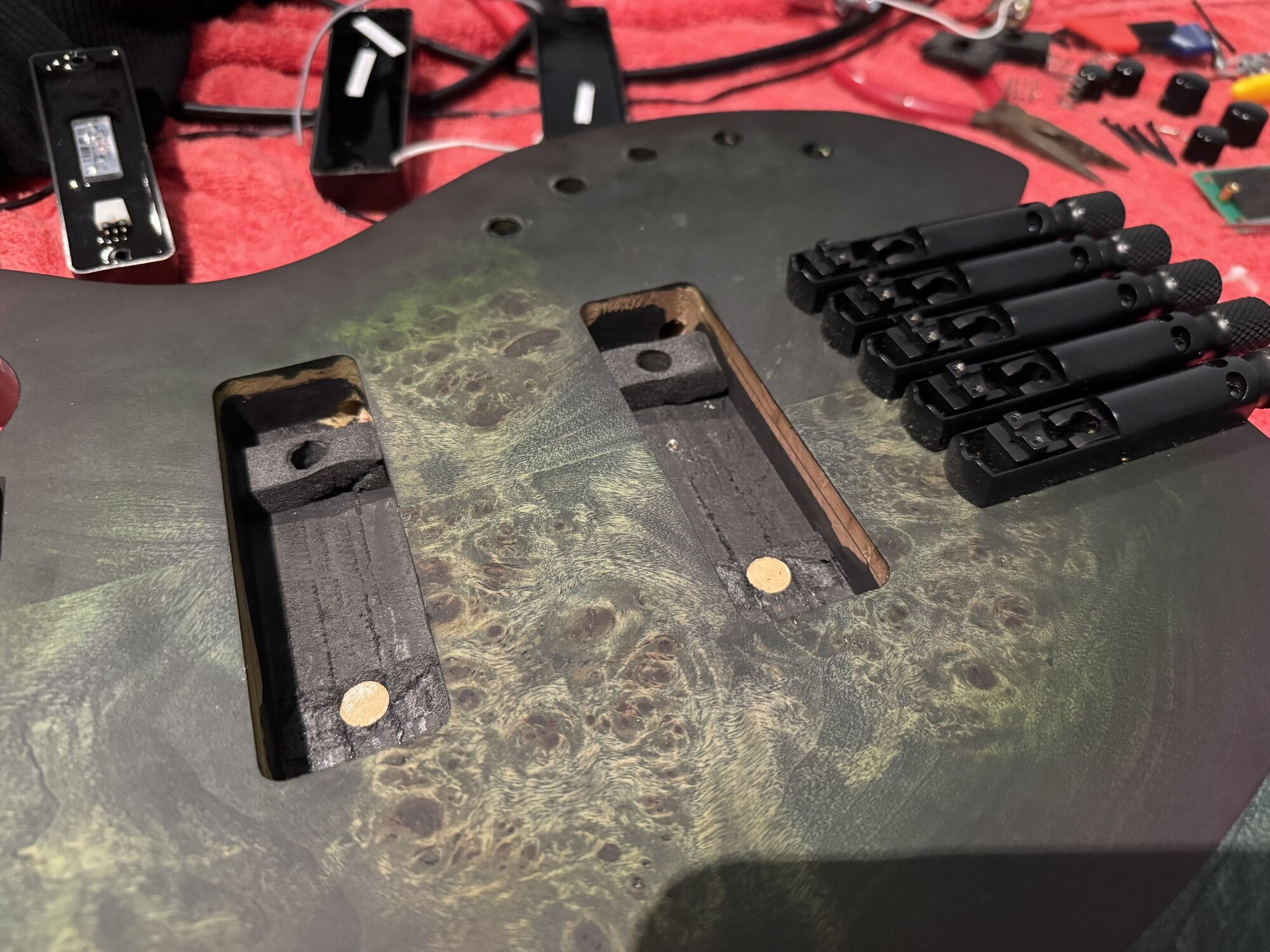

I noted that the foam blocks and springs in the pickup cavity were going to foul on the EMG pickup connections, so I removed them in preparation of moving them towards the centre of the pickup. I later decided to remove the springs, and just rely on the foam rubber.

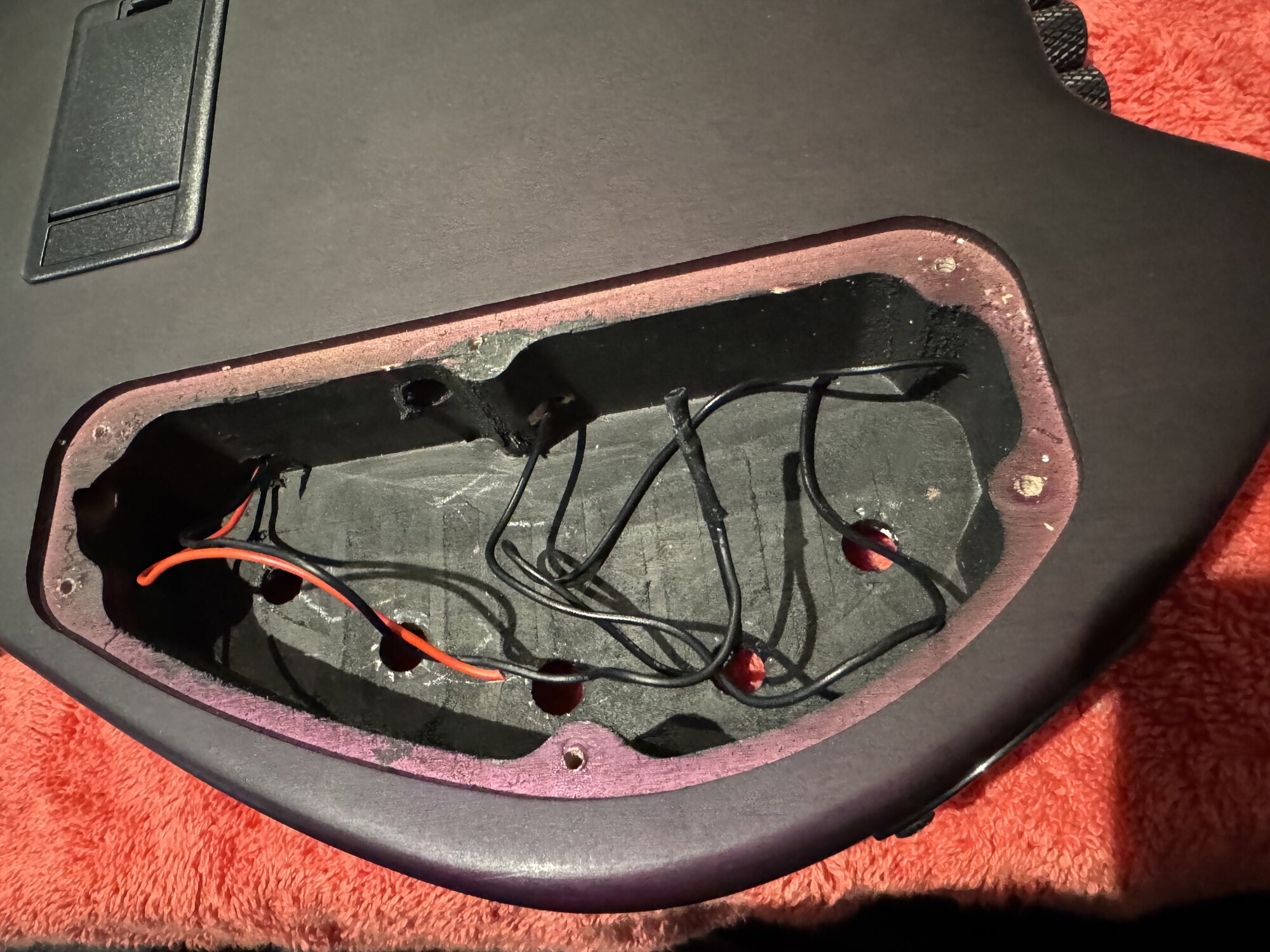

I removed all of the existing electronics, pots and wiring, including the battery box
There's also a wire from the bridge - probably for earthing.

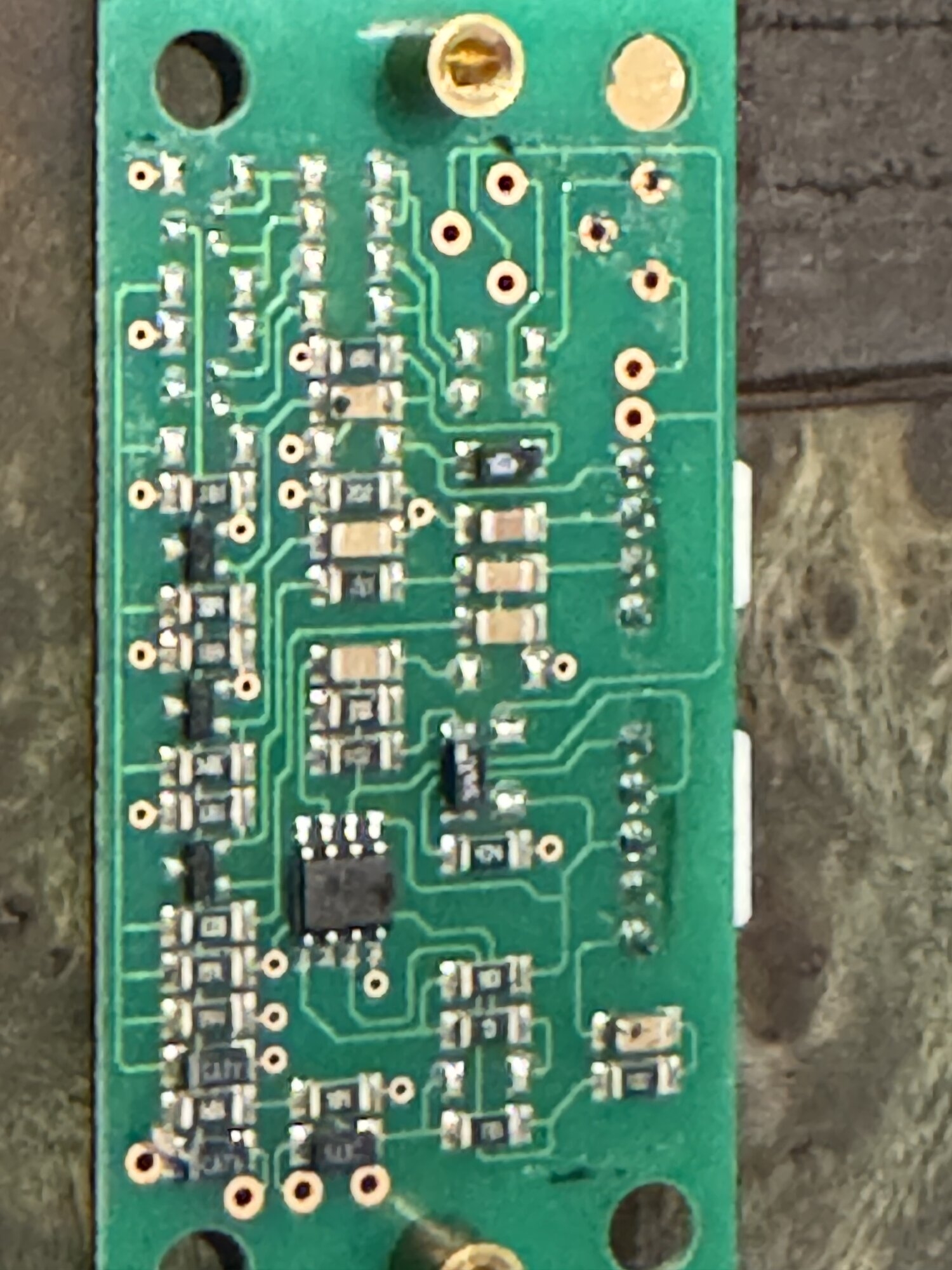

This is the preamp - its not mounted to anything

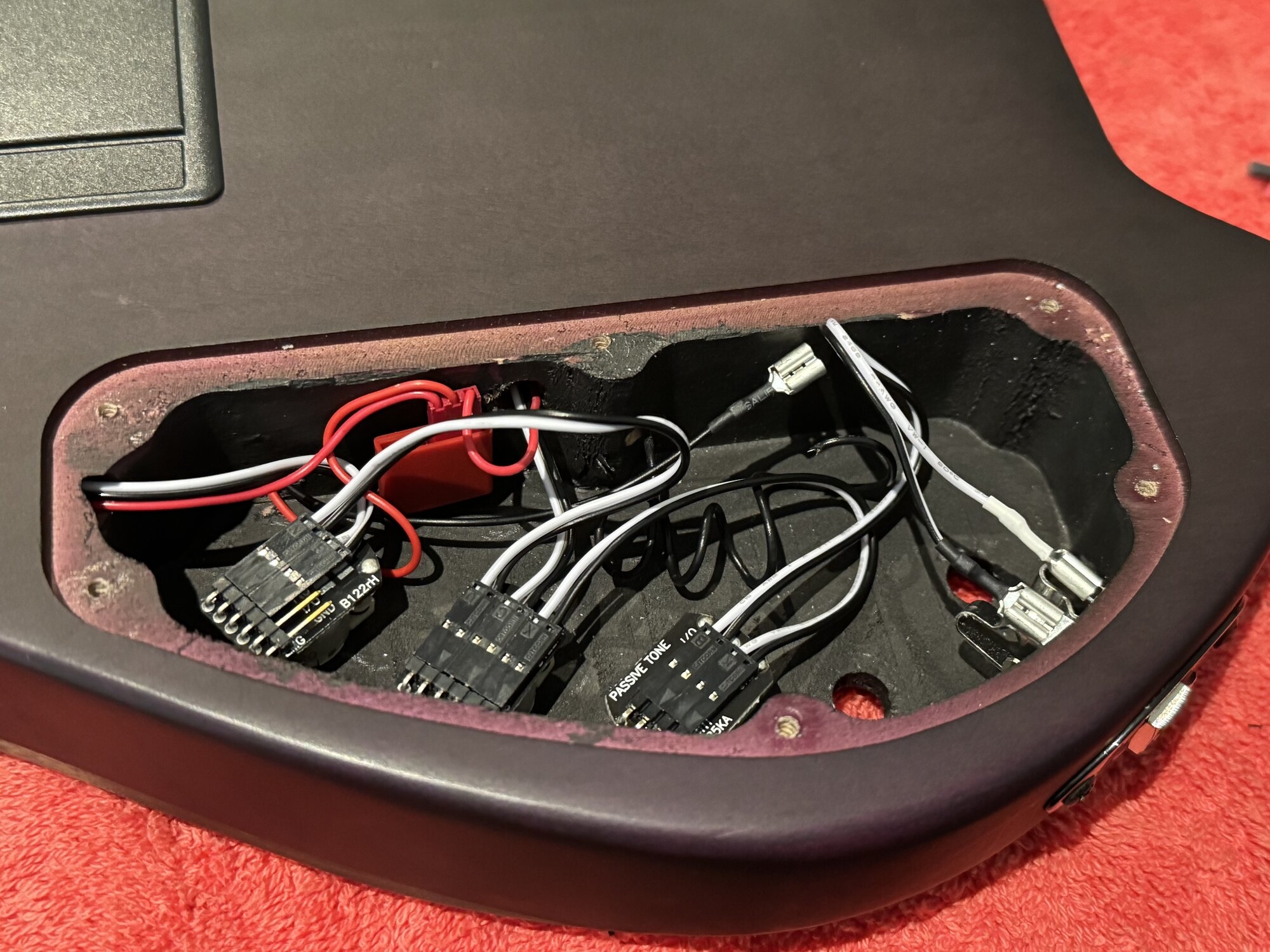

I then mounted the pots, ran the wiring to the pickups, carefully followed the instructions connecting it all up.
I found the earth wire to the 1/4" socket was too short and had to fire up the soldering iron to lengthen it, I also connected that earth wire from the bridge and with some clear heatshrink tube extended the wire to the 1/4 " jack socket.

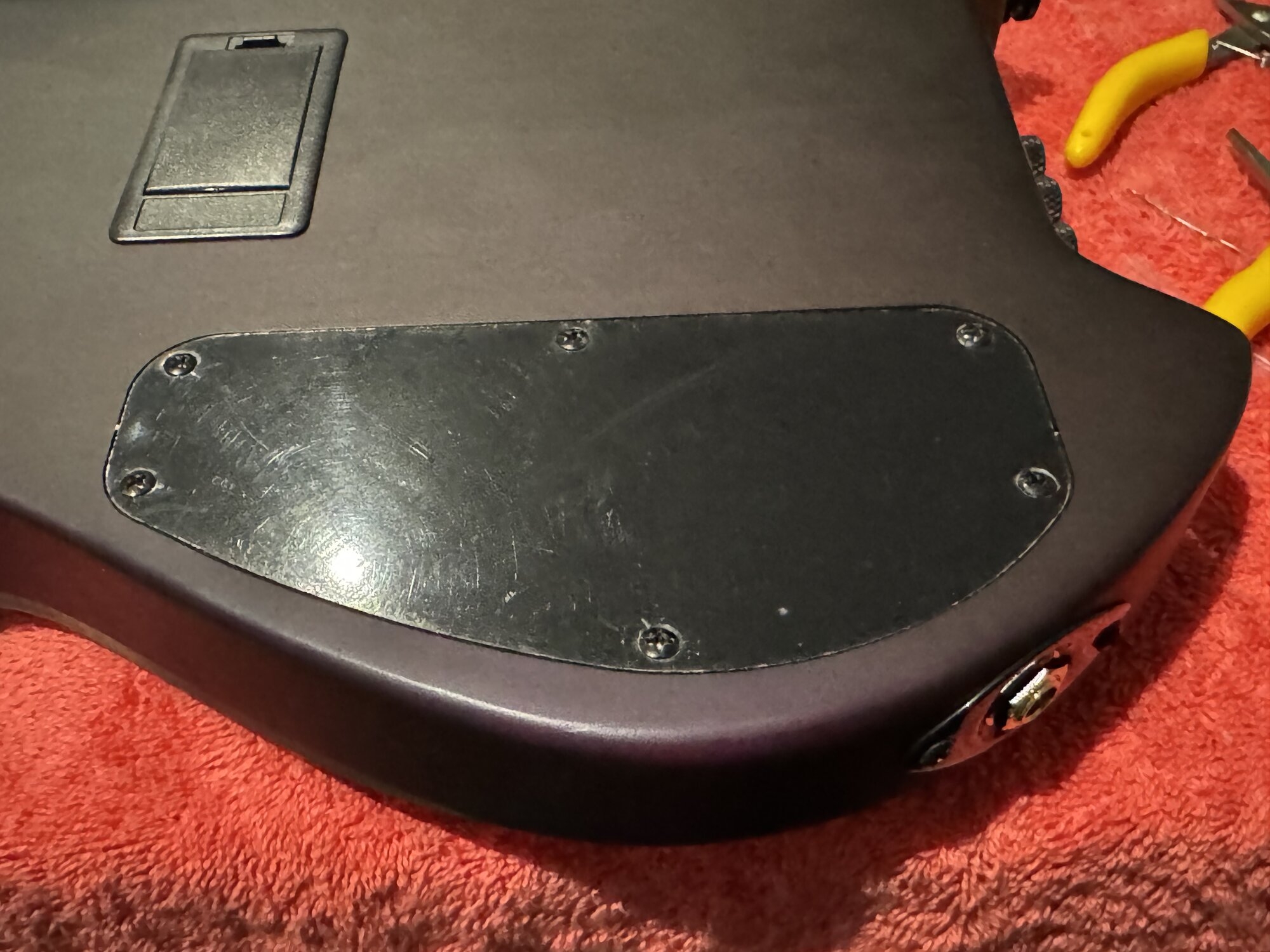

I tested it and then put the cover back on - ( if you put the cover back on and then test it, you jinx it! )

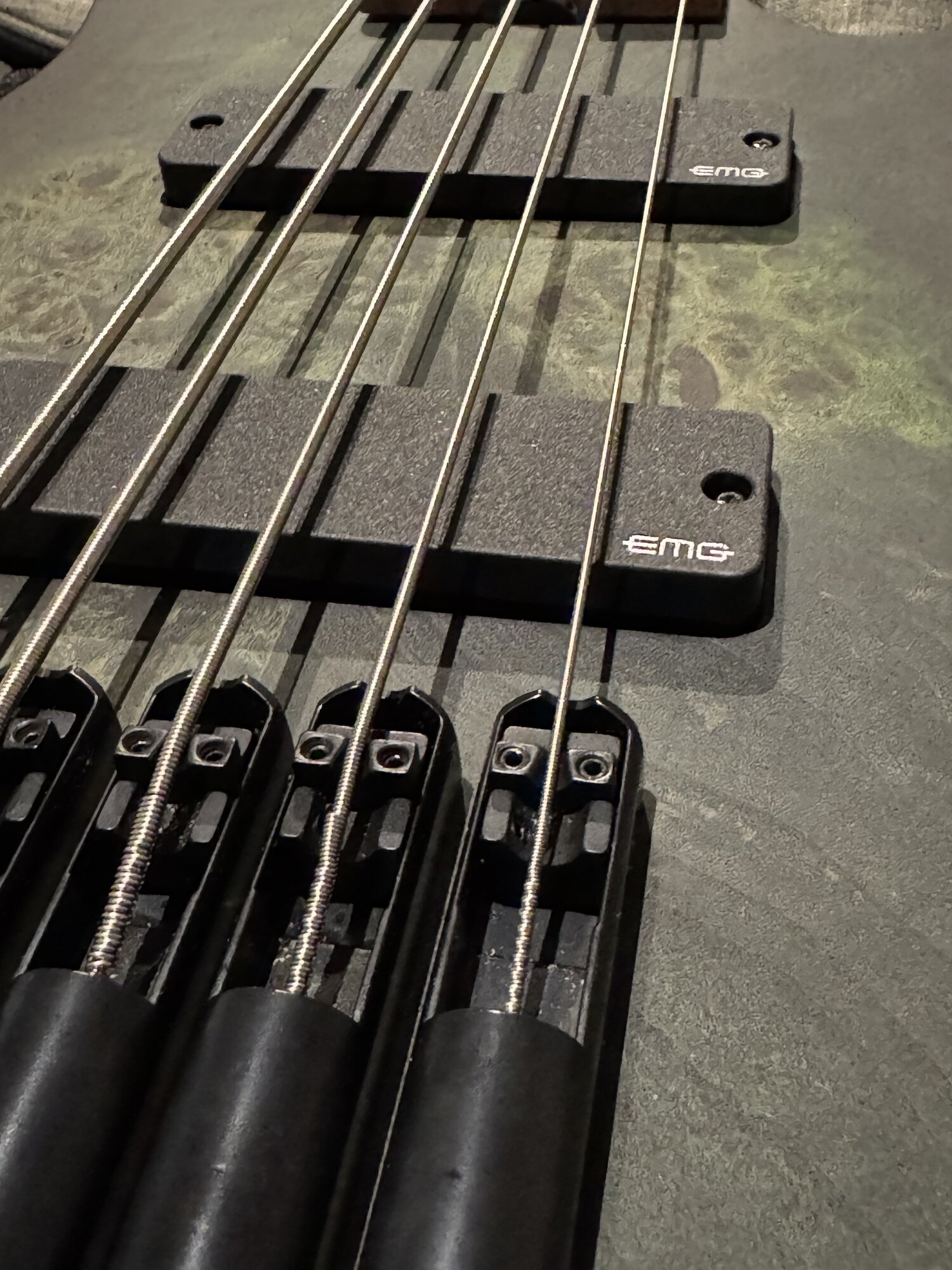

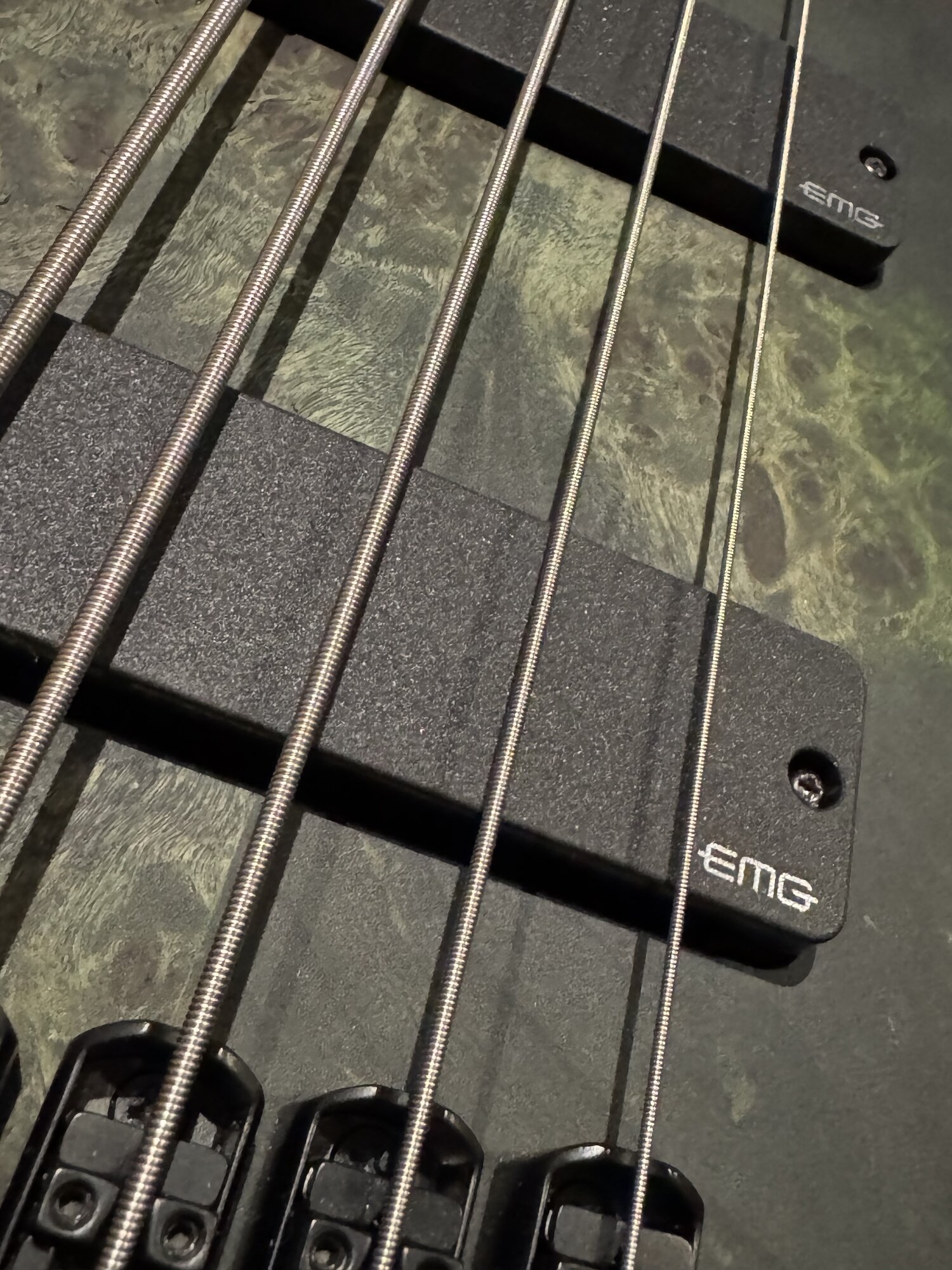

and there you go! - EMG powered Space 5
ohhh and how does it sound ? - smoother - less harsh than the original pickups and pre amp. nice clarity ,
