New GK Plex Preamp

[fjadams]

The 1/4" output is a balanced Tip Ring Sleeve and is designed to drive the MBP. Use a cable with 1/4" TRS on one end and a n XLR on the other.
RAG

Thanks for the reply. and to the two previous posters for the proper cables.
Makes me closer to getting one of these as it'd take care of most if not all of my needs.

For the people who already have one. Is the tuner fast and accurate enough to use for setting intonation? I currently use a Boss TU-3 for that but if the Plex took care of that too I'd give the Boss to a nephew.



[rag]

A cable like this one from the 1/4 out.
Livewire Advantage Interconnect Cable 1/4" TRS Male to XLR Male

You got it!
RAG



[mmbongo]

When on a pedal board, would prefer a right angle 1/4" end. https://www.amazon.com/gp/product/B00GZY5938/ref=oh_aui_detailpage_o01_s00?ie=UTF8&psc=1

The right angle probably would not work with the Plex. Unless you could route it straight down, it would block the power jack or the effects loop jacks. Which brings up a good point...unless it's last in your chain and goes straight to your amp it's not very pedalboard friendly.



[mmbongo]

Thanks for the reply. and to the two previous posters for the proper cables.
Makes me closer to getting one of these as it'd take care of most if not all of my needs.

For the people who already have one. Is the tuner fast and accurate enough to use for setting intonation? I currently use a Boss TU-3 for that but if the Plex took care of that too I'd give the Boss to a nephew.

Yeah the tuner works fine, definitely better than a Boss



[sisos]

turning the master button,, will affect the exit di?



[invalidprotocol]

Yeah the tuner works fine, definitely better than a Boss

I tuned with it then followed up with a strobe tuner to compare. It is pretty accurate.



[mmbongo]

turning the master button,, will affect the exit di?

Master volume does not affect the DI.



[sisos]

Master volume does not affect the DI.

and how I will give to the PA Channel more gain out?



[mmbongo]

and how I will give to the PA Channel more gain out?

I'm no expert on such things, but that's normal for a DI. Every amp I have is a fixed level DI output. But to maybe answer your question, the PA should have a gain adjustment on each channel.



[rag]

turning the master button,, will affect the exit di?

The DI is not affected by the MASTER.
RAG



[rag]

The right angle probably would not work with the Plex. Unless you could route it straight down, it would block the power jack or the effects loop jacks. Which brings up a good point...unless it's last in your chain and goes straight to your amp it's not very pedalboard friendly.

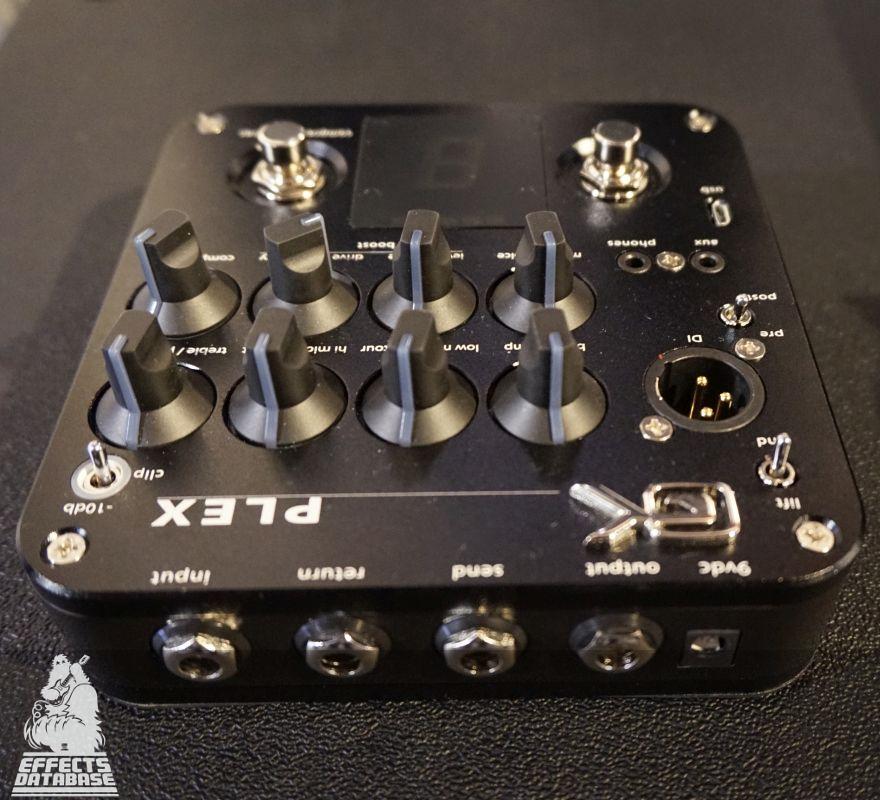

We chose to put all the I/O on front side to save space side to side.
RAG



[sisos]

[Quote = "κουρέλι, post: 19300789, μέλος: 31102"] Το DI δεν επηρεάζεται από τον πλοίαρχο.
RAG [/ quote]
The output 1/4 influenced by the master?



[rag]

[Quote = "κουρέλι, post: 19300789, μέλος: 31102"] Το DI δεν επηρεάζεται από τον πλοίαρχο.
RAG [/ quote]
The output 1/4 influenced by the master?

The 1/4" output is controlled by the master the DI and the send are not.
RAG



[mmbongo]

We chose to put all the I/O on front side to save space side to side.
RAG

Which I do like! I guess 'not pedalboard friendly' is a bit harsh...more like 'not right angle cable friendly'. You'd have to be able to run right angle cables straight down in order to use them.



[rag]

Which I do like! I guess 'not pedalboard friendly' is a bit harsh...more like 'not right angle cable friendly'.

Life is full of compromises.
RAG



[sisos]

The 1/4" output is controlled by the master the DI and the send are not.
RAG

ok thanks,the master button what serves?



[rag]

ok thanks,the master button what serves?

Sorry I don't understand your question.
RAG



[sisos]

Sorry I don't understand your question.
RAG

When I connected to the pa system through the di out, by varying the master, will I have gain volume out?



[sisos]

Sorry I don't understand your question.
RAG

When I connected to the pa system through the di out, by varying the master, will I have gain volume out?



[mtsens1]

Right angle 1/4" works for me. YMMV.
