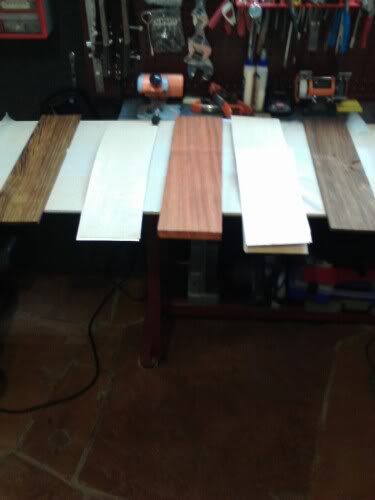

started out with cocobolo front and back, padouk body, and maple neck with padouk

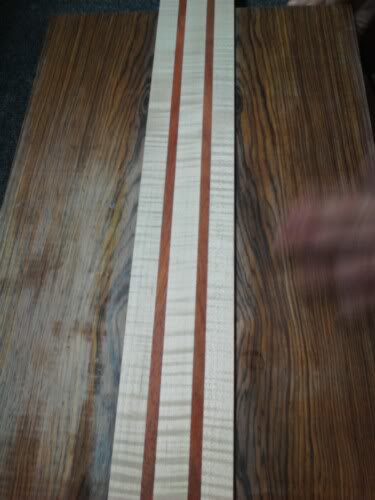

I used a two thin maple sheets as well in the body to define the padouk and cocobolo

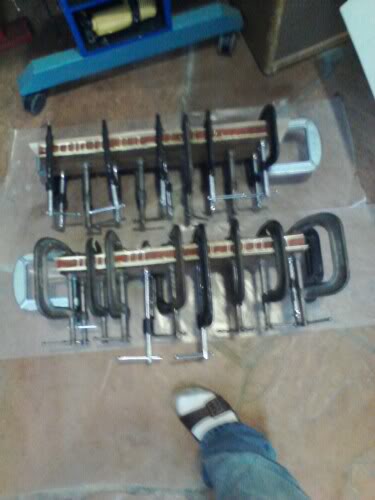

body being glued

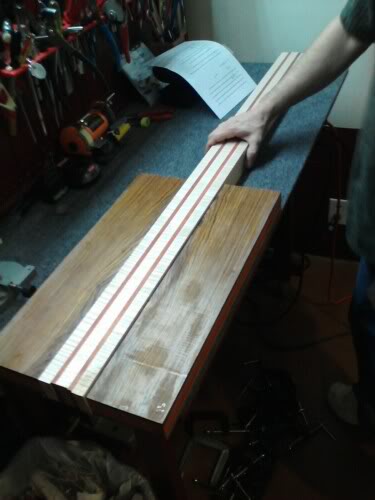

body laying beside the neck after glue job on all three pieces
after this i added some padouk on the inside of the body to give it more width

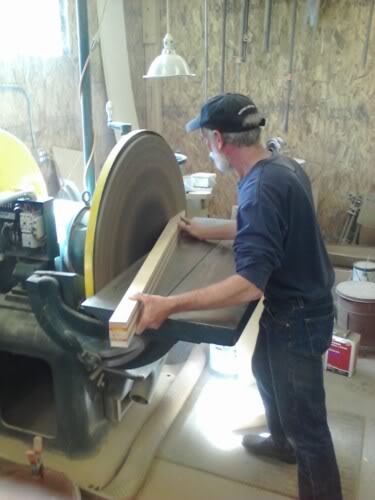

sanding for the headstock angle

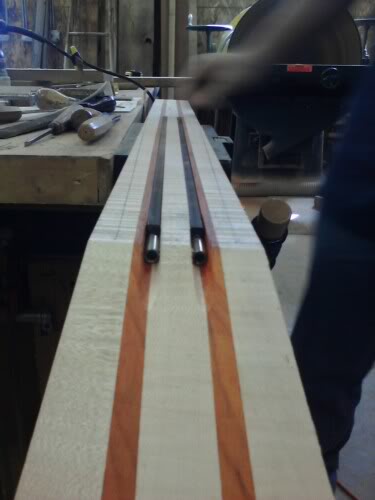

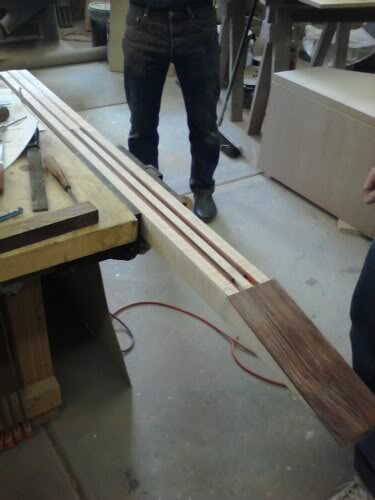

and after routing with truss rods.

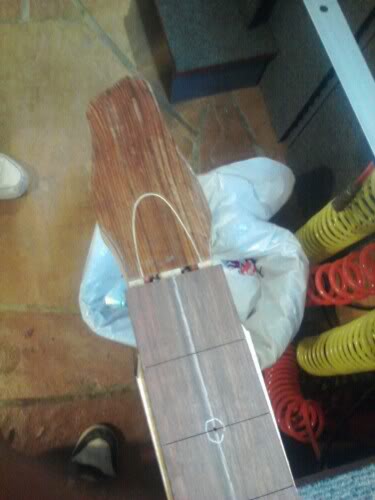

headstock top (cocobolo)

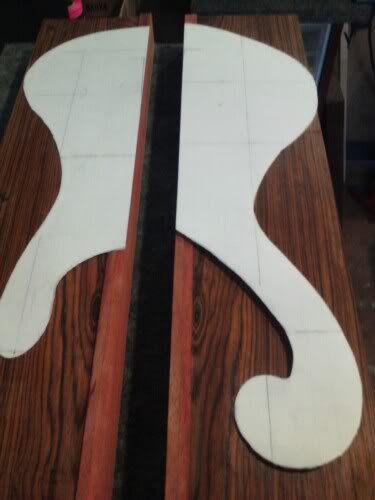

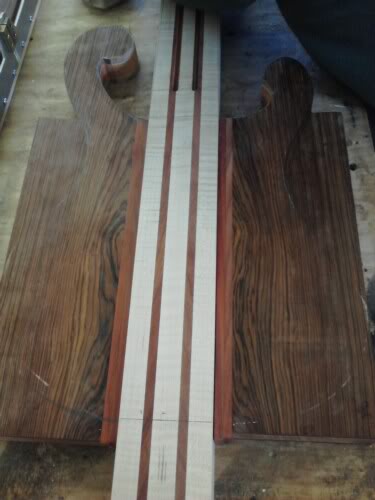

body shape on the wood (my own design). Originally this isnt what i planned (if you notice the paper cutout is slightly different from the cut) but i thought the sharp edge on the right horn looked kind of cool. reminds me of a rickenbacker maybe

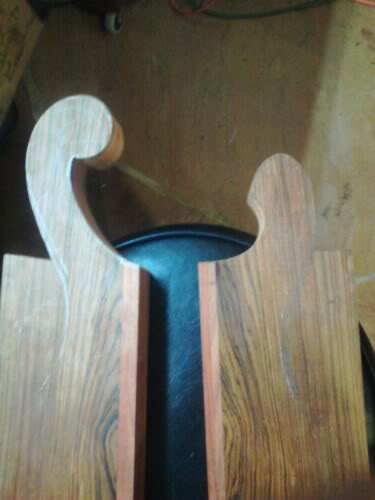

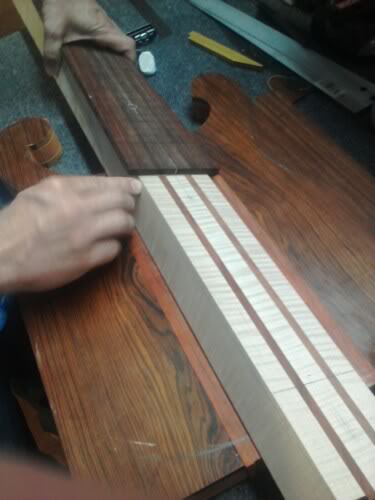

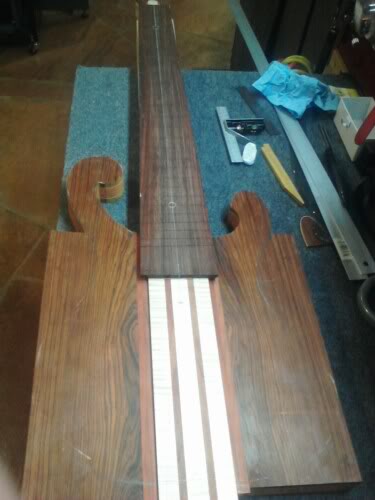

after the horns cut and then the fretboard (rosewood) put on. I have yet to taper it so right now the fretboard is huge.
I left the sides uncut to give myself a larger surface to clamp when i put the body on and when i route for the electronics.
still got a ways to go but its gettin there! this is my first build but i have a luthier helping me along the way. I plan on putting q tuner BL-6 pickups in it and haven't quite decided on a bridge or tuning machines yet. i'll post more when i finish. tell me what ya think!
