that will be easy troubleshooting to do , i will look at it
Enjoy the benefits of a premium membership!
Upgrade Account
-
TalkBass has been independent since 1998. Add your voice.
Create a free account to reply to discussions, view embedded media, and browse with fewer display ads.
Join free Log in
Want zero display ads or expanded classifieds tools? Compare plans.
No sound from Bass
- Thread starter Azagorath
- Start date
-
- Tags
- bass preamp no sound pick ups sound
Time to take a peek under the hood, so to speak... unsure what the battery has to do with getting a signal out in passive mode... tell me you can play this thing without a battery.
from last time i checked it was soldered in , i can re-soldered the wires just to be sure
i was looking at all the wires in and put of pickups and preamps , nothing loose there.

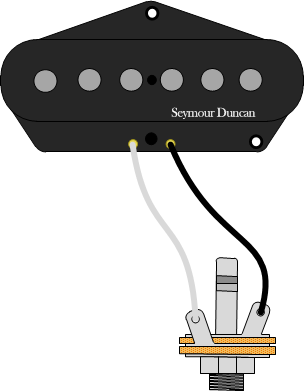

If you're certain the preamp is bad, wire the pickup(s) straight to the jack to eliminate the pickup(s) as being faulty.
i tried to test your idea . Got to no where assuming . I think at this point i will end up taking it to a shop

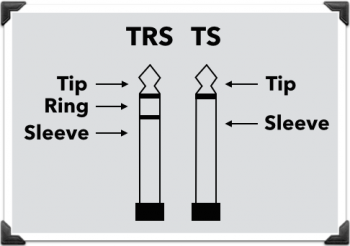

make sure you didn't solder one of the leads of the pickup(s) to the "Ring" terminal of the TRS (Tip-Ring-Sleeve), because the Ring is the one that turns the battery on.
make sure you didn't solder one of the leads of the pickup(s) to the "Ring" terminal of the TRS (Tip-Ring-Sleeve), because the Ring is the one that turns the battery on.
i will try again i think i connected to the ring instead
If you're not sure which is which, use your Ohm meter to check continuity between the terminal & the tip spring.
If you're not sure which is which, use your Ohm meter to check continuity between the terminal & the tip spring.
unfortunately i don't have ohm meter , but i think i know what i did wrong. . I will try again tomorrow and see if i can get any results

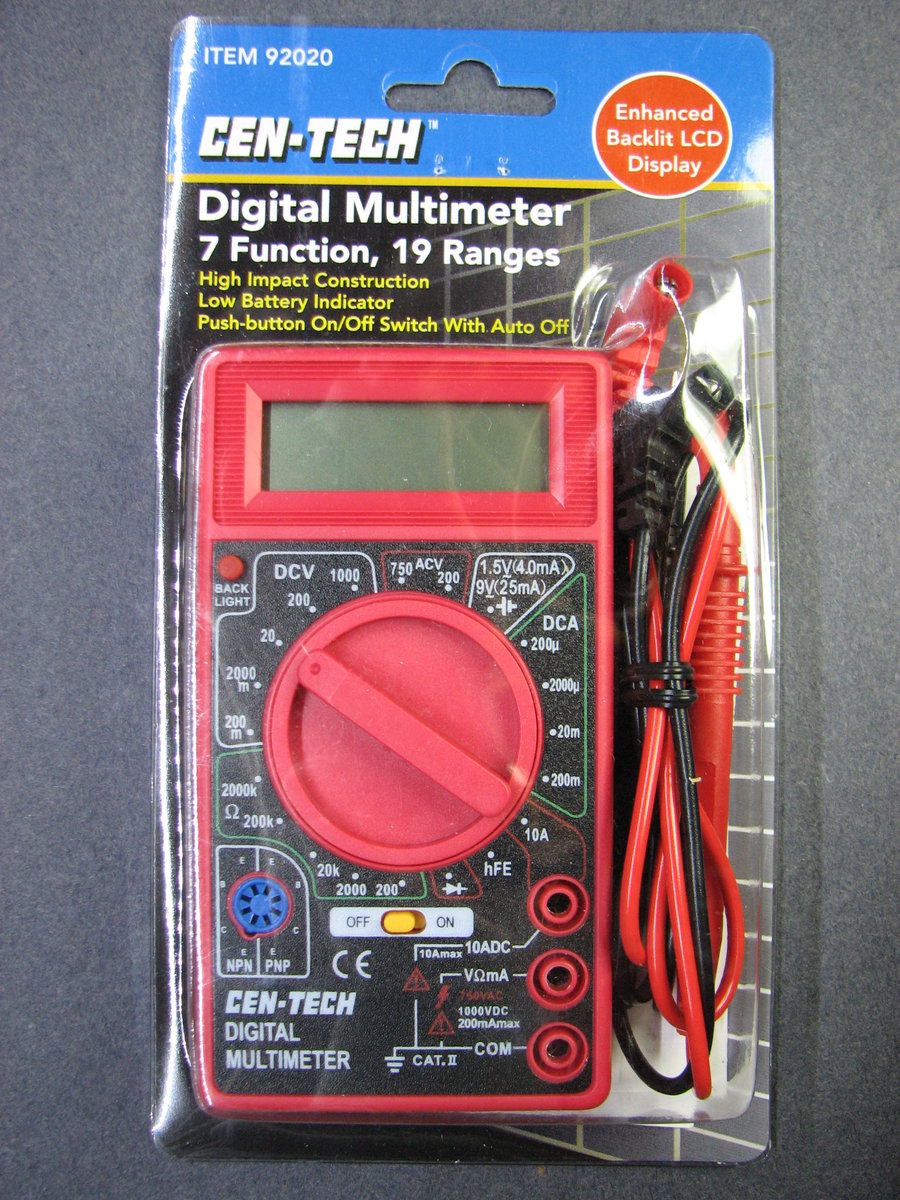

If you're near a Harbor Freight, they have multimeters for about $6.
for an extra $ you can get one that is backlit, so you can read it in the dark
for an extra $ you can get one that is backlit, so you can read it in the dark
If you're near a Harbor Freight, they have multimeters for about $6.
for an extra $ you can get one that is backlit, so you can read it in the dark
yeah i have hardware store close by but close now , i will pick one up
its very frustrating trying to find the culterpitIf you're near a Harbor Freight, they have multimeters for about $6.
for an extra $ you can get one that is backlit, so you can read it in the dark
