Noble Frequency Response

[JKos]

Hello,
Does anyone have or know where to find frequency response sweeps of the Noble preamp/DI at various settings?

I have googled with no success thus far. The only thing I found is a suggested 10-band EQ setting for a single setting.

Thanks,
John



[JKos]

No one? Anyone that owns one want to capture some data?



[Slaymus]

It’s not remotely scooped, it's nice and flat as the lord intended it to be. Noble clearly advertises a roughly 700Hz “cut” effect when both EQs are up high enough—story checks out—and a glorious noise it makes, too. But any shelf EQ will have that effect. Any accusations of #noblesoscooped is nonsense.

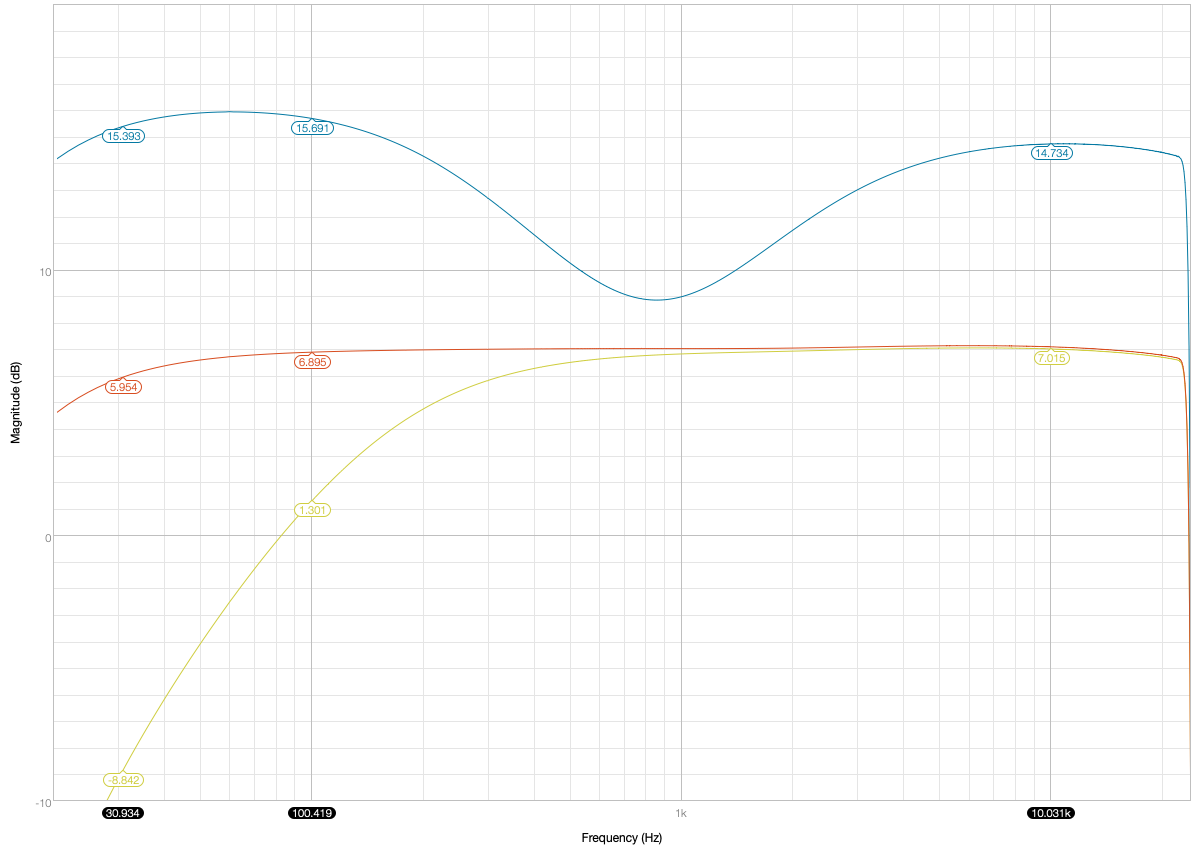

(EDITED) Here's a more accurate measurement than the homespun one I put up earlier. The red is flat, blue is bass and treble at noon, creating the 700Hz dip, and the green is the HPF switch engaged.
View attachment 3760981

Also check out these posts in the Noble thread : #2306 #2316 #2318



[JKos]

Thank you! I just wasn't using search words that picked up those posts.

For anyone else curious...
Noble Amps Preamp, #2298
Noble Amps Preamp, #2306
Noble Amps Preamp, #2316
Noble Amps Preamp, #2318
