P/P wiring diagram

[bass_69]

I have exhausted myself googling trying to find one of these.. Does anyone here have any P/P wiring schematics ? I am looking for just volume/volume (no tone control).. How I have set it up at the moment is when I turn the volume off one one pickup, it turn both off. Not sure if there are series and parallel wiring options.. Any help would be mucho appreciated..



[Human Bass]

Im far from being sure, but I guess each P pup has to be wired in series, but they have to be wired in parallel between them, so each one has its individual volume.



[line6man]

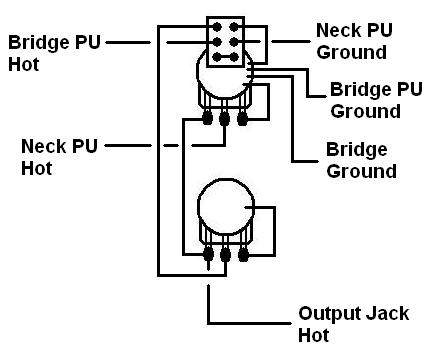

Assuming that you wanted a series parallel switch for the 2 pickups to each other, here is a schematic.

Unless you wanted series parallel switches for each pickup, or a combination of all 3 series/parallels. I can it up for anything you want.



[JTE]

Get the wiring diagram for a Jazz bass, and eliminate the tone control wiring. Two volumes in parallel just like a J bass. Easy and simple.

jte
