PJones BG27 with Mesa Subway 112 and

[Sml175]

Powered by a Phil
Jones BP200 (10 hours in it). Looking to sell the BP200 as my neighbor is selling me his brand new Mesa D350 for 600.00! He used it 1 hour and wants more power. Anyway, can I use the Mesa 350 with these two cabinets? Thanks



[agedhorse]

Should be fine with just a small amount of common sense.



[Sml175]

Exactly what I was thinking. Could not pass up that price on a brand new Mesa!!!!! And no, I did not tell the wife!



[Sml175]

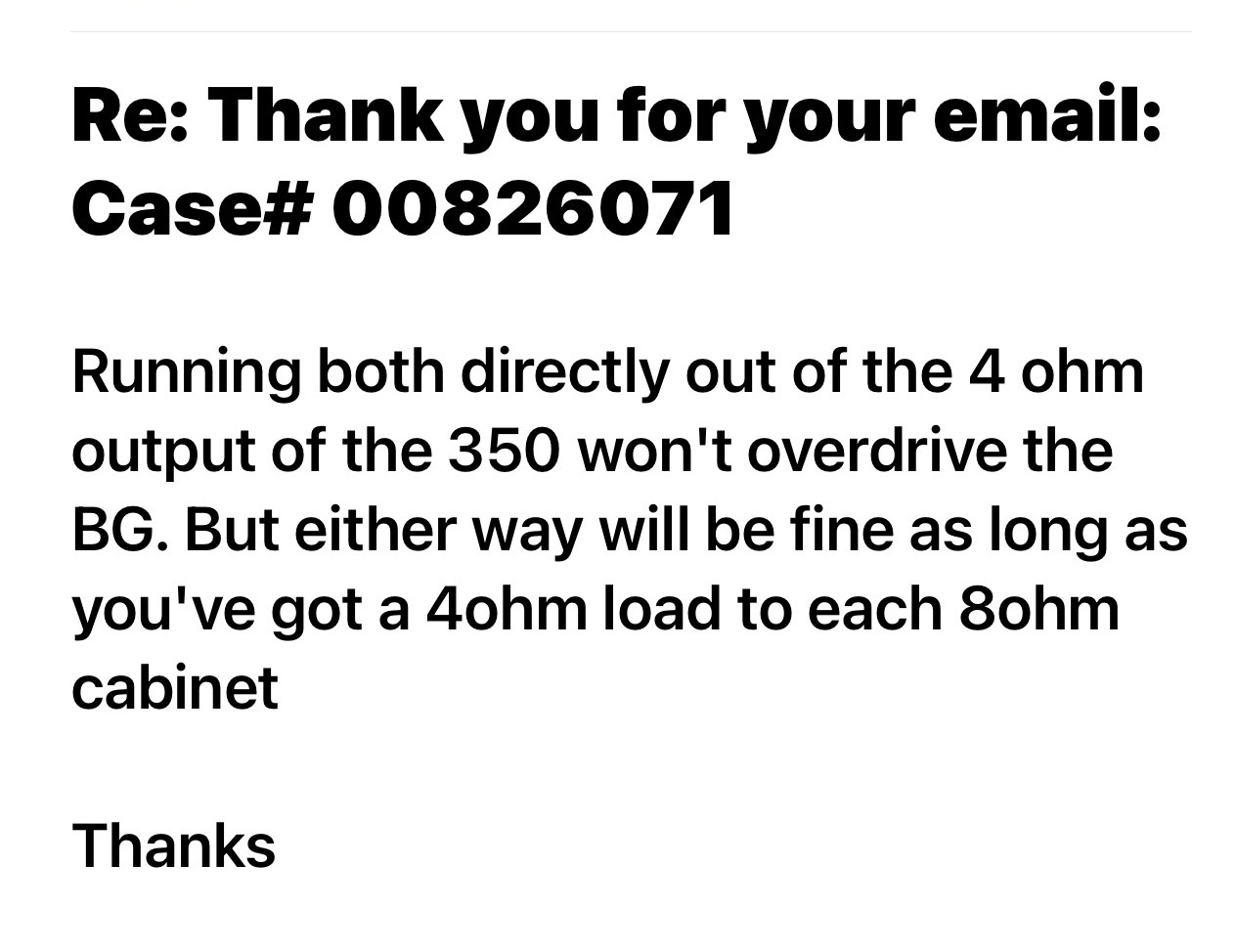

UPDATE: Mesa wrote back. Stated to use two Speakon cables one out of each 4ohm output. Should be fine he said. Thanks



[agedhorse]

UPDATE: Mesa wrote back. Stated to use two Speakon cables one out of each 4ohm output. Should be fine he said. Thanks

Wait a minute, there isn't a "4 ohm output" jack.

Both jacks are wired in parallel, according to PJB your cabinets are 8 ohms each and not offered as a 4 ohm cabinet, so either a cable from each amp speaker jack to each cabinet OR from one of the amp jacks to the first speaker and from the first speaker to the second speaker are exactly the same. Your total load will always be 4 ohms with 2 x 8 ohm speakers in parallel.



[Sml175]

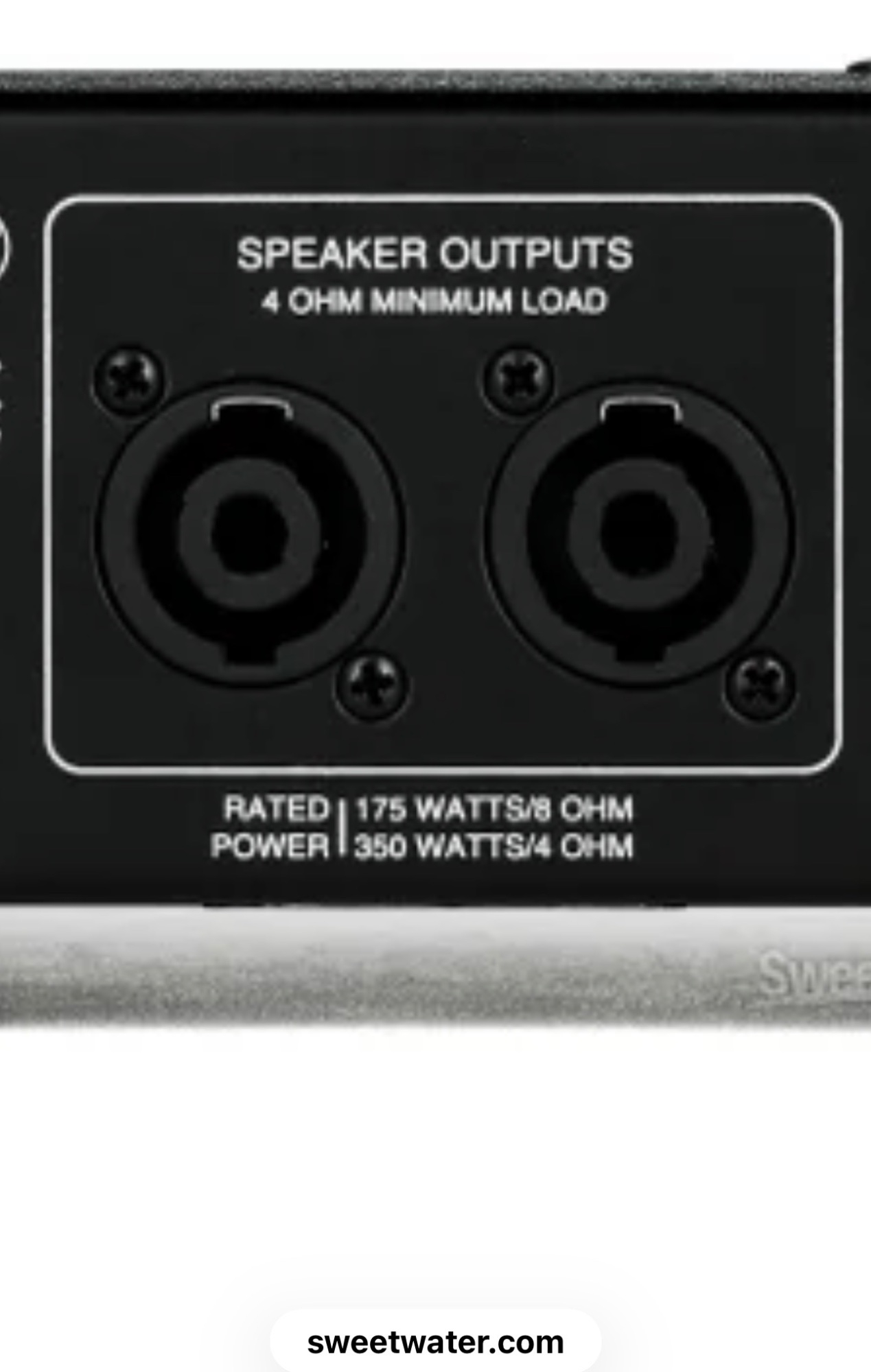

On the back of the D350 it has 2 outputs at 4 ohms each. Each cab is 8 ohms. Either way would work. Either daisy chain from one cab to the other or two singular outputs.



[agedhorse]

On the back of the D350 it has 2 outputs at 4 ohms each. Each cab is 8 ohms. Either way would work. Either daisy chain from one cab to the other or two singular outputs.

No, there are two output jacks and the output section is 4 ohms minimum load (total).

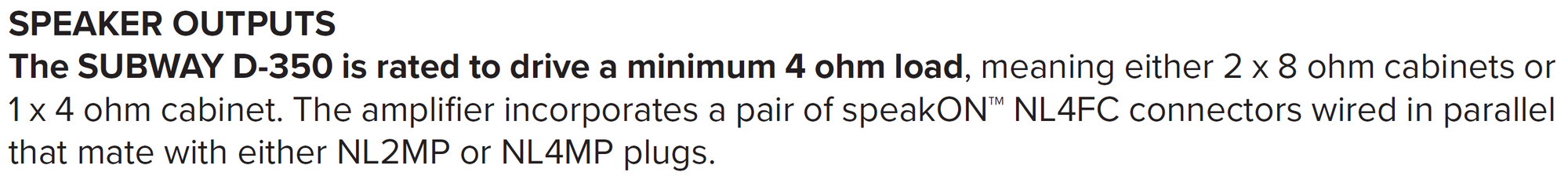

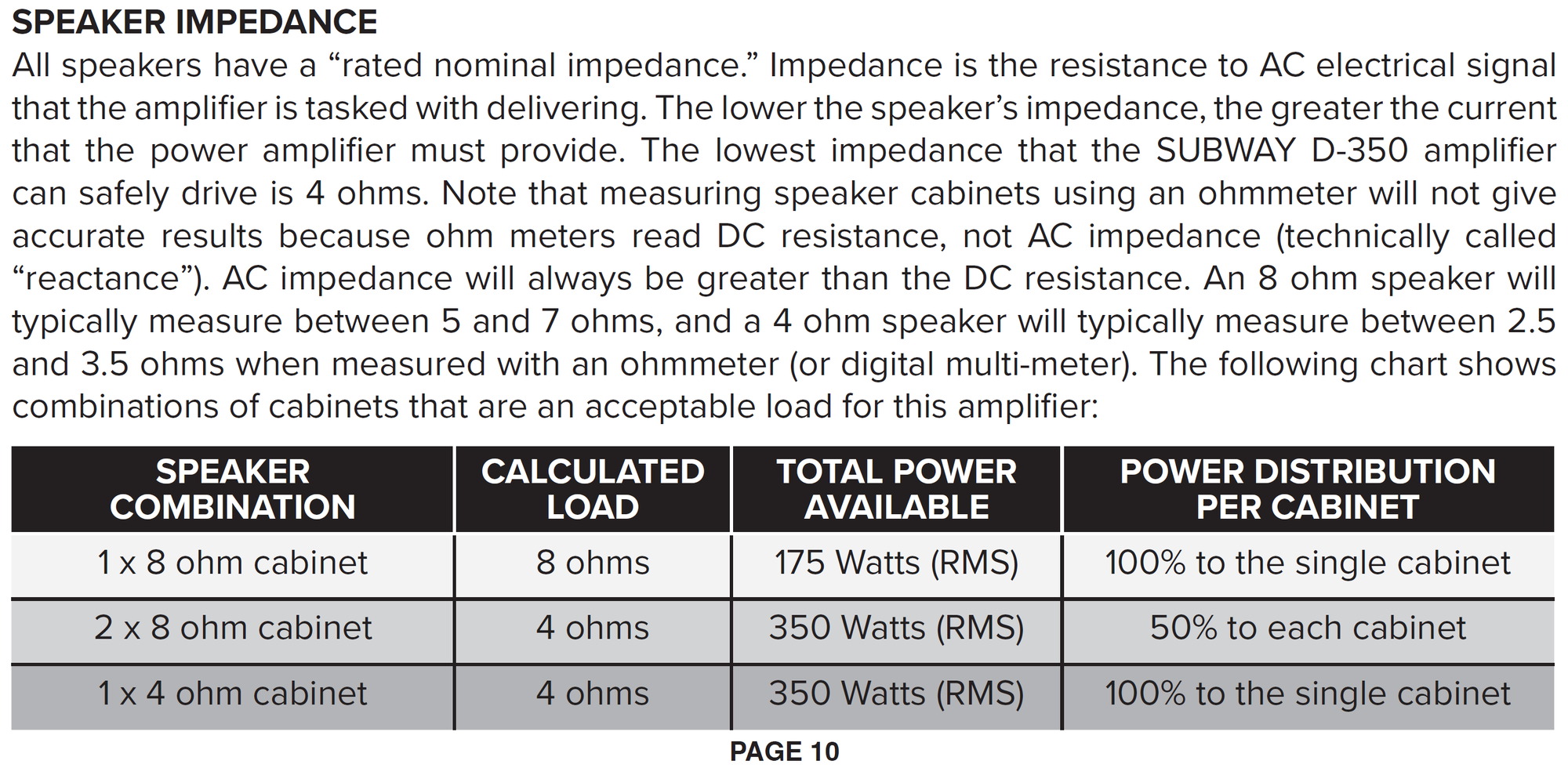

Here's the sections from the owner's manual:



[Sml175]

No, there are two output jacks and the output section is 4 ohms minimum load (total).

Here's the sections from the owner's manual:
View attachment 7405105

View attachment 7405104

Thanks. Just posting what was sent to me from Mesa themselves.



[Sml175]

No, there are two output jacks and the output section is 4 ohms minimum load (total).

Here's the sections from the owner's manual:
View attachment 7405105

View attachment 7405104

I have my PJ BP200 wired in like that. From amp to 1st can then into the next cab. Should work perfect at 175w per cab.



[Sml175]

Thanks again for the screenshots.



[agedhorse]

Thanks. Just posting what was sent to me from Mesa themselves.

I think that maybe somebody didn't quite understand the question, because our GUITAR amps have 4 ohm jacks tapped off of the output transistor not the bass amps.



[Sml175]

Possible very possible



[darwin-bass]

This is funny. I suspect sml175 does not know who agedhorse is.



[Sml175]

What does that have to do with anything? I took the guys advise and thanked him. Yes maybe the guy at Mesa who wrote back to me misunderstood me. And yes, I do know who AgedHorse is. He solved the problem when he posted the owners manual pages. Glad he is on here.



[SJan3]

On the back of the D350 it has 2 outputs at 4 ohms each. Each cab is 8 ohms. Either way would work. Either daisy chain from one cab to the other or two singular outputs.

Wow!! That's confusing and just plain wrong. Must have been a Gibson rep.



[Sml175]

Wow!! That's confusing and just plain wrong. Must have been a Gibson rep.

That is why I posted it here. Extremely happy that the Mesa Engr was on here in a flash. made it all perfectly clear.



[SJan3]

That is why I posted it here. Extremely happy that the Mesa Engr was on here in a flash. made it all perfectly clear.

He is a special kind of help! Glad you got it cleared up.



[Sml175]

He is a special kind of help! Glad you got it cleared up.

Yup, thats for sure. Saw his other posts when I had a d800. Awesome to have him on here.
