Please HELP identify Fender Bass

[Fleece3]

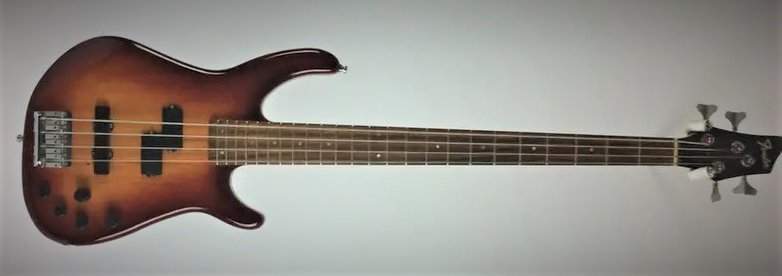

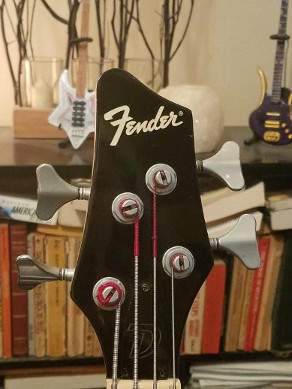

Can you help me Identify this bass. The serial number points to it being Made in Mexico in 2003-2004. The shape of the head stock is throwing me off. Any info (including value) is greatly appreciated.



[sgtpepper]

Man... I’ve been searching. That looks like an mb4 but it’s certainly not. And mb4’s were made in Japan in the 90s. I say fake. Let’s see if someone else chimes in.



[sgtpepper]

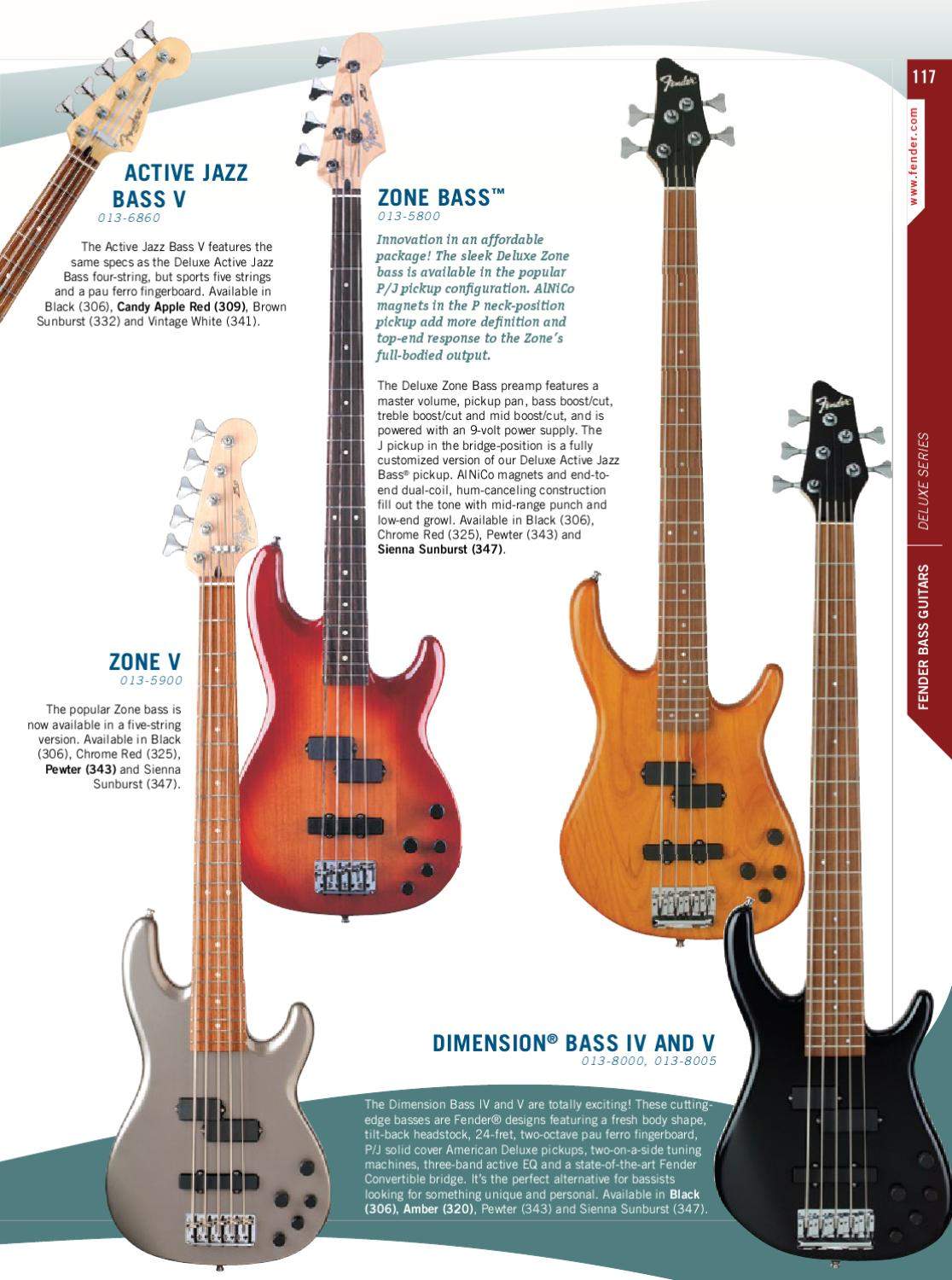

I got it! It’s a Fender Dimension IV (I didn’t know either)



[Fleece3]

Found it again, luckily not a fake!

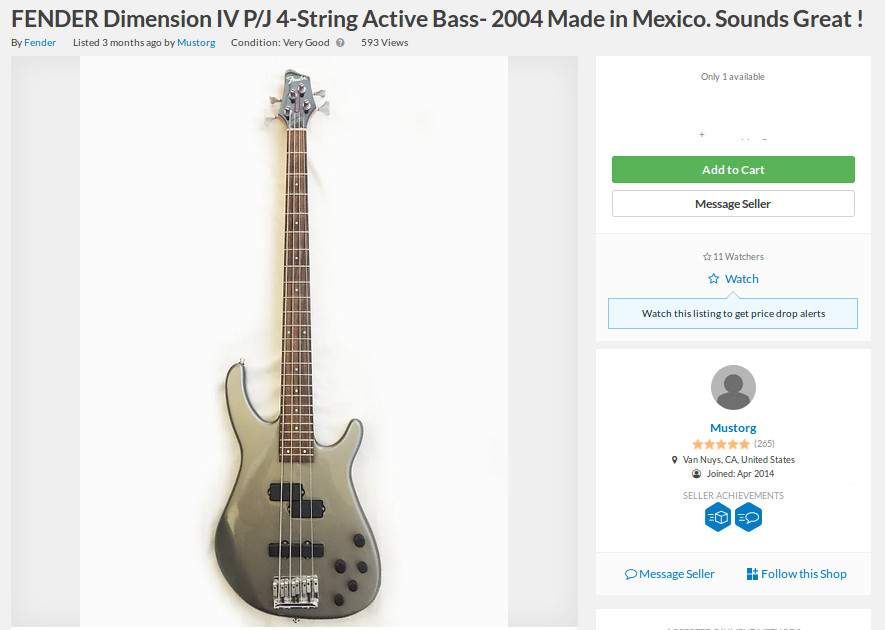

FENDER Dimension IV P/J 4-String Active Bass- 2004 Made in Mexico. Sounds Great !



[hypercarrots]

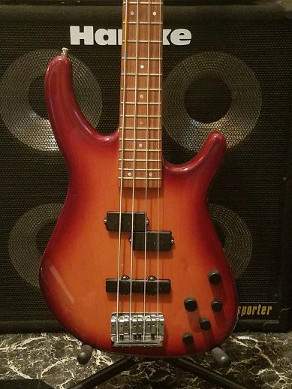

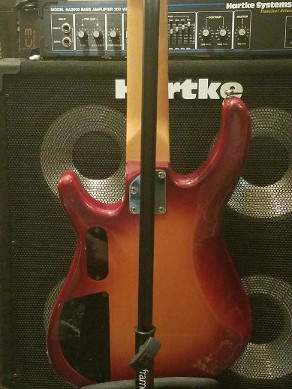

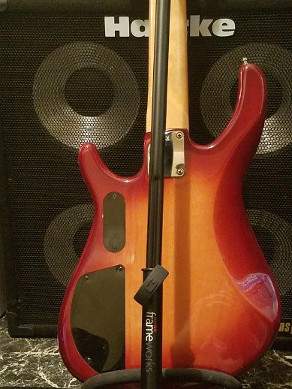

What Fender Bass would this be? Store indicates it is a Dimension Bass, but...



[Fleece3]

Next question, does anyone have, or know where I can get, the electronics schematics. I need to rewire it. You won't believe the wiring bay.



[Fleece3]

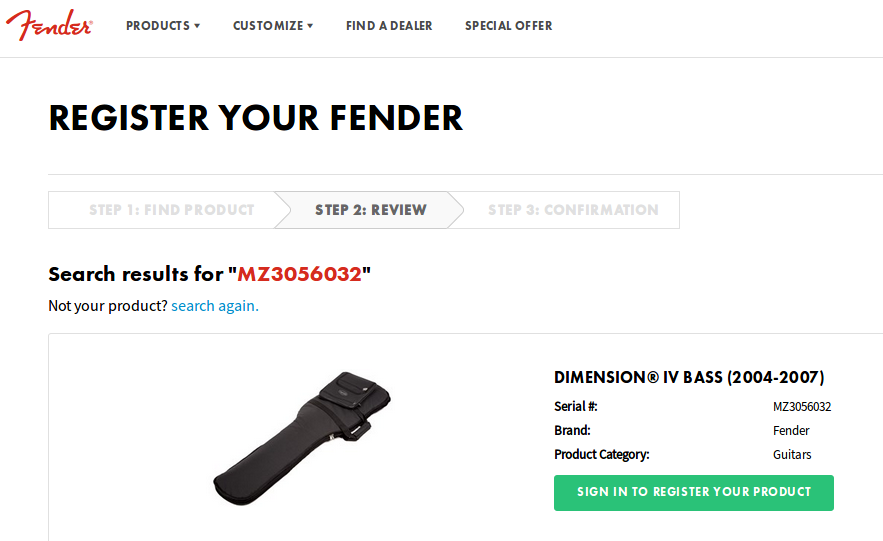

Results of Fender serial number database. Definitely not a fake......



[sgtpepper]

Next question, does anyone have, or know where I can get, the electronics schematics. I need to rewire it. You won't believe the wiring bay.

Maybe if you call the Fender factory. They should keep record of all that stuff.



[ElBecko59]

I'm assuming you already found this info but here it is , I just searched the Fender site for schematics for model number 013-8000 2004 Dimension IV bass - I just bought one in Sienna burst yesterday Nov 14 2019 online and am awaiting it's arrival - here's link https://p4.zdassets.com/hc/theme_assets/549136/200076499/013-8000A_SISD.pdf



[ElBecko59]

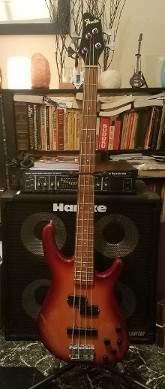

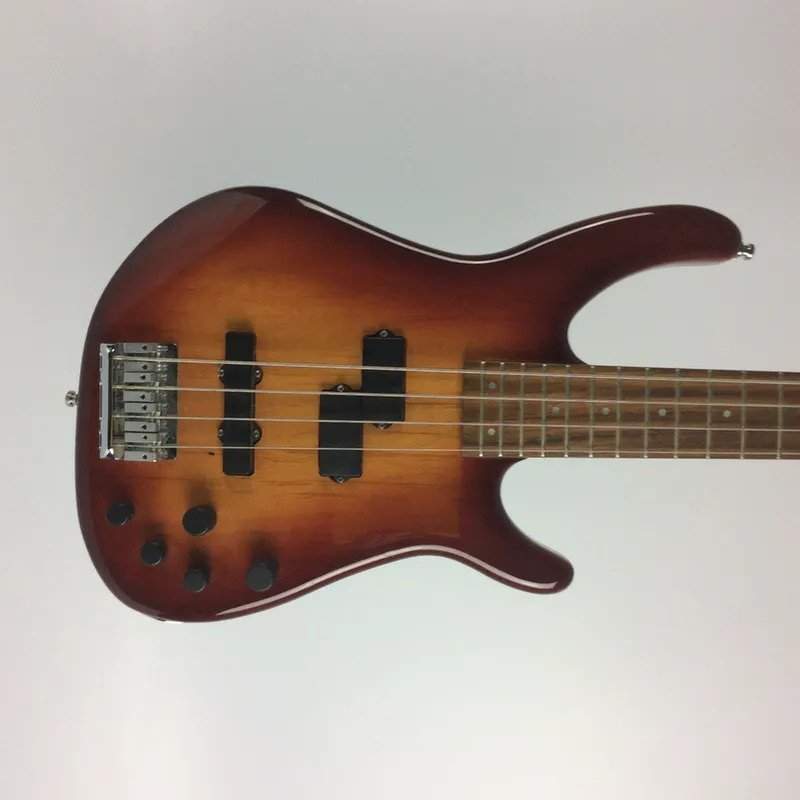

Awaiting arrival of my 2004 Fender Dimension Bass IV Sienna sunburst , Kind of sort of resembles the "look" of my 94-95 Fender MB-4 basses



[Fleece3]

View attachment 3596033 Awaiting arrival of my 2004 Fender Dimension Bass IV Sienna sunburst , Kind of sort of resembles the "look" of my 94-95 Fender MB-4 basses

Just curious, what did it run you?
