post your modified Pedaltrain nano/mini's?

[BassIsFun17]

I was hoping to see some of the ways people have modified their Pedaltrain Nanos and minis to accommodate a power supply and/or power strip.

I am looking to do some mods to my board and i'd just like to have some better ideas of what others have done to their own.



[MovingPitchers]

TU-2, MXR Bass Overdrive, and a CEB-3. I don't know what else to add.



[BassIsFun17]

what did you do to modify your board?



[Ricky Caboverde]

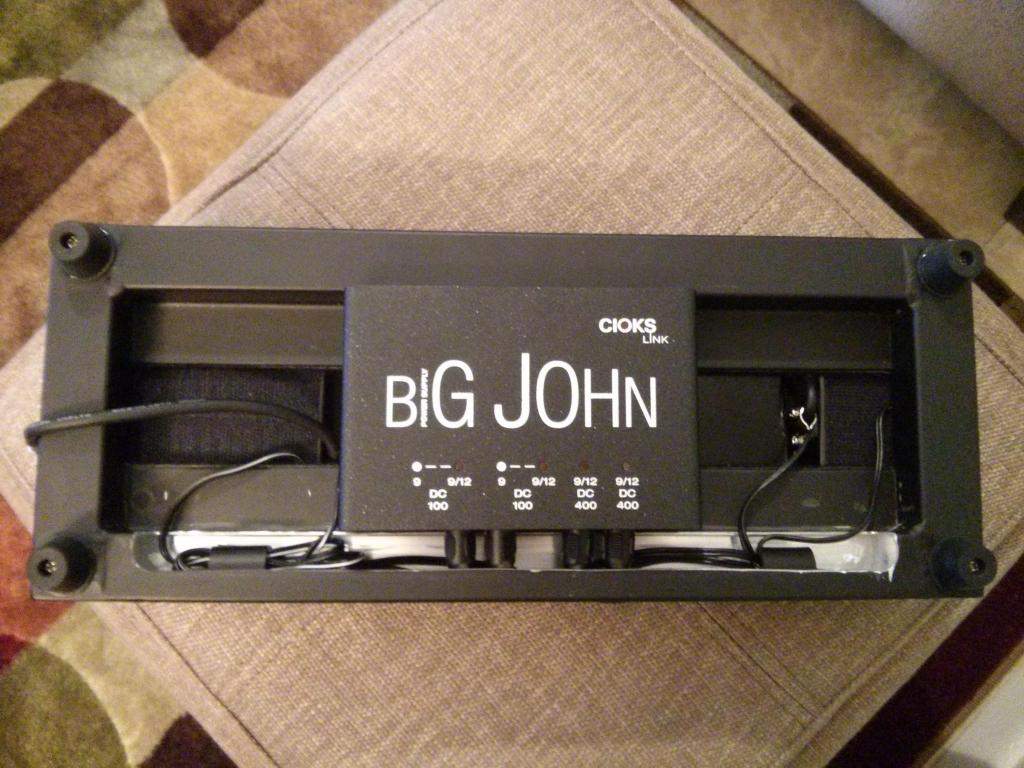

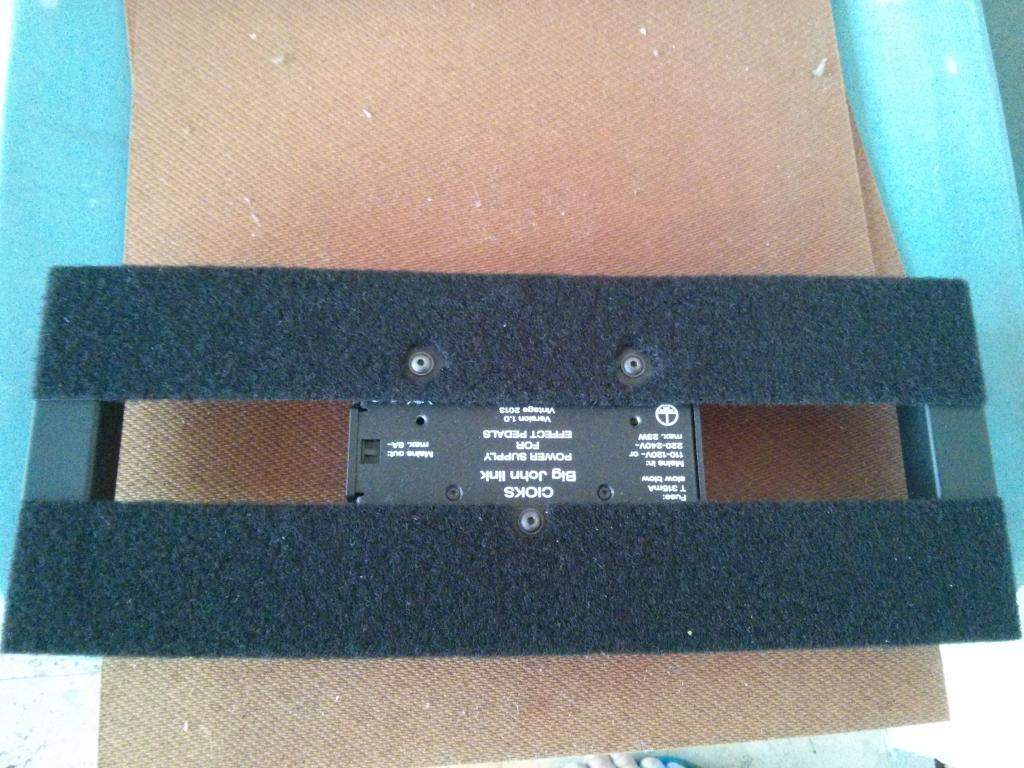

I modified a Nano to fit a Cioks Big John a couple years back. This was right before they had the DC5 or Adam...either of those would have saved me quite a headache



[Orion1985]

MXR DC Brick requires no modding to make work. I'll put a photo up when I get home.



[dannybuoy]

MXR DC Brick requires no modding to make work. I'll put a photo up when I get home.

Interesting, I thought Cioks was the only option for mounting under a PT Nano/Metro.

I have a Cioks DC5 under my Metro 24 and it only just fits, the supply sticks out a mm or so more than the feet so there is a very slight bit of rocking going on from side to side!



[Orion1985]

The only issue is that you can't run the non-90 end of the power connectors on both sides of the brick at the same time. Like I said, I'll post a photo when I get home and you'll see exactly what I mean.



[BassIsFun17]

do any of those power supplies have the ability to power a 500 mA pedal?



[Agosix]

The power supply issue is easily resolved by adding thicker rubber feet and/or add some washers if needed. This will raise the board to clear the power supply like a trex mini or chameleon or other units off the floor.



[BassIsFun17]

anyone try one of these?
Strymon Ojai - High Current, DC Power Distribution



[Testing123]

Interesting, I thought Cioks was the only option for mounting under a PT Nano/Metro.

I have a Cioks DC5 under my Metro 24 and it only just fits, the supply sticks out a mm or so more than the feet so there is a very slight bit of rocking going on from side to side!

Really? I have a DC5 under my PT Metro 20 and while there is only a few millimeters of clearance, it does not hit the floor and there's no rockin' goin' on -- 'cept when I'm playin, of course



[Orion1985]

Interesting, I thought Cioks was the only option for mounting under a PT Nano/Metro.

I have a Cioks DC5 under my Metro 24 and it only just fits, the supply sticks out a mm or so more than the feet so there is a very slight bit of rocking going on from side to side!

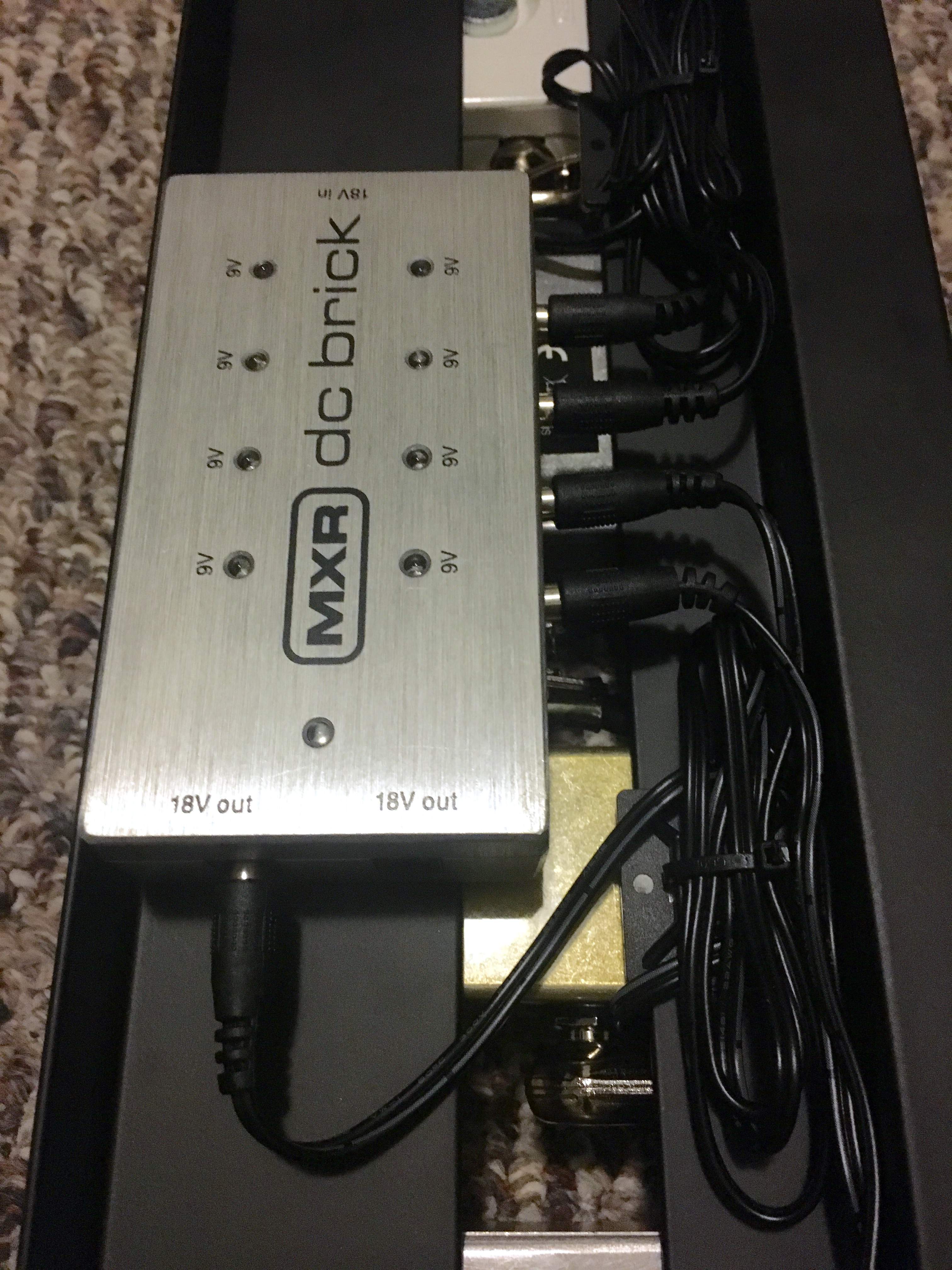

Here is the photo I promised. I feel like it's outside the spirit of the OP but I just wanted to share my power supply solution. As mentioned, thicker rubber feet should help just fine if you're already close.



[Justice Graves]

anyone try one of these?
Strymon Ojai - High Current, DC Power Distribution

Still need some modification to the feet...Looks rad though.

Bottom Mounting:

To mount Ojai under a PedalTrain Nano or Metro, the board will need to be lifted up a few millimeters to allow Ojai to fit.

We have found that Heyco part #C-2008 fits below the PedalTrain Nano and Metro foot and provides a sufficient height increase to fit Ojai underneath when mounted with VELCRO®. The included 24V power adapter may also be mounted in the same fashion.



[Testing123]

We have found that Heyco part #C-2008 fits below the PedalTrain Nano and Metro foot and provides a sufficient height increase to fit Ojai underneath when mounted with VELCRO®. The included 24V power adapter may also be mounted in the same fashion.

That's interesting. How do you affix the Heyco #C-2008 plugs to the Nano or Metro rubber feet? Super glue or some such?



[Justice Graves]

That's interesting. How do you affix the Heyco #C-2008 plugs to the Nano or Metro rubber feet? Super glue or some such?

I think they snap right in, from the looks of it. But I really think its just getting you there height wise. Edit: they say super glue, helps to read I was distracted by pictures.

How can I mount Ojai to a PedalTrain Nano or Metro? - Strymon



[Flabzilla]

anyone try one of these?
Strymon Ojai - High Current, DC Power Distribution

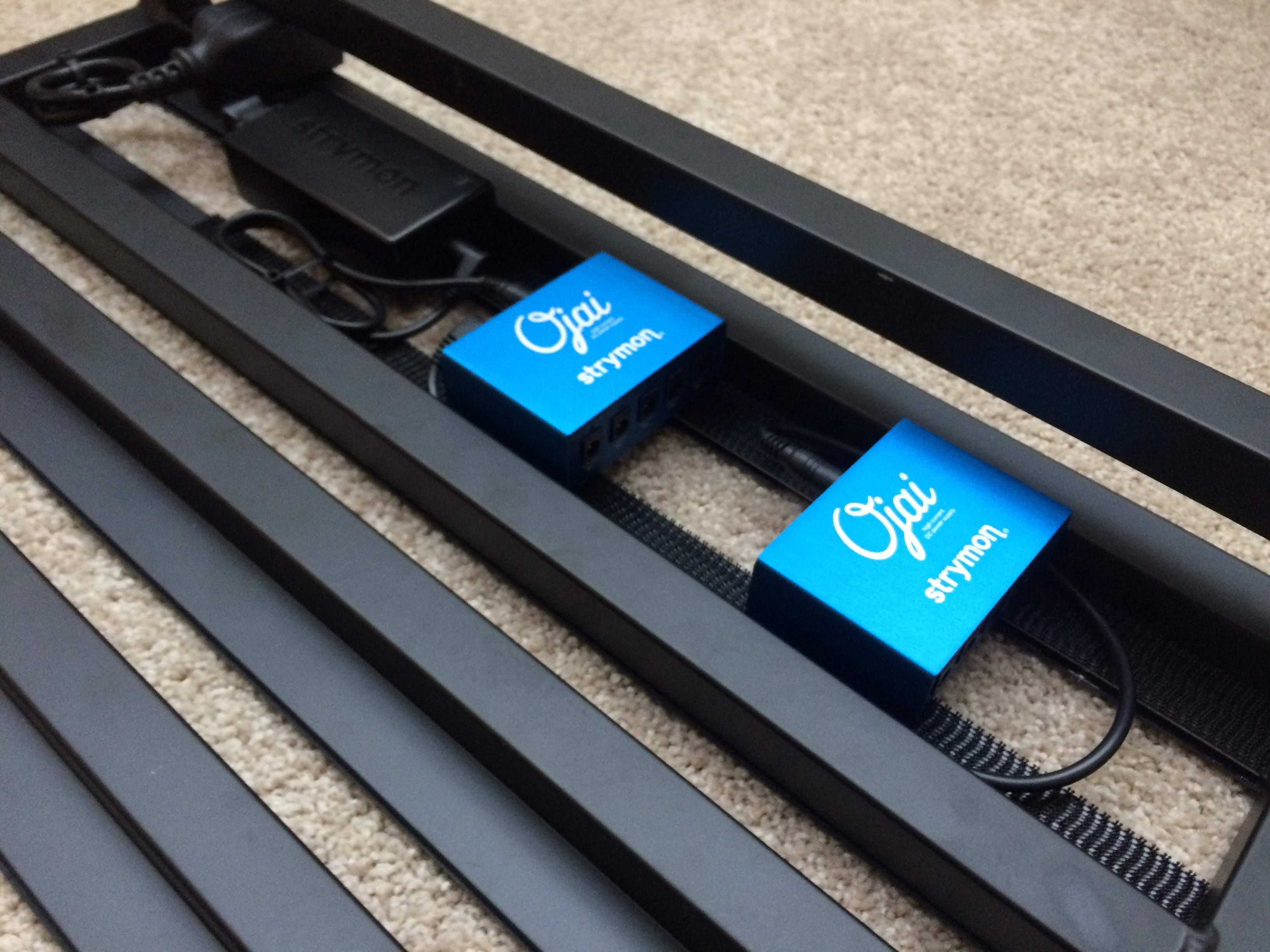

Only just recently replaced a couple of Cioks PS with Ojai x 2. Thet're light and don't take up a lot of space.



[Fabio_MIJ]

Just one detail: the pedalboard keeps the pedals suspended from the floor and all related stuff (dirty, humidity, spilled beer). Keeping the power supply under the pedal support makes it vulnerable to these things. You'll prefer keeping it on the board with the pedals, even sticking out from it.



[Justice Graves]

I've decided to go this route with my nano+ and my metro, just a little lower. I'm going to try and get the hex portion of the foot flush with the bottom of the board. So I'm doing threaded feet with separate threaded studs, I should have good pictures after this weekend. Lets face it I just like to tinker.

Invalid Link Removed



[Flabzilla]

I've decided to go this route with my nano+ and my metro, just a little lower. I'm going to try and get the hex portion of the foot flush with the bottom of the board. So I'm doing threaded feet with separate threaded studs, I should have good pictures after this weekend. Lets face it I just like to tinker.

Invalid Link Removed

The swivel feet in that link are pretty schmick.



[Testing123]

Only just recently replaced a couple of Cioks PS with Ojai x 2. Thet're light and don't take up a lot of space.

View attachment 944386

Those are very cool! It doesn't say on the website (that I could see)... can the Ojai's do 18 volts or do you need a Zuma (which I believe will not fit under a Nano/Metro)?
BTW, the Ojai is 33mm 'tall'. The Cioks DC5 which just barely fits under my Metro 20 is 31mm. 2mm ain't much, but it might be enough to warrant a board's inclusion into this thread (meaning you may have to mod it).
