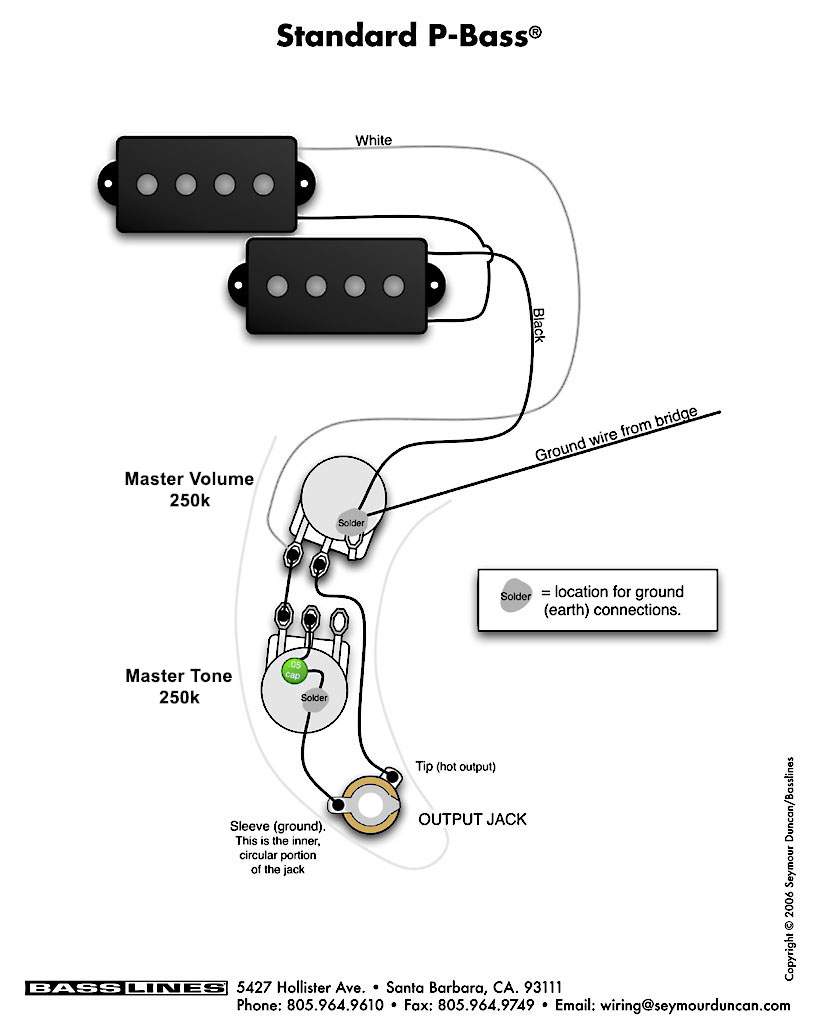

So the lo down is I went to replace all the crapped out pots in my Ibanez GSR200L which I had previously eliminated the phat 2 circuit from (just don't need/want it) and after making a diagram of the existing setup(which worked fine aside from the bad pots) I disconnected about half the wires and ended up having to take care of something else. Well when I got back to it I reviewed my diagram to the remaining connections and noticed that I had written down a wrong connection and possibly others I don't know. I've never had such a bumbass moment. In frustration I began to rewire it and part way in decided I'd better look up some basic diagrams for this setup, pretty straightforward exept the diagrams all show the opposite side lug connected to ground than what I had as well as the tone cap on the opposite side. Can anyone help explain the relevancy of this? Does it matter which side? Just hoping for some input before I end up stripping it back and starting over.
