Redeemer DDC-Five Fan Fret for Scottyd!

#22

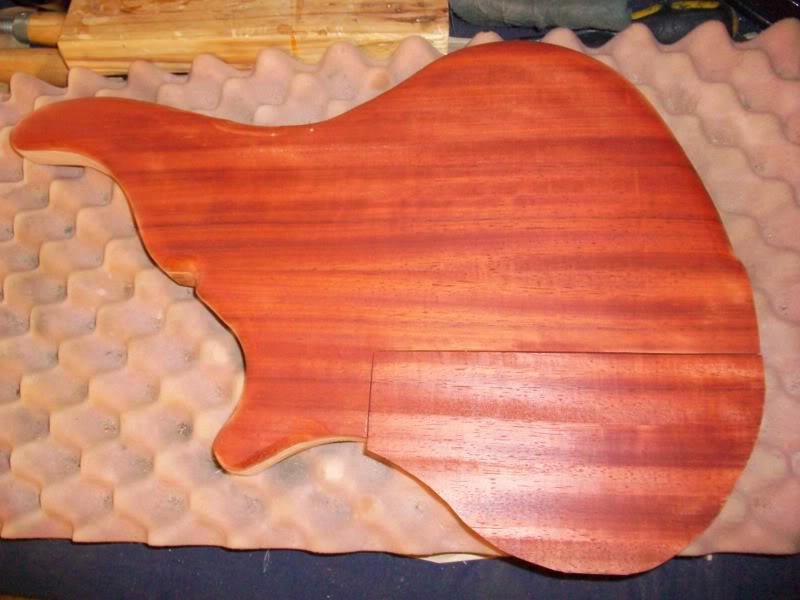

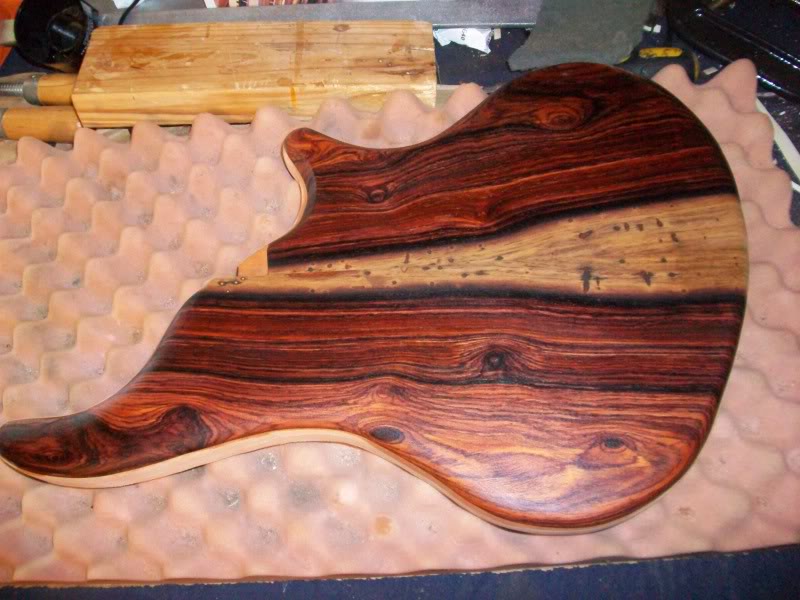

Heres the body roughed out...

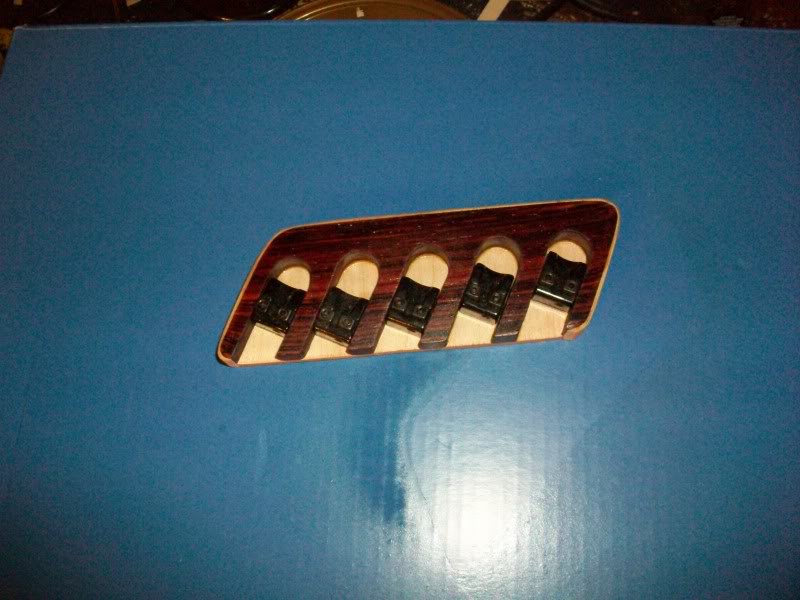

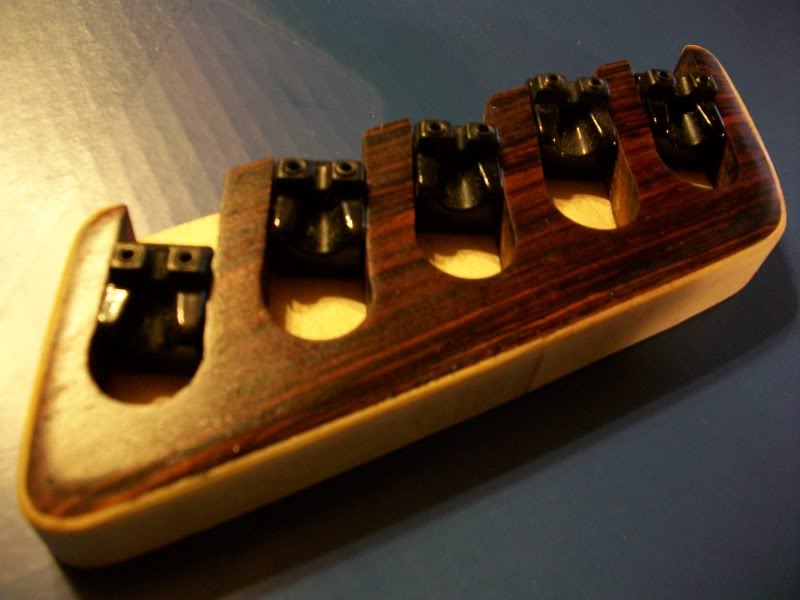

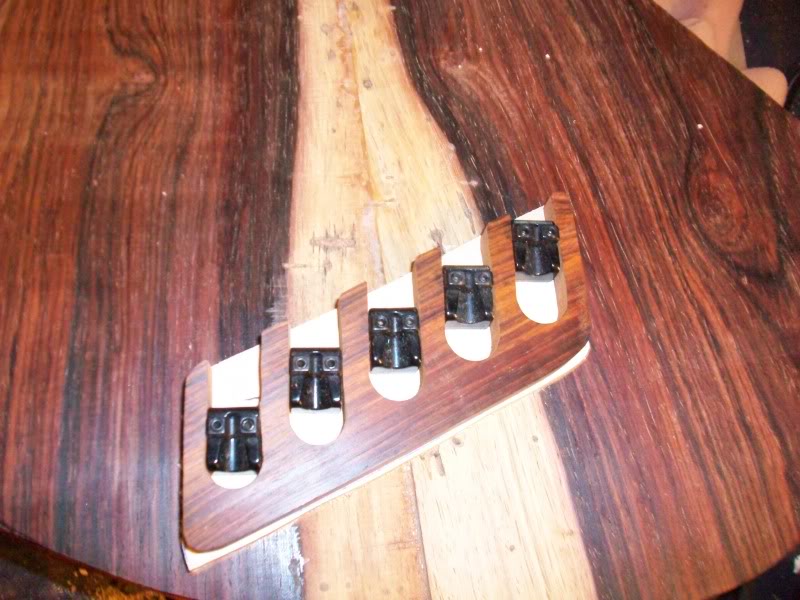

The cocobolo/maple bridge taking shape, it will be bound with maple like the fretboard.

#32
erikbojerik said:
Nice work Scotty - I like the bridge concept. That cocobolo top is the sister of another similar top from your shop, is it not?
Click to expand...

Thanks Erik, the top is indeed a sister cut to John P's cocobolo single cut. That birdseye maple fingerboard should be familiar to you;)





Boostedrex said:
That cocobolo top is really striking. I'm liking it so far.

Is this bridge going to be something that you will continue to make for other basses or is it going to be a more one off type of deal?

Zach
Click to expand...

Thanks Zach, I hope to add the fanned fret to my lineup of basses soon but with a different body style. I may use this style bridge on all of my fanned fret builds simply because there are not many bridge choices out there for this type of application. Hopefully someday I will get a milling machine and will be able to make this design in brass or aluminum. The customer would also have the choice of using individual type saddles/bridges per string.

#37

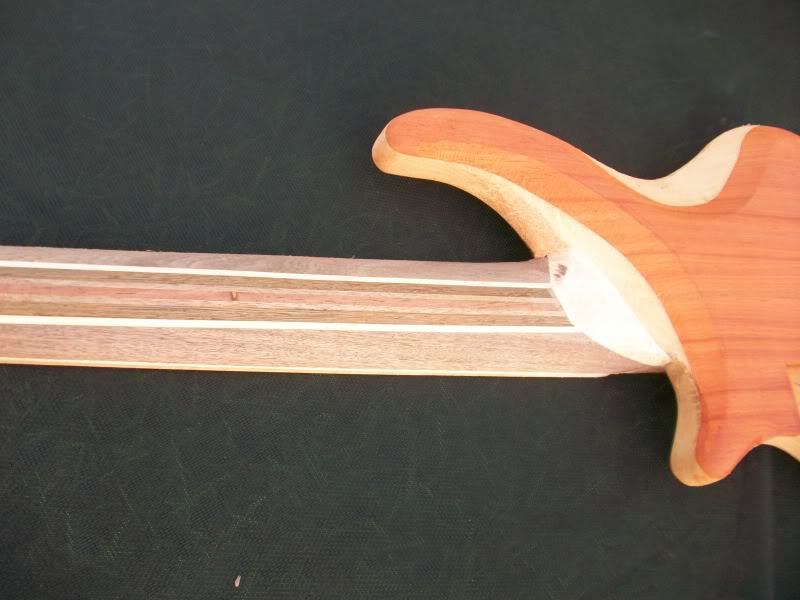

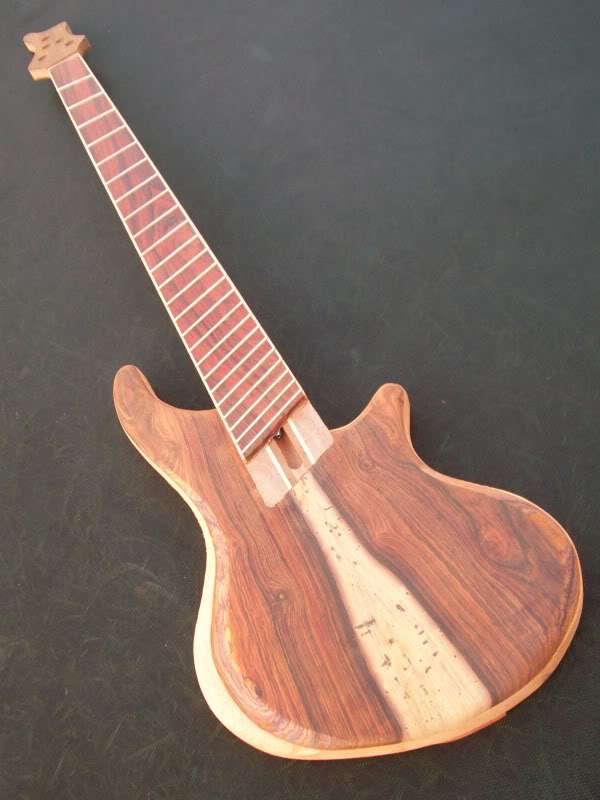

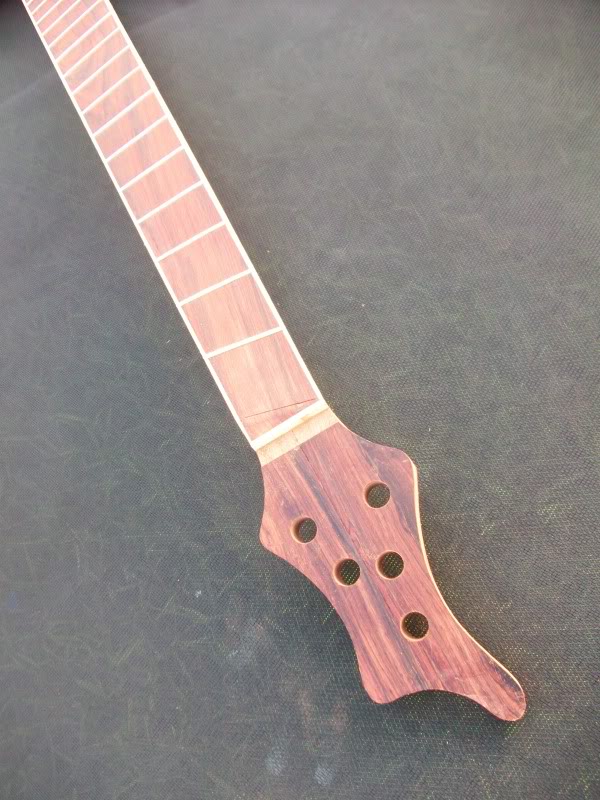

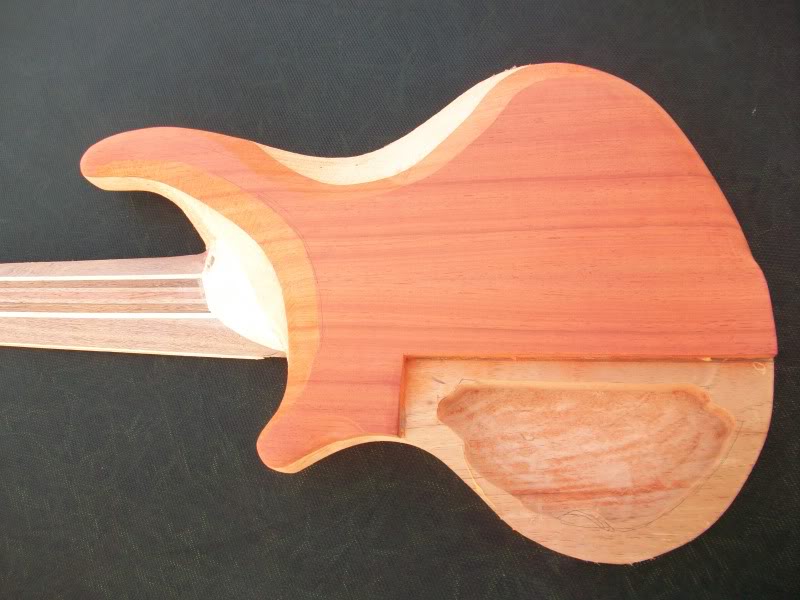

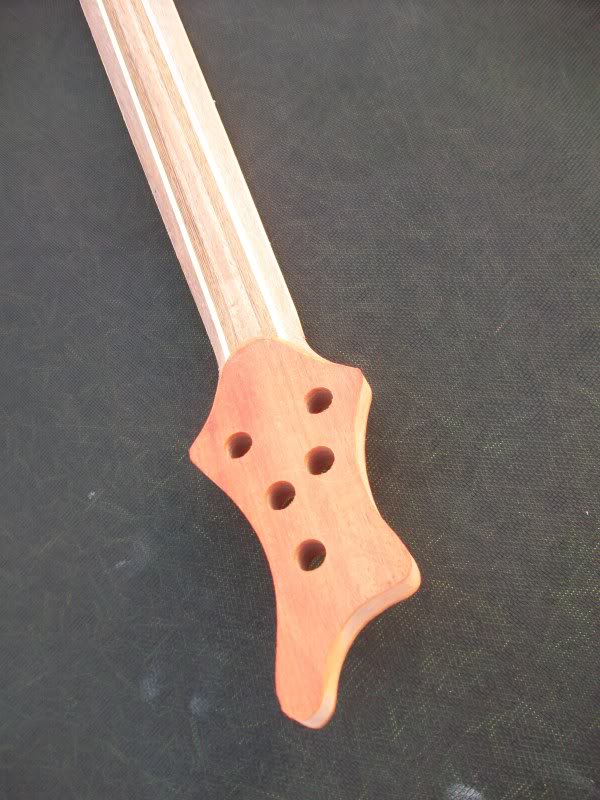

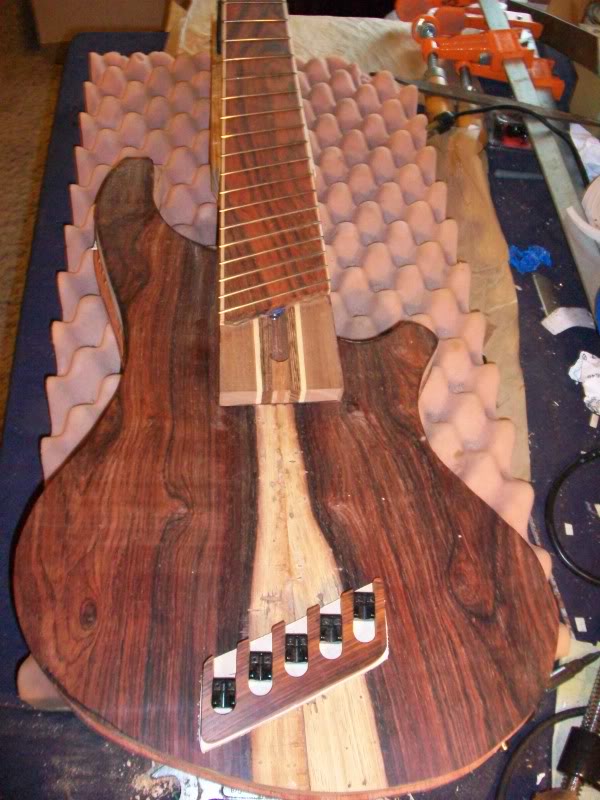

I've got a little more done to this one. The neck is shaped, set and the body is rough carved.

The neck had to be set out further then I would normally do so. I had to do this to best position the bridge for the 36" scale on the lower stings side. This makes the area around the lower horn look a bit odd (to me at least), which I did expect, somewhat. I had to see it in real life to see how I liked it...;)

This won't affect the playability, just aesthetics but for this reason I've decided to design a dual cut and single cut body shape just for a fanned fret line up. :)







#38

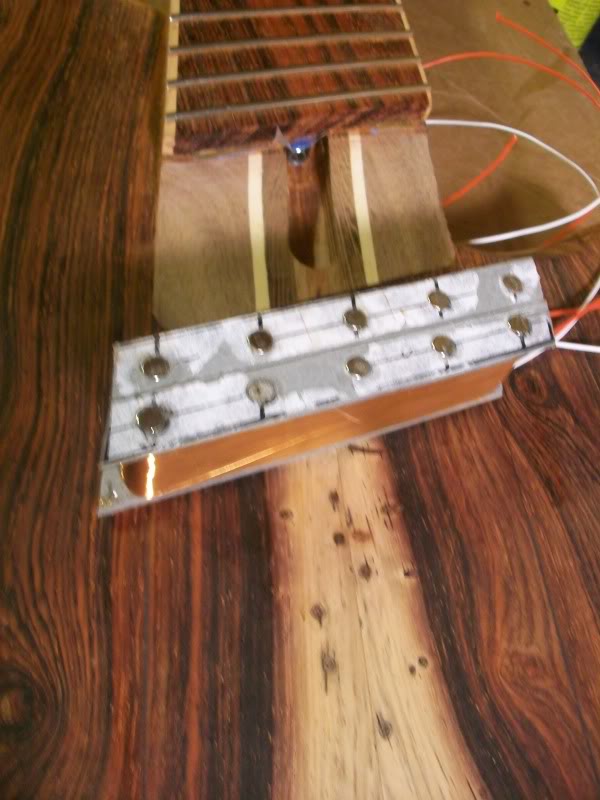

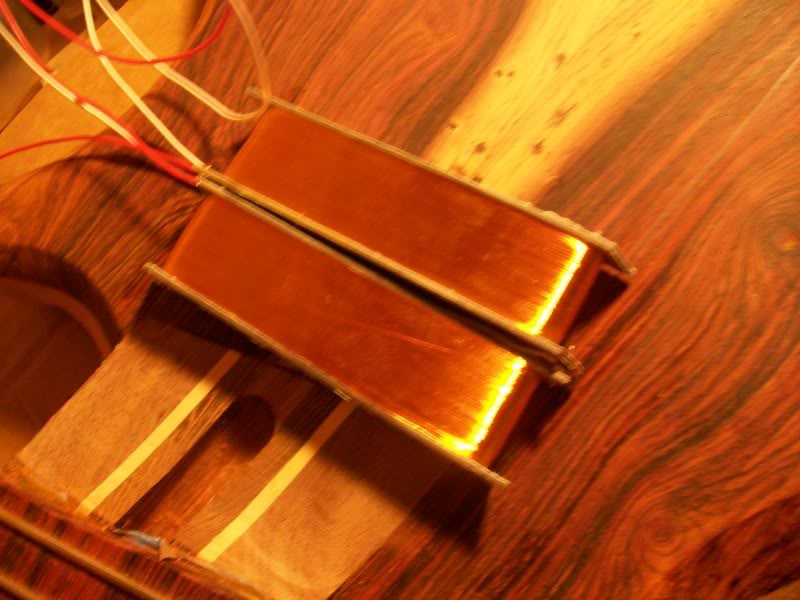

I started on the pups for this one. I decided to go with a set of dual coils. These will be different then all of my other dual coils, which fit in a Music Man sized cover. These will be the size of a Bart P2 but with an angled design to better suite the multi-scale.

It felt strange winding such narrow bobbins. I can also make really slim single coils in this manner, which would be different then what’s currently offered in today’s market. By switching to a smaller magnet size, (still neos just a smaller diameter) I was still able to achieve 13.5k res. per coil,(27k series!!) which is very respectable even with this small size. I also still have a little room left and according to calculations a little over 15k is possible.

I hope to start the covers for these tomorrow.:hyper:



#39

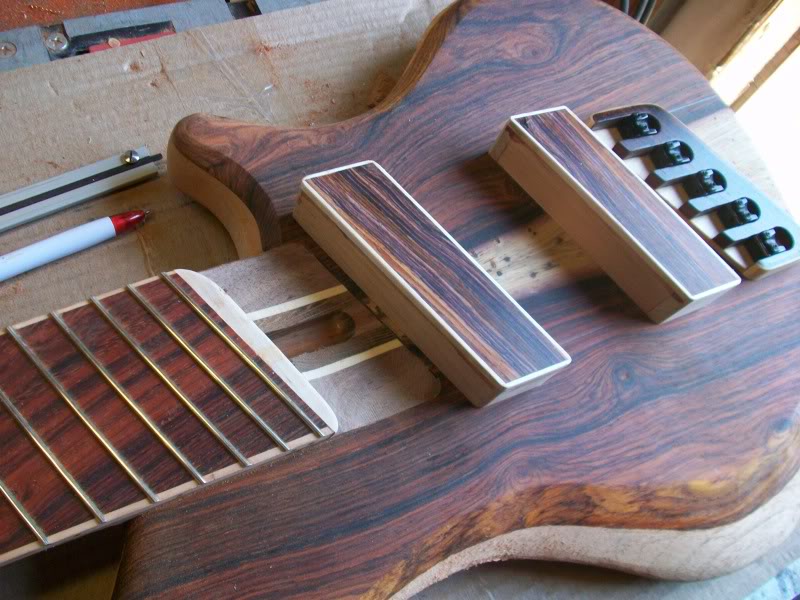

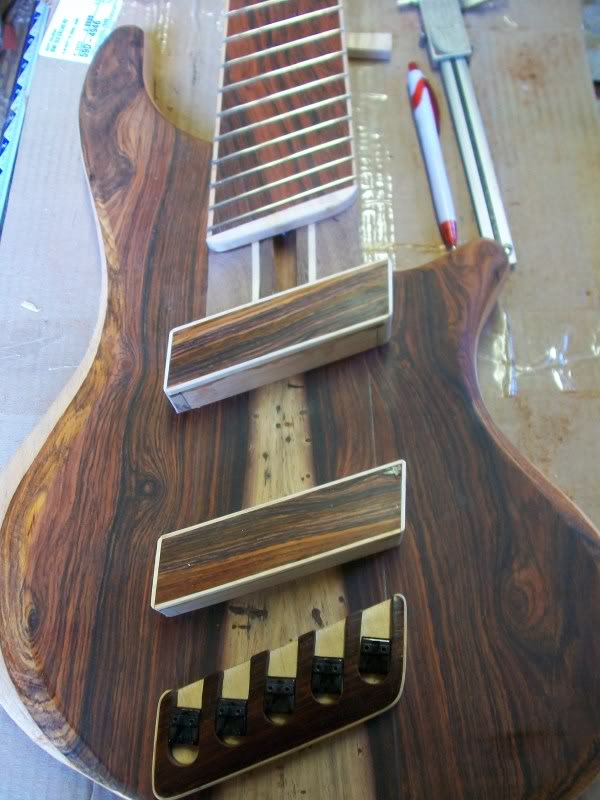

Pickup covers are built, I bound them with maple. One thing I noticed today is that this bass is going to be really light thanks to the spanish cedar core.



#40
Looking great Scotty. I've got a real nice slab of Cocobolo that I hope to do something with soon. Your bass is sure giving me the itch to get it going.
The oil in the wood is a little concerning with regard to the finish. I recently finished some restaurant tables made of Ipe and wound up spraying an ICA urethane and a sealer (IS203) that the factory rep recommended for oily/exotic woods. It worked out very well.
What have you used in the past and what are you planning on using for this bass finish?
Joe
