Redeemer DDC-Five Fan Fret for Scottyd!

Looking great Scotty. I've got a real nice slab of Cocobolo that I hope to do something with soon. Your bass is sure giving me the itch to get it going.
The oil in the wood is a little concerning with regard to the finish. I recently finished some restaurant tables made of Ipe and wound up spraying an ICA urethane and a sealer (IS203) that the factory rep recommended for oily/exotic woods. It worked out very well.
What have you used in the past and what are you planning on using for this bass finish?
Joe

Hi Joe, It’s really something I’ve have to experimented with and in the past the best I’ve used was catalyzed poly, I mean this for any wood, it also cured great with the oily woods because by using a catalyst it’s pretty much forced to cure.

In my opinion the 2-part poly looks the best because it really brings out the colors in the wood much like a normal poly will but with less amber. It dries super hard and also buffs and polishes really nice and usually is fully cured within 24hrs. A major drawback is that it’s really dangerous to use. These days I'm trying to stay away from 2 or 3 part finishes that contain really high VOCs. If I ever get a suitable spraying area built I may return to using it.

This go around I'm going to seal it with Minwax polycrylic (water based), pore fill, then I’ll top coat with either polycrylic or normal polyurethane. I tried this on the bridge and the polycrylic dried like it would on any other wood. Once sealed and dry, you could probably use most any type of finish to topcoat with as long as it’s compatible and the surface is prepped well.

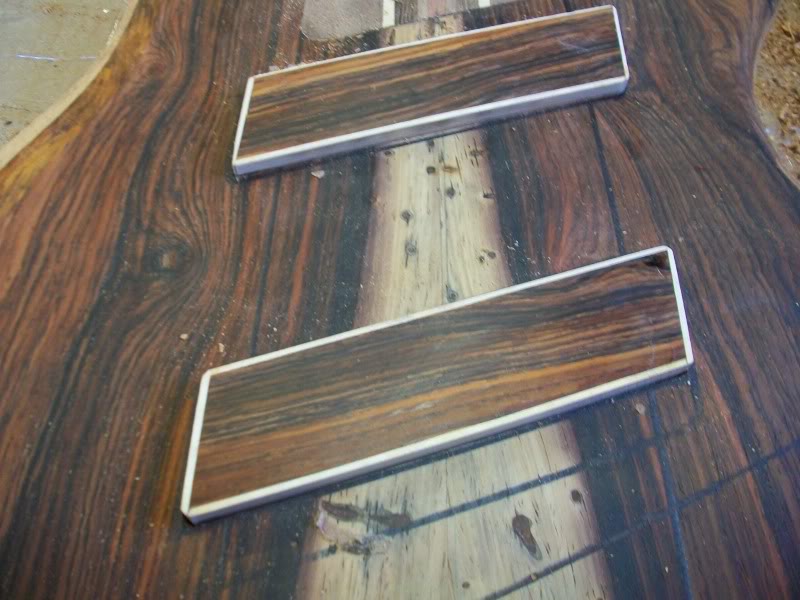

Pickup cavitys routed,

Yeah, that maple binding makes the cocobolo on cocobolo work :smug:. You're making yourself a killer bass!!

Due to things around the house and having to make a workshop first I cannot start a new build for the next half year I guess, but this build makes me wanna start tomorrow!! Lovely :).

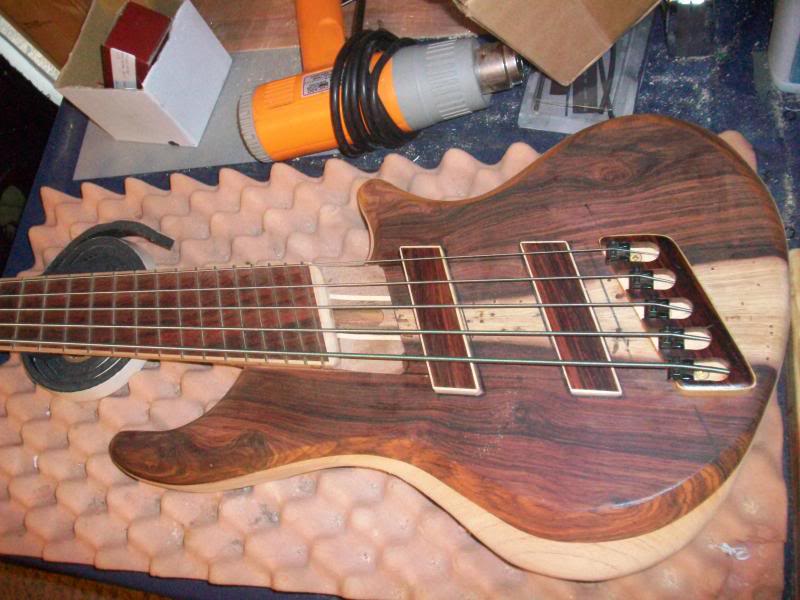

Just wondering, how do you adjust those saddles for intonation? I'm guessing the strings keep them pressed down and there's some kind of hidden screw to keep them in place? I can't tell from the pics... I really like the way that works for the fanned fret.

Just wondering, how do you adjust those saddles for intonation? I'm guessing the strings keep them pressed down and there's some kind of hidden screw to keep them in place? I can't tell from the pics... I really like the way that works for the fanned fret.

They're ABM type saddles, your correct there's an angled set screw that locks the saddle once it's in position. It's hard to see but them but they're right by where the string sits.

Wow. I think I've said something to this effect before, but I really think that the basses we see taking shape here on LC totally blow away the work of the more famous luthiers. I think you (Scotty) and the others here are much more deserving of the fame and gigantic price tags. :)

Took a week off work, been getting lots done with my current bass projects.

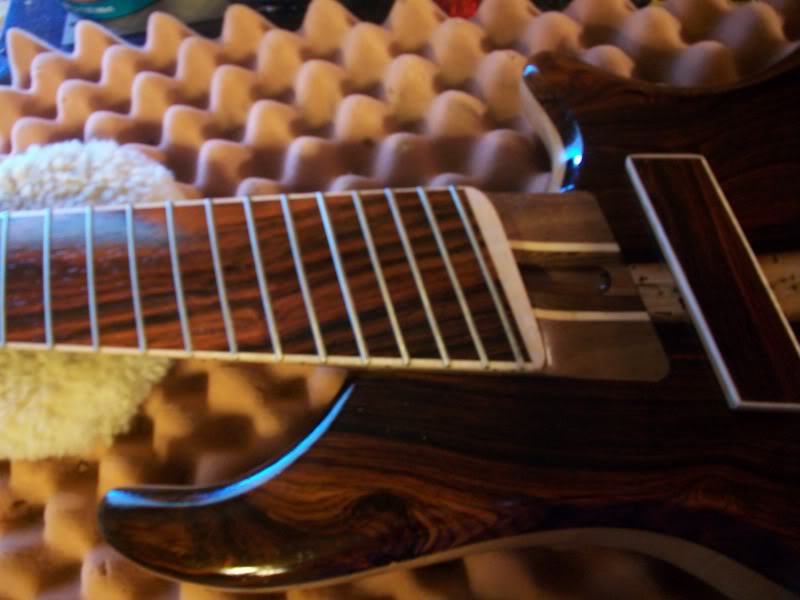

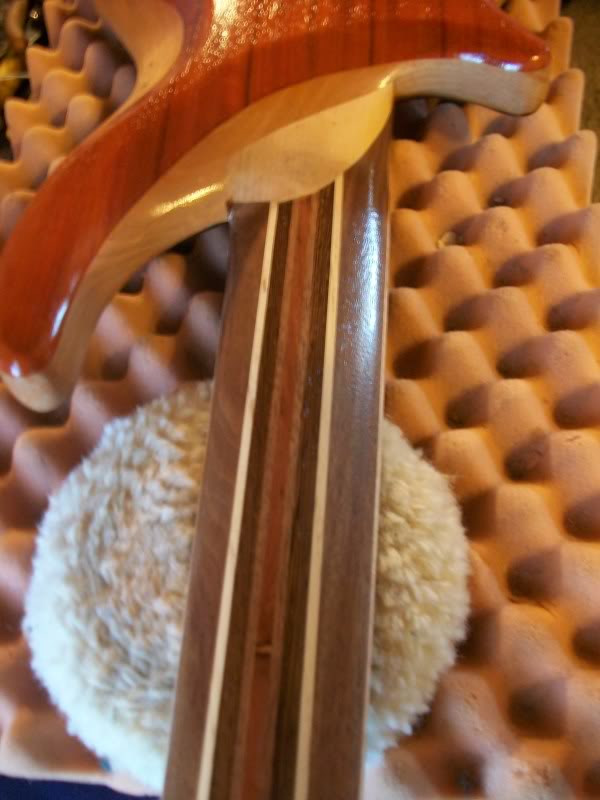

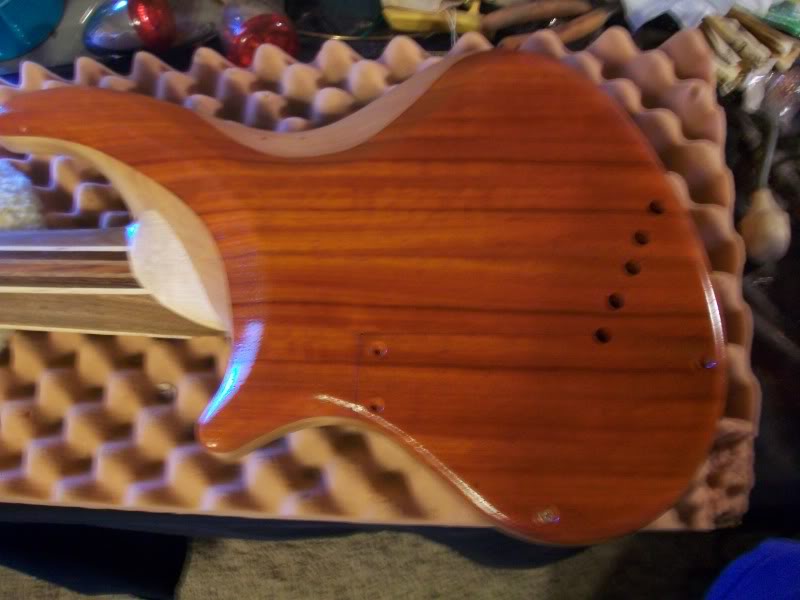

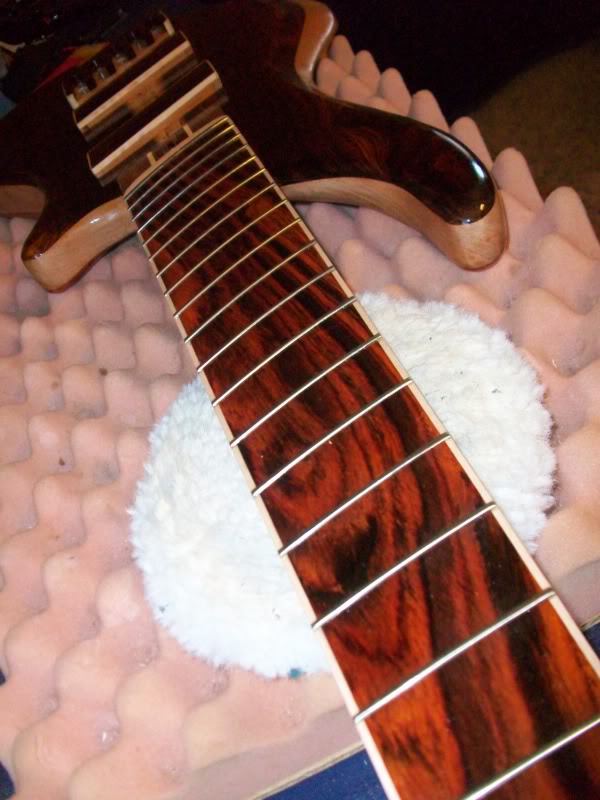

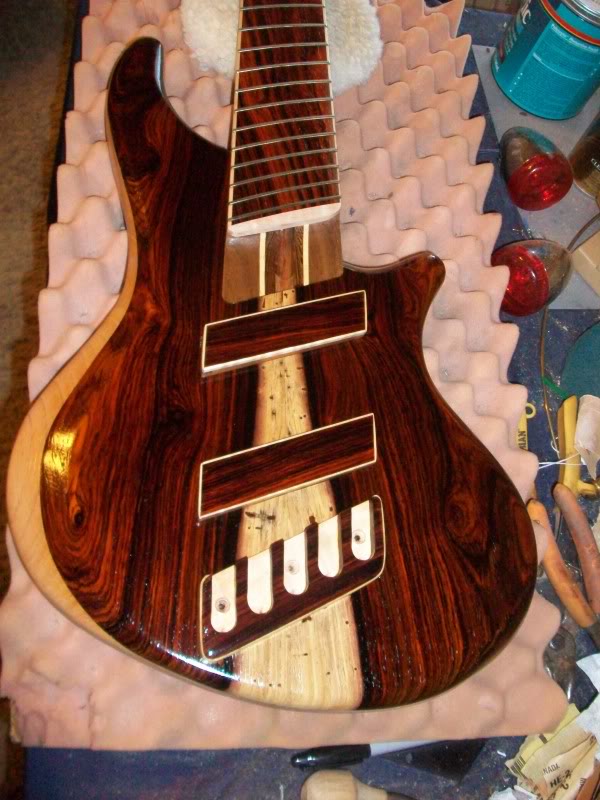

The fan fret is almost complete. I sprayed it over the weekend, tried something new with the finish, this bass has turned out to be one big experiment anyways so why not...High gloss with open pores. It works better with satin or semi-gloss... Feels kinda strange. I'll need to hit the neck with a scotchbrite for sure. Taking pics of it was a total PIA.

I'm considering going passive with 2 single coils. I want to hide the pots some how too, I like the top too much to drill holes in it for pots...maybe I'll wire the pups direct to the jack. Still very undecided at this point.
