Second Brooks EXB-12-TP *LOST*

[Basvarken]

***UPDATE***

The bass was found. And delivered at Tom Petersson's address today! It appears to be undamaged.

---------------

That black twelve-string bass that I built for Tom Petersson is only half the story.
I built another twelve-string bass for Tom. And they were finished simultaneously.
Both basses were sent off to Tom's address on June 29th.
The black one was delivered four days later.
But the other one (with quilted maple top) still has not been delivered. UPS has lost the package...
I filed a claim for investigation on July 16. But still no sign of the bass to this day!

I am gutted.

I'm still keeping my fingers crossed that it will show up in the UPS warehouse after all.
But if you should ever see this bass for sale, please do contact me.


Here are the pics that I took before I sent it off to the USA

Specifications:

- Mahogany body
- Quilted Maple top, bookmatched
- Nine ply laminated Mahogany set neck. Glued in

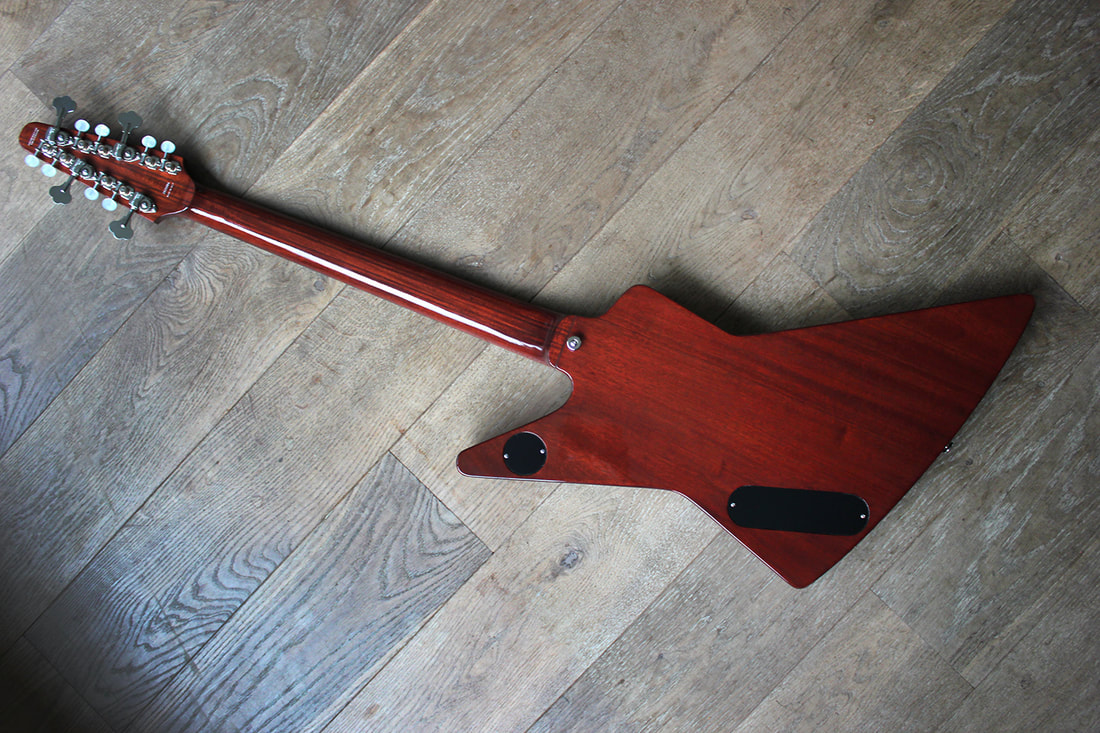

- Lemon Burst finish. Naturel Mahogany back and sides
- Checkerboard binding
- Ebony fretboard
- Abalone position dots. Aluminium ring in 12th position
- Jumbo frets
- 30 1/2" scale
- Buffalo horn nut
- ETS Custom made twelve string bridge set. Nickel
- Two spokewheel double action trussrods
- Carbon reinforcement strip in the neck
- Gemini Dominator in the neck position. Nickel
- Gemini Devastator in the middle position. Nickel
- Pure Tone output. Nickel
- 3-way pickup selector toggle switch
- Hipshot Ultralite Mini clover bass tuners. Nickel
- Schaller GrandTune guitar tuners. Nickel, Pearloid button
- d'Addario custom strings
- Weight: 4.7 kg

I'll post pics of the build process below.



[LFlab]

Bloody hell Rob, let's hope this one surfaces....



[Basvarken]

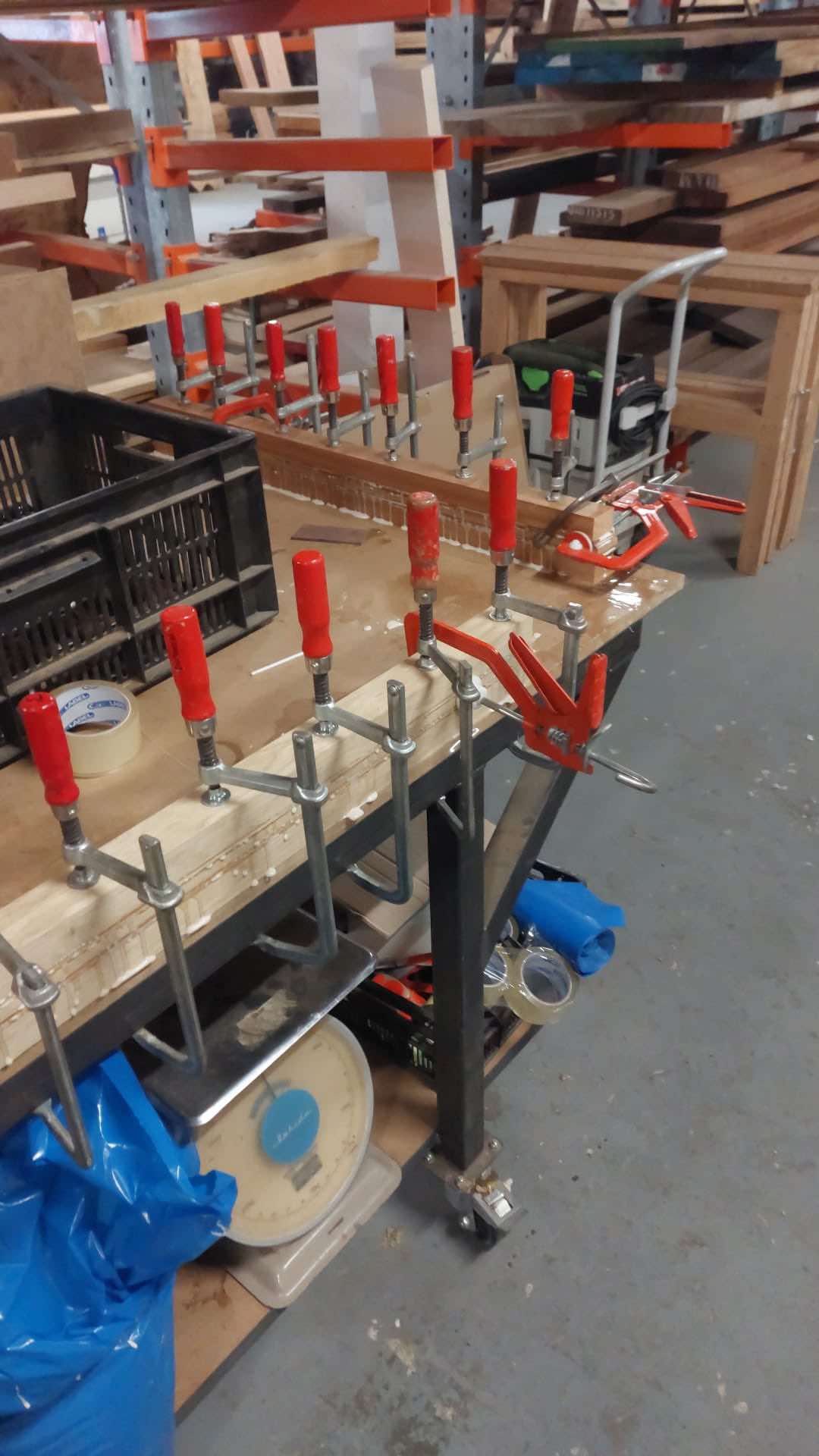

As with the black twelve string bass it started with the body blank and neck blank.
I had my wood supplier make them to my exact specs.

A nine-ply khaya (mahogany) neck with walnut strips in between.
And a two piece body blank of the same Khaya.

Routed the channel for the carbon strip in the middle

As well as the tapering slots for the two truss rods.

Then prepared the fretboard.

Drilled the holes for the inlays.

Glued in the position dots. And aluminum ring for the twelfth position.
Sanded it flush with the 16" radius block.

Prepared the frets by cutting off the tang on the edges

Hammered them in and used the arbor press to have them seated perfectly



[Basvarken]

After I glued on the fretted fretboard I shape the neck profile (sorry npo pics)

And I drilled the tuner holes

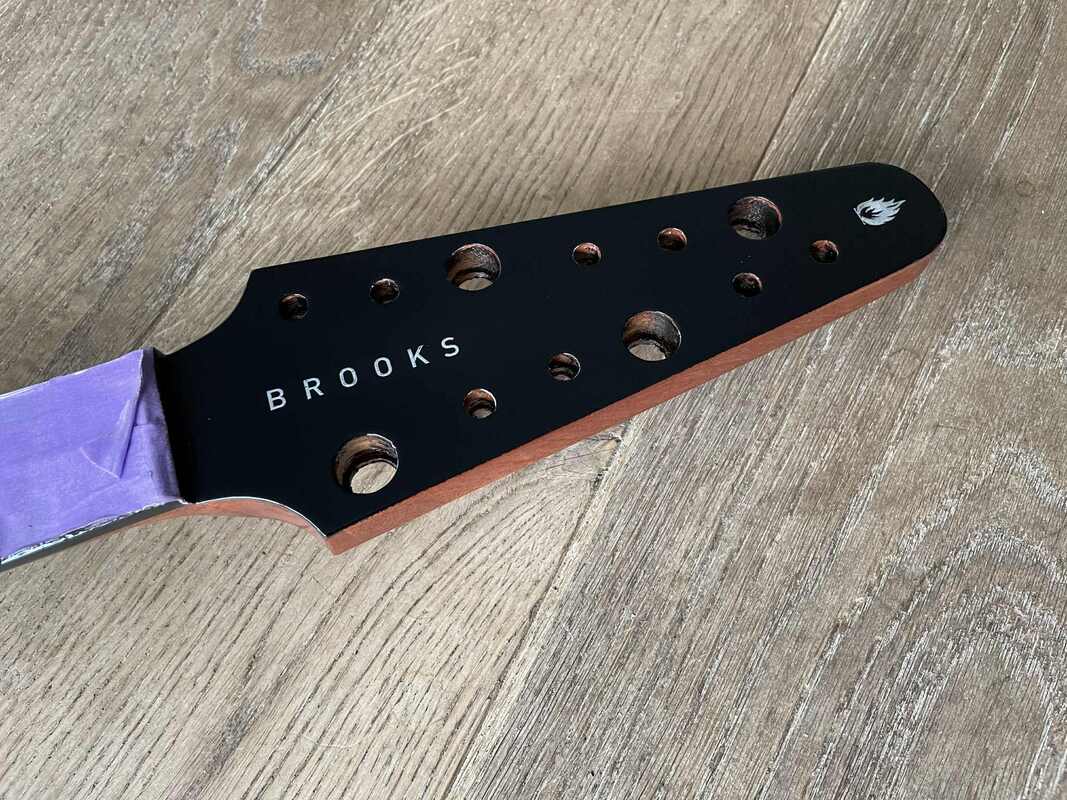

Shaped the headstock outline

Then cleaned up the front and back of the headstock.

Drilled the little holes in the side of the fretboard, for the side position markers.

Glued them in.

And sanded them flush

Filled the gaps underneath the frets with a mix of ebony saw dust and Titebond Original



[Basvarken]

Drilled holes for weight relief in the body blank and routed the cavities and channels for the wiring

Bought a beautiful bookmatched Quilted Maple top set at my wood supplier (Masave in Zwolle The Netherlands)

Glued the top op. You can never have enough clamps ;-)

Let it sit for a couple of hours

And then routed the body outline.



[Basvarken]

Routed the channel for the first step of the checkerboard binding.

Glued in the strips of checkerboard binding. On the sharp corners it's actually done block by block.

The routed away the black fiber strip in the outside. And glued in the real outer binding.
I use a hairdryer to soften the binding where it has to make a sharp corner.

When everything was in place I used the strips of inner bicycle tubes to keep it all clamped, while it dried and hardened.

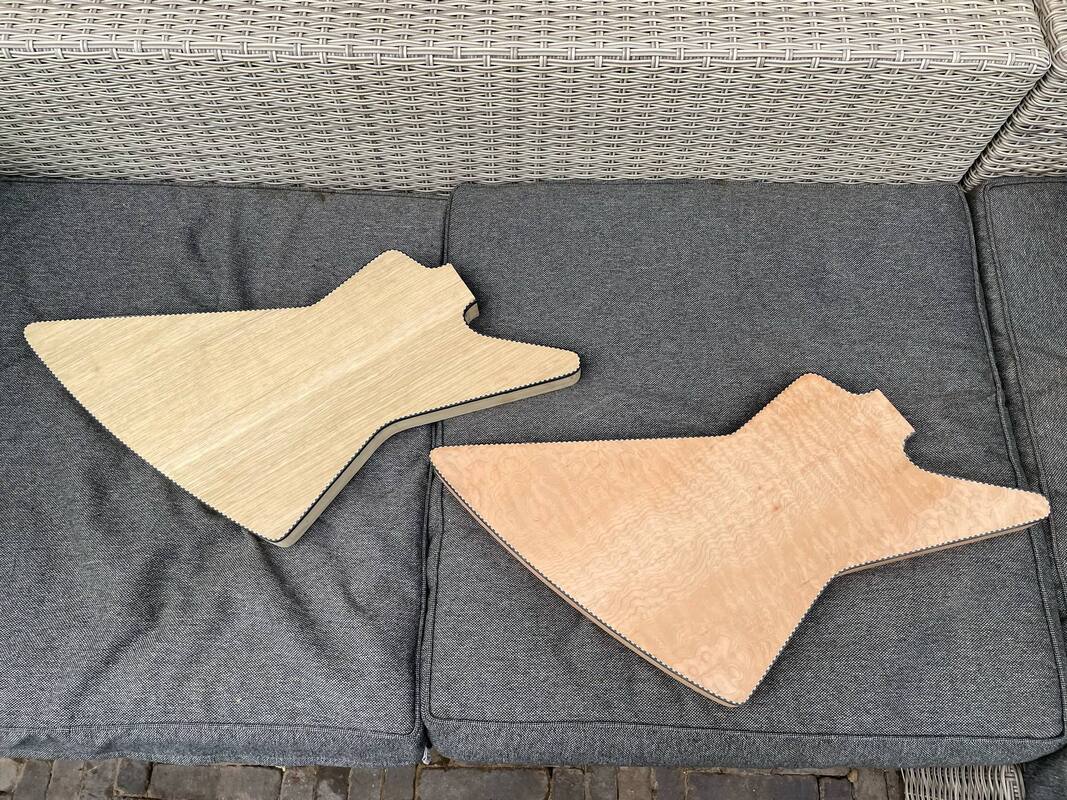

The two bodies were ready at the same time



[Basvarken]

Routed the profiel for the controls cover on the back of the body

Routed the neck pocket

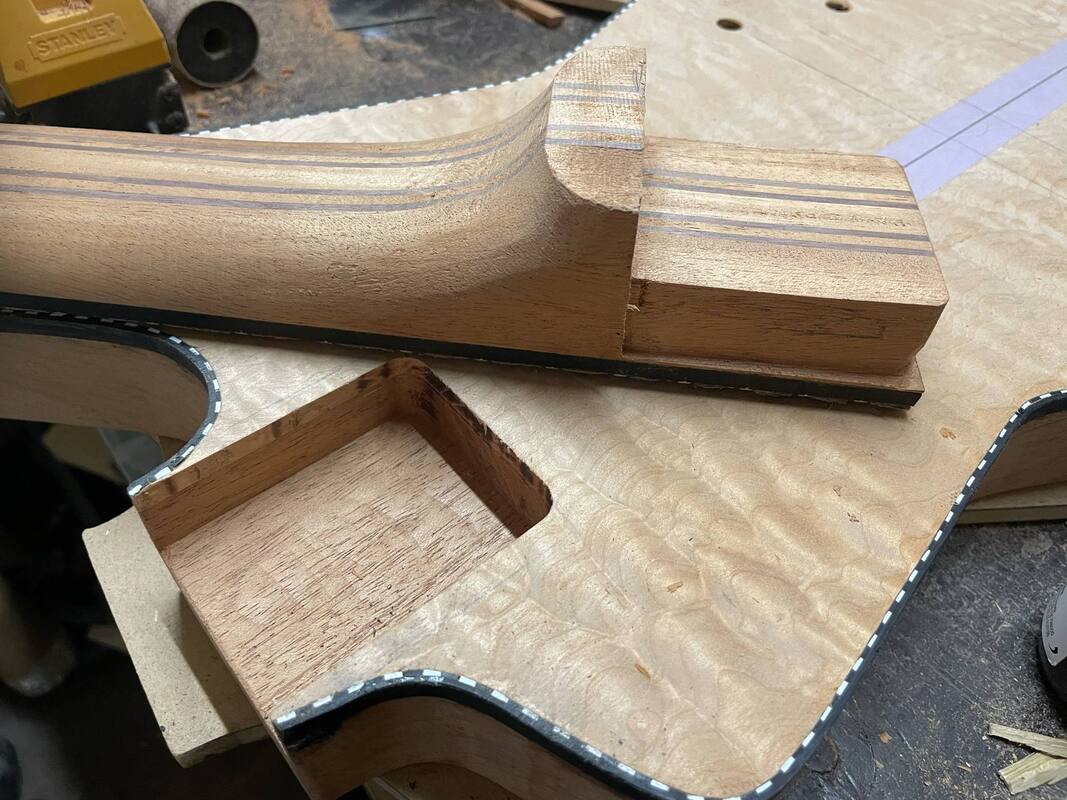

Shaped the heel of the neck to fot the neck pocket

Then routed the pickup cavities



[Basvarken]

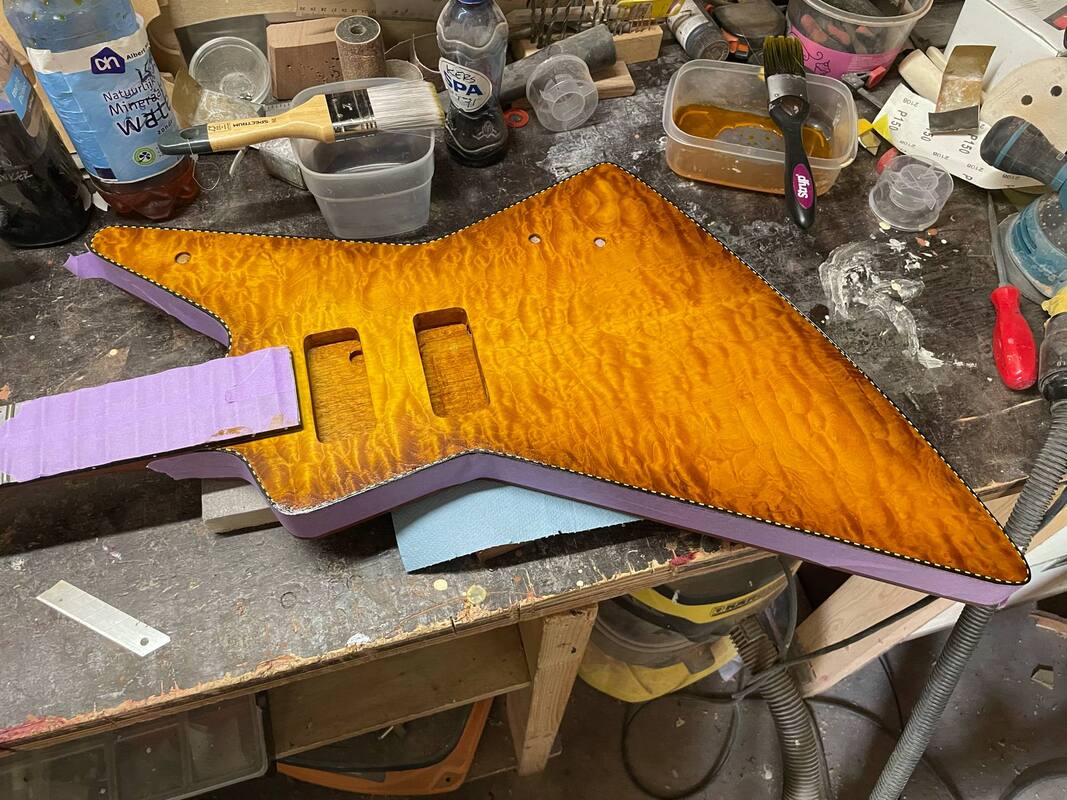

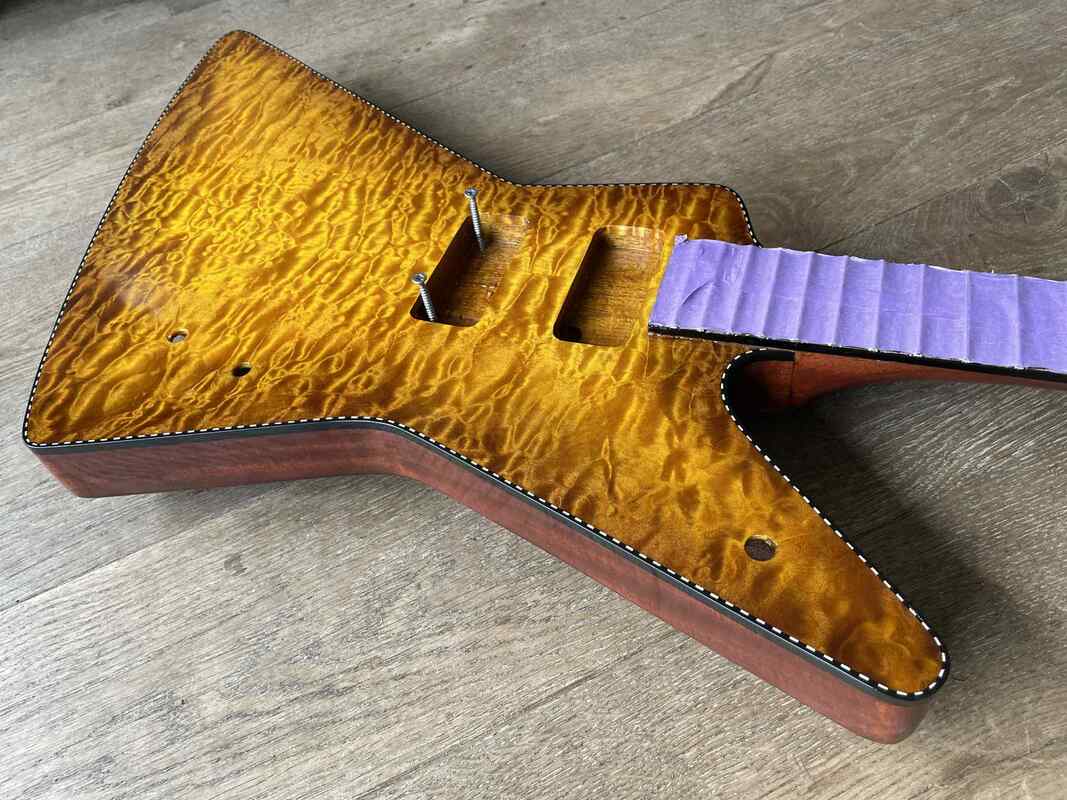

After the neck was glued in I stained the bass in the desired color.
Tom asked for a dark Lemon Burst. Which was a first for me. But it turned out great.

After a few coats of clear lacquer

Applied the decals



[Matt Liebenau]

I’m sorry man. Here’s hoping it shows up. Any idea how far the bass got? Did it make it to the US? Maybe customs is being particularly picky.



[Basvarken]

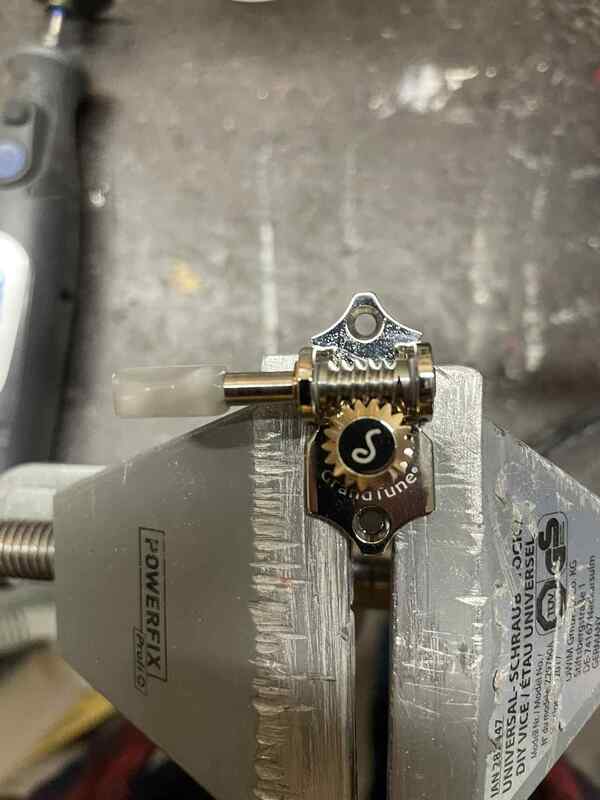

While the lacquer cured, I started to prepare the tuners for installment.

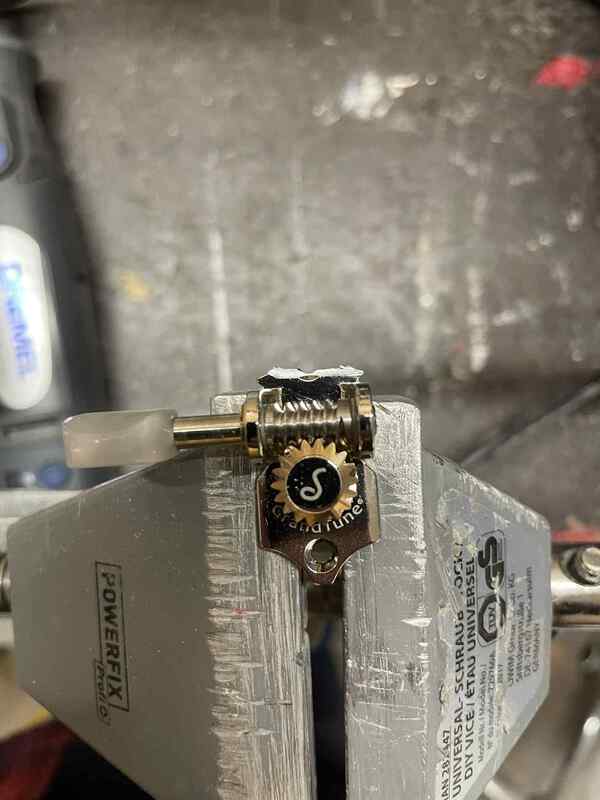

Like I mentioned in the thread of the other bass that I built for Tom Petersson I modified the Schaller tuners a little bit.

Two reasons: Save weight. And to make them shorter in order to keep the headstock as small as possible (without sacrificing strength of the wood).

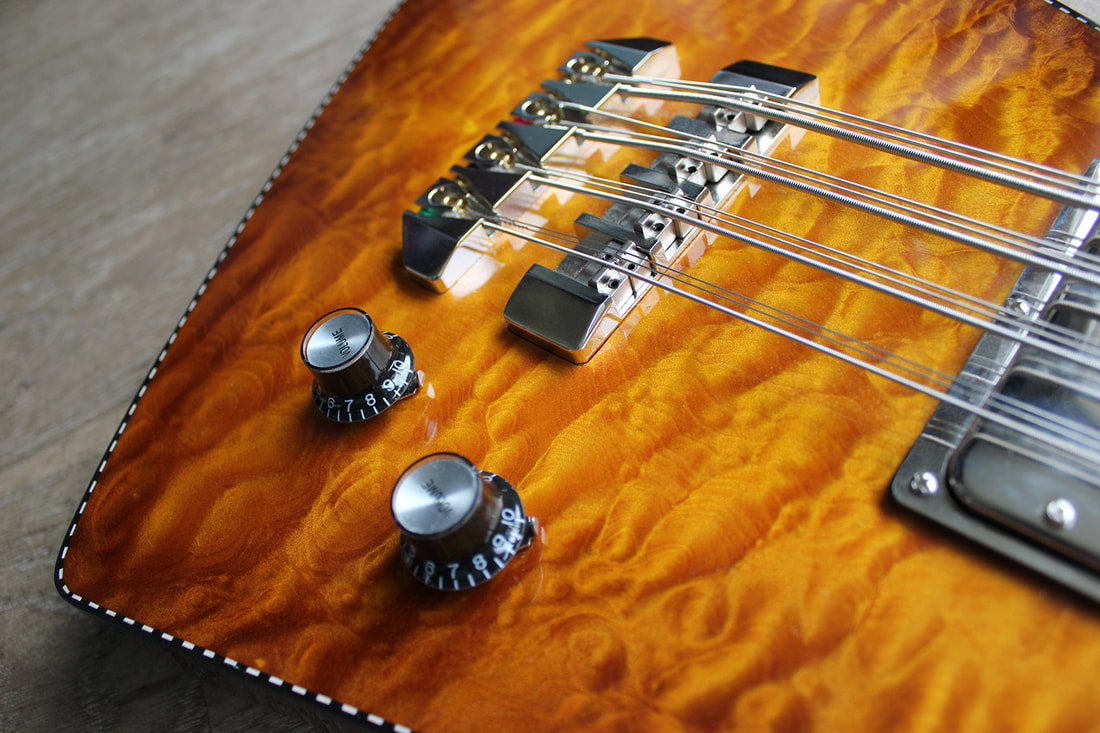

After I had wet sanded and polished the bass, I installed al the hardware and electronics.

Initially the bass was designed with a pearloid pickguard (which matches the pearloid buttons of the octave tuners)

But when I saw the beautiful quilted maple top I got second thoughts. And suggested we'd leave the pickguard off.
Tom agreed to leave it off.

But I did make some pics with the pickguard that I already had cut out.
I used cut off head of phillips crews to make it look as if it was really mounted. So no holes were drilled in that quilted maple top.

I put the pickguard inside the case. So if Tom should change his mind he can always decide to mount it after all.



[Basvarken]

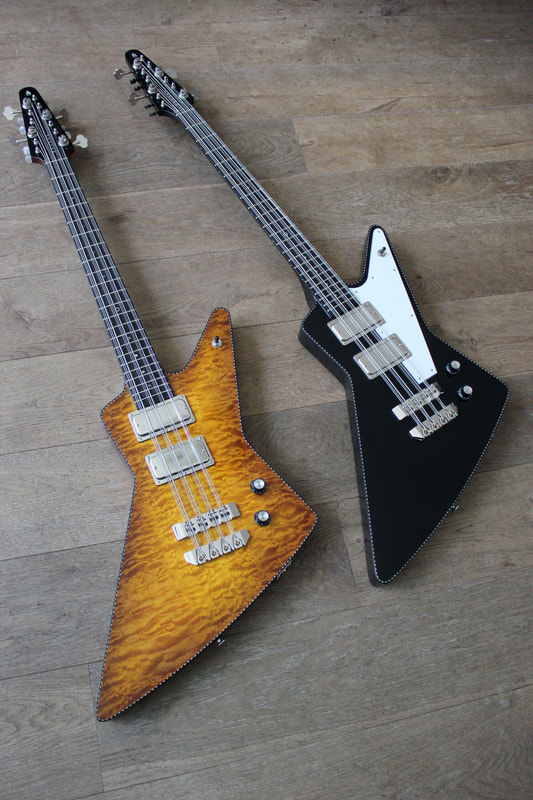

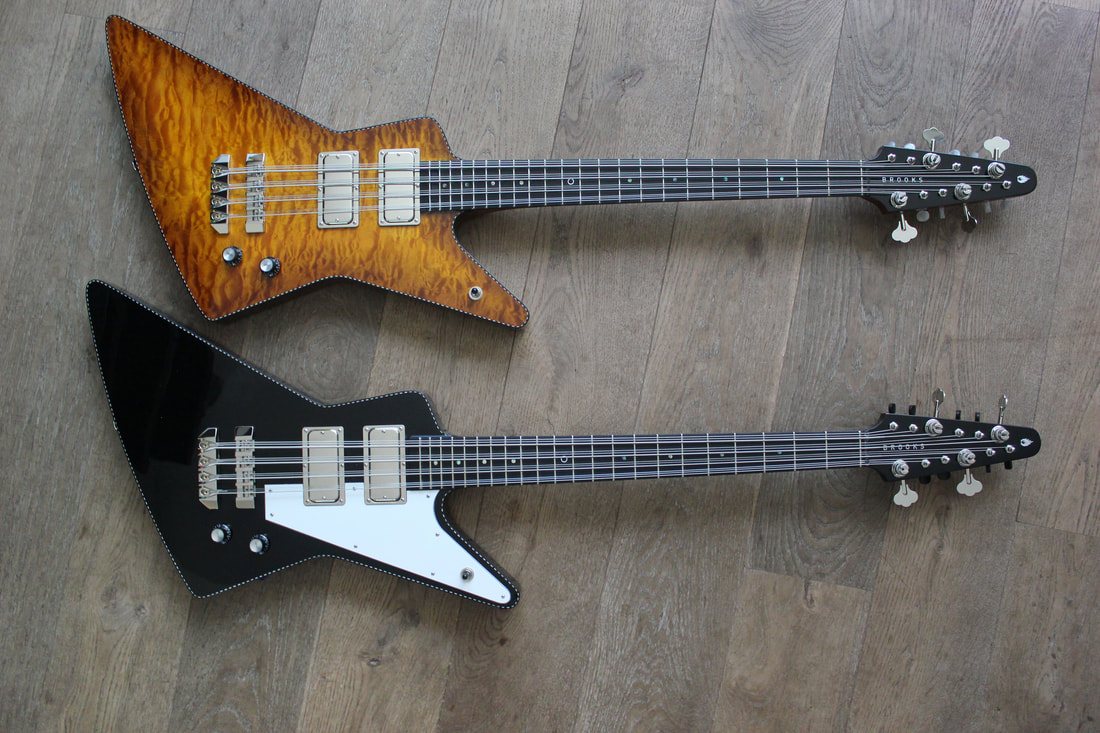

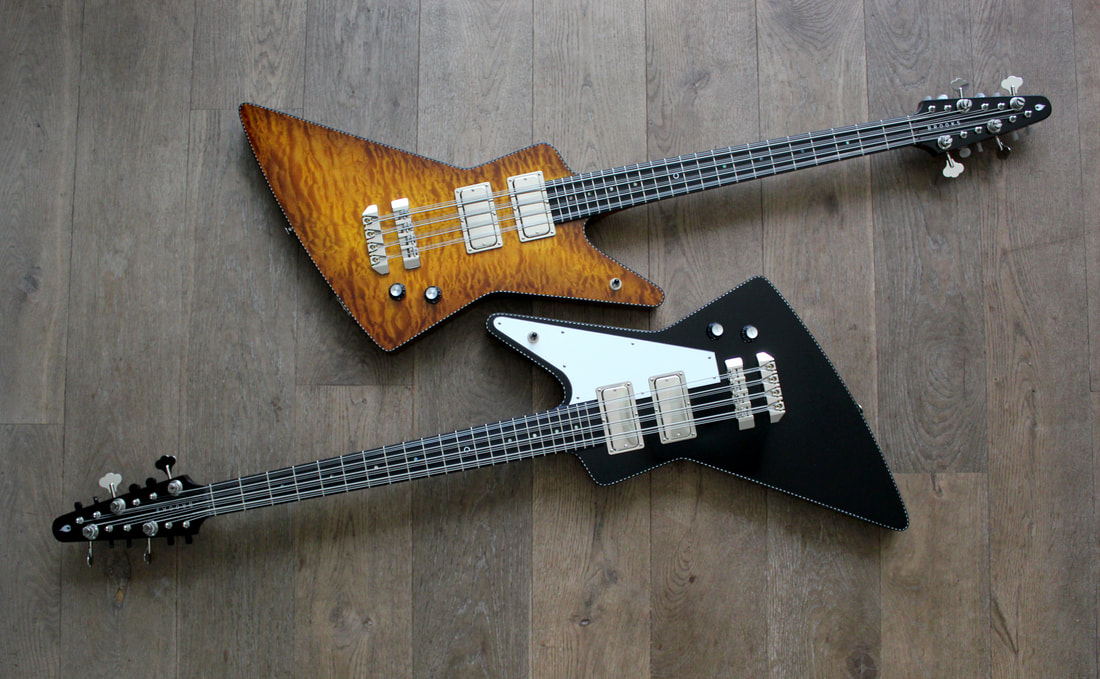

Here are the two bass guitars together, side by side like they should be...

Let's hope they can be reunited soon!



[Basvarken]

I’m sorry man. Here’s hoping it shows up. Any idea how far the bass got? Did it make it to the US? Maybe customs is being particularly picky.

Looking at the tracking information it has been sitting in the UPS warehouse in Louisville KY since july 2nd.



[Andy Marshman]

I saw, and heard, the black one on Tuesday night. it was thunerous of course. Last time I saw the band (30 yrs ago), Tom was playing an 8 string bass if I remember correctly. Watching him this week I was counting the tuning machines and was amazed that this was a 12er.
Rick, my age, looked really frail and weak but still played all the licks and solos.



[Basvarken]

I saw, and heard, the black one on Tuesday night. it was thunerous of course. Last time I saw the band (30 yrs ago), Tom was playing an 8 string bass if I remember correctly. Watching him this week I was counting the tuning machines and was amazed that this was a 12er.
Rick, my age, looked really frail and weak but still played all the licks and solos.

That bass you saw 30 years ago must have been a 12-string as well. Tom basically invented the 12-string bass in the late 70's. And has been playing them ever since.

Yes, I saw some footage of the Toronto show. Rick did look like he could use a rolling walker on stage yes.



[Norm Nelson]

@Basvarken with your permission may I share information on this to other message boards? More eyes out there to identify it if it turns up somewhere out of UPS's hands. So sorry about this, what a gorgeous instrument.



[Basvarken]

@Basvarken with your permission may I share information on this to other message boards? More eyes out there to identify it if it turns up somewhere out of UPS's hands. So sorry about this, what a gorgeous instrument.

Yes please do.



[Andy Marshman]

That bass you saw 30 years ago must have been a 12-string as well. Tom basically invented the 12-string bass in the late 70's. And has been playing them ever since.

Yes, I saw some footage of the Toronto show. Rick did look like he could use a rolling walker on stage yes.

I'm still learning. Other people were talking about an 8 string-er and I didn't know enough about it to correct them. Back then Tom played through a Rickenbacker (at least the cab) but it was not there this week.



[Matt Liebenau]

I could be wrong but I believe Tom has used 8 string basses off and on as well. We saw them years ago at the Western Idaho Fair and I remember being a little bummed because Tom had an 8 string. Still a good show though.



[nixdad]

That black twelve-string bass that I built for Tom Petersson is only half the story.
I built another twelve-string bass for Tom. And they were finished simultaneously.
Both basses were sent off to Tom's address on June 29th.
The black one was delivered four days later.
But the other one (with quilted maple top) still has not been delivered. UPS has lost the package...
I filed a claim for investigation on July 16. But still no sign of the bass to this day!

I am gutted.

I'm still keeping my fingers crossed that it will show up in the UPS warehouse after all.
But if you should ever see this bass for sale, please do contact me.


Here are the pics that I took before I sent it off to the USA

Specifications:

- Mahogany body
- Quilted Maple top, bookmatched
- Nine ply laminated Mahogany set neck. Glued in
- Lemon Burst finish. Naturel Mahogany back and sides
- Checkerboard binding
- Ebony fretboard
- Abalone position dots. Aluminium ring in 12th position
- Jumbo frets
- 30 1/2" scale
- Buffalo horn nut
- ETS Custom made twelve string bridge set. Nickel
- Two spokewheel double action trussrods
- Carbon reinforcement strip in the neck
- Gemini Dominator in the neck position. Nickel
- Gemini Devastator in the middle position. Nickel
- Pure Tone output. Nickel
- 3-way pickup selector toggle switch
- Hipshot Ultralite Mini clover bass tuners. Nickel
- Schaller GrandTune guitar tuners. Nickel, Pearloid button
- d'Addario custom strings
- Weight: 4.7 kg

I'll post pics of the build process below.

That's absolutely GORGEOUS!
Man, I hope it turns up unharmed.



[dune]

Fantastic work! Hope that UPS finds it, and quickly.
