Should I be concerned with pedal voltage? POG & Pitchblack.

DrSteve

DrSteve

Supporting Member
Dec 22, 2008
534
846
North Delaware
#1
I searched but could not find info on these pedals used in sequence.

I am only using 2 pedals; Electro-Harmonix POG (9.6 V) and the Korg Pitchblack (9 V).

I am running the Pitchback first, so I tried using the Pitchblack converter and daisy chain the power adaptor supply to the POG. The pair cut out during the second set. I quickly recovered by going directly into my amp, but I'm wondering if it's my daisy chain cable or if chaining these pedals together is just a bad idea. I powered both individually for the 3rd set and everything was fine.

I know I shouldn't have, but I threw out the daisy chain cable after the gig. I should have kept it for testing.

Any advice would be greatly appreciated.

#5
For the most part a manufacturer isn't going to give you more power in the power supply than is needed to just run the intended device. Trying to power a second one can overtax the current capability of the supply.
You'll need to find a third party solution for power that's intended to run multiple supplies.

#6
DrSteve said:
I was hoping to avoid using 2 adapters
Click to expand...
You can find other power supplies but you need to add up the current being drawn by both pedals and size the supply for at least 50% more, or better, twice that amount of current.
Running two power adaptors may not be too bad compared to the cost of another larger one. When you get to three pedals, having a dedicated supply for all starts to make more sense.

  • Like
Reactions: Fuzzbass, CTW68, NoSlapForYou and 1 other person
#9
It's a 1Spot NW1-US adapter that came with the Korg Pitchblack tuner. Output 9V == 1700 mA (Max.)
The EH Adapter for the POG is 9.6 V 200mA. It's Micro POG if that makes any difference. Plus I bought it used, so this may not be the original adapter.

I was just looking at some pedal board power supply options on Reverb. I had never thought...
Learn something new every day.

  • Like
Reactions: DrThumpenstein
#10

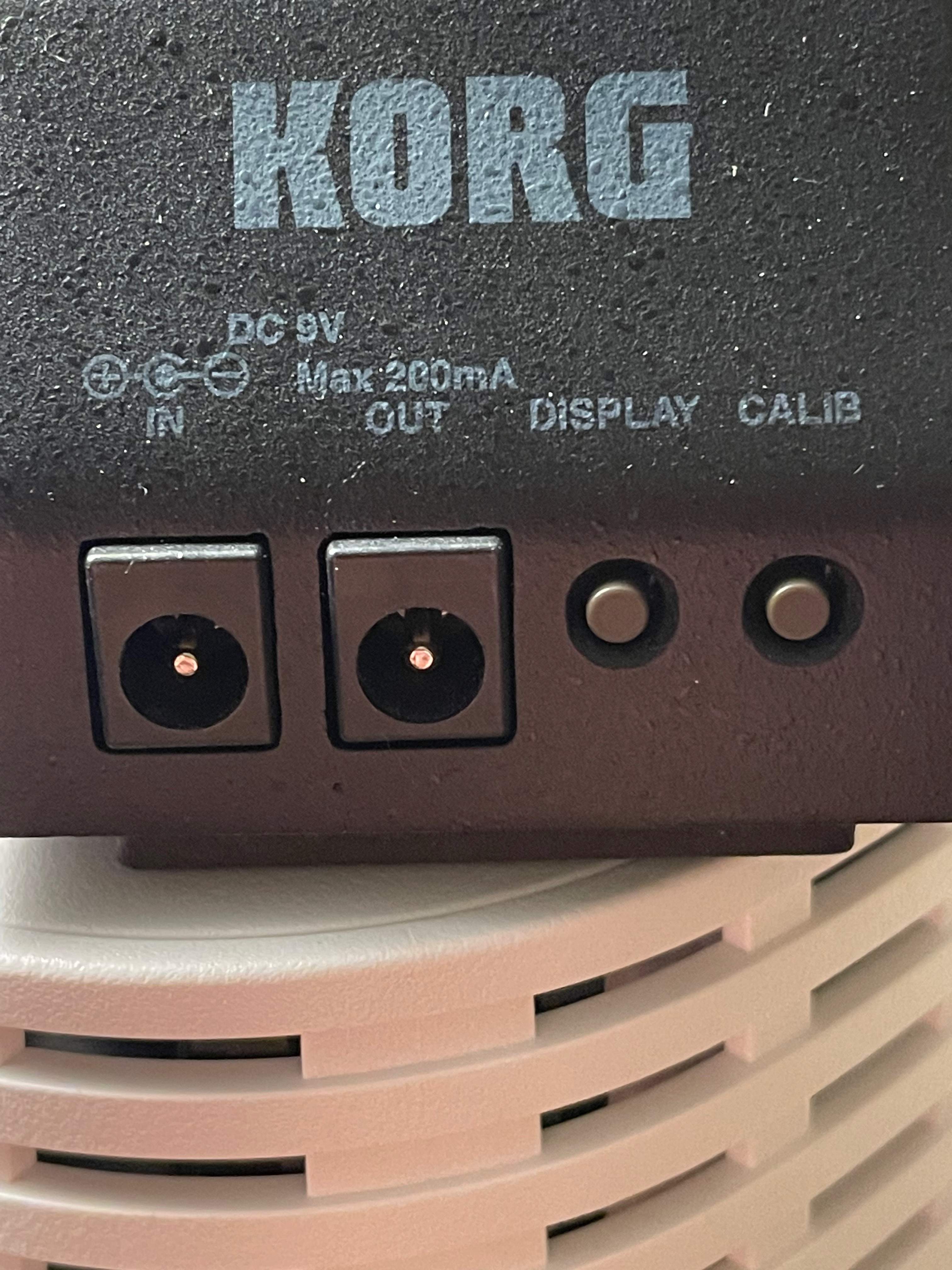

This is why I though I could Daisy Chain the power supply:
Korg PB - 1.jpeg

  • Like
Reactions: monsterthompson
#11
DrSteve said:
It's a 1Spot NW1-US adapter that came with the Korg Pitchblack tuner. Output 9V == 1700 mA (Max.)
The EH Adapter for the POG is 9.6 V 200mA. It's Micro POG if that makes any difference. Plus I bought it used, so this may not be the original adapter.

I was just looking at some pedal board power supply options on Reverb. I had never thought...
Learn something new every day.
Click to expand...

Okay, you've got a One Spot which should give you enough current. BUT you need the daisy chain cable that goes with it. And yes the Micro POG does not pull 600ma like the regular POG, it pulls 180ma.

I would forget the output of the Korg and get a daisy chain cable for your One Spot.
https://www.amazon.com/Guitar-Effect-Supply-Splitter-Adapter/dp/B06ZZQRFP8/ref=sr_1_4?crid=3TWRD933XRN3S&keywords=truetone+cable&qid=1672802904&sprefix=truetone+cable,aps,87&sr=8-4

As an Amazon Associate, TalkBass may receive commissions from qualifying purchases made via links on this site.
  • Like
Reactions: Fuzzbass, Old Garage-Bander, DrSteve and 4 others
#13
DrSteve said:
I searched but could not find info on these pedals used in sequence.

I am only using 2 pedals; Electro-Harmonix POG (9.6 V) and the Korg Pitchblack (9 V).

I am running the Pitchback first, so I tried using the Pitchblack converter and daisy chain the power adaptor supply to the POG. The pair cut out during the second set. I quickly recovered by going directly into my amp, but I'm wondering if it's my daisy chain cable or if chaining these pedals together is just a bad idea. I powered both individually for the 3rd set and everything was fine.

I know I shouldn't have, but I threw out the daisy chain cable after the gig. I should have kept it for testing.

Any advice would be greatly appreciated.
Click to expand...
How much current does the POG draw? I currently run a Pitchblack and an Ampeg SCRDI or a a 5 pedal guitar setup using the One Spot wall wart and it has no issues with either setup. The first place I would look would be the actual daisy chain cable as you're probably not even close to maxing out the power supply.
The supplied adaptor is a 9.6V unit however the spec for the POG is 9V. The One Spot isn't the problem unless it' faulty.

  • Like
Reactions: DrSteve
#14
The 1Spot (9 V) is fine as is the EH Adapter (9.6 V) since they both work individually. Must have been the cable (Which I threw out at the end of the night. I should have kept it for testing).

I ordered a new splitter cable as suggested by mmbongo (thanks) and will use the split power cables rather than try to daisy chain from Pitchblack to POG.

#17
Thanks everyone. I ordered the Power Supply Splitter Cable. Unfortunately it will take a few days to get here.
Can't wait to test it. Guess I'll just go with the two power converters until the new cable arrives.

Thanks again for all of your input.

I'll post the results as soon as I can test the new cable.

  • Like
Reactions: mmbongo
