Show me your compact pedalboard setup

#9,041

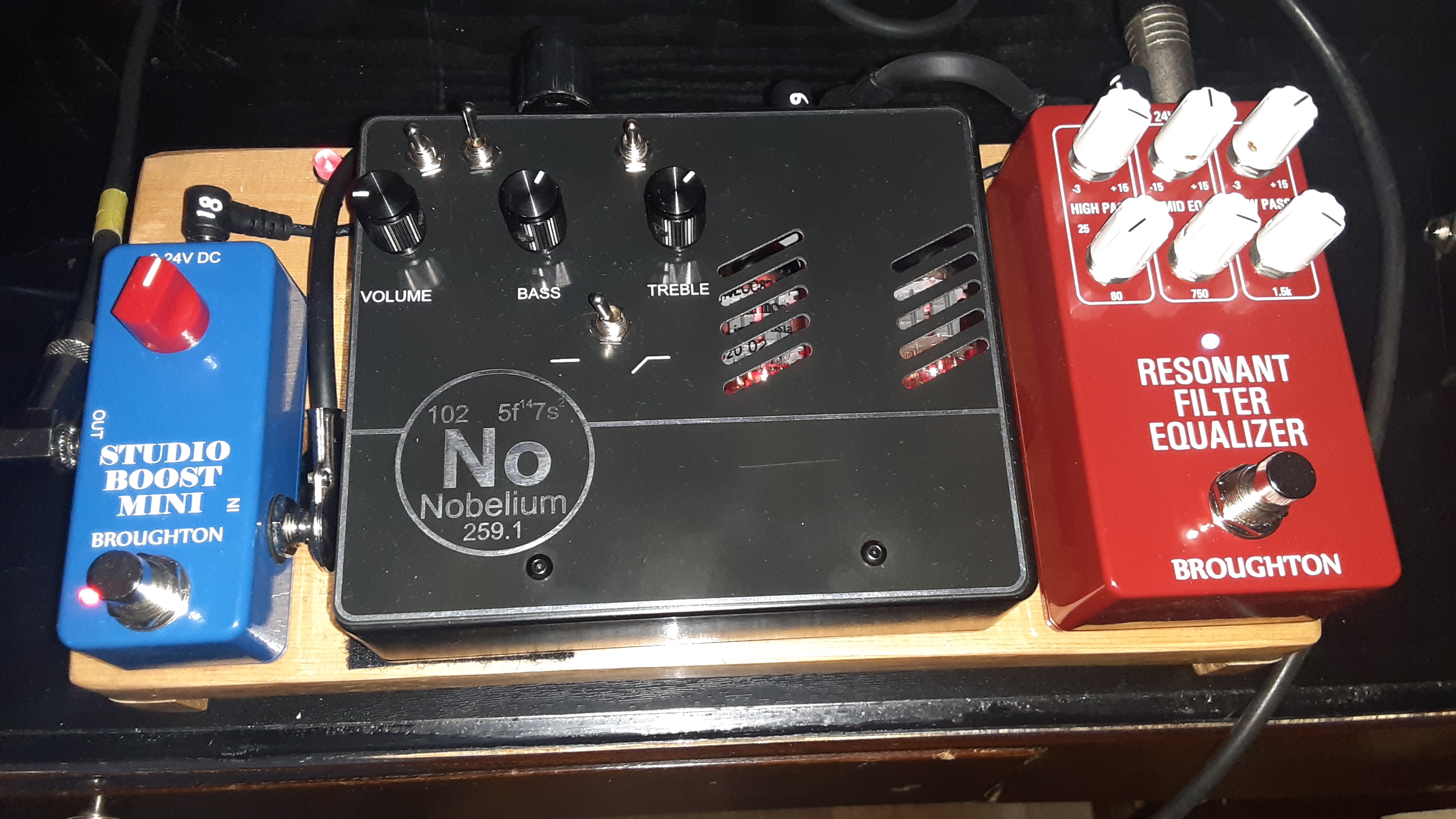

This was at a local bass day. If a gig a Radial JDX 48 DI would be there too. I’ll call it a board as it’s sitting on wood, cool

  • Like
Reactions: krdp_nsk and BrentSimons
#9,043
kevk said:

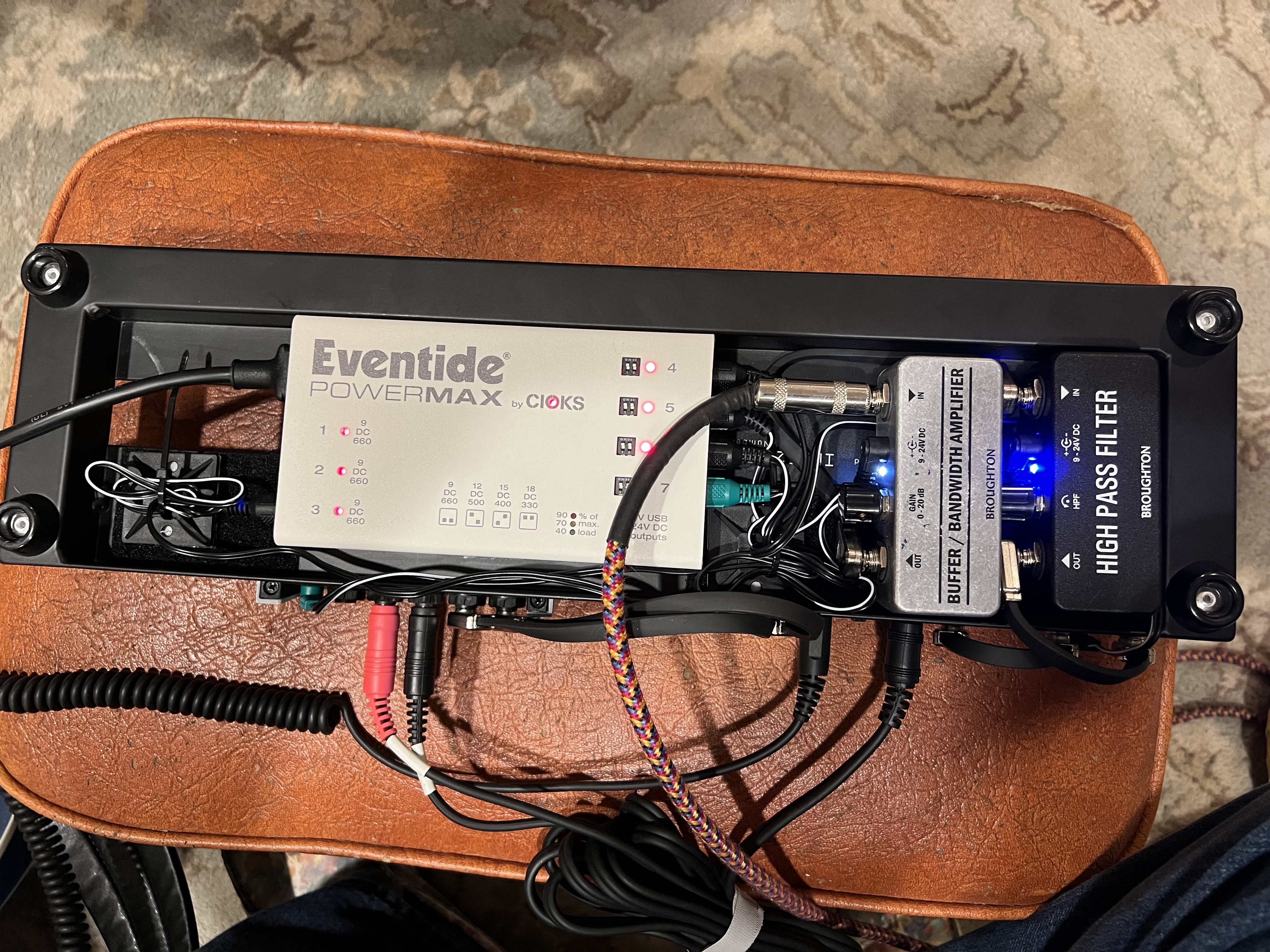

Sometimes I want just a couple pedals in my amp effects loop. Modified a PT riser (7”w) to reside by my amp (always prefer IEC power connectors, even if I don’t need all the outlets)…SOL clears the bottom nicely, using 1” tall rubber feet.View attachment 5377745
Click to expand...

Can you use the Mercury7 without external MIDI switches to recall different presets?

  • Like
Reactions: MikoFX
#9,051
el murdoque said:
You'll face some power restrictions through the USB-C input - have a look into the Cioks manual.
When powered by that input, it will not give you as many watts.

I doubt that you can power the LA-1A this way, since it maxes out 2 outlets IIRC.
Click to expand...
So looking at the manual, 5VDC at a max of 3A via the USB C into the Cioks 4 will give me 15W. Total power output the Cioks 4 is capable of is 24W, so it will probably be running around 65% capacity off the power bank. Haven't done the calculation of current draw on all pedals on both boards but it will be close. LA-1A is power hungry but the other 2 pedals take next to nothing. At a guess it will be ok I reckon. The other board running Super Pre, MS-60B, and GLXD16+ might be a different story.
**EDIT** If the the Super Pre, MS-60B, and GLXD16+ are 9V @ 500mA, which I believe they are, that is 4.5W per pedal for a total of 13.5W + whatever the Spark and LS2 require. I think I will just make it.

Last edited:
  • Like
Reactions: Zooberwerx
#9,054
Rocksolid said:
So looking at the manual, 5VDC at a max of 3A via the USB C into the Cioks 4 will give me 15W. Total power output the Cioks 4 is capable of is 24W, so it will probably be running around 65% capacity off the power bank. Haven't done the calculation of current draw on all pedals on both boards but it will be close. LA-1A is power hungry but the other 2 pedals take next to nothing. At a guess it will be ok I reckon. The other board running Super Pre, MS-60B, and GLXD16+ might be a different story.
**EDIT** If the the Super Pre, MS-60B, and GLXD16+ are 9V @ 500mA, which I believe they are, that is 4.5W per pedal for a total of 13.5W + whatever the Spark and LS2 require. I think I will just make it.
Click to expand...

I discovered that issue when I tried to run multiple tube pedals off a Cioks 4 through a USB-C Battery.
I the 37,5% capacity loss is (of course) in Ampere, not Volts, and I do think it is per output.
So each of your four your 660mA @ 9V become 412,5mA, and switched to 12V you'll only get 312,5mA.
In theory, you could use three Flex 8800 cables to use three outlets of the unit to run the LA-1A - Cioks PSUs usually err on the good side and rather provide a little more than a little less .. but that left only one output to power the rest.

  • Like
Reactions: Rocksolid
#9,055
el murdoque said:
I discovered that issue when I tried to run multiple tube pedals off a Cioks 4 through a USB-C Battery.
I the 37,5% capacity loss is (of course) in Ampere, not Volts, and I do think it is per output.
So each of your four your 660mA @ 9V become 412,5mA, and switched to 12V you'll only get 312,5mA.
In theory, you could use three Flex 8800 cables to use three outlets of the unit to run the LA-1A - Cioks PSUs usually err on the good side and rather provide a little more than a little less .. but that left only one output to power the rest.
Click to expand...
A 37% reduction per output would indeed be a killer rather than just a limit on total output regardless of how it is distributed across the outputs collectively.
