Silly(?) Ampeg Question

[Flag2Flag]

Are the vintage era SVT's (70's) a PCB design or is it all point to point wired?

Thanks,
Scott



[KramerBassFan]

PWB for Drivers, NO turrets. <- Thanks Jerrold Tiers for clearing that up.


IMHO I would not touch a Point to Point Wired SVT.

This is what true PTP looks like.

Invalid Link Removed
Almost always a mess. Like i said, i wouldn't touch a PTP SVT, unless it was wired by Dave Reeves himself!

This used turret boards.

http://www.diyguitarist.com/Images/TigerAmp-Ch1.jpg

Now, I won't get into any tonal benefits or that (too subjective) but in general, PCB can be easier to repair... that is, unless the PCB has a giant hole in it because your KT88 tube shorted out!



[Flag2Flag]

Cool! thanks for the info. got one en route from California, so just trying to get a mental picture of the inards haha...



[KramerBassFan]

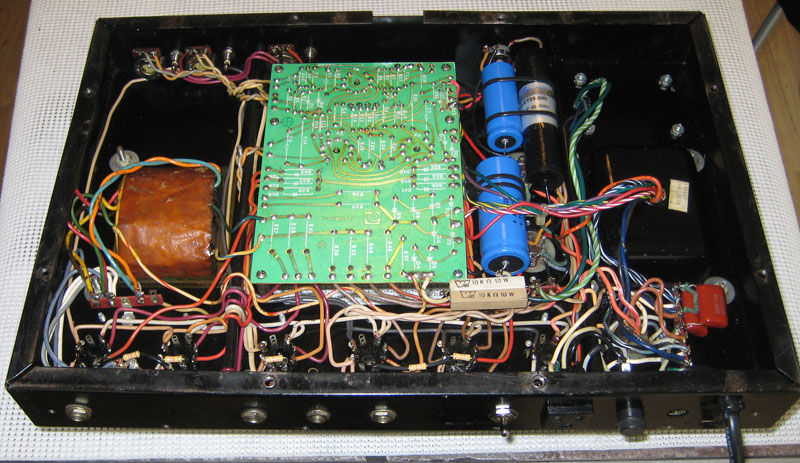

http://johnkvintageguitars.homestead.com/75SVT-7-2.jpg
This is apparently a 75' SVT... from one of our members, as a matter of fact



[KramerBassFan]

http://www.chambonino.com/work/ampeg/amp4.html


You may find this interesting too... doesnt have a truly VINTAGE SVT, but it does have a few others.



[Flag2Flag]

wow good stuff! thanks a bunch!



[KramerBassFan]

No problem mate



[Jerrold Tiers]

The original SVT has a PWB for the driver tubes, but not for the output tubes........ NO turret boards....

The SVT-II has a lot more boards, and they are G-10 epoxy, and not the phenolic paper from the earlier SVT.....



[KramerBassFan]

Thanks, Post edited.
