Simple Pedalboard Build Play by Play

Discussion in 'Effects [BG]' started by Killing Floor, May 9, 2021.


  1. Killing Floor

    Killing Floor Supporting Member

    Feb 7, 2020
    Austin, TX
    I decided to redo my boards and make a portable grab and go board that is also small enough I can use it with my practice setup.
    Point is not to show the pedals I have, there's a pile of them. But I want to show that any buffoon (me) with low cost hand tools and limited skill can do this.

    Parts:
    1X2 trim board, these usually come in 6' length at Lowes or Home Depot.
    1X3 trim board, these come in 8' and other sizes.
    2 cabinet handles of your choosing.
    Can of spray paint.
    Adhesive Velcro, don't cheap out on substitutes.
    Cable guides of your choosing.
    Deck screws, I used 1.5" for the board and 5/8' for the cable guides.
    Wood glue like Elmers or Gorilla.
    Sheet of sandpaper or a file.

    Tools were a cheapo plastic box miter with a hand miter saw, sold in a kit at Lowes, cheap!
    A drill and a screw bit. Or a torx bit in my case. Either one is fine.

    Total build time about 30 minutes plus paint-dryin' time.

    Cut boards. Note the top deck planks are as wide as you need, in my case this was for 4 pedals. You can add a 3rd piece if you want 2 rows of pedals. The rest of the pieces are the width you desire. Here I used 13" for the decking and 5 3/8 for the rest.

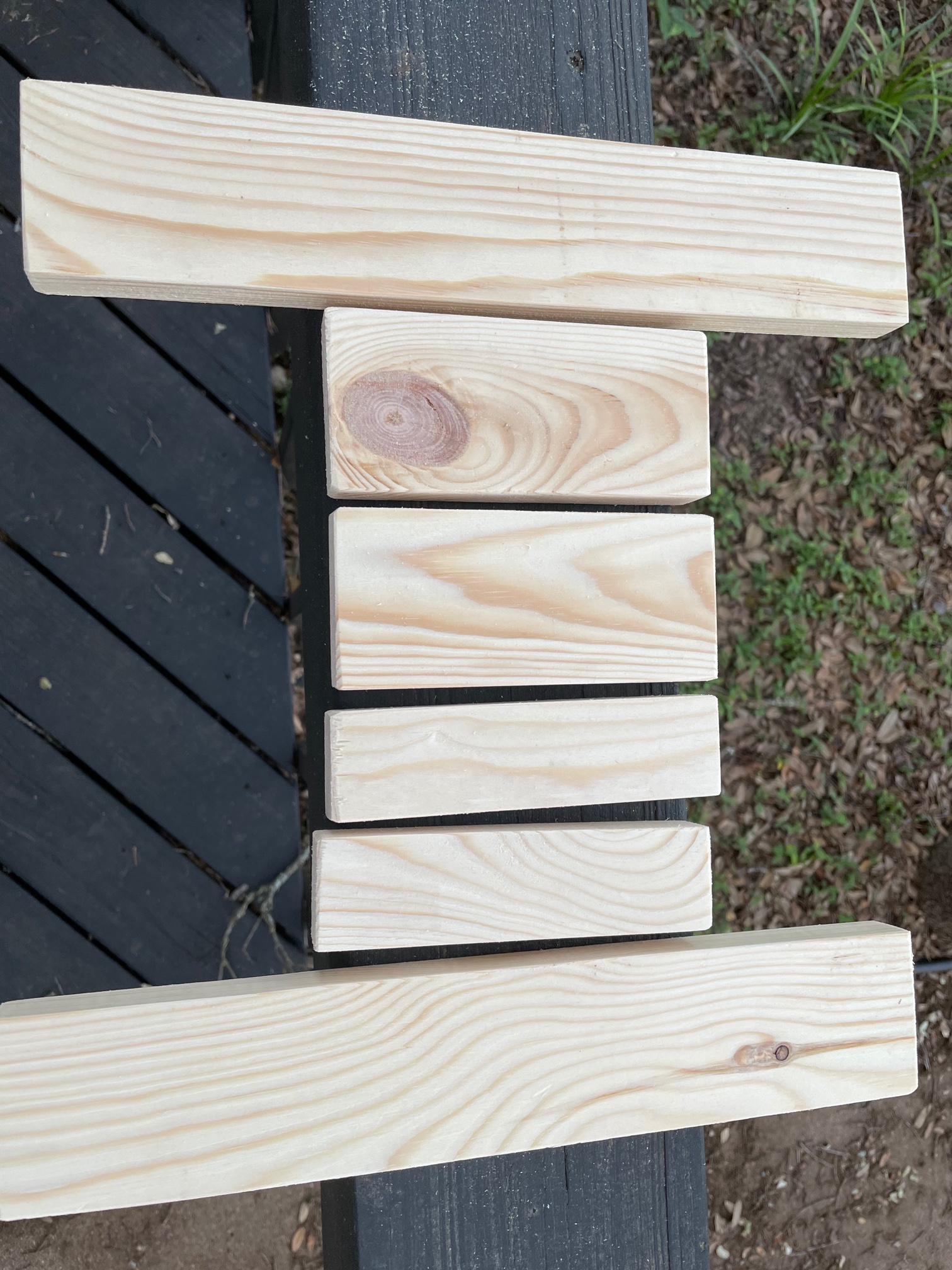

    Here are the cut boards:

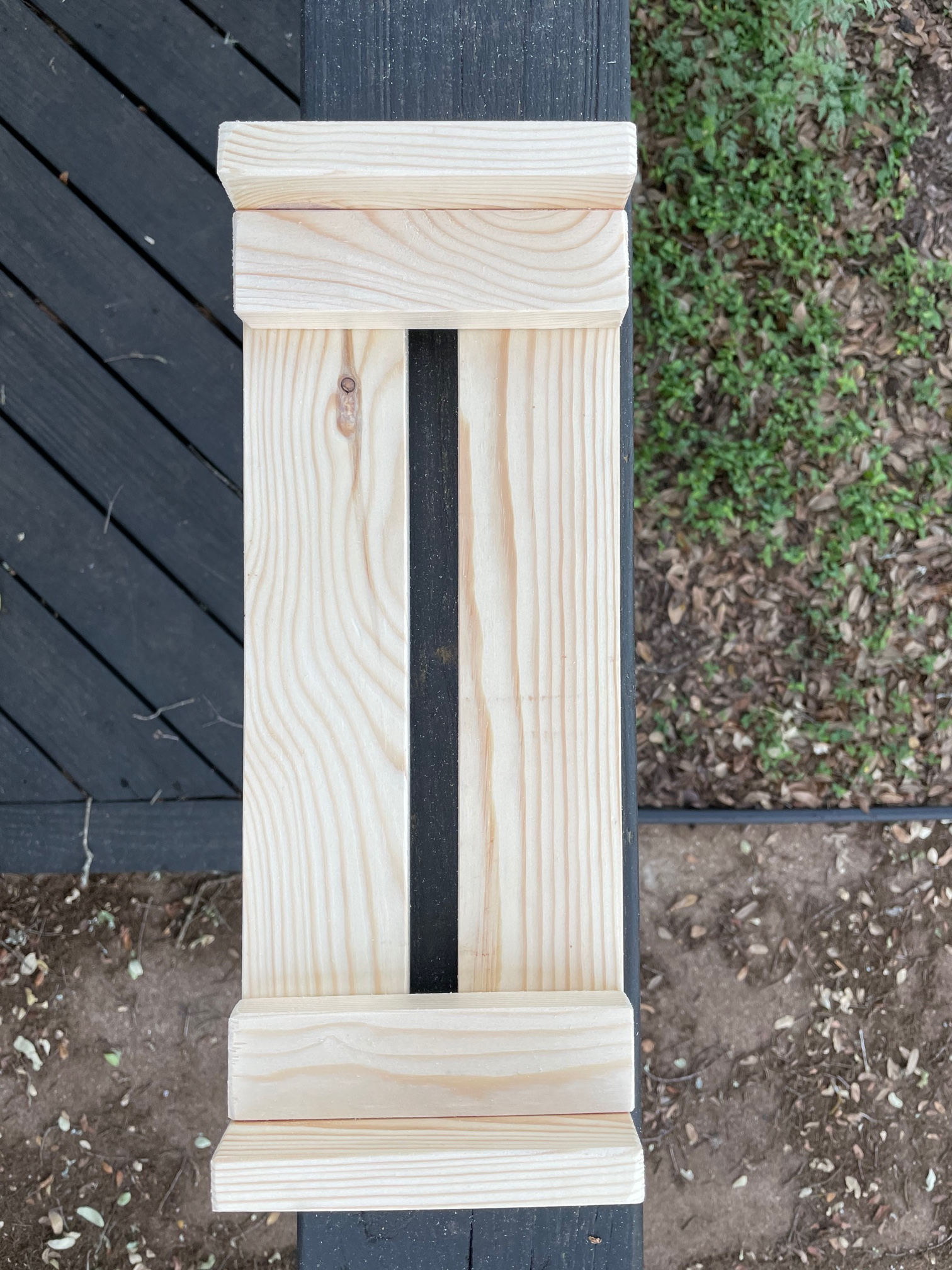

    Here I've placed the parts to make sure I didn't screw anything up:

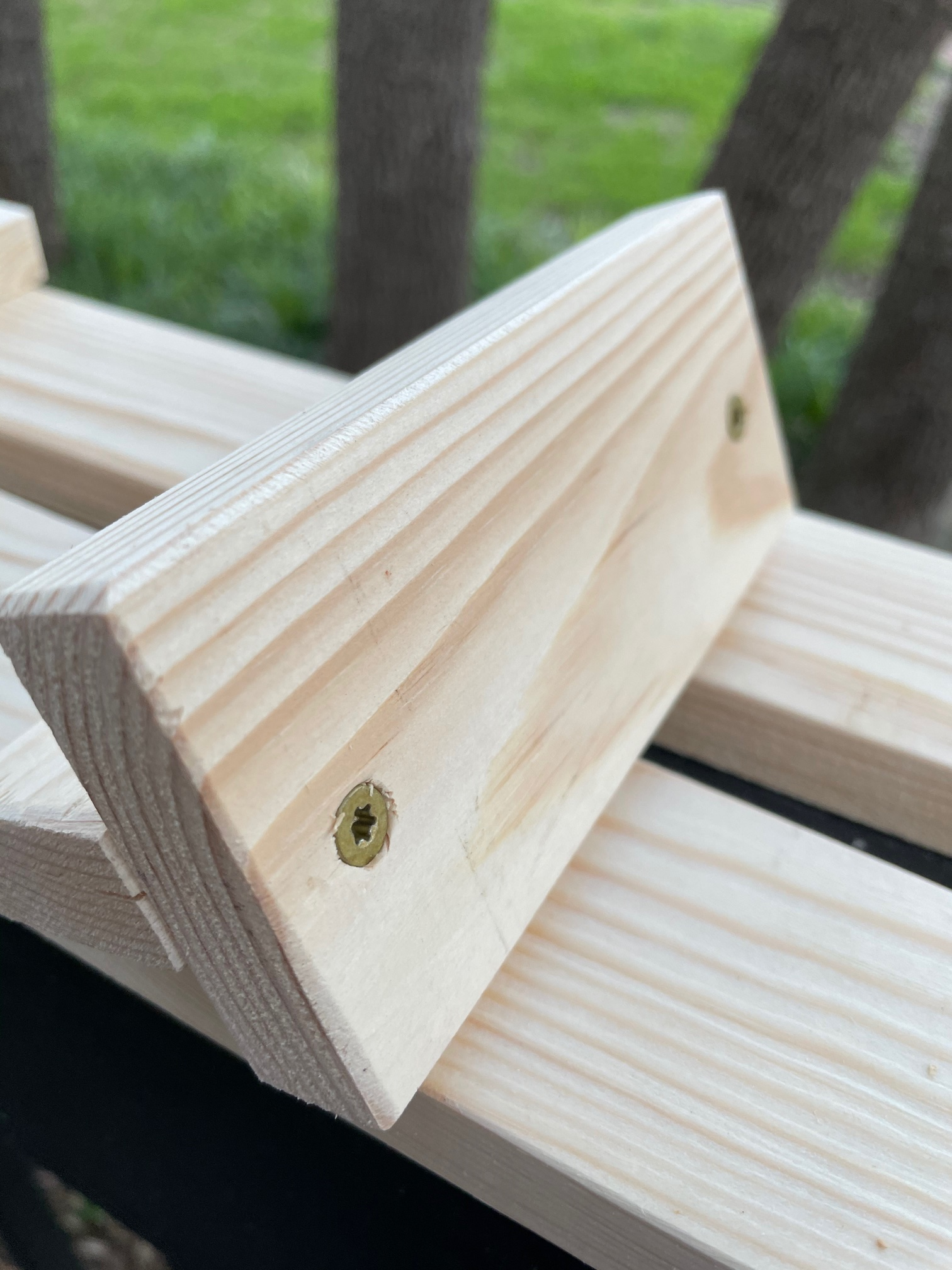

    Side/heel screwed and glued:

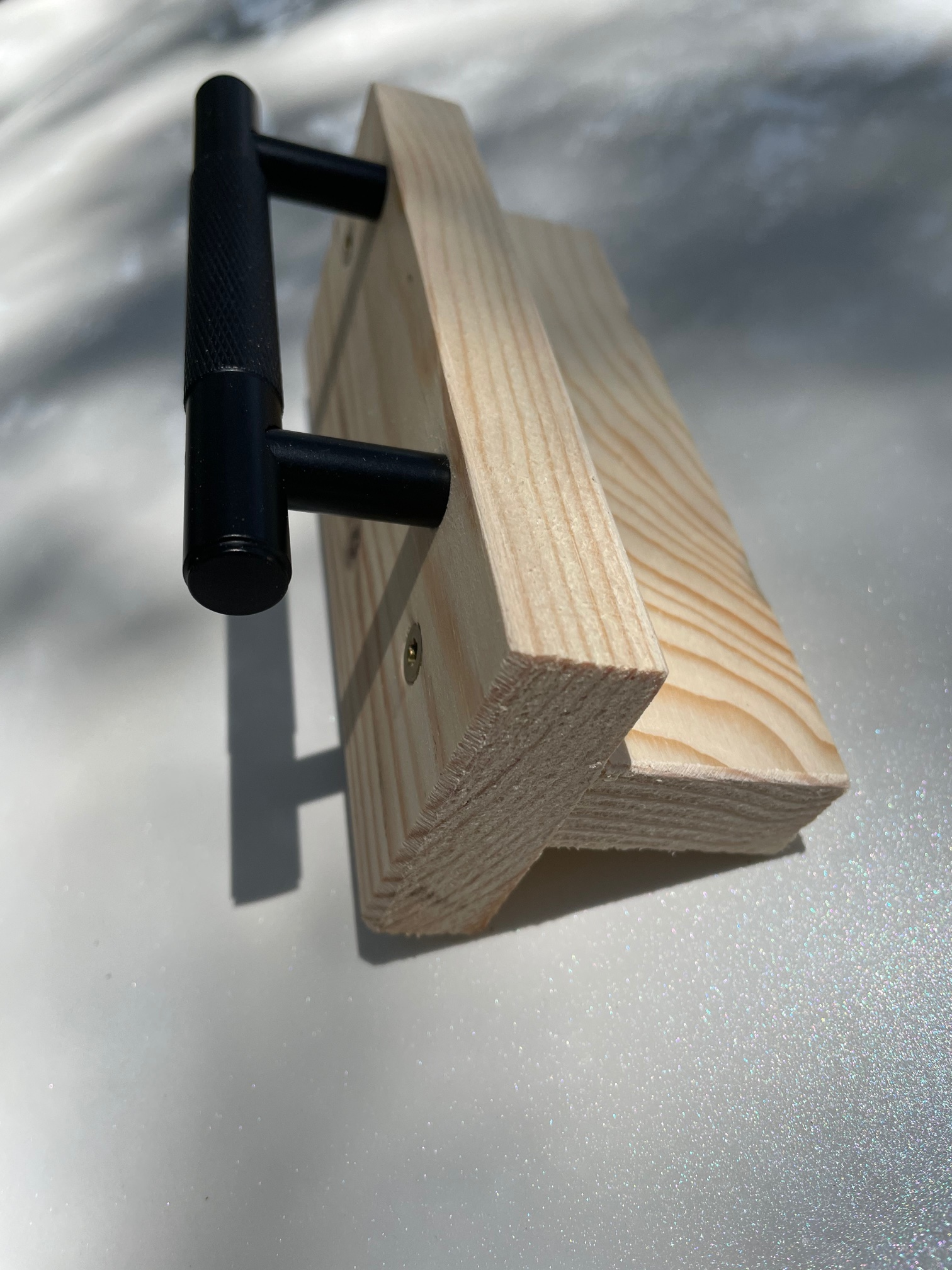

    Kind of a cool looking handle, from the kitchen cabinet hardware section at Lowes:

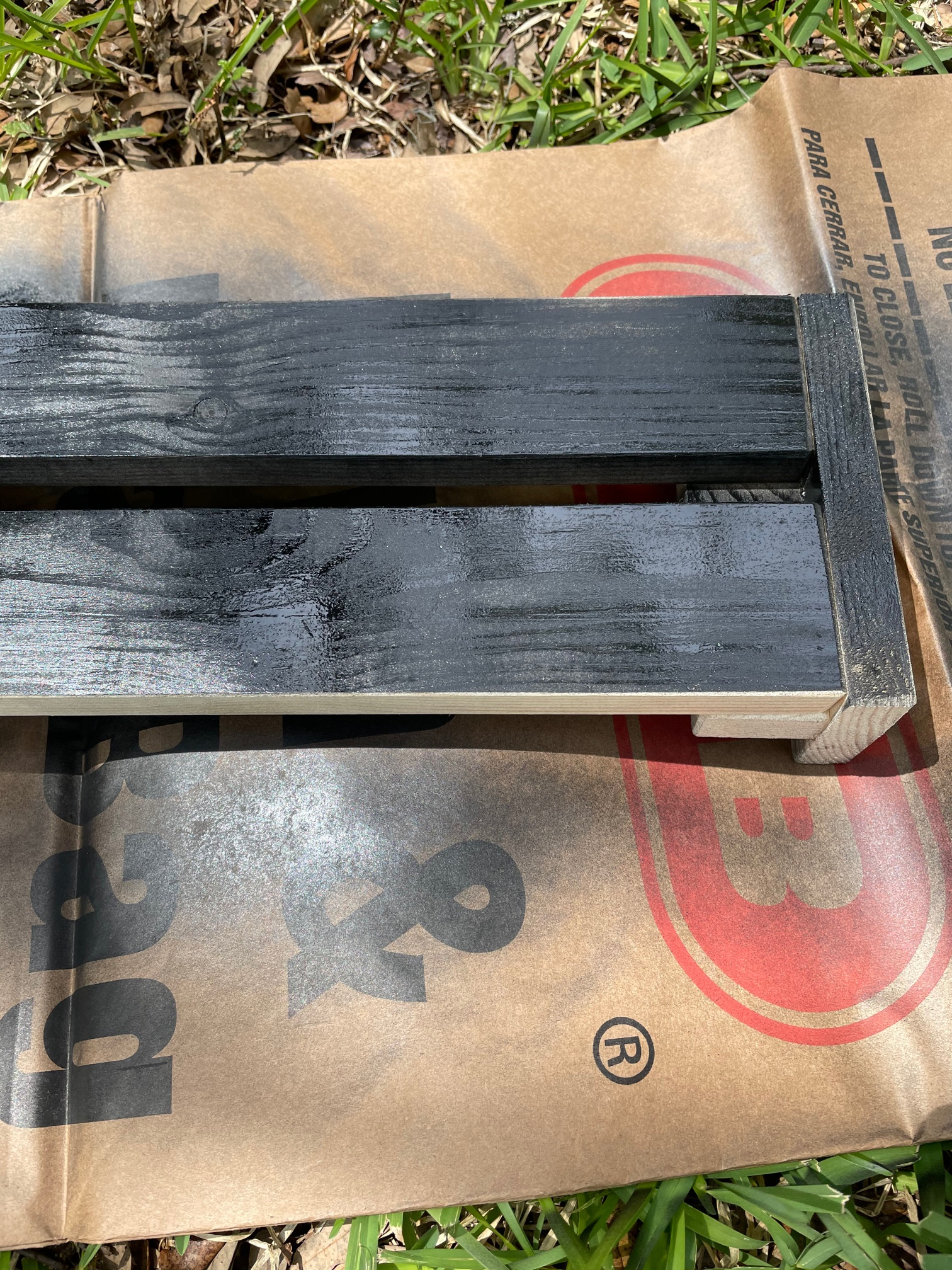

    How about black? Priming is a sign of weakness.

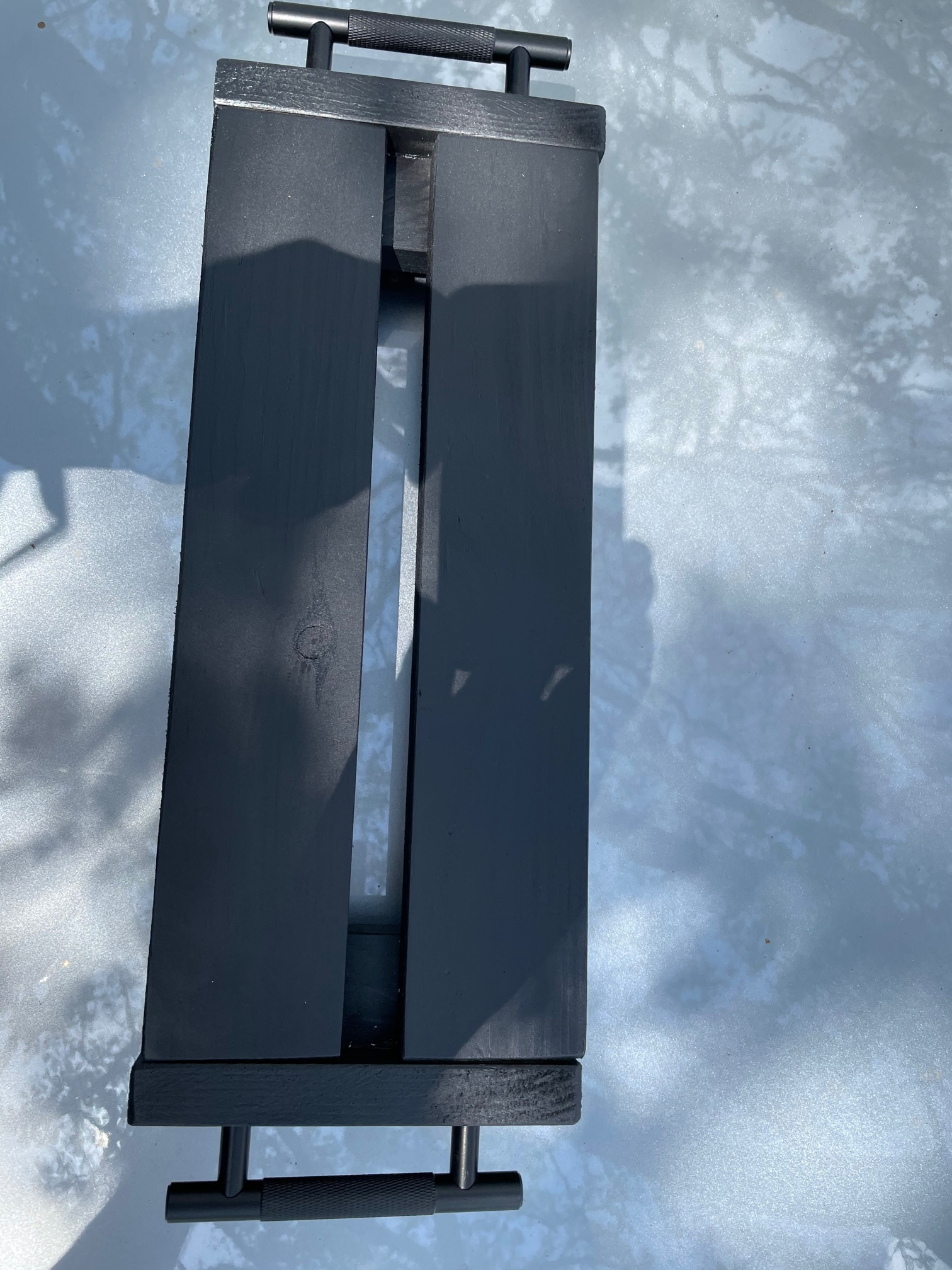

    Screwded and glueded:

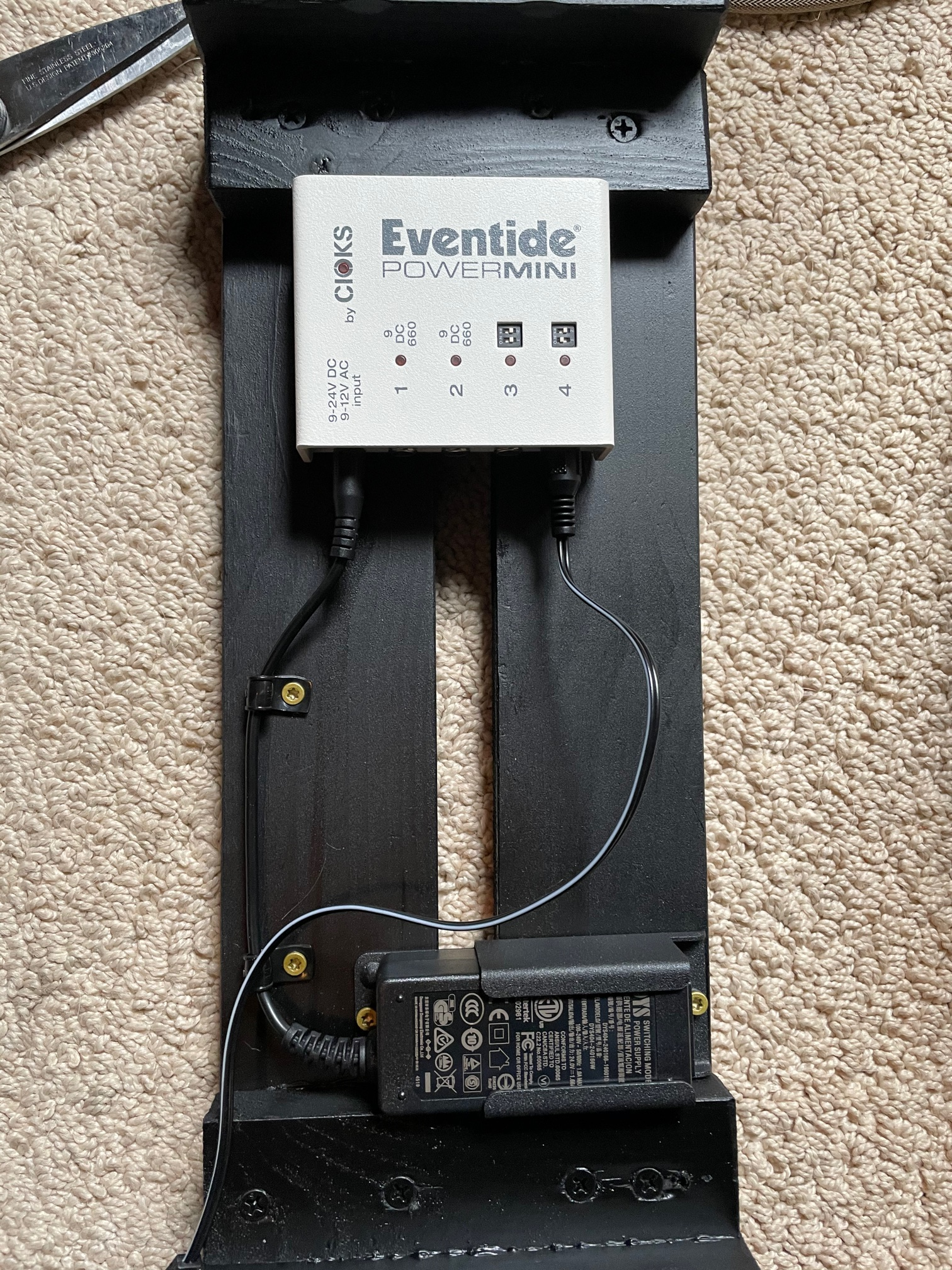

    Bottom looks nice. I got sick of the adhesive cable guides popping off so I upgraded to a more permanent solution:

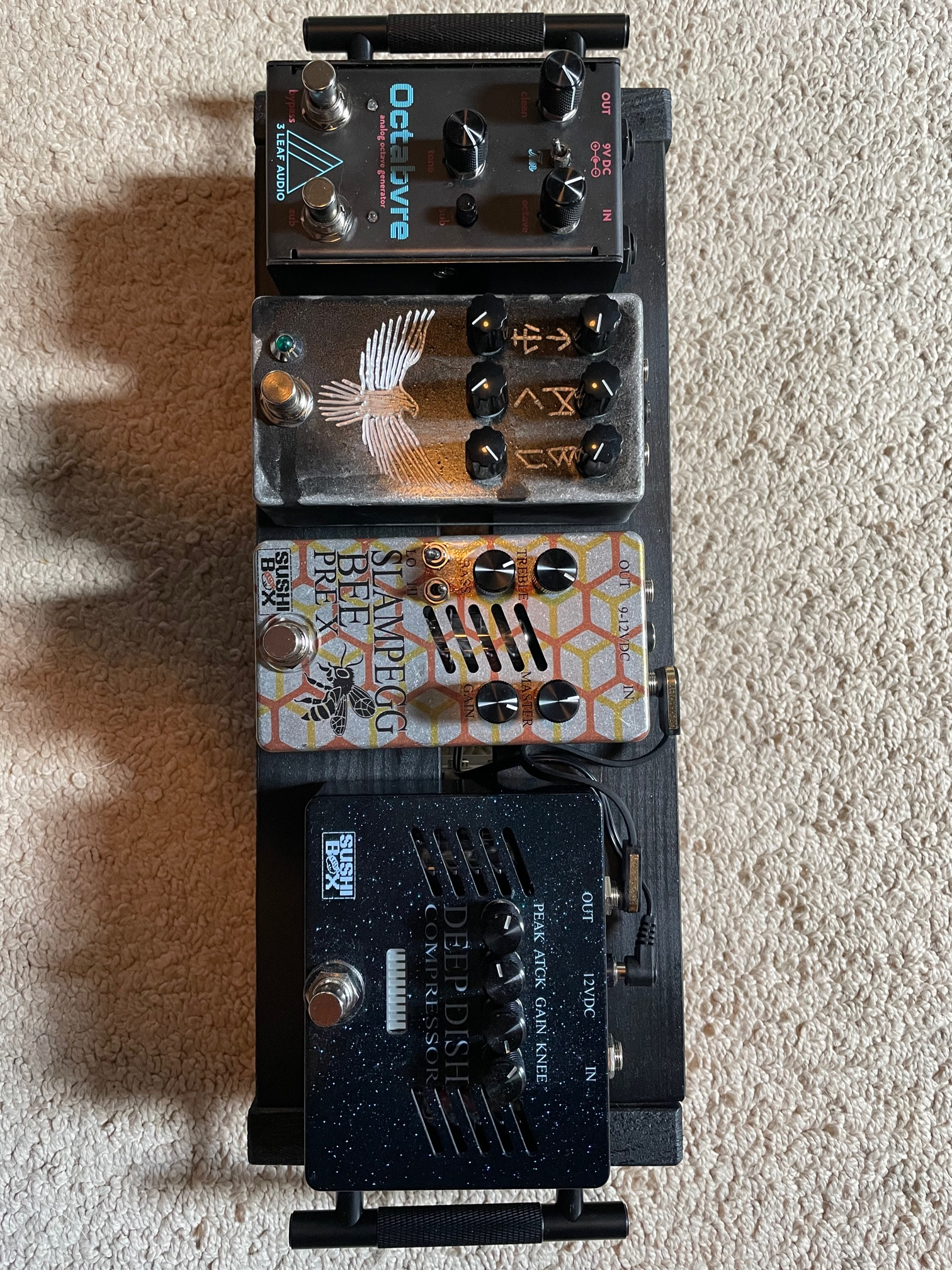

    And the topside, coming together. EBS flat patch cables FTW:
