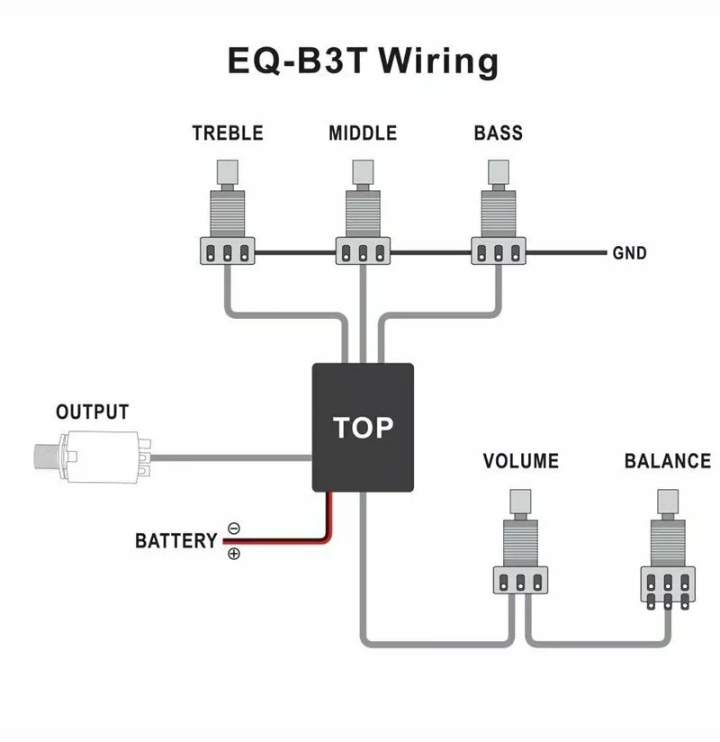

I must be dense. Where do I connect the pickups? I'm guessing "Hots" to either side of balance, and "Grounds" to the EQ common ground?
Enjoy the benefits of a premium membership!
Upgrade Account
-
TalkBass has been independent since 1998. Add your voice.
Create a free account to reply to discussions, view embedded media, and browse with fewer display ads.
Join free Log in
Want zero display ads or expanded classifieds tools? Compare plans.
Simple pre-amp wiring question.
- Thread starter Volker Kirstein
- Start date
Passinwind
I know nothing.
- Dec 3, 2003
- 23,043
- 45,898
- Disclosures
- Designer/Toaster Tech @ Passinwind Electronics
Hot leads to two center terminals of balance pots. Then two cross-wired connections on balance pot, upper left to lower right, and vice versa. One set is ground and one set hot to Volume pot or preamp input, depending on Volume pot location in circuit.
On my phone and cannot link a diagram, sorry. Google is your friend unless someone else jumps in.
