Speaker/lighting stand with flat base

[turcmic]

Dear live sound enthusiasts

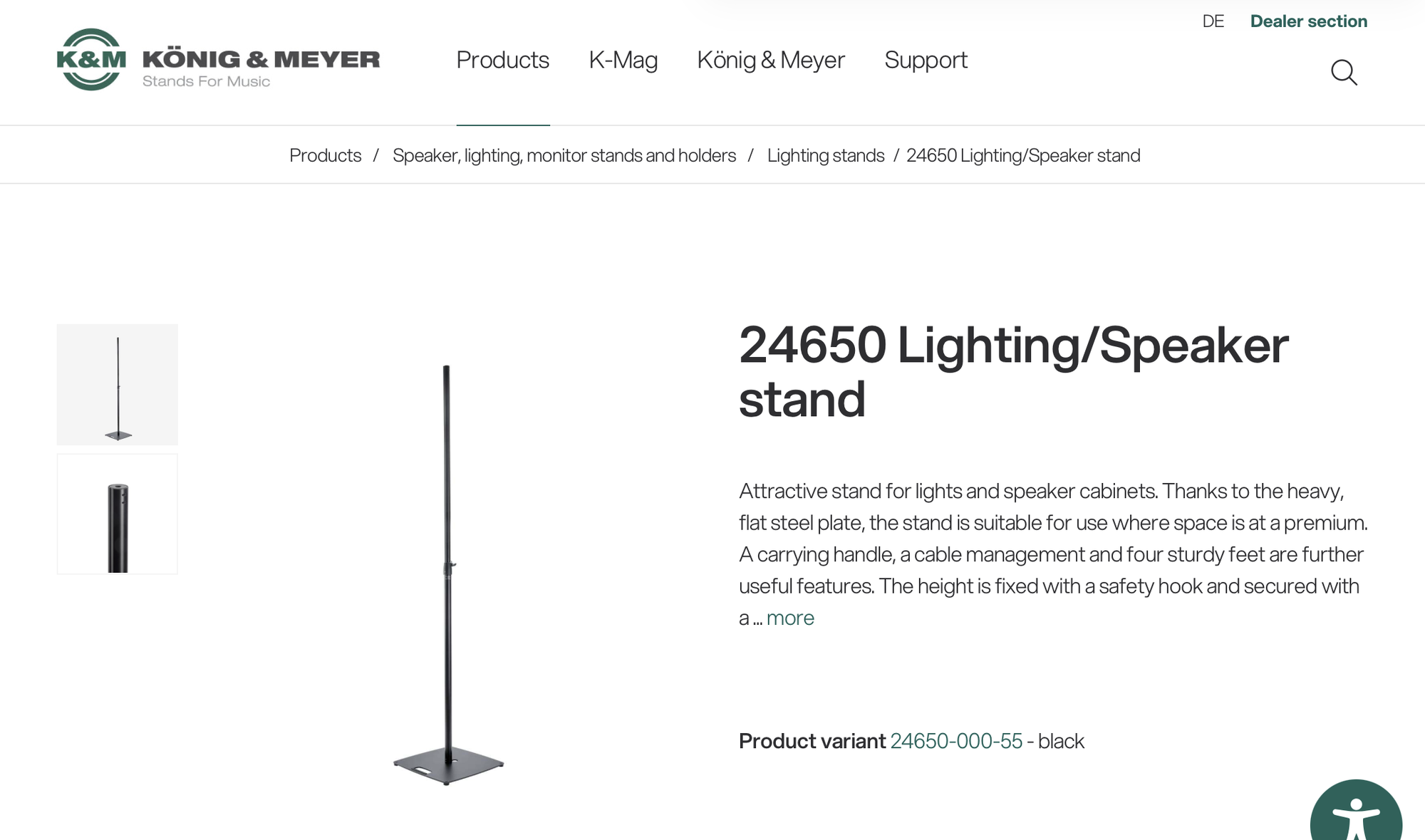

Any experience with these types of stands from K&M, Chauvet Flex Stand, Gravity else? I’m looking for a couple of stands for led lights that have a smaller footprint and they seem, on paper, to fit my needs. I have a preference for this K&M :

I would put 4 pars and 1 or 2 movers (+/- 15 kg) so under their 20kg limit.

Thanks



[DonaldR]

I don't have experience with those but it's a flat base, so it makes me think you would need a weight plate to put over it.



[monkeyfinger]

I was just following some vids by this guy: Silver Creek Audio. He just started using them. He likes them. They look good.



[turcmic]

I was just following some vids by this guy: Silver Creek Audio. He just started using them. He likes them. They look good.

yeah, that's where I got this why-don't-I-spend-more-money-on-gear idea



[Wasnex]

K&M 24650

• Base is 19.25" x 19.25"
• Max Height is 95.28"
• Weight is 32lbs
• Max load is 44lbs

They may be fairly tippy, unless some sort of ballast is added.

A tripod is likely to be lighter, more stable, and taller, but of course have a bigger footprint.

My organization used base plates with pipe to elevate Chauvet moving heads. The baseplate we used were bigger and heavier. Also, I believe we had some sort of wheeled cart carry them. This was professional grade theatrical gear and it was not cheap.

It's been too long to remember the details, but I believe they were similar to this:

Boom Base 18in X 18in 50lb Steel Base Plate - Black

DetailsSteel base plate with threaded flange for attachment of threaded pipes for temporary vertical lighting positions. This boom base has a self-weight of 50lbs. It includes a handle cutout and ½” diameter threaded holes for leveling. Bases come standard in black.Technical Data:Part #...

www.stagelightingstore.com



[monkeyfinger]

K&M 24650

• Base is 19.25" x 19.25"
• Max Height is 95.28"
• Weight is 32lbs
• Max load is 44lbs

They may be fairly tippy, unless some sort of ballast is added.

A tripod is likely to be lighter, more stable, and taller, but of course have a bigger footprint.

My organization used base plates with pipe to elevate Chauvet moving heads. The baseplate we used were bigger and heavier. Also, I believe we had some sort of wheeled cart carry them. This was professional grade theatrical gear and it was not cheap.

It's been too long to remember the details, but I believe they were similar to this:

Boom Base 18in X 18in 50lb Steel Base Plate - Black

DetailsSteel base plate with threaded flange for attachment of threaded pipes for temporary vertical lighting positions. This boom base has a self-weight of 50lbs. It includes a handle cutout and ½” diameter threaded holes for leveling. Bases come standard in black.Technical Data:Part #...

www.stagelightingstore.com

Yeah, I suspect they will work in limited situations. I suspect the adages about off-center loads is more important here. Question: would you want to take responsibility for damages if they tip over? On the other hand, K&M know what they are doing. I would contact them.



[turcmic]

Yeah, I suspect they will work in limited situations. I suspect the adages about off-center loads is more important here. Question: would you want to take responsibility for damages if they tip over? On the other hand, K&M know what they are doing. I would contact them.

I would put them close to the walls, certainly not where people could be in contact with them. I saw reviews where some added ballasts, and some who refused to use them…



[walterw]

I would put 4 pars and 1 or 2 movers (+/- 15 kg) so under their 20kg limit.

that seems a really bad idea unless the lights were set close to the ground or you could guarantee nobody would ever walk near them



[kittywithabanjo]

I use a similar set for 2 movers they have been solid.



[turcmic]

Just a follow-up

Stands arrived last week and had a chance to use them in 2 out-of-town gigs with 4 led pars on each stand. I’m impressed by their stability, even when the pole is at its highest position. Haven’t tried with movers yet but I’m not worried if I stay under the prescribed limitation.



[4Mal]

I use the 2' square plates from Global to support a 6' section of F33 truss and an annul event. Each truss supports a65" flat screen. I also nestle 3 sandbags onto the plate. That plate is a monster to move. Also a pain to store unless the truss adaptors are pulled and who want to take the time to uninstall, re-install ? Not me... For what I do, I wouldn't go near those K&M without ballast. YMMV but I'd be sure to have my professional liability paid up!
