Squier Bronco Bridge Replacement

[Bobster]

For anyone considering replacing the original bridge on a Squier Bronco (two-saddle) here's a tip to make the change a bit easier.

The Bronco and Musicmaster (stringthrough, 4-saddle) bridge have 17mm spacing. The Bronco will support a bridge with 19mm spacing (standard Fender).

If you remove the original bridge, there are two rows of holes, three toward the neck, and two toward the back of the bass. The 2nd and 4th holes in regular 5-hole Fender-type bridge will align with the two original holes on the back row perfectly.

This will also preserve the correct intonation. It only requires the drilling of three pilot holes (1st, 3rd, 5th). This will properly align the new bridge.

This is MUCH simplier than trying to line-up the 4 stringthrough holes needed to mount the Musicmaster bridge and gives you standard string spacing.

I'll try to get a picture of this attached to this post later in the day. I wish I'd realized this earlier.

Best of luck,

Bob



[FedericoC.uy]

Waiting for the pics!



[Bobster]

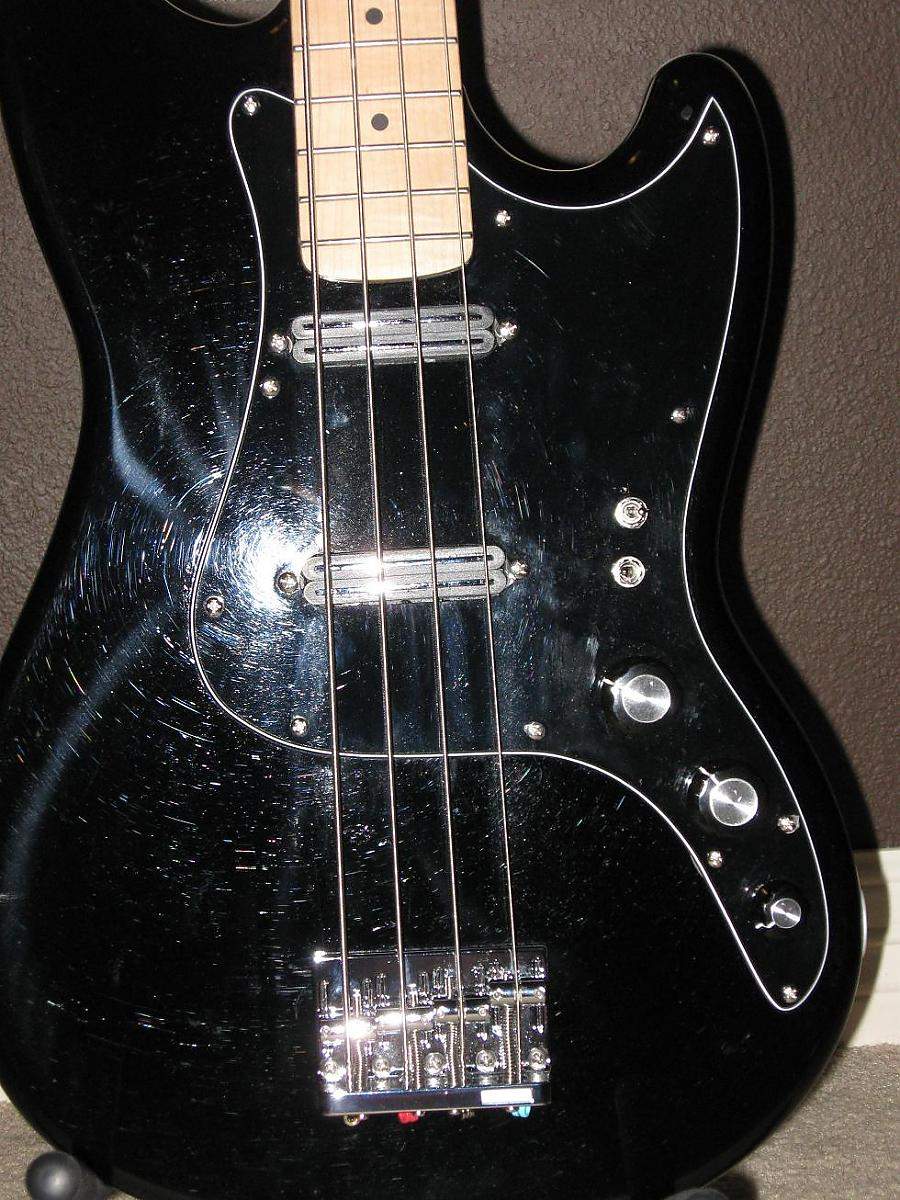

Added pic.



[Kryptos]

Bob,

What pickups and did the replacement just drop in with no need for modifications?

Recently purchased a Bronco (which I like a lot), was considering a pickup change.

Thanks.



[Bobster]

Hi Kryptos,

They are hotrails Strat pickups from GFS (vintage 6K version). The back one is drop-in and I had to route out for the front. I also added series/parallel switching for them. The bass has a lot of different sounds.

Here's a link: Lil Killer Black Humbucker Rail Pickup for Strats- Three Versions Available

Let me know if you've got any more questions.

Bob



[Kryptos]

Hi Bob,

Thanks for the information. I am torn between:

Lil-Killer-White-Humbucker-Humbucker-Strats

or

Invalid Link Removed

I have a bridge so I will do that swap at the same time.

Have to admit I am impressed with the stock Bronco, very nice instrument for a quite reasonable price.

Thank you again for the information, much appreciated.



[Bobster]

I bet either would be pretty cool.

Good luck with your choice!

Bob



[selfblessed]

can't wait to see these pictures!



[Bobster]

Sorry selfblessed,

I posted the bridge picture up with my original post. I think Kryptos will have a photo or two to show as well.

Bob



[3stringpete]

For anyone considering replacing the original bridge on a Squier Bronco (two-saddle) here's a tip to make the change a bit easier.

The Bronco and Musicmaster (stringthrough, 4-saddle) bridge have 17mm spacing. The Bronco will support a bridge with 19mm spacing (standard Fender).

If you remove the original bridge, there are two rows of holes, three toward the neck, and two toward the back of the bass. The 2nd and 4th holes in regular 5-hole Fender-type bridge will align with the two original holes on the back row perfectly.

This will also preserve the correct intonation. It only requires the drilling of three pilot holes (1st, 3rd, 5th). This will properly align the new bridge.

This is MUCH simplier than trying to line-up the 4 stringthrough holes needed to mount the Musicmaster bridge and gives you standard string spacing.

I'll try to get a picture of this attached to this post later in the day. I wish I'd realized this earlier.

Best of luck,

Bob

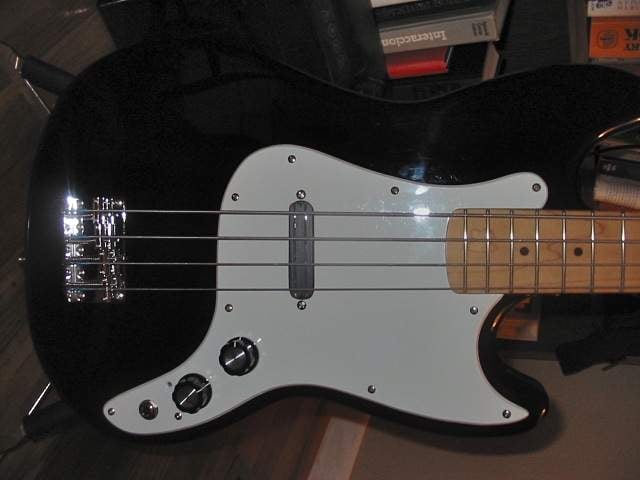

Excellent advice about bridge replacement! ...BTW, I installed the GFS "Lil Killer" 10K/Modern pickup with great results!



[Bobster]

Looks awesome, Pete!

Glad the bridge info helped out.

Bob



[mongo2]

When substituting a standard width Fender bridge for the OEM Bronco bridge, I prefer to use a threaded saddle style bridge since it allows more choice in string placement on the saddle.



[Pilgrim]

The OP is nice info for those who feel compelled to change bridges. I've never found any problems with the bridge on my Bronco.

I revel in the pickup from a Gretsch 2202 that I installed. Gives the bass a very big sound, and string spacing is not an issue.



[cm3ohana]

Bob,
Where did you get the black pickguard? That's a great look.



[Bobster]

Hi cm30hana,

Thanks! I ordered it from Roger at Jeannie's Pickguards http://home.comcast.net/~pickguards/ . I"m extremely happy with it, but Roger and I went "round and round" over it.

I sent my original Bronco guard in and apparently it was warped. I had also "roughed in the pickguard hole and Roger wasn't exactly thrilled about it.

Ultimately the guard cost more than I'd hoped, but the pricing wasn't out of line, just a lot of custom work. Roger and I worked it out.

Bob



[cm3ohana]

Thanks, Bob. Your bass looks great. I guess you can tell by my avatar that I like the black on black look. I'm not sure I'm ready for a "round and round" to get a different pickguard at this time. If you every decide to sell yours.....let me know



[Bobster]

Thanks,

I'm a black and maple guy myself so I know exactly what you mean. I'm sure Roger could get it done for you, or you could try Pickguard Heaven http://pickguards.us/ I've had good luck with them as well.

Bob



[J Posega]

I wouldn't bother with Roger, too many posts about how much of a d**k he is. I'm going to get a 5 ply BWBWB from this guy eventually:


Link Removed



[Nick Smith]

For anyone considering replacing the original bridge on a Squier Bronco (two-saddle) here's a tip to make the change a bit easier.

The Bronco and Musicmaster (stringthrough, 4-saddle) bridge have 17mm spacing. The Bronco will support a bridge with 19mm spacing (standard Fender).

If you remove the original bridge, there are two rows of holes, three toward the neck, and two toward the back of the bass. The 2nd and 4th holes in regular 5-hole Fender-type bridge will align with the two original holes on the back row perfectly.

This will also preserve the correct intonation. It only requires the drilling of three pilot holes (1st, 3rd, 5th). This will properly align the new bridge.

This is MUCH simplier than trying to line-up the 4 stringthrough holes needed to mount the Musicmaster bridge and gives you standard string spacing.

I'll try to get a picture of this attached to this post later in the day. I wish I'd realized this earlier.

Best of luck,

Bob

According to your quote here a standard 19mm bridge would line up properly on the 2nd and 4th holes. Well I just took my bridge off and tried to line the holes up on my Gotoh 19mm bridge and none of those holes lined up at all. Any suggestions? I wonder if they moved the holes on the newer models of the bronco?



[Bobster]

Not sure, Nick.

All I can say is that lining up the back row of screw holes on the bass, with the second and fourth holes on the bridge, worked for me and several others.

I still have the Bronco w/Gotoh bridge installed.

Bob
