Strat style shortscale bass build
- Thread starter FatStrings
- Start date
Thank you both! I'm wicked psyched your digging it!!
I'll have to make a Youtube vid when I'm finished. I hope I can capture the sound that way, I'm not sure how else to do it. I'm no computer wiz
I see what he did there - it's similar to one of the more exotic tone controls on some Fenders (TBX tone control, I think). Either way, cool stuff. Thanks for digging the link up.
I see what he did there - it's similar to one of the more exotic tone controls on some Fenders (TBX tone control, I think). Either way, cool stuff. Thanks for digging the link up.
The TBX is an active midboost. This is a passive bass cut
The only other exotic tone control I can think of on modern Fenders are the ones with the treble bleed network.
EDIT: I have been proven wrong. The TBX is a "ganged" pot that does some interesting things. It's still a bit different from the 'tight control' I posted.
Chef
In Memoriam

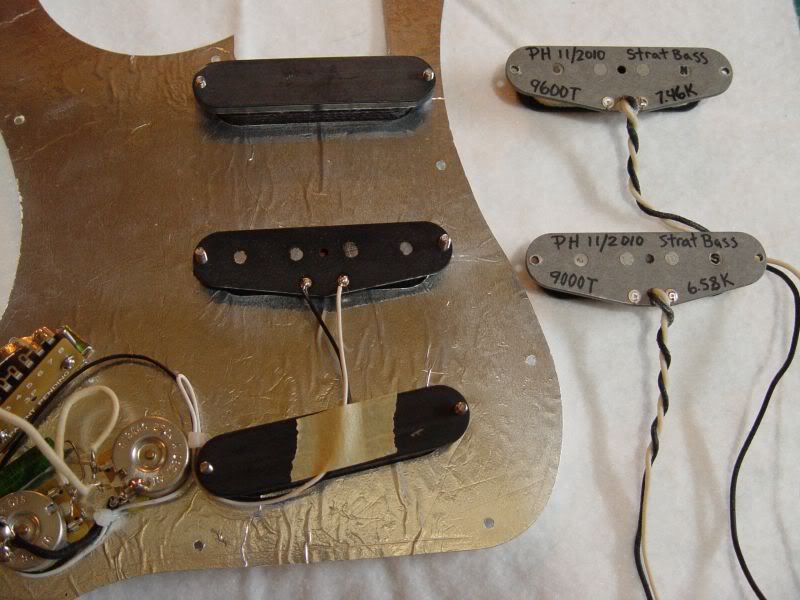

Ok, so this is where I'm at. Ready to put the new p'ups in place and re-wire. I'll take out the faux p'ups, not sure what to do with them though. Anybody need a pair of fake pickups?

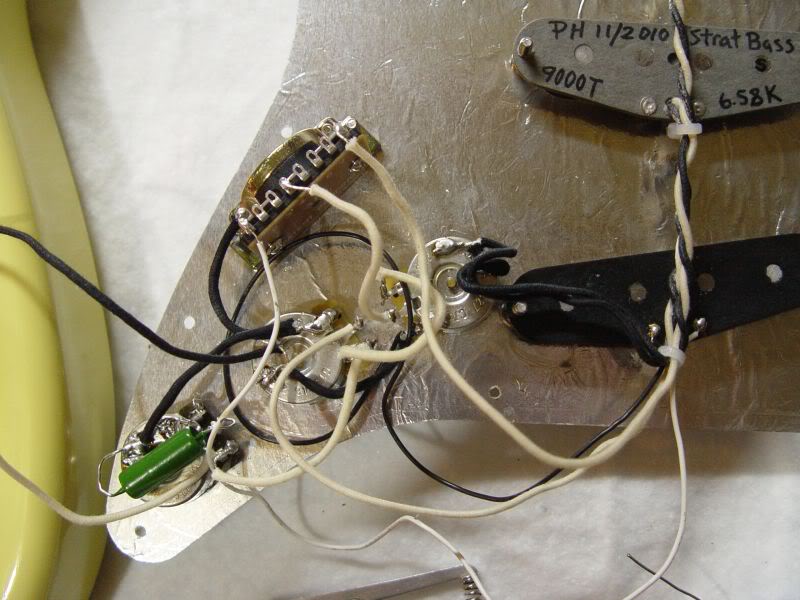

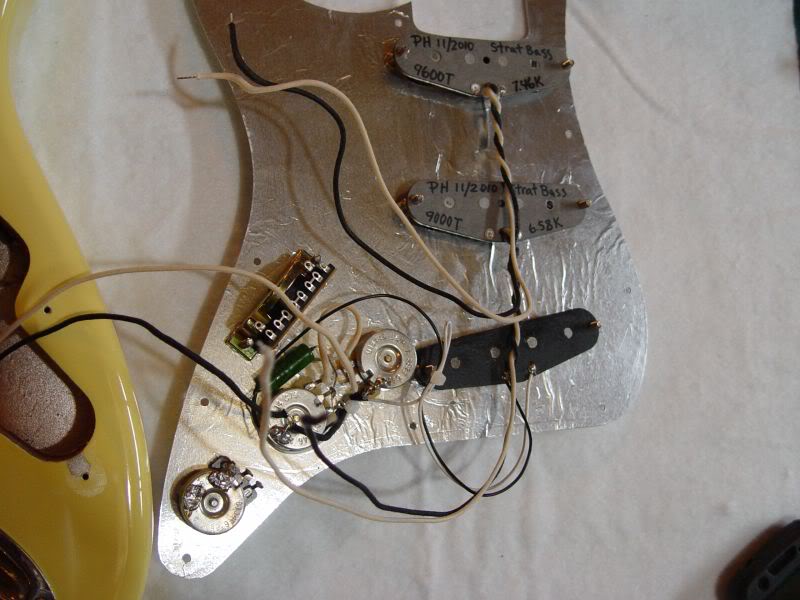

New p'ups in place. Now to figure out the wiring setup.
New p'ups in place. Now to figure out the wiring setup.
I really like this setup. I've read it over and over to let it sink in and it really makes the most sense for a bass, to me anyway.
I've been going over diagrams online, trying to revamp and combine to get this to work but I can't figure it out.
Someone with wiring know how want to help me out here? A quick diagram would be sweet!
I have a three way switch (see pic) and the pots, just need to get it to all work together.
FatStrings
When I get a a few minutes I will have a look and post a diagram unless IntrepidCellist looks in again and posts his first.
fred
I hope he gets you that diagram soon, because I can't wait to see this baby all put together, and the switch would be awesome on a bass.
I hope you understand this, I have only my circuit capture and simulator program to draw it up in.
It is based on the Seymour Duncan std Jazz schematic with the addition of the switch and extra pup.
[Invalid or Expired Link Removed]
I don't know the connections on your 5 way switch so have just drawn it as a generic switch.
I have not tested this and hope there are no mistakes on it.
(If anyone has a better one then post it rather than flaming me.)
It is based on the Seymour Duncan std Jazz schematic with the addition of the switch and extra pup.
[Invalid or Expired Link Removed]
I don't know the connections on your 5 way switch so have just drawn it as a generic switch.
I have not tested this and hope there are no mistakes on it.
(If anyone has a better one then post it rather than flaming me.)
Attachments
I'm with you! Can't wait to see what this is like
Looks good to me Fred. I had about 75% of that, so it's a big help!
I'm actually using a 3 way switch, probably doesn't matter, right? I'll give it a try later on tonight.
Thanks!!
I wasn't sure about the switch, but it just looked to have a lot of connections for a 3 way in your photos so I drew it s a 5.
Hope it all goes well and sounds good. I can't wait to see it finished.
Hope it all goes well and sounds good. I can't wait to see it finished.
If you could see my face now you'd see a grin from ear to ear!!
Fred, thanks again for the help! That schematic did the trick.
I'm a bit tired from a long day so I made a couple small mistakes, but it worked on the first try. I just have to switch the (+) pickup lead wires on the 3 way switch and move one wire on the tone pot.
The 3 way switch and the tone pot work backwards. I'll straighten it out tomorrow.
I had to play quietly trying not to wake the kids, but it definitely has several distinct sounds. The new pickups sound great, but I was so amazed that the wiring worked out that I didn't really get that "I made those" feeling, lol.
Fred, thanks again for the help! That schematic did the trick.
I'm a bit tired from a long day so I made a couple small mistakes, but it worked on the first try. I just have to switch the (+) pickup lead wires on the 3 way switch and move one wire on the tone pot.
The 3 way switch and the tone pot work backwards. I'll straighten it out tomorrow.
I had to play quietly trying not to wake the kids, but it definitely has several distinct sounds. The new pickups sound great, but I was so amazed that the wiring worked out that I didn't really get that "I made those" feeling, lol.

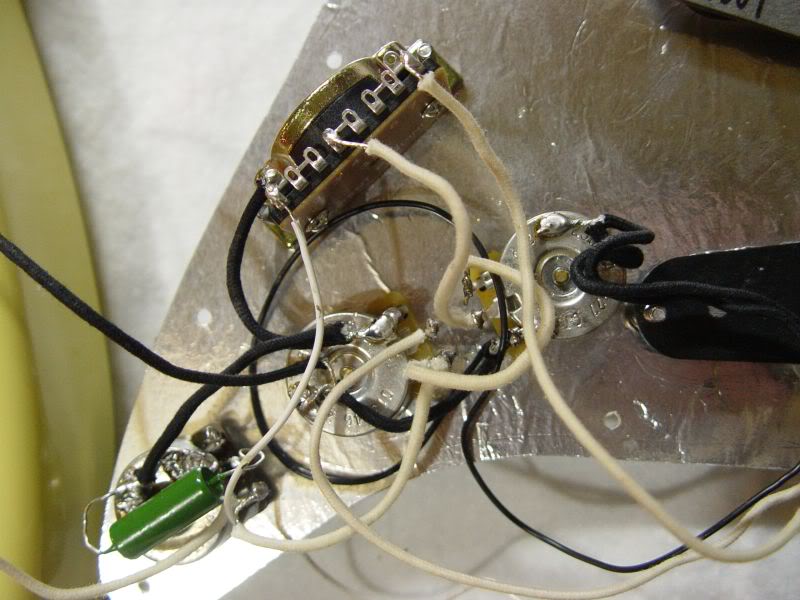

A little bit closer. Check it out and see if you see any more mistakes.
The two vol pots are new ('08) but the tone pot is an original from the Musicmaster dated '78 (hard to see with the solder in the way). They are all identical CTS split shafts. The cap is a .1 uf oil and film I got on Ebay.
The two vol pots are new ('08) but the tone pot is an original from the Musicmaster dated '78 (hard to see with the solder in the way). They are all identical CTS split shafts. The cap is a .1 uf oil and film I got on Ebay.

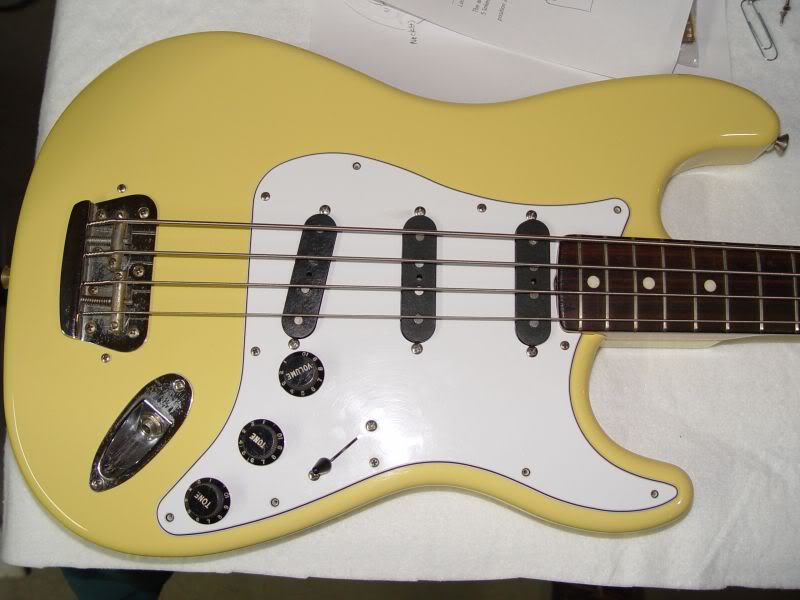

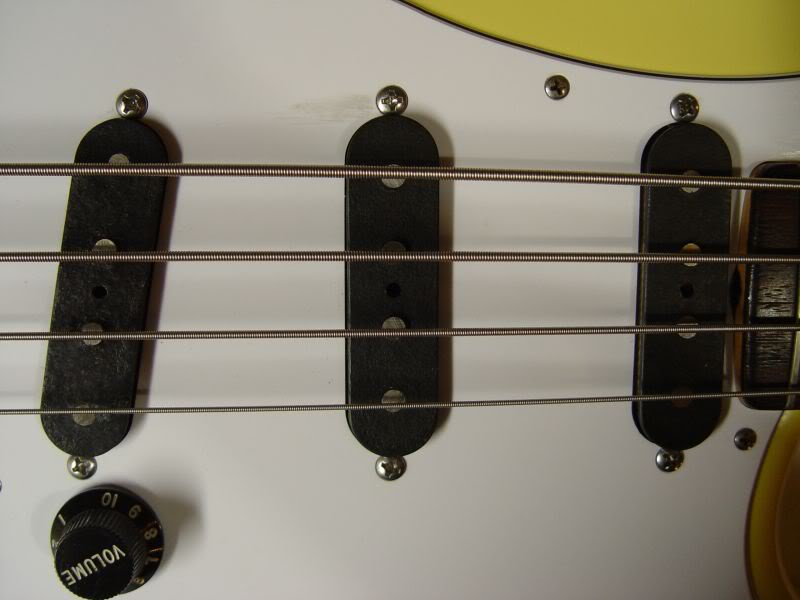

That's better! The strings line up nicely with the new pickups and their adjusted pole spacing.
Sweet!!
Sweet!!
