SWR Headlite voltage switch 120v to 220V

[ialma]

Does anyone know if it's possible to change the Headlite voltage from USA to Europe through internal switches/jumpers ?

I performed the voltage switch to two different GK class D heads (MB200 and MB500) without the slightest issue but I'm not familiar with SWRs.
Thanks everyone.



[ialma]

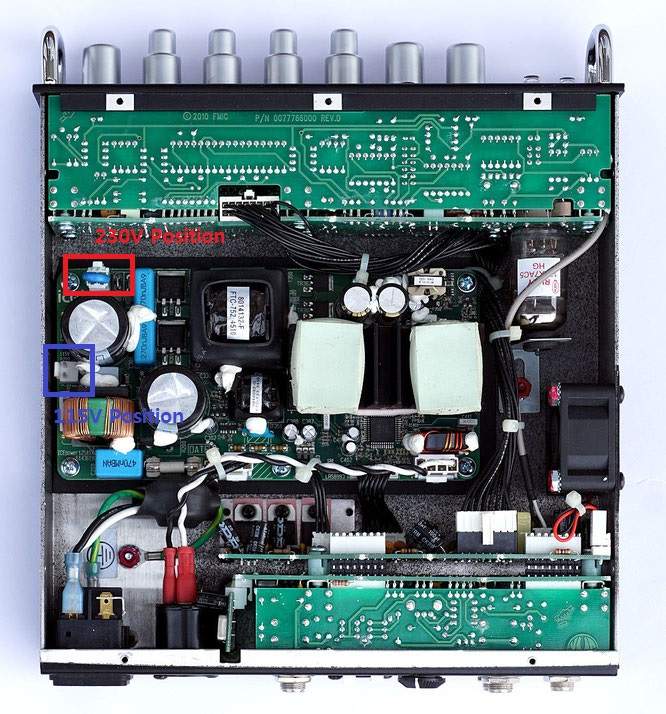

I found the answer myself, there is a jumper system similar to the on in GK MB500
I have photos and schematics if anyone can be interested in.



[Ryu]

I just bought 110v ver. headlite and no other information about voltage change.
All I need is move the jumper 110v to 230v?



[Ryu]

I just bought 110v ver. headlite and no other information about voltage change.
All I need is move the jumper 110v to 230v?

I found it. Move one jumper to 230V position.



[Sam Jay]

I found the answer myself, there is a jumper system similar to the on in GK MB500
I have photos and schematics if anyone can be interested in.

Hi Mate,
I got a 120v version used amp today. So it's just that jumper position change from 120v to 230v positions and that's it? No internal parts change? Pls help.
Thank you
Sam



[ialma]

Sorry for the delay in answer, you only have to move a jumper to change voltage from 110 to 220.



[Heavy Blue]

Good to know for my Headlite.

Thx for the thread.



[Balazs Laki]

Hello,

Thanks for this thread. I just did it on mine.
