Hi everybody!
I'd like to share with all of you my latest finished bass, now in hands of its owner.
Specs are as follow:

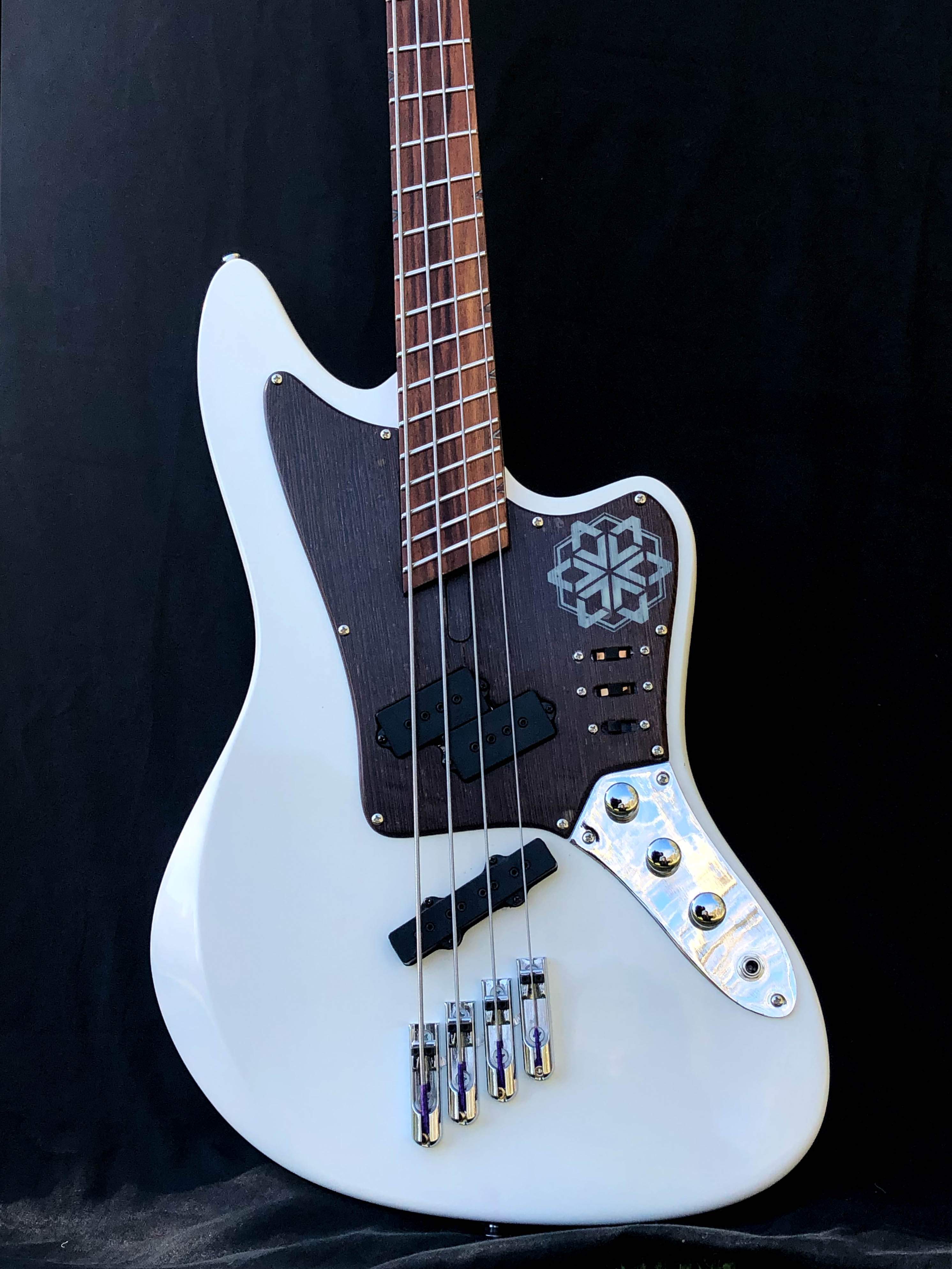

Model: Zen 4 strings
Scales: 35 - 33''
Body: Guindo
Neck: Maple

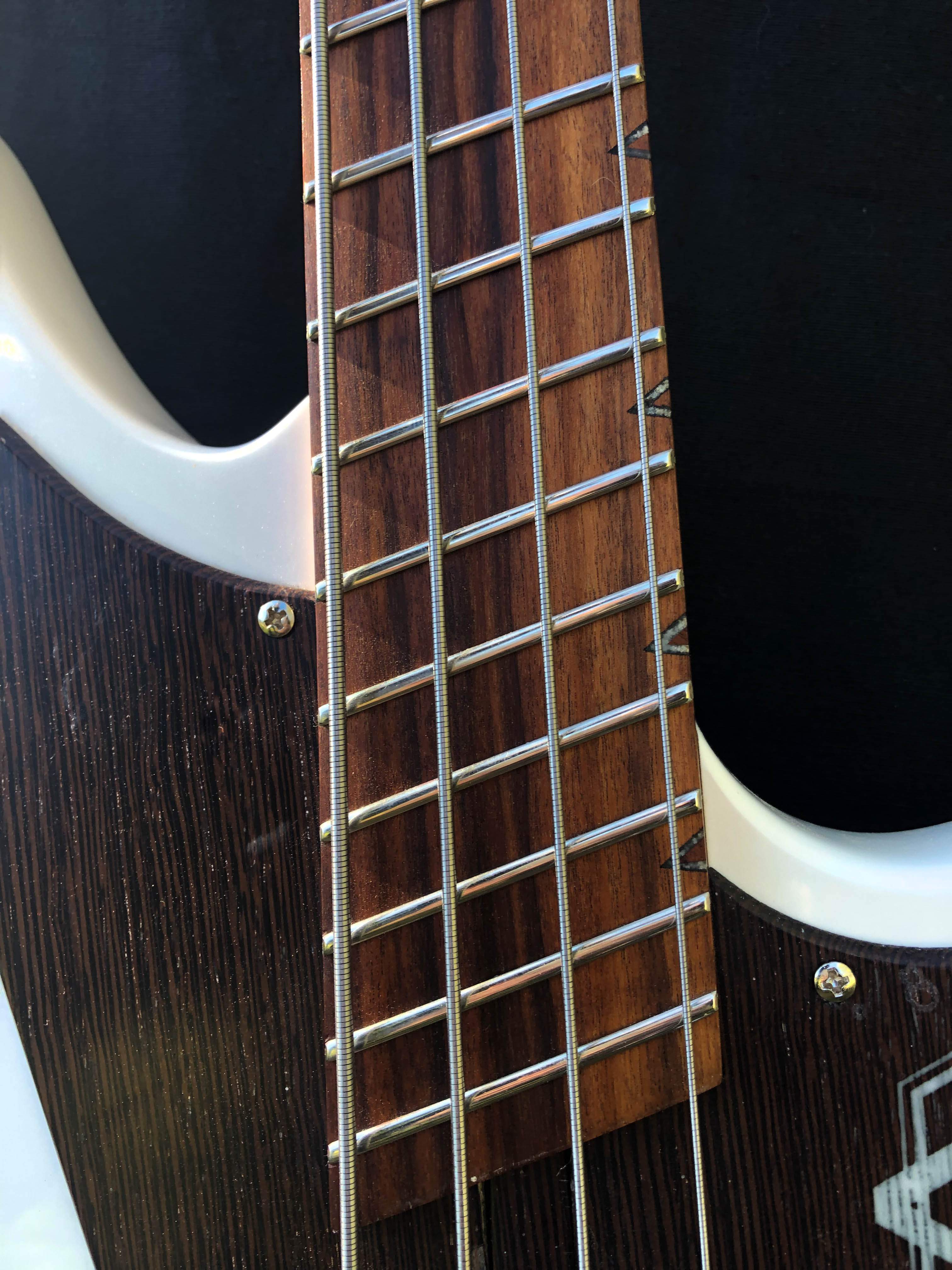

Fretboard: Curupay
Pickguard / Headpiece: Wenge
Inlays: Epoxi with Photoluminiscent pigment
Radious: 16''
Pickups: DiMarzio PJ Set
Nut:Bone
Tuners: Hipshot ultralite
Finish: High Gloss Lacquer on Body, Truoil on Neck
Electronics were requested by the customer and are quite fun.

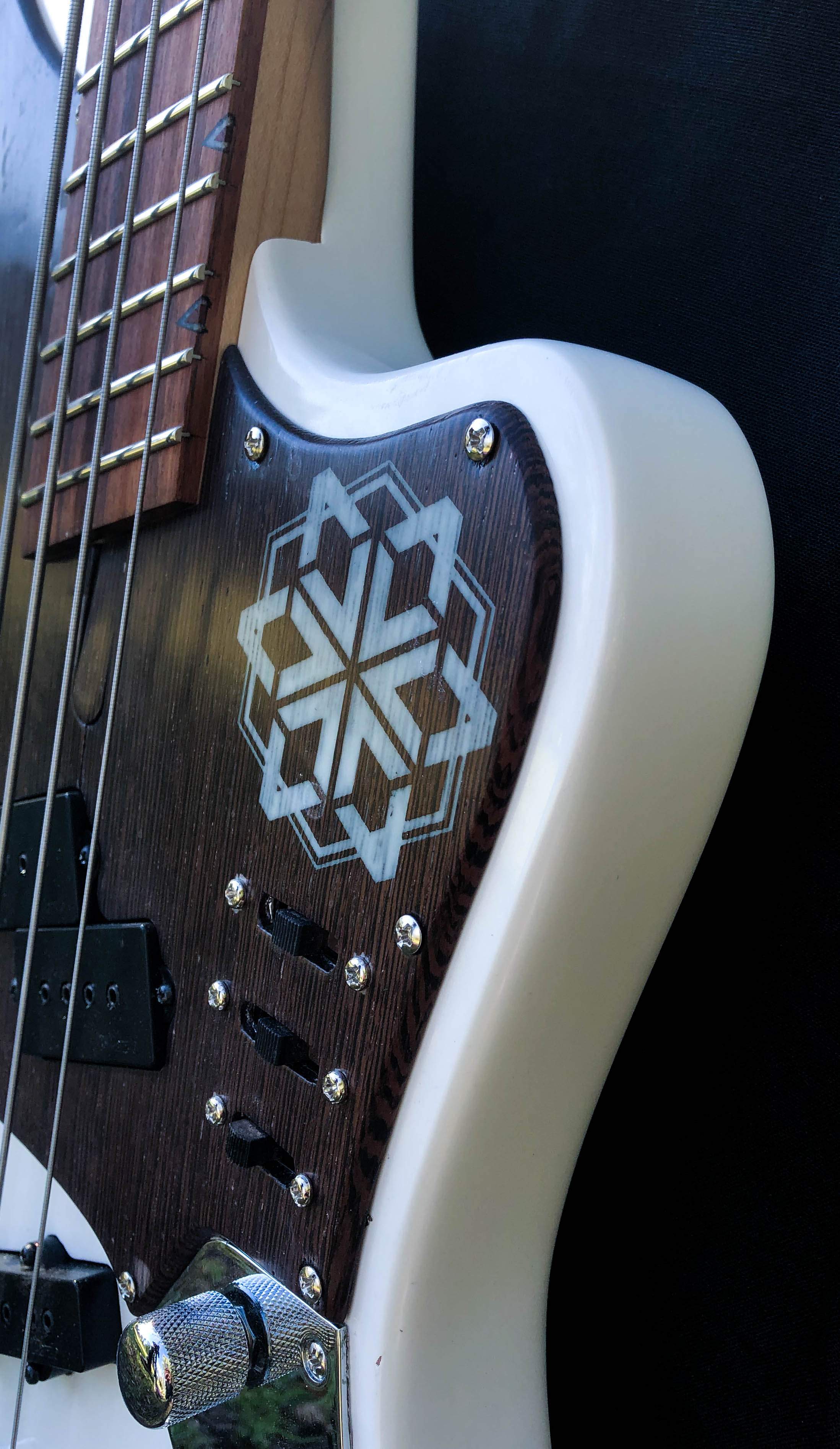

Switches 1 & 2 let you choose from Series/Parallel/Single coil from each pickup
Switch 3 is mono/stereo.
Volume for each PU
Master Tono that's also a push-pull knob to change between Series/Parallel between the PUs.
Since the Jazz PU is a Humbucker with each coil covering a pair of strings, you could use the stereo mode to send E-A and D-G to different amp/rigs, or use the Jazz in series and the Precision for EA for a super heavy tone, just to name a few combinations.
Hope you like it!
PS: for more info and other builds you can check on Tangente (@tangenteinstrumentos) • Fotos y videos de Instagram
