This is not correct.
The F-2B’s 2nd tube is for the 2nd channel, which is identical to the 1st channel.
Perhaps you meant to say that the F-2B’s 2nd tube stage (on each channel) drives that channel’s output signal?
Enjoy the benefits of a premium membership!
Upgrade Account
-
TalkBass has been independent since 1998. Add your voice.
Create a free account to reply to discussions, view embedded media, and browse with fewer display ads.
Join free Log in
Want zero display ads or expanded classifieds tools? Compare plans.
The Alembic F-1X Megathread
- Thread starter Michael Vee
- Start date
The F-2B’s 2nd tube is for the 2nd channel, which is identical to the 1st channel.
Perhaps you meant to say that the F-2B’s 2nd tube stage (on each channel) drives that channel’s output signal?
This thread has been a big help and enjoyment for me and I've noticed folks have asked / wondered about an operating guide so I thought I'd upload a copy as I was able to get one to go with mine.
Very welcome and it is my pleasure to help our community that has helped me so many times. That's the great thing about Talkbass and why we're here, to help each other and share our collective knowledge and experience.
Hey all,

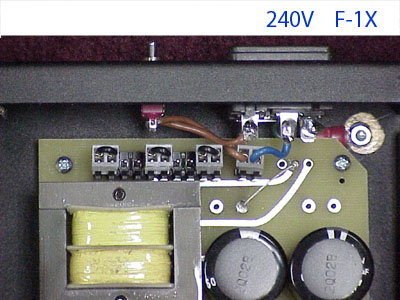

I have an F-1X on the way - it’s making the big trip over from the US down to me in Australia. I’d like to change the voltage jumpers to allow for 240V power when it gets here, and have found this guide: Alembic - F-1X Voltage Jumper Settings
Maybe it’s just me, but I’m finding it really tough to properly see the jumper positions. Could anyone help me decipher this? A hand drawn or MS Paint or similar diagram would be amazing.
Thankyou!
I have an F-1X on the way - it’s making the big trip over from the US down to me in Australia. I’d like to change the voltage jumpers to allow for 240V power when it gets here, and have found this guide: Alembic - F-1X Voltage Jumper Settings
Maybe it’s just me, but I’m finding it really tough to properly see the jumper positions. Could anyone help me decipher this? A hand drawn or MS Paint or similar diagram would be amazing.
Thankyou!
It looks quite straightforward to me. Just count the number of pins between the three jumpers on the terminal strip.
The two outer ones are at the ends of the strip with the middle one literally in the middle.
Doh, hahah. I misunderstood what I was supposed to be moving. Thankyou for making it more obvious.
- Feb 12, 2006
- 61,022
- 5
- 220,884
- Disclosures
- Development Engineer-Mesa Boogie, Development Engineer-Genzler (pedals), Product Support-Genz Benz
Be very careful you get it right, if you don’t, you could quickly end up with a worthless smoldering mess.
It may be worth having a QUALIFIED service tech do this and test with a variac while powering up to verify before reaching an over-voltage condition.
It may not be as easy as it looks.
It may be worth having a QUALIFIED service tech do this and test with a variac while powering up to verify before reaching an over-voltage condition.
It may not be as easy as it looks.
In case anyone stumbles into this thread looking for sound samples or a demo of the F-1X, my demo video has just released on my YouTube channel:
Nice variety, but ... The tonestack is basically the same as on a Fender amp, so "neutral" is roughly 2-10-2 (BMT) and not 5-5-5 like you start out with.
