The Sushi Box FX Secret Society

#7,382
macmanlou said:
Excellent.

The frequency values on the web site are for the original SBVT.
Click to expand...
Noted, I'll get that fixed (or more likely ask @Sonicblaze to fix for me).

NKBassman said:
I'd like to formally offer beta testing services for the following:
Click to expand...
Very generous of you :p
  • SBVT - tested, fully functional
  • JC Emerald - not tested yet
  • Deep Dish - not tested yet
  • King Nothing - not tested yet
  • Wrecking Ball X - not tested yet
  • Black Eye X - tested, full functional
  • Dr. Wattson X - tested, fully functional
  • Vampire Slayer - not tested yet
  • Sunnday Drive X - not tested yet
  • Underground Accelerator - tested, fully functional
  • Space Heater - tested, fully functional
  • Slampegg Bee Pre X - tested, fully functional
  • Fluffy Kitten - tested, needs bias adjustment but otherwise fully functional
  • custom Arduino motor controller shield (long story) - tested, fully functional
  • Sashimi Fuzz - tested, failed; pending redesign
  • Ambassador (Matchless preamp) - tested, fully functional
  • Echosaurus Valve - tested, decided cost/benefit wasn't worth it
  • Finally (tube DI) - not tested yet
  • Headmaster (Dumble preamp) - not tested yet
  • Greenhouse (tube FX loop/blend thingy) - not tested yet
I have all of the above boards on hand and will be building up most if not all of them over the next couple weeks as I work on the September batch. I also have the following designs in the works that will go in my next board order:
  • Echosaurus - same circuit as before but tidying up the design, moving it to the smaller enclosure, keeping top jacks
  • Mirage Tremolo - complete redesign; previous version used tube signal path w/ solid-state oscillator, this one is switching to a tube oscillator
  • "Brisket" (working title) - Verellen Meatsmoke preamp; it will be two channel + true bypass so it's going in a Hammond 1590XX (same size as Wrecking Ball X) despite only having two tubes
  • Sashimi Fuzz mk ii - trying again with Sashimi, going to take it in a different direction

  • Like
Reactions: Col Pruse, NKBassman, Btbp and 3 others
#7,383
Sushi Box FX said:
  • Mirage Tremolo - complete redesign; previous version used tube signal path w/ solid-state oscillator, this one is switching to a tube oscillator
  • "Brisket" (working title) - Verellen Meatsmoke preamp; it will be two channel + true bypass so it's going in a Hammond 1590XX (same size as Wrecking Ball X) despite only having two tubes
Click to expand...
  • get the ish out of here. :drool:

  • Like
Reactions: Sushi Box FX
#7,384
nonfiction said:
Is it possible to have a previous-version SBVT modded to the new mid-selector values on the upcoming batches?
Click to expand...

Sushi Box FX:
>I already had one person ask, but if you already have an SBVT and want to modify it yourself, let me know
>and I'll mail you some capacitors for a couple bucks. Or if you don't like soldering and would prefer to ship it to me I can do it for you. Just let me know.

  • Like
Reactions: Sushi Box FX, Sonicblaze and nonfiction
#7,387
Got a little something in the mail today.

It’s nice being that close!


  • Like
Reactions: macmanlou, Sushi Box FX, MT Hope and 2 others
#7,389

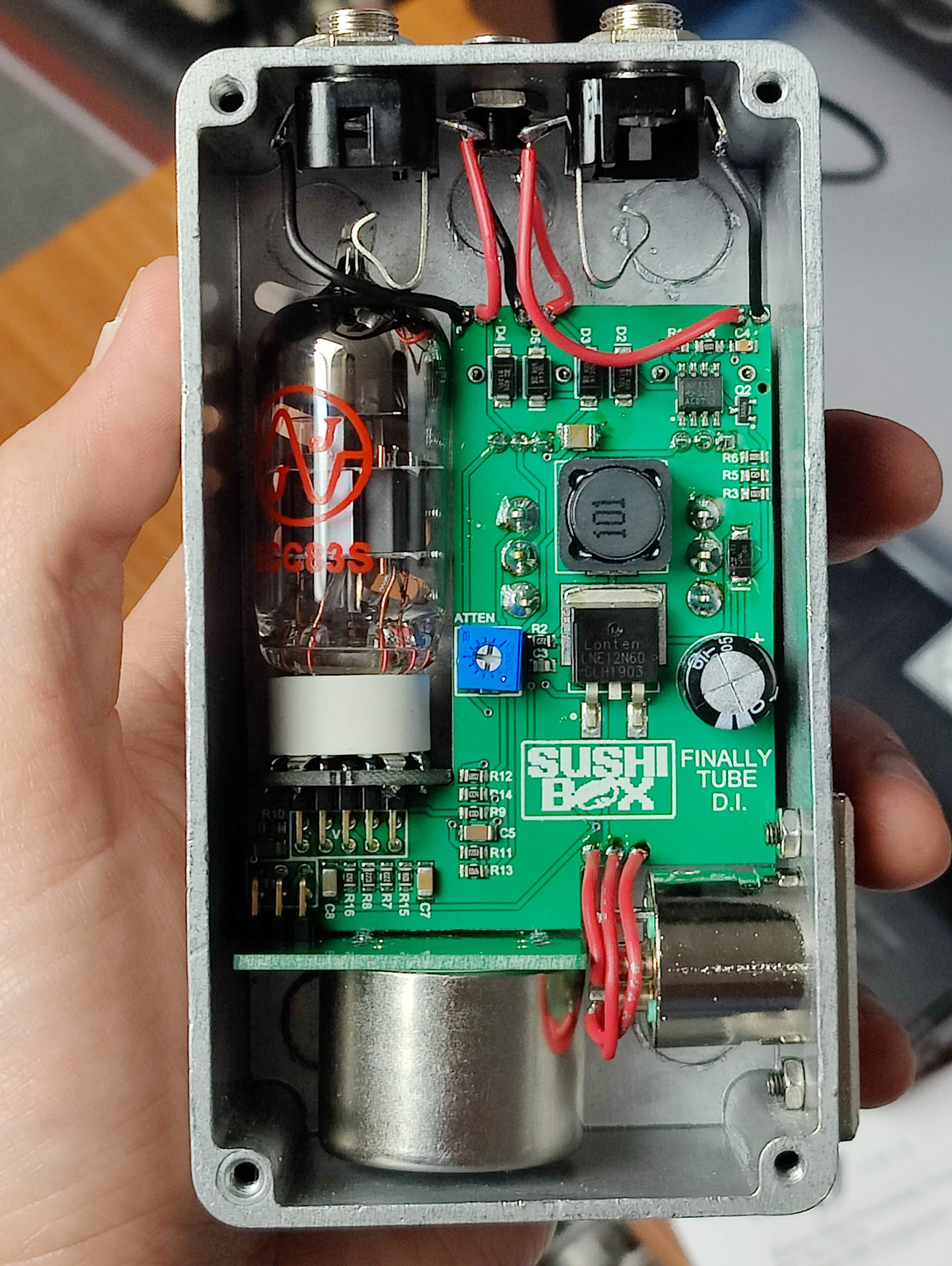

Spent half an hour debugging this thing before figuring out I switched the damn jack positions on the circuit board. Plugged into the 1/4" output and XLR into the interface, beautiful DI tone. So this board has two mistakes, but the design is solid and I should be able to have it available soon.


  • Like
Reactions: moon-bass, Bassgeer, Roxbororob and 17 others
#7,390
Sushi Box FX said:
Spent half an hour debugging this thing before figuring out I switched the damn jack positions on the circuit board. Plugged into the 1/4" output and XLR into the interface, beautiful DI tone. So this board has two mistakes, but the design is solid and I should be able to have it available soon.

View attachment 4399781
Click to expand...
Is the out a clean/unaltered passthru, or is it the same output as the XLR, just tapped pre-transformer?

  • Like
Reactions: Sushi Box FX
#7,391
Sushi Box FX said:
Noted, I'll get that fixed (or more likely ask @Sonicblaze to fix for me).


Very generous of you :p
  • SBVT - tested, fully functional
  • JC Emerald - not tested yet
  • Deep Dish - not tested yet
  • King Nothing - not tested yet
  • Wrecking Ball X - not tested yet
  • Black Eye X - tested, full functional
  • Dr. Wattson X - tested, fully functional
  • Vampire Slayer - not tested yet
  • Sunnday Drive X - not tested yet
  • Underground Accelerator - tested, fully functional
  • Space Heater - tested, fully functional
  • Slampegg Bee Pre X - tested, fully functional
  • Fluffy Kitten - tested, needs bias adjustment but otherwise fully functional
  • custom Arduino motor controller shield (long story) - tested, fully functional
  • Sashimi Fuzz - tested, failed; pending redesign
  • Ambassador (Matchless preamp) - tested, fully functional
  • Echosaurus Valve - tested, decided cost/benefit wasn't worth it
  • Finally (tube DI) - not tested yet
  • Headmaster (Dumble preamp) - not tested yet
  • Greenhouse (tube FX loop/blend thingy) - not tested yet
I have all of the above boards on hand and will be building up most if not all of them over the next couple weeks as I work on the September batch. I also have the following designs in the works that will go in my next board order:
  • Echosaurus - same circuit as before but tidying up the design, moving it to the smaller enclosure, keeping top jacks
  • Mirage Tremolo - complete redesign; previous version used tube signal path w/ solid-state oscillator, this one is switching to a tube oscillator
  • "Brisket" (working title) - Verellen Meatsmoke preamp; it will be two channel + true bypass so it's going in a Hammond 1590XX (same size as Wrecking Ball X) despite only having two tubes
  • Sashimi Fuzz mk ii - trying again with Sashimi, going to take it in a different direction
Click to expand...
  • Echosaurus - same circuit as before but tidying up the design, moving it to the smaller enclosure, keeping top jacks
Which size enclosure are you moving it to? Board real estate has become an issue of late.

Keen to see more about the Finally - is it modeled after anything or a new design?

#7,392
Pedalnetics said:
Is the out a clean/unaltered passthru, or is it the same output as the XLR, just tapped pre-transformer?
Click to expand...
Both options available via toggle switch. You can have unaffected passthrough or preamp output through the 1/4" out, but XLR is only preamp through the transformer.

  • Like
Reactions: 1kinal, Bassgeer, Sonicblaze and 4 others
#7,393
Btbp said:
  • Echosaurus - same circuit as before but tidying up the design, moving it to the smaller enclosure, keeping top jacks
Which size enclosure are you moving it to? Board real estate has become an issue of late.

Keen to see more about the Finally - is it modeled after anything or a new design?
Click to expand...
Hammond 1590B if you're hip on the box size names. Same size enclosure as Space Heater, Vampire Slayer, etc.

Finally is based on the Space Heater. I've designed it to handle either a Jensen or a Lightning Boy transformer, the one I have put together right now has a Jensen.

  • Like
Reactions: Btbp, Kelly robinson, letsgethandsome and 1 other person
#7,395
NKBassman said:
lol. Mostly curious about the new new stuff… Ambassador, Headmaster, Fluffy Kitten, and Sashimi in particular. But since I’m not actively playing a ton of guitar right now, I don’t have a lot of motivation or justification to be placing orders for any of those in the near term.
Click to expand...
I threw up in my mouth when I read this post.
You're saying you're not motivated to order pedals? That you don't "need"?
I don't know what to think about this.

  • Like
Reactions: Sushi Box FX, Lowendtech and NKBassman
#7,396
Killing Floor said:
I threw up in my mouth when I read this post.
You're saying you're not motivated to order pedals? That you don't "need"?
I don't know what to think about this.
Click to expand...
I also just bought a Broughton Archetype for a whole bunch of money. I'd be lying if I said that didn't play a part in my decision making process lol.

  • Like
Reactions: gh0st42, kranahan, Sushi Box FX and 2 others
#7,398
Sushi Box FX said:
Spent half an hour debugging this thing before figuring out I switched the damn jack positions on the circuit board. Plugged into the 1/4" output and XLR into the interface, beautiful DI tone. So this board has two mistakes, but the design is solid and I should be able to have it available soon.

View attachment 4399781
Click to expand...

Very nice packaging. Which transformer did you go with (if you mentioned it already I forget)?

#7,399
Roxbororob said:
Very nice packaging. Which transformer did you go with (if you mentioned it already I forget)?
Click to expand...

I think he said in the photo was the Jensen. Hard to go wrong with that... I have a LBA TIBox and it's excellent as well. I think either would be just fine. Win-Win.

I'd be curious what the other side of the box looks like too -- Does this thing have knobs that do things or strictly a DI?
