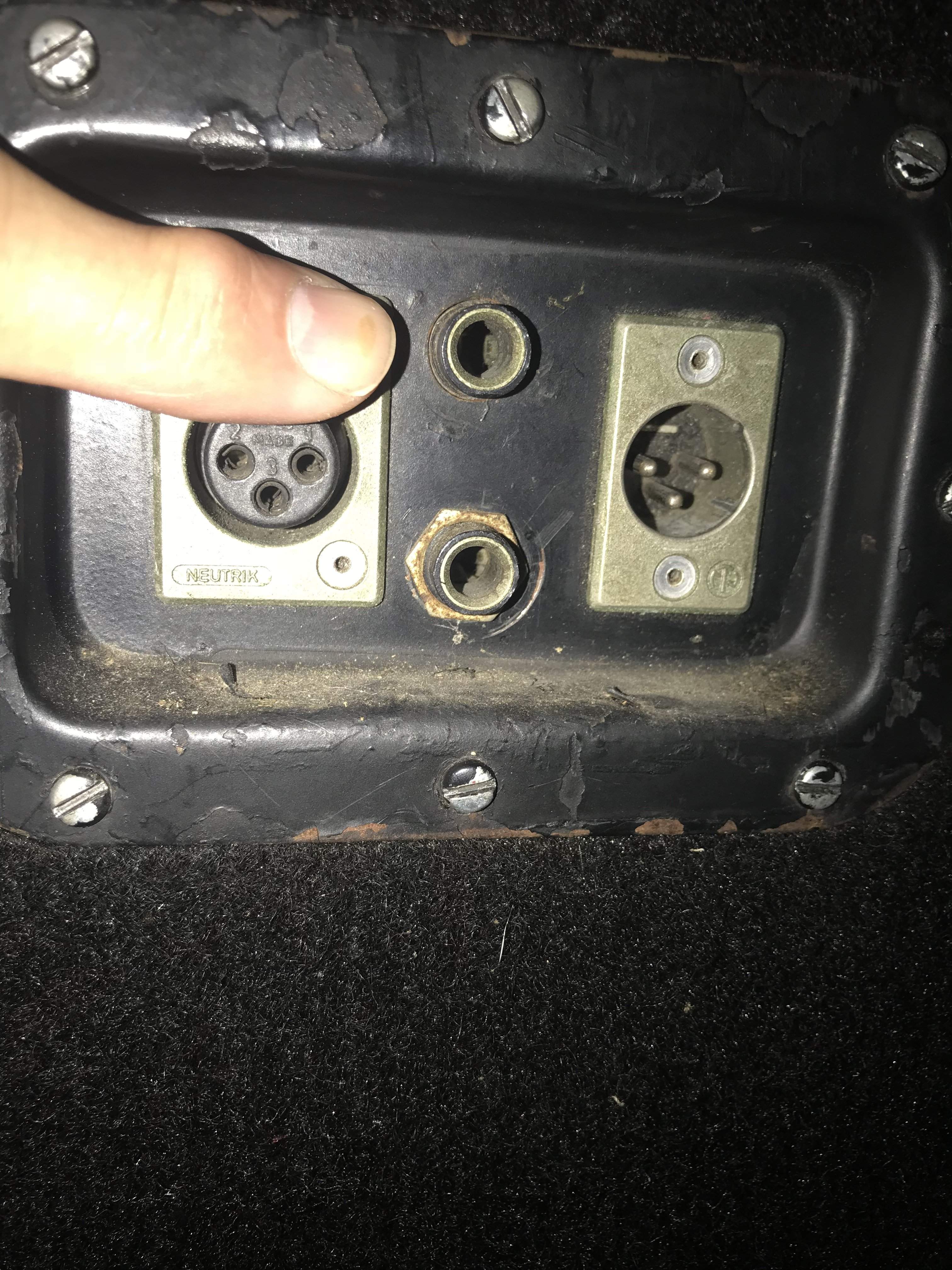

I think your getting a bad/false reading on the XLR but the reading on the 1/4 looks good.
You have an 8 ohm cab.
A 4 ohm cab would read around 3 ohms IIRC.
Enjoy the benefits of a premium membership!
Upgrade Account
-
TalkBass has been independent since 1998. Add your voice.
Create a free account to reply to discussions, view embedded media, and browse with fewer display ads.
Join free Log in
Want zero display ads or expanded classifieds tools? Compare plans.
The Ultimate Trace Elliot Info Thread (9/18)
- Thread starter Omega Monkey
- Start date
I think your getting a bad/false reading on the XLR but the reading on the 1/4 looks good.
You have an 8 ohm cab.
A 4 ohm cab would read around 3 ohms IIRC.
Thanks for your help. 8 ohms seems to be what most of the Red Stipe line I found online. I’m not positive about the inputs on the cab or pin configuration on XLR, but just assumed mine would be the same as other 1518’s. Please correct me if I’m wrong.
SMX series came as
Preamp only
250w with all the EQ but minus the stereo.
600w stereo twin 300w power amps.
A rare stupid powerful 2ohm per siide version.
I think that was all put out under Kaman originally but not sure.
Later versions came with 300w and 500w power stages.
Preamp only
250w with all the EQ but minus the stereo.
600w stereo twin 300w power amps.
A rare stupid powerful 2ohm per siide version.
I think that was all put out under Kaman originally but not sure.
Later versions came with 300w and 500w power stages.
Came here to say we’re lacking in V-Type stuff!
V-Type Preamp
V-Type 300H?? (V-Tupe pre/mosfet output)
V4 MK1 - 220W 4/8 Ohm - tolex & fur versions
V6 - 300W
V4 MK2 - updated pre with tube compressor & drive channel — same as V8
V4 MK2 combos - 4x8 & other variations
V8 - 400W 2/4 Ohm
V-Type cabs - green fur:
1x15
4x12 - 800W
Not a totally comprehensive list but what I’m familiar with...
They we’re SS power amps no?
Worth adding the VAxxx amps into your post as they follow suit similar to the Hexa etc?
4052H "Bight Box" 4 x 5, rated at 200 watts into 8 ohms
AH500X Solid State GP11 MK V dual mono head - true stereo continuous (not peak) 2 x 250 watts into 4 ohms -- or -- "bridge mode" full range mono 500 watts into 4 ohms -- or -- mono-biamp with 2 250 watt into 4 ohms outputs (high pass crossover at 250Hz for channel A, independent volume controls for each channel)
11 band graphic eq with volume control and pre- post- direct output
Direct Out
2 input jacks (1 active, 1 passive)
2 sets of standard 1/4” speaker outputs
2 3-prong speaker outputs
Independent output controls (in stereo)
Mid-scoop switch
Footswitch jack
Eq defeat switch
Effects loop
Signal out and line out
Pre out
Noise reduction switch
Selectable 2 speed fan
Ultraviolet switch
Dimensions: 52 x 42 x 18 [cm].
Weight: 26 [kg].
1528 2x15 "red stripe" cab rated at 300 watts into 8 ohms, 77lbs
AH500X Solid State GP11 MK V dual mono head - true stereo continuous (not peak) 2 x 250 watts into 4 ohms -- or -- "bridge mode" full range mono 500 watts into 4 ohms -- or -- mono-biamp with 2 250 watt into 4 ohms outputs (high pass crossover at 250Hz for channel A, independent volume controls for each channel)
11 band graphic eq with volume control and pre- post- direct output
Direct Out
2 input jacks (1 active, 1 passive)
2 sets of standard 1/4” speaker outputs
2 3-prong speaker outputs
Independent output controls (in stereo)
Mid-scoop switch
Footswitch jack
Eq defeat switch
Effects loop
Signal out and line out
Pre out
Noise reduction switch
Selectable 2 speed fan
Ultraviolet switch
Dimensions: 52 x 42 x 18 [cm].
Weight: 26 [kg].
1528 2x15 "red stripe" cab rated at 300 watts into 8 ohms, 77lbs
In '98-90 i owned a 350W head on a 4x10" and a 1x15" cab playing a lend, very marvelous Pedulla MVP on; the bass i liked pretty much but not the Trace: it had a kinda cold & bitta unhappy tone response to me and i've been glad to get a 100W/4x10" AMPEG for. Sorry yo' Trace guys for mho and brothers in arm although, peace! ;-)
We lack badly on a 50 Cent smiley ... *_*
We lack badly on a 50 Cent smiley ... *_*
Hey
I hope you don’t take this the wrong way, but I’m genuinely curious as I’ve been a member of Talkbass for many years and see posts of the same nature in other threads.
I gotta ask (and again I am really just asking bc I’m curious), if you don’t currently or recently own Trace gear, and don’t like Trace gear, why stop at a post about cataloging information about Trace gear and let everyone in the thread know 1), You don’t use it, 2), You don’t like it, and 3), that you use some other manufacturers stuff (then tell us about your non-Trace Elliot gear?)
I definitely appreciate your last statement about us having more in common as bassists than merely choice of gear, but in all of the years of seeing posts of a similar tone in other threads I have to ask someone, “What’s the real point of adding to a thread if you’re not in anyway contributing contextually relevant content to the thread?”
It’s clearly not an opinion thread ...
The purpose of the thread is clear and pure in its intent. Trace Elliot lives. Long live Trace.
Thanks for the reply and for not taking my query the wrong way
Thank you for giving us track & guideline by making the kind of comments that narrow. It seems they shall be all about praise only, ... how only could i?
I’ve had a few pieces of TE. A Kaman era 7215 old stock that I got right before SMX came out and then a 715SM I purchased off a clearance from Musicians Friend. Great but both times had to sell due to moving house. My lone piece is a Series 6 preamp which I use on the occasional studio recording. Best pre I’ve had.
Sorry all. I got busy with life and haven't had a chance to update this yet. But I want to get to that in the next few days now that my schedule is a little more open (sort of).
This info is strangely really hard to find online and I'd love to have a really good repository of knowledge here, crowdsourced to people who know way more than I do since I just started getting into Trace about 6 or 7 years ago.
This info is strangely really hard to find online and I'd love to have a really good repository of knowledge here, crowdsourced to people who know way more than I do since I just started getting into Trace about 6 or 7 years ago.
I seem to remember there being a Dutch Trace Elliot forum, that with the aid of google translate, could be mined for some useful info, and a few old catalogues.
Between that, and Basschat, British Audio Service's user manual archive, and the Team Trace threads here, there is a wealth of information - but coalescing it all into an easily digestible format, for the ultimate historical archive, is going to be a major undertaking.
To quote Ash, from the movie Alien :
"You have my sympathy."
Between that, and Basschat, British Audio Service's user manual archive, and the Team Trace threads here, there is a wealth of information - but coalescing it all into an easily digestible format, for the ultimate historical archive, is going to be a major undertaking.
To quote Ash, from the movie Alien :
"You have my sympathy."
