thunderbird bridge height

hey people! i'm trying to set up my bass and would like to get your suggestions concerning the bridge height. I like it when there's no fret buzz.

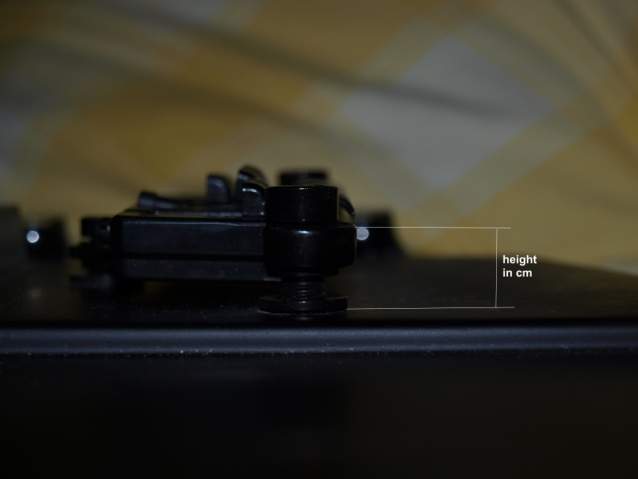

could you all show your bridge height according to the photo below

Thank you all


Attachments

  • t-bird bridge height 2.jpg
    t-bird bridge height 2.jpg
    24.9 KB · Views: 140
yes i'm adjusting my truss rod 1/4 of a turn per day during 2 weeks already, it's not completely staright yet as i see it, but it's more comfortable to play, i would say it's almost perfect for me, i think i just need to tighten my truss rod a bit more, but still i just wanna see waht bridge height most of the people use for t-birds without the fret buzz!

oh and one more question i guess it's ok to tighten the truss rod 1/4 of a turn per day?

As long as you never overdo it. Remember to never force anything on a truss rod as it could really mess up your neck. I had to adjust the truss on my new vm squier and i just did it untill it was fine and felt right. there should be loads of threads on here for tips on that though. My bridge on my tbird is pretty low and there are no buzz problems.

For what its worth mine (76 tbird) is as far down as it will go. No fret buzz. I have never adjusted the truss rod since I bought the bass in 1982. If you want me to measure mine pm me. Randall.
Mine measured 1 cm fyi.

ok one more thing guys

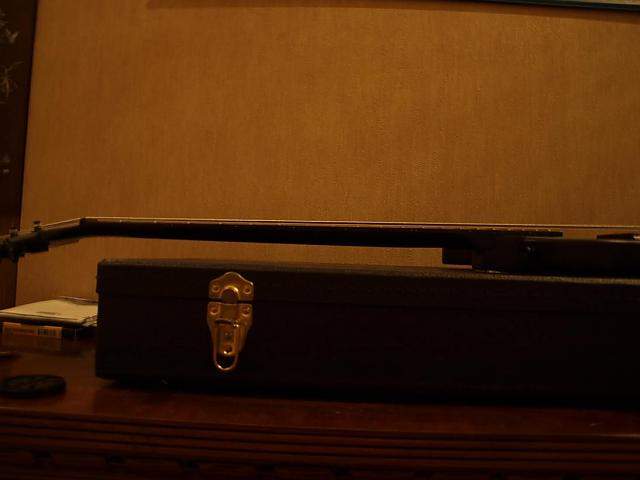

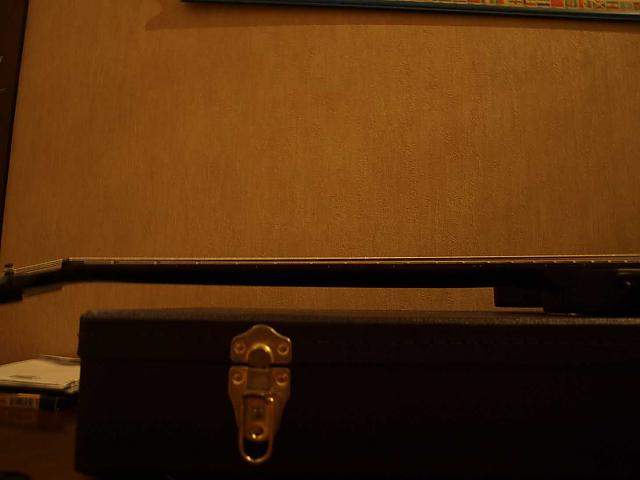

here i include pics of my neck - do you think the truss rod should be tightened a bit--it seems to me that the neck is still kinda curved


Attachments

  • neck 1.jpg
    neck 1.jpg
    17.8 KB · Views: 105
  • neck 2.jpg
    neck 2.jpg
    18.6 KB · Views: 115
Yeah it looks curved. If your not really confident of doing this yourself my advice would be to take it to a pro for him to set up. Thats kinda like how my vm squier was when i got it. is that a gibson or epi bird?

it's epi goth
well i'm adjusting truss rod myself - i'm doin it already for 2 weeks - 1/4 of allen wrench turn per day - i don't force anything, i mean the truss rod is turning quite easily when i tighten it--do you think i do everything properly?

i think i need some more turns in order to tighten the truss rod for the neck to become almost straight--is it ok for instance if i continue tightening the truss rod as i did it for 2 weeks already (1/4 of a turn per day)

oh and the reason why i'm doin it myself, i always wanted to feel the instrument and be able to solve any problem by myself, that's why i wanna learn how to set up the bass without taking it to a pro

I found out the deflection of my TBird's neck changed a lot after changing string type (tension). I had my shop tune it with Roto 66's and when I changed to dA flats it change quite a bit. According to what I've read there should be some curve to the neck.

it's epi goth
well i'm adjusting truss rod myself - i'm doin it already for 2 weeks - 1/4 of allen wrench turn per day - i don't force anything, i mean the truss rod is turning quite easily when i tighten it--do you think i do everything properly?

i think i need some more turns in order to tighten the truss rod for the neck to become almost straight--is it ok for instance if i continue tightening the truss rod as i did it for 2 weeks already (1/4 of a turn per day)

oh and the reason why i'm doin it myself, i always wanted to feel the instrument and be able to solve any problem by myself, that's why i wanna learn how to set up the bass without taking it to a pro

Yeah thats why i learned how to do it myself :D

i've never had to go as long as two weeks go get one of my necks straightened out. a few days at most. i was lucky when i got my epi goth that it was near enough perfect out of the box but i suppose if you don't force things and take it easy nothing bad should happen!

I hope you get it sorted out soon as its a very cool bass!
:hyper:

I found out the deflection of my TBird's neck changed a lot after changing string type (tension). I had my shop tune it with Roto 66's and when I changed to dA flats it change quite a bit. According to what I've read there should be some curve to the neck.

yeah i agree i also read that neck has to be curved a bit, but i guess my curvature is too much -

i 've read some information on this topic, butr getting straight answers from nice people like you is way better!!!

Yeah thats why i learned how to do it myself :D

i've never had to go as long as two weeks go get one of my necks straightened out. a few days at most. i was lucky when i got my epi goth that it was near enough perfect out of the box but i suppose if you don't force things and take it easy nothing bad should happen!

I hope you get it sorted out soon as its a very cool bass!
:hyper:

thanks a lot friend!!!

so you think 1/4 of a turn per day is ok? or should i do somethin like half a turn - i've read somewhere on these forums that t-bird truss rod is pretty resistant

oh i think i've bored everyone here already! haha sorry
when i put my bass in a case--should i loosen the strings in order to preserve the neck? (i'm asking coz couldn't find any info on this topic)

oh and i almost forgot - when i adjust truss rod i loosen the strings pretty much, is it ok for instance to adjust truss rod with the strings tighten?

thanks a lot friend!!!

so you think 1/4 of a turn per day is ok? or should i do somethin like half a turn - i've read somewhere on these forums that t-bird truss rod is pretty resistant

oh i think i've bored everyone here already! haha sorry
when i put my bass in a case--should i loosen the strings in order to preserve the neck? (i'm asking coz couldn't find any info on this topic)

oh and i almost forgot - when i adjust truss rod i loosen the strings pretty much, is it ok for instance to adjust truss rod with the strings tighten?

I'd say try a couple of half turns and leave it for a couple of hours and come back and check if theres any difference. The general idea of the truss rod is to resist against the strings tension to keep the neck somewhat straight. Like, the truss rod pulls one way and the strings pull the other way, that way it balances out, this along with the way you have the bridge set up affects the playability of the bass. So i'd keep it in tune when its in its case.

I hope this helps :bassist:

I'd say try a couple of half turns and leave it for a couple of hours and come back and check if theres any difference. The general idea of the truss rod is to resist against the strings tension to keep the neck somewhat straight. Like, the truss rod pulls one way and the strings pull the other way, that way it balances out, this along with the way you have the bridge set up affects the playability of the bass. So i'd keep it in tune when its in its case.

I hope this helps :bassist:

Tanks a lot!!!!!!!!!!

Such great people here!!!!!!!!

Thank you so much!!!!!!!!!!!
