Tone Hammer DI appreciation thread

According to the Tone Hammer manual, the current draw is only 7mA; see http://www.aguilaramp.com/wp-content/uploads/manual-tone-hammer-v1.2.pdf

I use the 18V output of my Cioks DC5. Since the current draw is so low I imagine you would be able to use a voltage doubler on a 9V output if you don’t happen to have any 18V outputs. (Haven’t tried that myself though.)
Thanks! I do have a voltage doubler for my Voodoo Labs power supply which is what I am currently using. I was just looking for the flexibility of not taking my pedal board at all and just taking a wall wart power supply and the THDI pedal to travel light. I just saw that BestBassGear is expecting a shipment of the PSU-2, so I ordered it from them. Aguilar - 18V Power Supply w/ Universal Adapter for Tone Hammer PSU-2 - Best Bass Gear

Last edited:
Thanks! I do have a voltage doubler for my Voodoo Labs power supply which is what I am currently using. I was just looking for the flexibility of not taking my pedal board at all and just taking a wall wart power supply and the THDI pedal to travel light. I just saw that BestBassGear is expecting a shipment of the PSU-2, so I ordered it from them. Aguilar - 18V Power Supply w/ Universal Adapter for Tone Hammer PSU-2 - Best Bass Gear
It will actually run for quite a while on batteries. I have the Aguilar power supplies for my TH and TLC (that one uses 9V), but have done gigs with just the THDI and batteries.

I used the Aguilar ToneHammer DI pedal for the first time live in a worship service at my church this morning. I use IEMs at the church and it sounded good in my Rolls unit/Aviom mix. Both of my basses have low output volume and I usually use some other pedal to provide a clean boost to bring the level up. The hotter DI of the THDI takes care of that issue for me and means I need one less pedal in the chain. That also means I could take just the THDI to rehearsal without lugging a pedal board with me. I received compliments on how the bass sounded in the auditorium. The preamp in my Sire M7 V1 bass was close in sound and controls to the the THDI preamp, but using the preamp, I get a bigger sound. I can set the THDI for the room and if I need to make any per song changes, I can do that on my bass. I am very happy with the THDI. :)

It will actually run for quite a while on batteries.

50 Hrs (assuming good / fresh batteries) according to Aguilar.

Here is some great info from Kate at Aguilar tech support regarding powering your THDI. I sent an email a while back before purchasing the THDI.

-----
  1. If you have a power supply plugged as well as a battery connected, the power supply will power the pedal, and it will not drain your battery.
  2. If you have a phantom power and a battery, depending on the voltage of the battery (ie. how fresh it is…) the pedal may use battery supply until the voltage diminishes to a certain point, at which point phantom power would take over.
  3. Using the power supply and phantom power simultaneously will not hurt the pedal.
  4. If you had the power supply and phantom power connected, the power supply would take precedence and power the pedal, not phantom power.
One note regarding phantom power: The 48v runs on the ground leg of the XLR, so lifting the ground would disconnect the signal path for the 48v.

------

I assume that I'm running batteries, as the batteries drain, would I just expect to see less headroom until the point where the sound is unusable or the pedal is non-functioning?
--- That’s right!

Assuming a fresh set of batteries, AGS running, minimal EQ and gain, what is the expected useful life of the batteries (I know there are a ton of variables there, but ballpark?)?
--- It depends on the battery (and a lot of other variables as you mentioned), but given you are using a high-quality alkaline battery, the general answer is over 50 hours.

Ive owned the THDI before and moved it on. I can't remember why but I have a silver anniversary unit incoming. Should have it early next week - I can't wait to hear what it does for my IEM setup - especially with AGS engaged to tidy highs and lows a little while adding some mild OD. I had been using a Darkglass B7K Ultra for EQ and mild OD, but I always found the overdrive tone from this unit to be too fizzy for my liking, plus the AGS also performs the mild HP/LP filtering the Darkglass doesn't do to my knowledge.

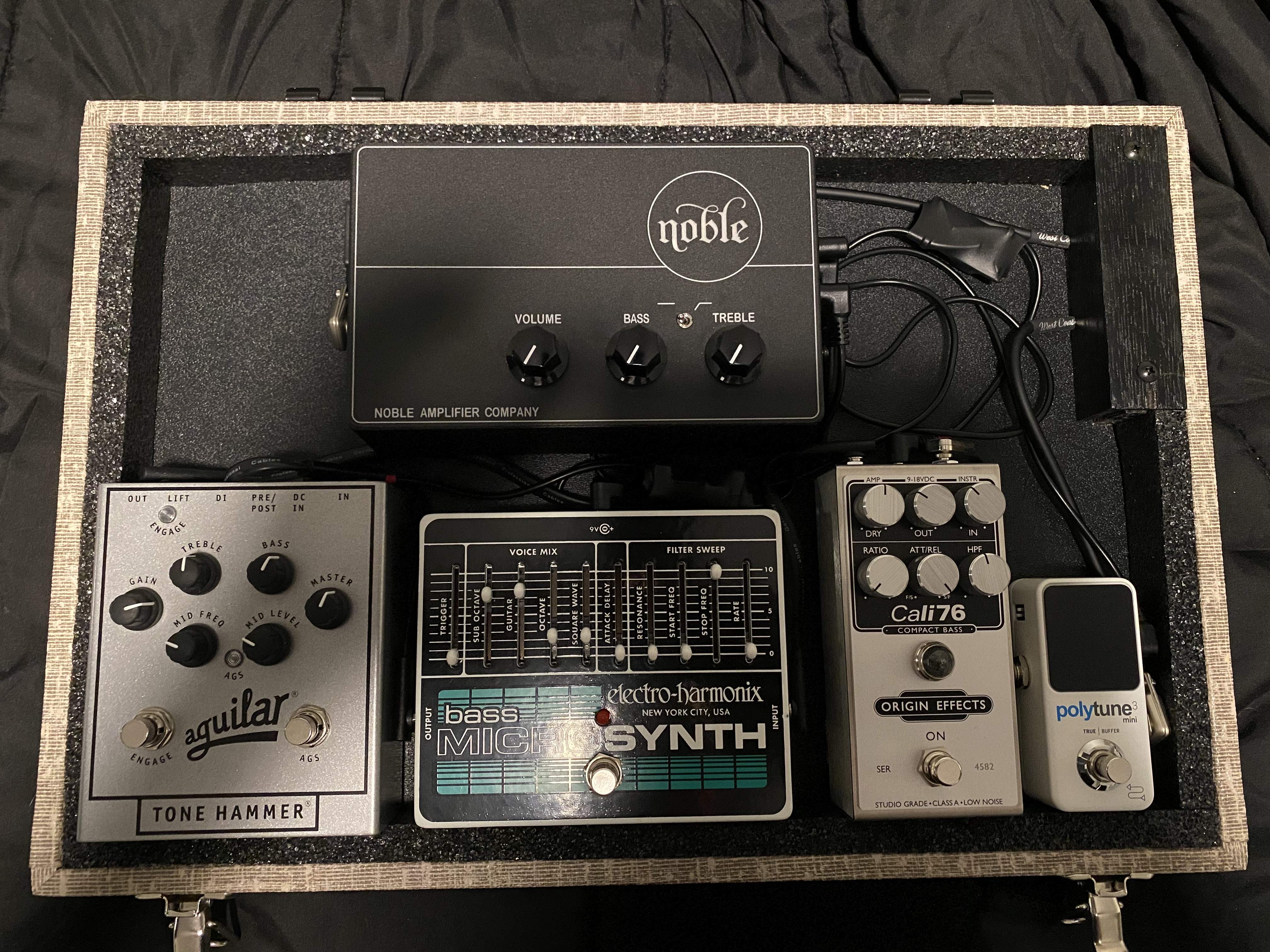

One of these days I’d like to try a TH into a Noble DI.
That day has come. :)

So I've had my Tone Hammer DI now for around a month and I have to say I think it is a great unit. AGS on all the time at between 9 and 11 o'clock, bass boosted to 1 o'clock, mid freq at 2 o'clock, cut to maybe 10 o'clock. Great driving rock tone with plenty of punch and cut, either through my rig or straight to mixing desk.

I'm super impressed, and stoked I picked up a silver anniversary model.

So I've had my Tone Hammer DI now for around a month and I have to say I think it is a great unit. AGS on all the time at between 9 and 11 o'clock, bass boosted to 1 o'clock, mid freq at 2 o'clock, cut to maybe 10 o'clock. Great driving rock tone with plenty of punch and cut, either through my rig or straight to mixing desk.

I'm super impressed, and stoked I picked up a silver anniversary model.

I've had mine for a while and still love it. I have the Effectrode PC-2A going into it and its a pillowy, fat tone that sits so good in the mix (listening back to our online services) with my P bass through IEM's at church. My SLO sits at home for practice.....

I picked up my Tone Hammer DI probably 6 months prior to the shutdown and only had a few opportunities to use it on gigs. I’m more confident now about how I prefer to set it up and adjust on the fly. Like most have said, AGS always on, mids and gain to taste covers a lot of good ground.

One of my bands is all acoustic instruments and in that situation I don’t bother with the THDI. My Quilter BB800 has built in limiters and filters that do the job just fine at lower volume levels. But as soon as I’m playing with a drummer and amplified guitars the Tone Hammer earns its keep. The AGS low and high end parameters put me right where I should be to keep a warm, defined presence in the band. I’ve been tempted to spend money on other preamps and lately the Genzler 4 on the Floor has me GASing but then I go to a couple rehearsals and decide I’m already in a good spot.

This is the most important post ever when it comes to TH.

I've enjoyed the BDDI over the years a good bit, but the Para DI, not so much. I really wanted to like it but just couldn't. I love the BDDI for some tones.

The Tone Hammer to me is quite simply an oustanding piece of gear. I've used it often, as well as the BDDI, in a variety of settings, both as a preamp/DI, as a recording unit, and as a preamp for a poweramp. I can answer a lot of questions about this if you ask. I'll give some highlights on each though.

The Blend on the Para does work, but in the end, I never cared for how it worked in the end. The wet signal you blend is has a default scooped tone, which you can try to alter with the mid control, but in the end it seems to be blending the mid-boosted natural tone of your bass with the scooped tube emulated tone. Not to my liking at all. This issue isn't as dramatic sounding with the BDDI because there is no mid boost, so it feels more natural. The tube emulation on the Sansamp is VERY fat, and hard to get away from also. Running lower blend settings help control that, but again the catch is that you wind up hearing a lot of your basses tone mixed in with a completely different tone. Doesn't always wind up getting you were you want to be.

The Tone Hammer is a totally different animal. With the AGS off, it's just an uber clean EQ with gain boost. Very high quality, and the sweepable mids are fantastic. You know how everyone raves about the Sadowsky outboard preamp/DI pedal. I had one, until I got my Tone Hammer. The TH covered the Sadowsky thing VERY well. The low control has the same 40 hz setting with the AGS off, as does the 4k treble setting. The sweepable mids on the TH are just wonderful, though I do wish it would go up to about 2k. No big deal.

The EQ on the TH is flat when it is engaged. When you also turn on the AGS, at the lowest setting, there is no hair on the notes at all. Again, NO hair at all unless your bass is just SUPER hot in terms of output. What does happen when you engage the AGS is that highs are immediately rolled off in a way that simulates a vintage tweeterless cabinet. So the tone gets warmer sounding off the bat, even though the lows and mids are still the same. The Treble control now acts more like a Presence knob does on the Sansamp stuff. It dials in grindy mids in the 2.5k region. Very slick. The lows are tightened up a bit as you boost them, so instead of getting really deep and boomy, they get fat and vintage. Again, still no hair on the notes because the AGS gain is fully counter clockwise. The mid control still allows you to cut/boost mids where you want them. Very slick. Vintage tones with no hair.

As you add more AGS gain, the tone gets warmer until you get some hair, and then it starts overdriving. With the EQ flat, the overdrive tone is VERY mid-oriented such that it can sound a bit nasally and harsh. But remember, this is with the EQ flat, and most folks who are used to hearing a classic tube amp (think SVT for example) should note that an SVT is no where near flat. There's a mid scoop. So to get rid of that nasally midrange in the TH, you have to cut mids as you boost the gain. Setting the knob around 2-3 o'clock puts the mid control around the 750 hz mark, where you'll get some classic SVT'ish mid scoop going. Start cutting the mids there to get the tone you want. Cut to anywhere from 10 to 8 o'clock, and you can pretty much close your eyes and thing your running through the BDDI and not the Tone Hammer. The cool thing is that you aren't having to use a Blend knob at all to control that mid scoop. Just scoop the mids as deep as you like to get the tone you're after, and then adjust the Treble (which now more like a Presence, remember?) to get the amount of cut you want. Then, dial up the bass if you want it fat and deep, or cut it back to keep a thinner tone. Very slick, and way cool.

Here's another trick about the TH that I use a good bit. I'll scoop the mids ALL the way out around 750 hz for a rock tone. With the Bass/Treble boosted to around 2 o'clock, this is very similar to the "Fat Tube" setting from the BDDI manual. But the cool trick is instead to cut treble and bass back. I'll set bass to 11 or maybe 10 o'clock, and cut treble all the way back to 8 or 9 o'clock. The result is a very warm, lower-mid dominant tone (because the upper mids and lows are cut back so far), with a subtle, understated top end. It's very B15'ish and sounds awesome with a P bass or jazz with flats. At this point, if you want more depth, rather than boosting the bass, you move the mid frequency knob clockwise, which pools out upper mids and articulation. If you want more of that, then you move the knob counter clockwise to bring those upper mids back into the tone. The highs and lows stay the same, so it's an easy way to adjust your tone on the gig to get more/less articulation in the mix.

These are just a few examples of what the Tone Hammer can do. I'm a huge fan of it obviously, but I came from being a BDDI user for quite a while, and I just never could bond with the new VT pedal. I still love and have a deep respect for the BDDI, and while I don't use one myself much anymore, I know I can always make it work. The Para Driver I wouldn't bother with myself.

A lot of folks around here have slammed the Tone Hammer because you can't use the AGS like a second channel, where you can engage/disengage overdrive at will without causing volume differences. I guess I can understand that, but really that's not the Aguilar'sdesign intent. Instead, think of it more as a single channel tone shaper, that will "hammer" (pardon the pun) your tone into a wide variety of directions. It just takes a little time playing with the controls to figure out what does what. I still learn new things about it all the time. It's not that it's complicated, but rather that the AGS circuit ties in very closely to the mid control, so changing the mids affects the overdrive tone, and the more gain you add, the more the low end tightens up to prevent things from getting muddy.

I'll stop now unless someone has specific questions about any of these units.
