    Today I completed the build of a twelve string Thunderbird.

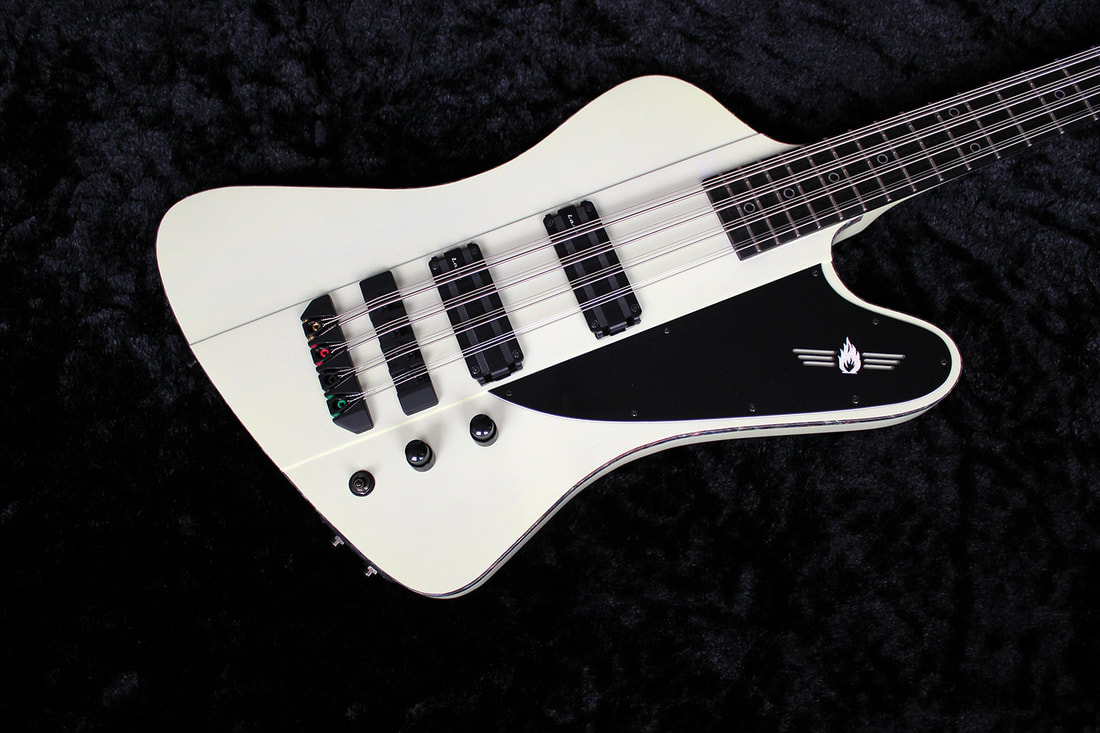

    The Brooks TB-12

    Specifications:
    - Mahogany body wings
    - Nine ply Mahogany/Walnut set neck. Neck through
    - Opaque white (blonde) high gloss finish
    - Abalonoid binding
    - Ebony fretboard
    - Circle position dots
    - Jumbo frets
    - 34" scale
    - Buffalo horn nut
    - Three ply black/white/black pickguard
    - ETS twelve string brass bridge set
    - Two spokewheel double action trussrods
    - Carbon reinforcement strip in the neck
    - Lace Alumitone Bass Bar in the neck position
    - Lace Alumitone DeathBar in the bridge position
    - Allparts stacked pots (volume/tone volume/tone)
    - Mullard capacitors
    - MEC on-on switch for coil split (humbucker-single coil)

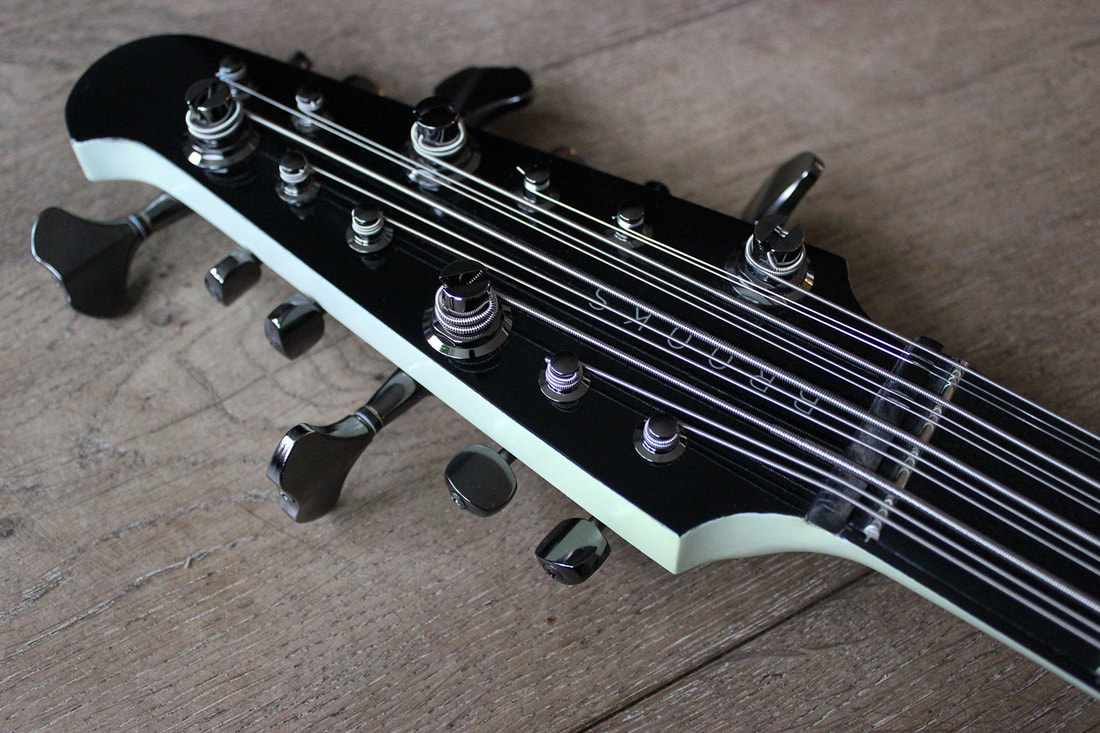

    - Gotoh GB 350 lightweight bass tuners
    - Gotoh Stealth ST 31 guitar tuners
    - 2 xPure Tone Multi Contact jack output
    - d'Addario EXL 170 - 12 strings
    - Weight: 4.2 kg

    Electronics circuit were done by my good friend Bas Becu (BQ Music)



    I'll post pics of the build process in several posts below.

  2. micguy

    micguy

    May 17, 2011
    It certainly looks cool, but 12 tuners and an oversized headstock on a Thunderbird - My left shoulder hurts just looking at that.

    Last edited: Jan 26, 2022
    Aqualung60, Winton, soulstew and 5 others like this.
  3. Basvarken

    Basvarken Commercial User

    Dec 3, 2010
    Velp Rockcity
    Amateur Luthier / Gibson Bass Book
    Like all builds, it starts with finding the right slabs of wood.

    Mahogany Khaya body wings

    Made a laminated neck blank of Mahogany with Walnut strips

    Routed a slot for the carbon reinforcement strip in the middle of the neck

    Glued it in and scraped it flush

    Then routed the two truss rod channels

    Chiseled the part where the spoke wheel goes out by hand

    Clark W, Goatrope, BeeTL and 7 others like this.
  4. Basvarken

    Basvarken Commercial User

    Dec 3, 2010
    Velp Rockcity
    Amateur Luthier / Gibson Bass Book
    Bought a nice pre-radiused fretboard at Holz Faszination in Germany.
    Drilled holes for the position markers.


    Glued in the position markers that I made out of an aluminium tube and black inlays dots

    After I sanded the inlays flush to the desired radius, I recut the fretlines to the right width and depth.

    I always file off the top edges with a triangular file to make the fret seat properly

    Then hammered in the frets

    Also made side position markers

    Made some filler with ebony sawdust and glue to fill the little gaps on the side of the fretboard

    And cut out the truss rod acces slot

    Clark W, BeeTL, icefly and 12 others like this.
  5. Basvarken

    Basvarken Commercial User

    Dec 3, 2010
    Velp Rockcity
    Amateur Luthier / Gibson Bass Book
    After I glued the fretboard on (sorry no pix)
    I started shaping the neck


    Building a bass like this requires some thinking ahead. I drilled holes for the pickup wires in the lower wing, prior to glueing it to the centerpiece

    Then glued the upper wing

    Routed the body shape (again sorry no pix)
    And routed the pickup cavities

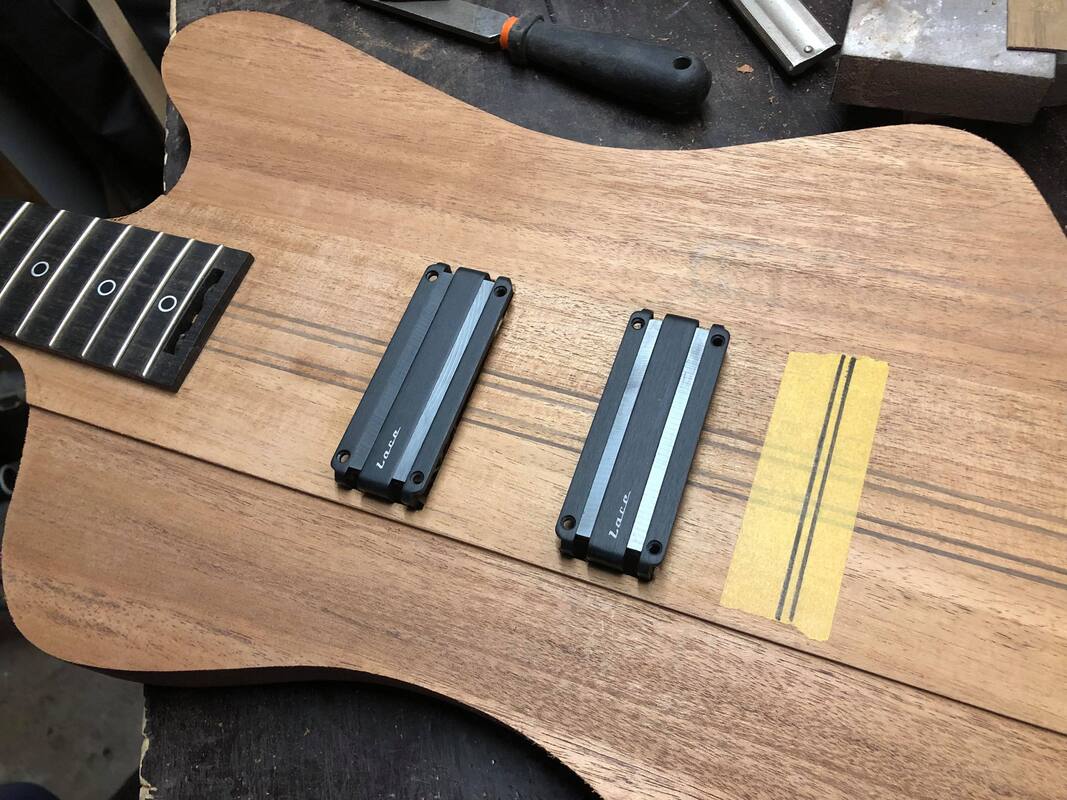

    Then the tricky part of routing the binding profile. The body can't be detached, so I had to come up with a plan.
    I made and extra template with a profile that compensates the raised center piece.
    So the router could route up to the neck.


    Found out I had drilled the output holes too early. So I temporarily filled them up ;-)

    The glued the abalonoid binding in place

    Last edited: Jan 26, 2022
    BeeTL, icefly, Rayjay and 10 others like this.
  6. Basvarken

    Basvarken Commercial User

    Dec 3, 2010
    Velp Rockcity
    Amateur Luthier / Gibson Bass Book
    Carved the belly cut on the back of the body

    I cut a piece off the giant buffalo horn that I sawed in pieces last summer.

    And copied the brass template that ETS made for me

    Test fitted all the tuners before I started the pore filling

    Last edited: Jan 26, 2022
    Goatrope, BeeTL, ahbradot and 17 others like this.
  7. bholder

    bholder Affable Sociopath Gold Supporting Member Supporting Member

    Sep 2, 2001
    Vestal, NY
    Received a gift from Sire* (see sig)
    Wow that's gorgeous!

    Basvarken likes this.
  8. Basvarken

    Basvarken Commercial User

    Dec 3, 2010
    Velp Rockcity
    Amateur Luthier / Gibson Bass Book
    I used Z-poxy as a porefiller on this one. Works great if the wood does not have to be stained.

    After I sanded it smooth, I sprayed the white blonde nitrocellulose.
    My goal was to keep the nine ply laminate of the neck visible

    Then did a very thin coat of pale yellow to make it less white

    Scraped the binding clean

    And I cut a pickguard at the FabLab

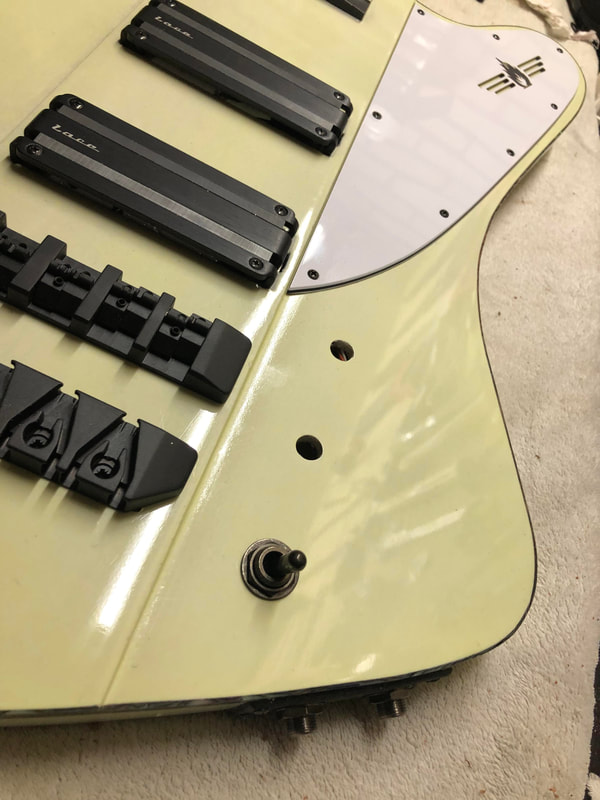

    After lots of sanding and a few top coats of clear finish, I polished the finish. And mounted the hardware. Bridge set was custom made by ETS Hardware in Germany. It took forever, but it was worth the wait.

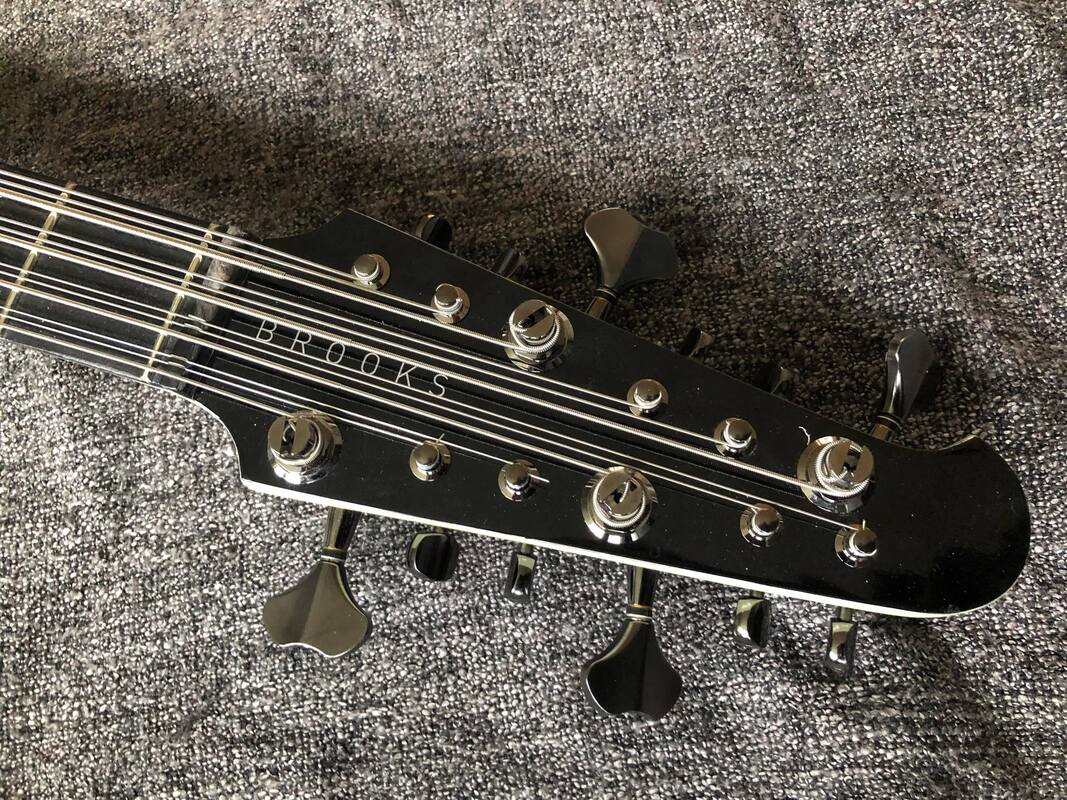

    Stringed her up for the fist time

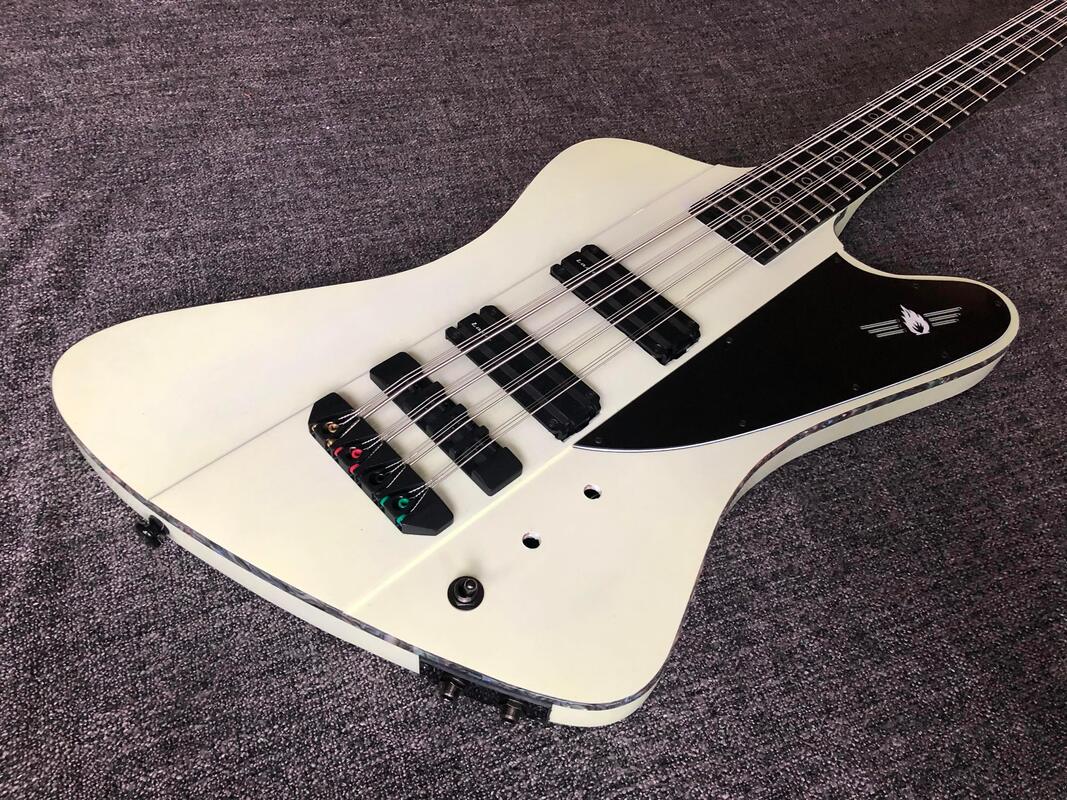

    And decided against the white pickguard. Opted for the black one that I also made.
