U.S. Peavey Club

As far as I've been able to determine, both the small size ferrite (as seen in the Patriot and Foundation) and large size (as seen in the T-40 and early Fury basses) are single coil pickups. I've played both and owned the large version and they all will hum a bit. I don't find it to be a problem, but if your amp, effects chain or venue is prone to hum you will notice it.

Also, most peavey fans are aware, but for those that aren't, that I call the early version "Large" because while it looks about the same at first glance, under the pickguard the pickup is about twice as big (around as big as a Gibson mudbucker).

Peavey says it's single coil: http://assets.peavey.com/literature/manuals/80370015.pdf


  • Like
Reactions: Chrome Dome
StuartV gave you some info on this ,but I wanted to add that a former employee of Peavey had gone to work for,or run Modulus,and that is when the relationship between the two companies started.

The guy was Rich Lasner. He left Peavey to became president of Modulus. He was Peavey's Product Manager for Guitars and Musical Instrument Amplifiers. I met him back in the day. Super nice guy and great player.

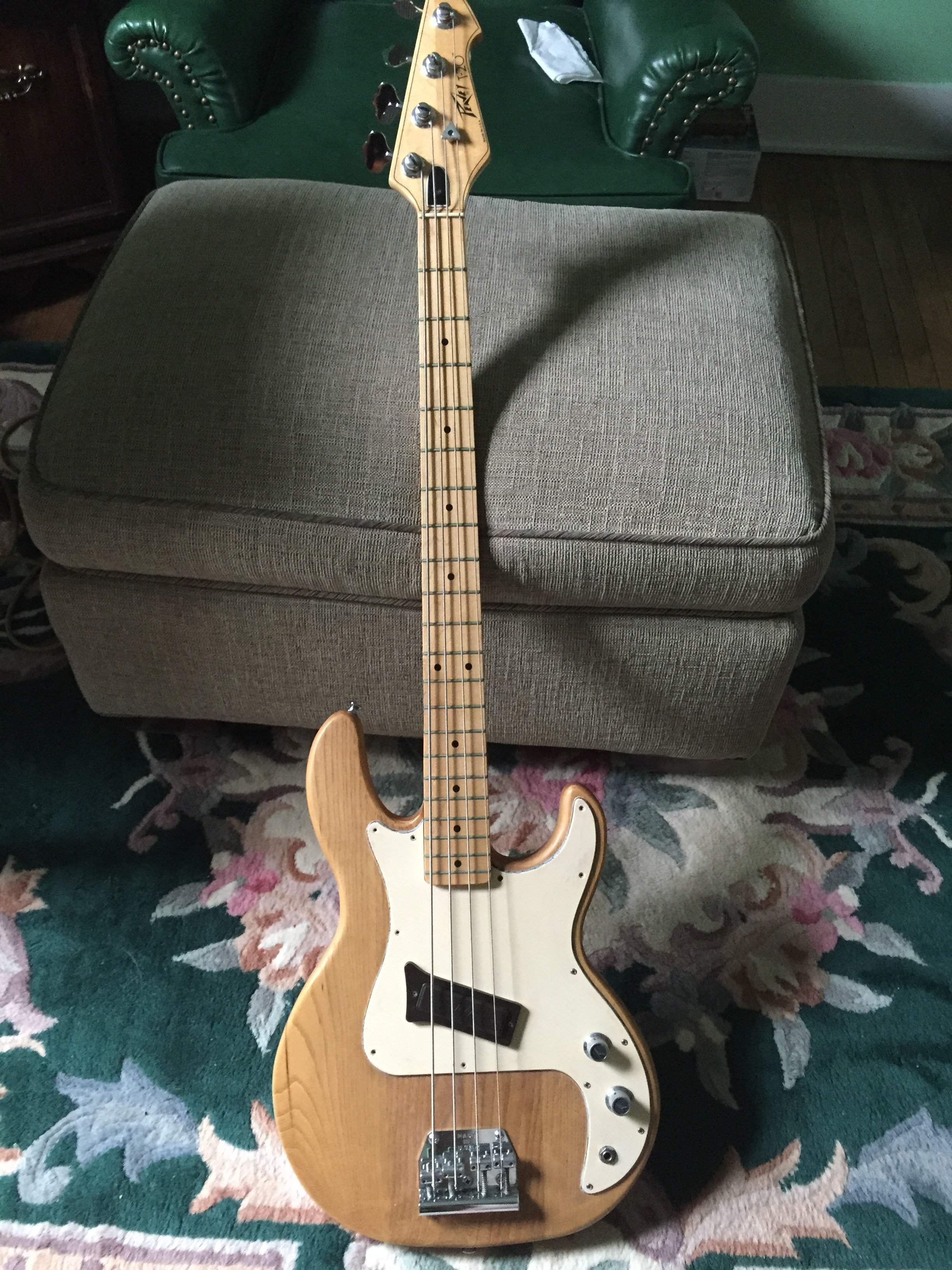

Well,after doing some more trouble shooting on the T20,I just acquired,with humming. I had it hooked up to an SWR LA15,and it was humming real bad. I have another amp,at Church,which is a SWR Redhead,and when I hooked it up to the Redhead,there was
not any hum,if any,it was not real audible,like it was with the LA15? So I am still going to shield the cavity,around the pots,and pup. It actually played real well. I just had to crank the volume,on the amp,to get the full volume,I needed. So far the neck seems okay. I put a new set of roundwounds,on there and l lowered the strings,and set the intonation. I am use to playing the L2000,which has more umph?

Well,after doing some more trouble shooting on the T20,I just acquired,with humming. I had it hooked up to an SWR LA15,and it was humming real bad. I have another amp,at Church,which is a SWR Redhead,and when I hooked it up to the Redhead,there wasView attachment 804609 not any hum,if any,it was not real audible,like it was with the LA15? So I am still going to shield the cavity,around the pots,and pup. It actually played real well. I just had to crank the volume,on the amp,to get the full volume,I needed. So far the neck seems okay. I put a new set of roundwounds,on there and l lowered the strings,and set the intonation. I am use to playing the L2000,which has more umph?

Nice. If you get a chance try flats. Mine will never come off. I've posted this before, but I've had comments from audience and other bass players that they prefer the tone of my Fury to my Bongo. It was 1/10th the price!!!

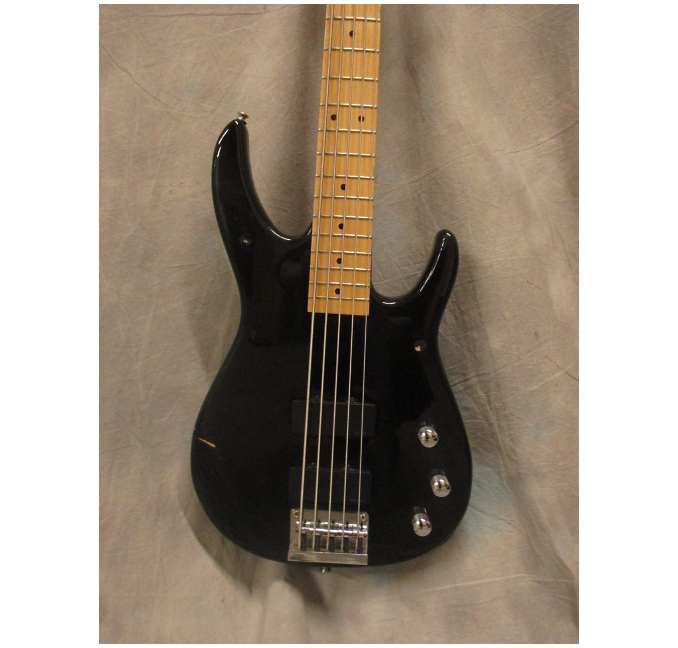

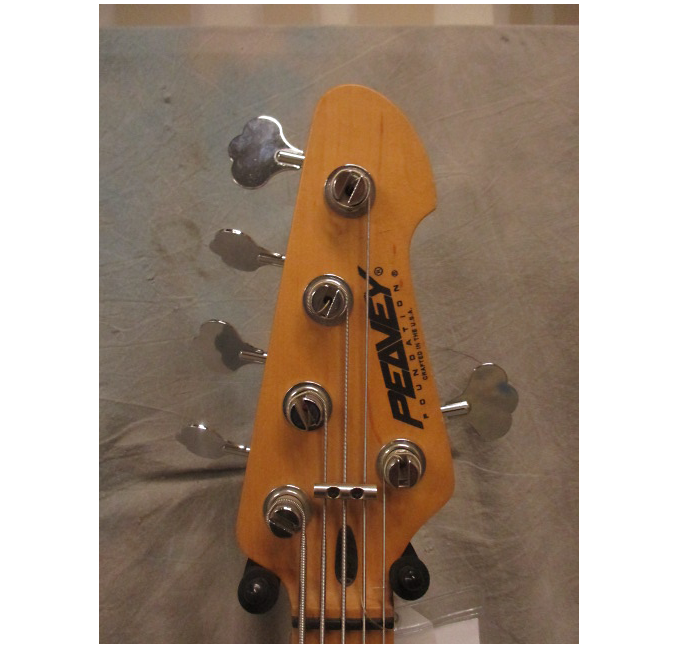

I don't know anything about Peaveys. Any info about what I just bought would be appreciated. From what I'm reading online they seem to be well regarded workhorse basses. Apparently those with super ferrites are better than those without. Any idea if this one has those? What kind of pickups are they either way? Humbuckers? Are these 34" scale? Is it wired v/v/t? I'm not really a five string player. Do these have good Bs? I saw it on the GC used site and something about it just spoke to me. 150 bucks. Did I do good? I bought it sight unseen and without speaking to anyone in the store (not that their description is worth anything), so returning it is always an option. Anything in particular to look out for when I get it? Any common issues?

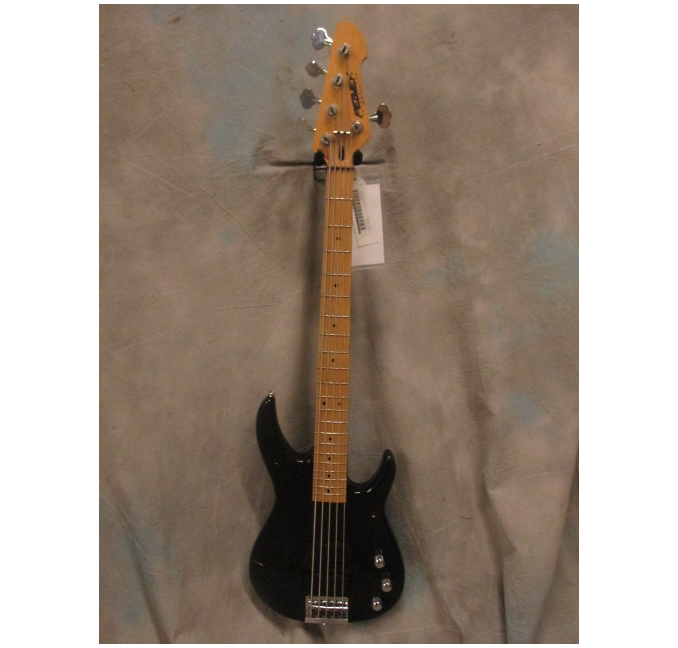

Also, you can see on the middle picture that the strings are a bit shifted towards the right. Is the neck easily reseated? Or should I just live with it.

Last edited:
  • Like
Reactions: gfaulkner
I don't know anything about Peaveys. Any info about what I just bought would be appreciated. From what I'm reading online they seem to be well regarded workhorse basses. Apparently those with super ferrites are better than those without. Any idea if this one has those? What kind of pickups are they either way? Humbuckers? Are these 34" scale? Is it wired v/v/t? I'm not really a five string player. Do these have good Bs? I saw it on the GC used site and something about it just spoke to me. 150 bucks. Did I do good? I bought it sight unseen and without speaking to anyone in the store (not that their description is worth anything), so returning it is always an option. Anything in particular to look out for when I get it? Any common issues?

Also, you can see on the middle picture that the strings are a bit shifted towards the right. Is the neck easily reseated? Or should I just live with it.

Nice score. I just sold one locally for $150 but that's not it. :)

That's a second generation Foundation 5 string. The pickups are large single coils and are called VFLs. They are passive and were used on Peavey's top of the line TL-5 and the Foundation 4 string of that generation. They were the basis for the active VFLs used on Peavey's high end bass, the Cirrus. They are excellent pickups, IMO. I have three Peavey basses with them. Two TL-5s and a Foundation 4 string. The VFLs do have a different voice than the Super Ferrites but I'm comfortable with either. They both sound good to me.

It's a 34" scale and the B will depend mainly on the tension of the strings you use. I've used .130"-.050" string sets of various brands and have had no problems with the way they act. Not the tightest in the world but neither are they floppy by any means

It's wired V/V/T. Since the VFLs are single coil, even thought they are well shielded internally, they can pick up hum fields. The good thing is that when they are both turned up the same amount they form a humbucking pair to cancel the hum.

It's easy to shift the neck to get the string margin right. Slack off on the strings, loosen the neck bolts and use gentle but firm pressure to move the neck. I normally have the two strings on the side I want to move it toward at a higher tension than the others to help keep it in place while tightening the neck screws. Tighten the two screws by the neck first and the ones toward the body last.

If you have any problems post them here and someone will be along to help.

Nice score. I just sold one locally for $150 but that's not it. :)

That's a second generation Foundation 5 string. The pickups are large single coils and are called VFLs. They are passive and were used on Peavey's top of the line TL-5 and the Foundation 4 string of that generation. They were the basis for the active VFLs used on Peavey's high end bass, the Cirrus. They are excellent pickups, IMO. I have three Peavey basses with them. Two TL-5s and a Foundation 4 string. The VFLs do have a different voice than the Super Ferrites but I'm comfortable with either. They both sound good to me.

It's a 34" scale and the B will depend mainly on the tension of the strings you use. I've used .130"-.050" string sets of various brands and have had no problems with the way they act. Not the tightest in the world but neither are they floppy by any means

It's wired V/V/T. Since the VFLs are single coil, even thought they are well shielded internally, they can pick up hum fields. The good thing is that when they are both turned up the same amount they form a humbucking pair to cancel the hum.

It's easy to shift the neck to get the string margin right. Slack off on the strings, loosen the neck bolts and use gentle but firm pressure to move the neck. I normally have the two strings on the side I want to move it toward at a higher tension than the others to help keep it in place while tightening the neck screws. Tighten the two screws by the neck first and the ones toward the body last.

If you have any problems post them here and someone will be along to help.
Sounds good to me. Thanks.

  • Like
Reactions: mech
