WBO-2023 : Neuromancer

[Jon Clegg]

Splash screen:



[Jon Clegg]

The screen should display static on startup, just for a subtle Snow Crash reference.

Wish granted (see above)



[Max Bogosity]

Lovely.



[Jon Clegg]

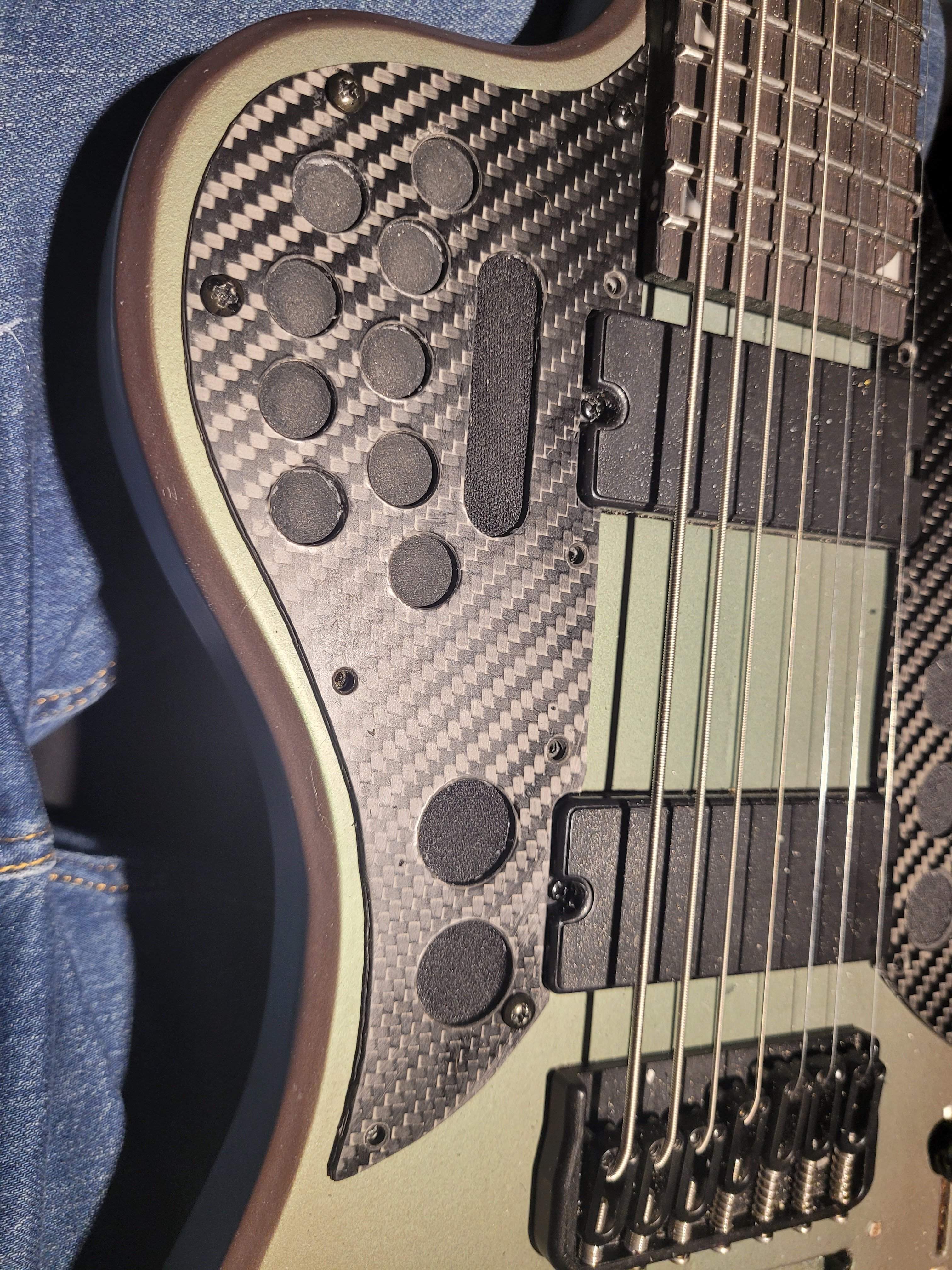

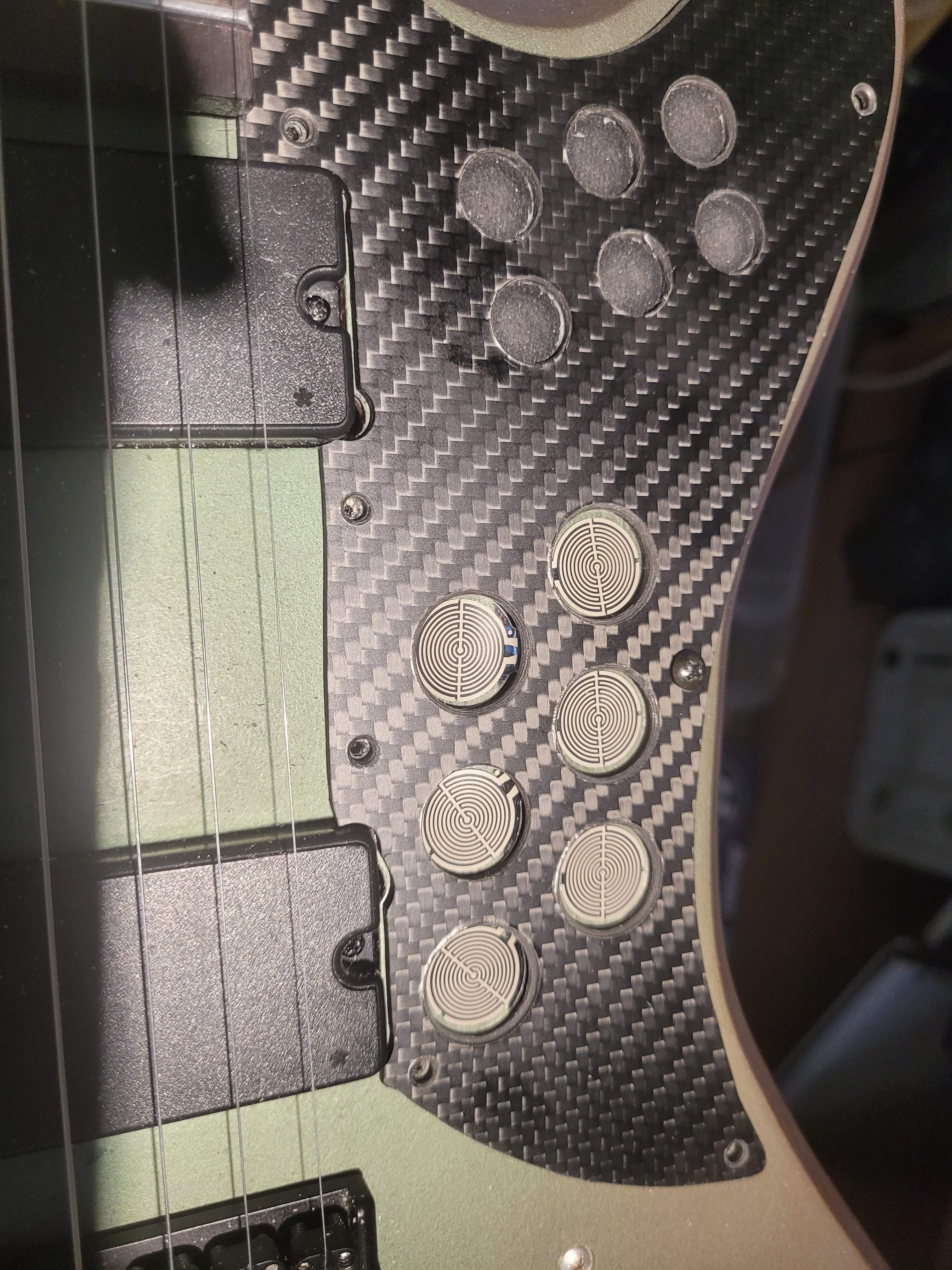

I decided ditch the exposed buttons and hide things under a membrane made from a piece of mouse pad originally intended for a drum synthetic project

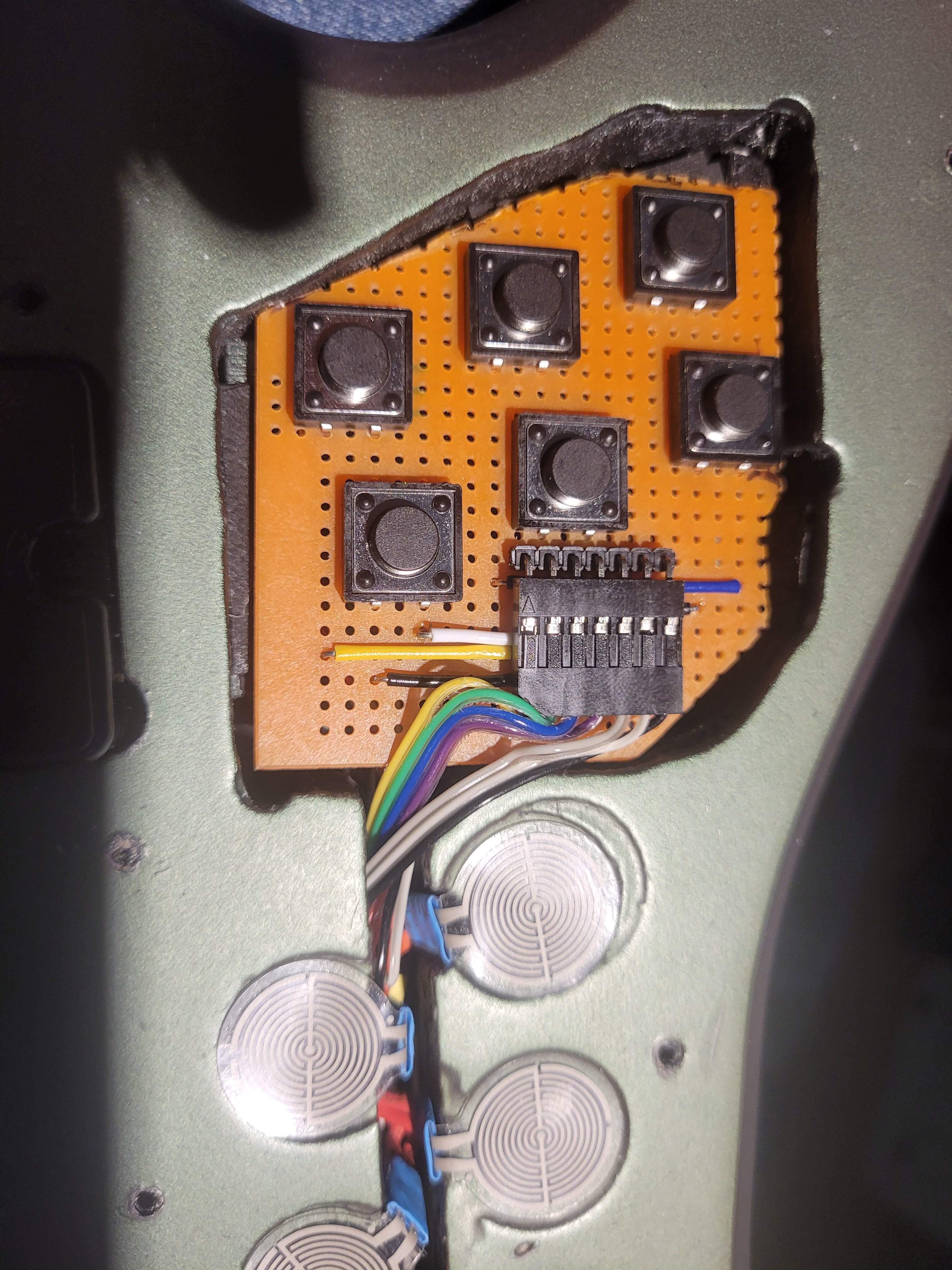

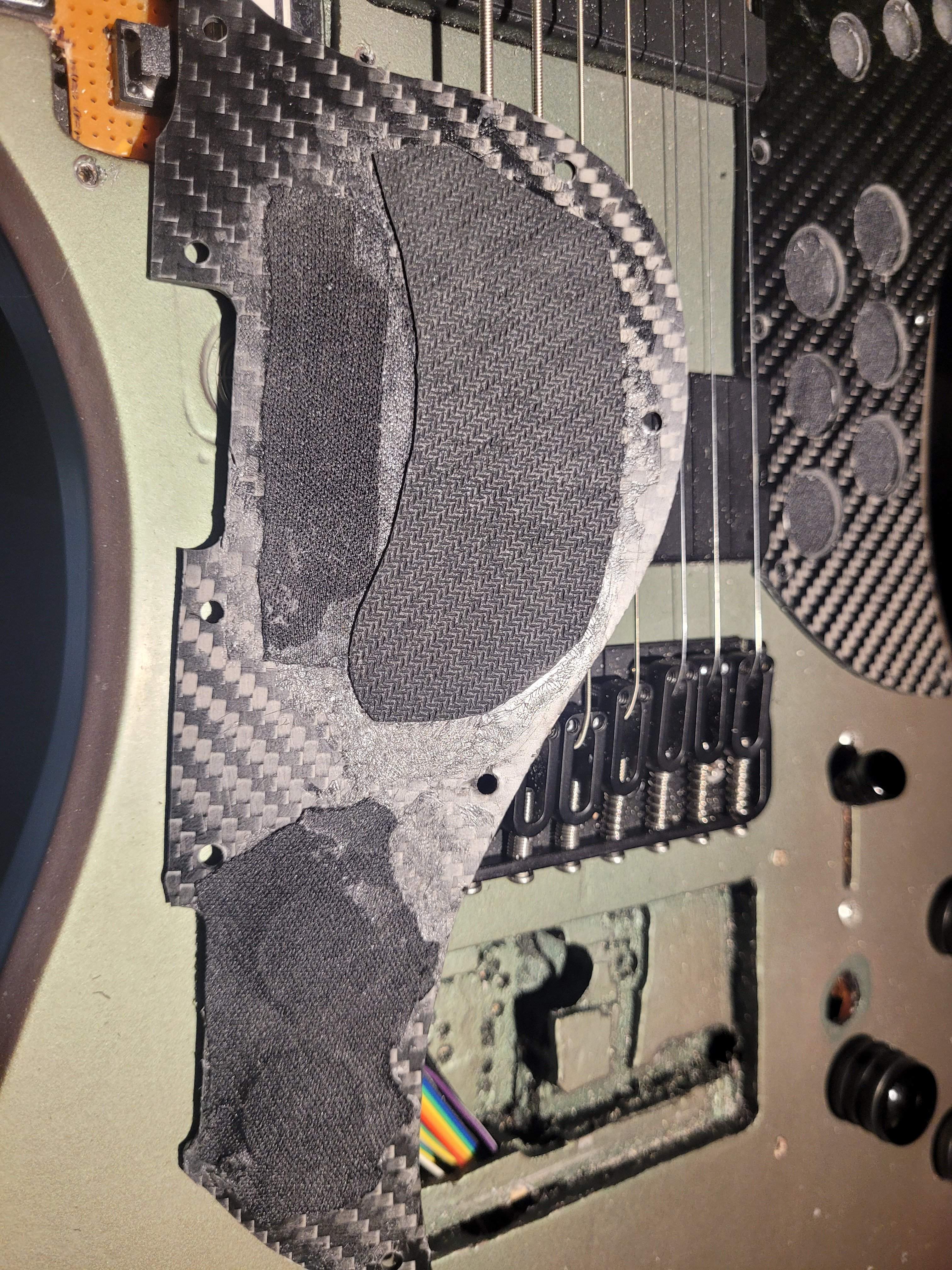

Here's the underside of one of those covers

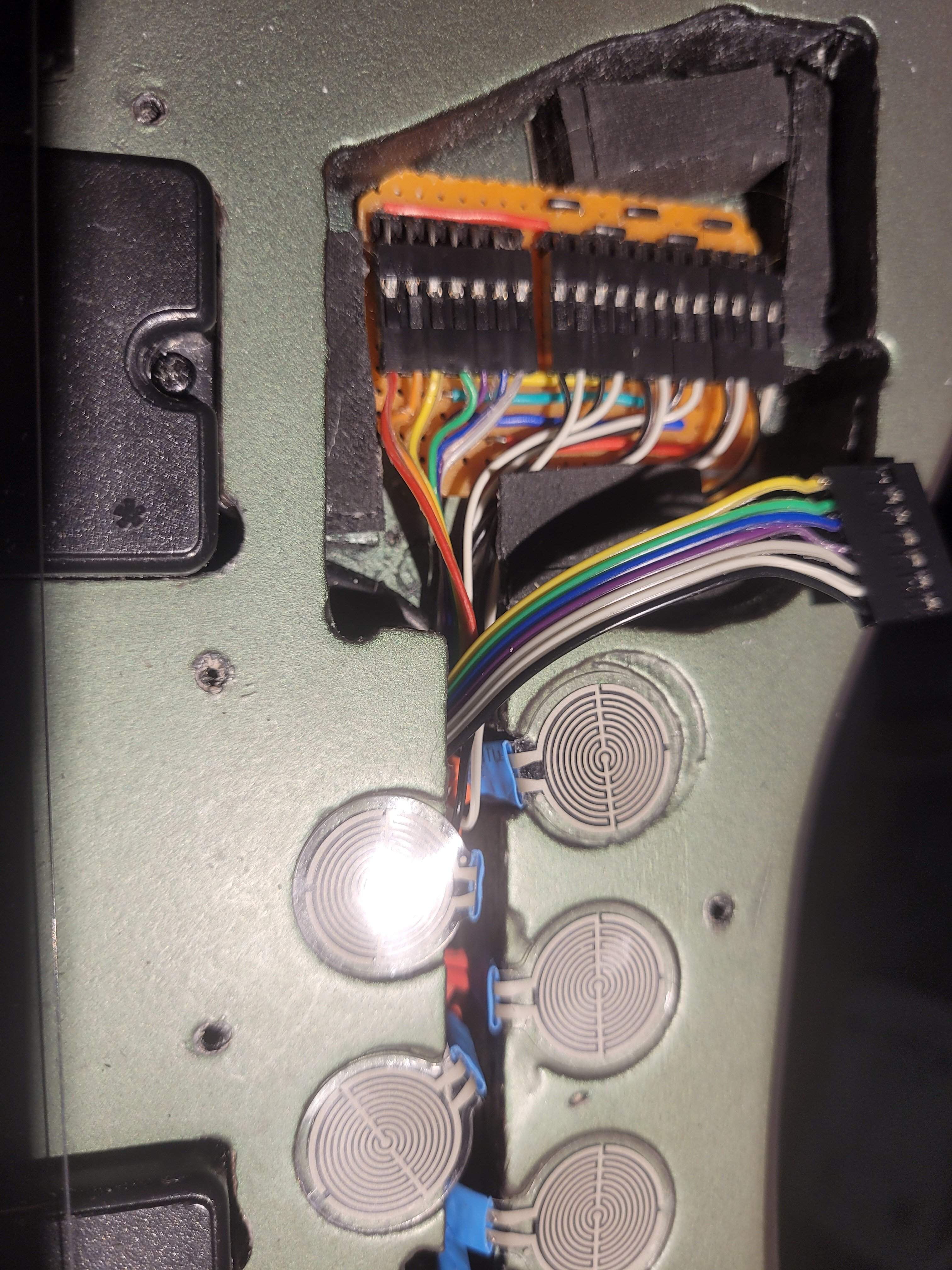

So... many... wires... This board reduces the 12 wires from the 6 pressure touch pads down to 7

And the buttons intended to control a 3 channel looper

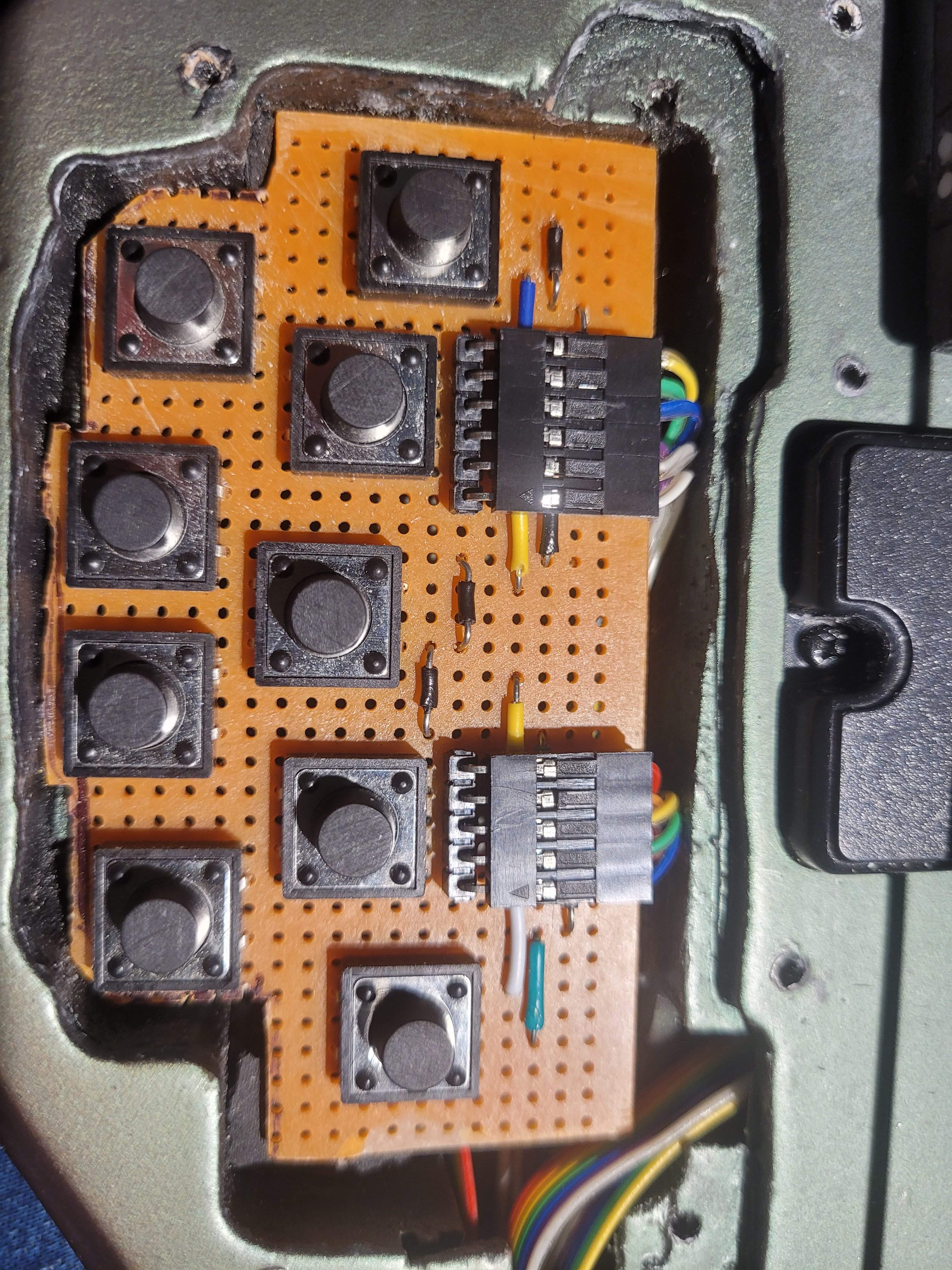

Switch matrix on the other side, 4 select presets, the other 5 select the slider function:

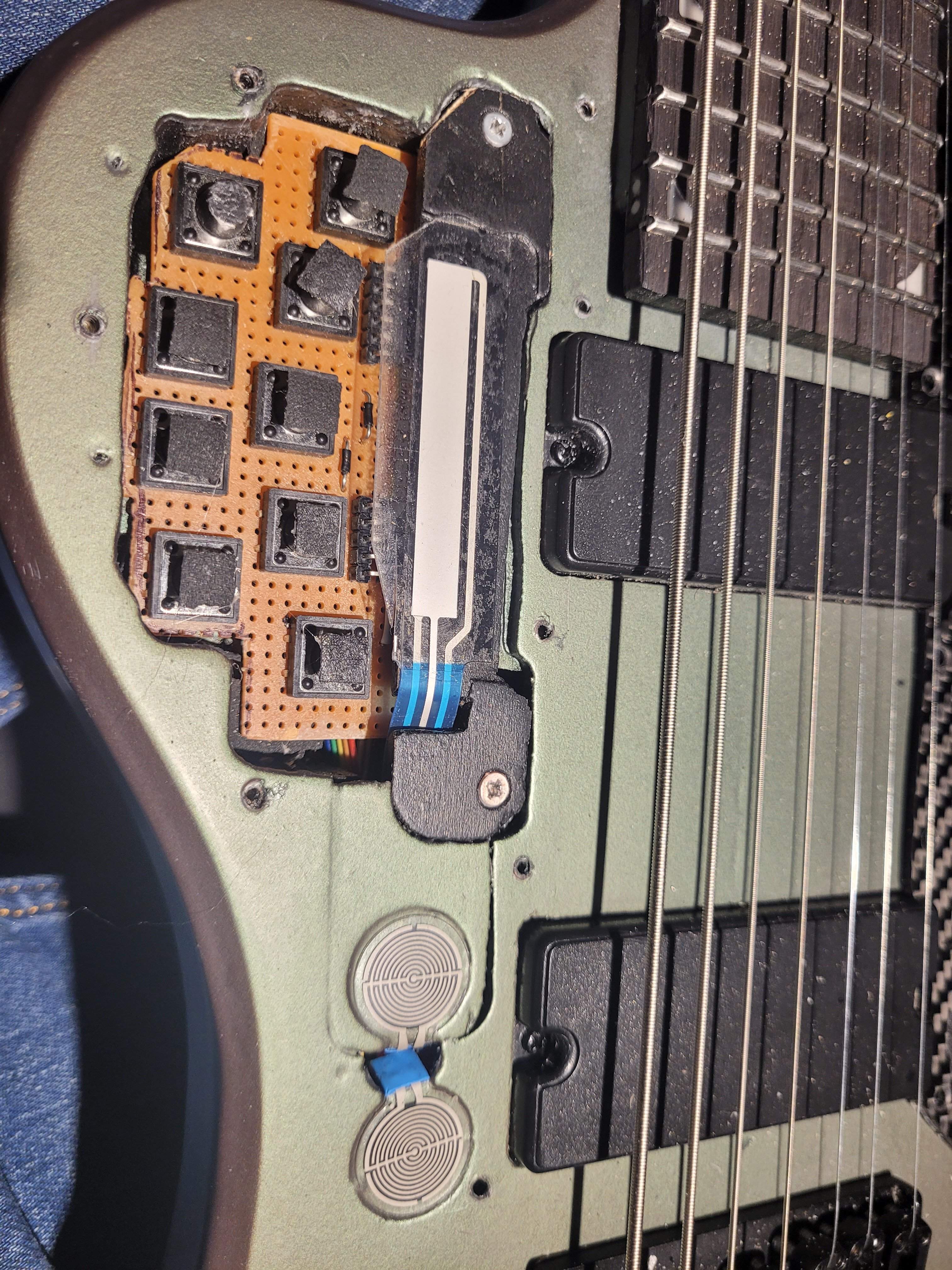

And the slider installed:

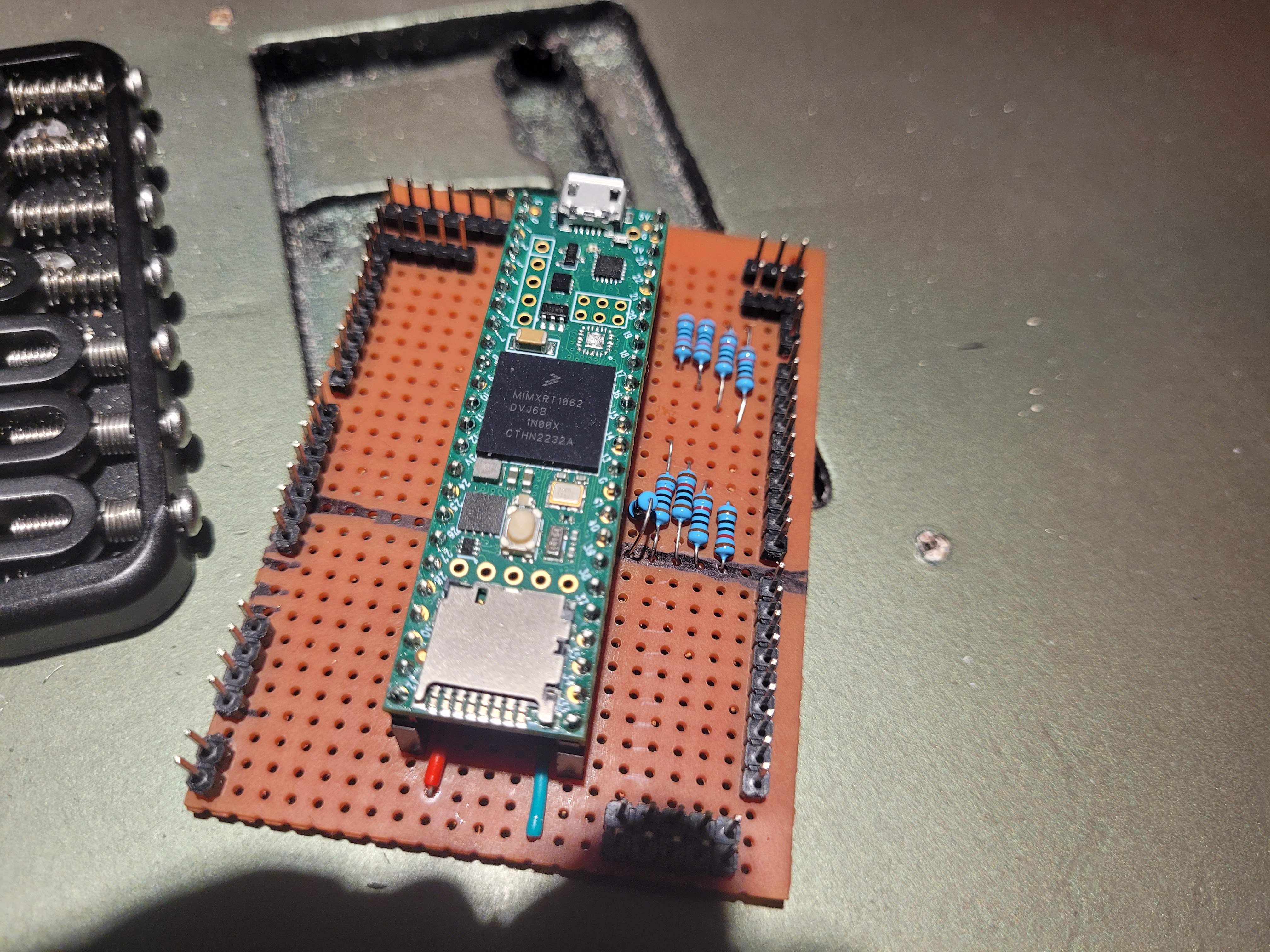

The new and improved processor board



[T_Bone_TL]

Apart from the expense and difficulty modifying it, makes a 4-layer (or more) PCB (that's functional) as a pickguard (or under the pickguard) look all kinds of sensible.



[postalflunkie]

Les Paul's "little black box" has nothing on this



[Jon Clegg]

Apart from the expense and difficulty modifying it, makes a 4-layer (or more) PCB (that's functional) as a pickguard (or under the pickguard) look all kinds of sensible.

Yeah, I think it could be done with 2 layers; setting it up on Vero board wasn't too difficult.

Les Paul's "little black box" has nothing on this

Les didn't have cool little microcontrollers to work with though.
