WBO-2023 : Neuromancer

[Jon Clegg]

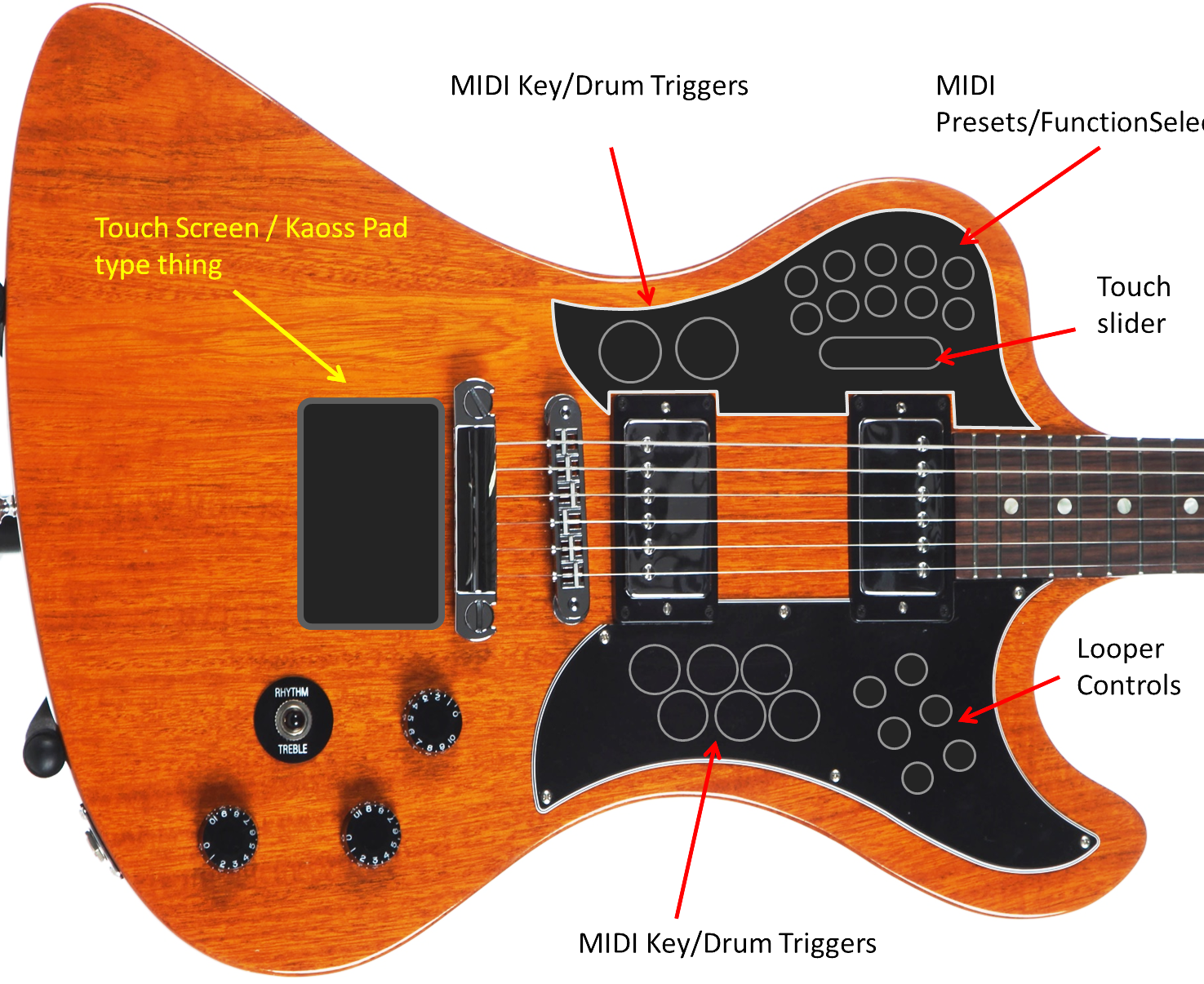

Here is my entry for the 2023 WBO So originally I was thinking to just make this a pure techie sorta thing, as it progressed I started thinking Cyberpunk as well, hence the name "Neuromancer" which was the name of William Gibson's first novel that more or less spawned the genre. The idea is an aggro'd out 7-string RD with a built-in MIDI controller (pretty nerdy, eh?):

I'll be building the body, and using a 7 string neck from GFS. The neck's a little rough but should be serviceable. This will be a 26.5" scale 7-string down-tuned to G-C-G-D-f-a-d. I'll be using an .085 on the low G which will make this a Partial Build.

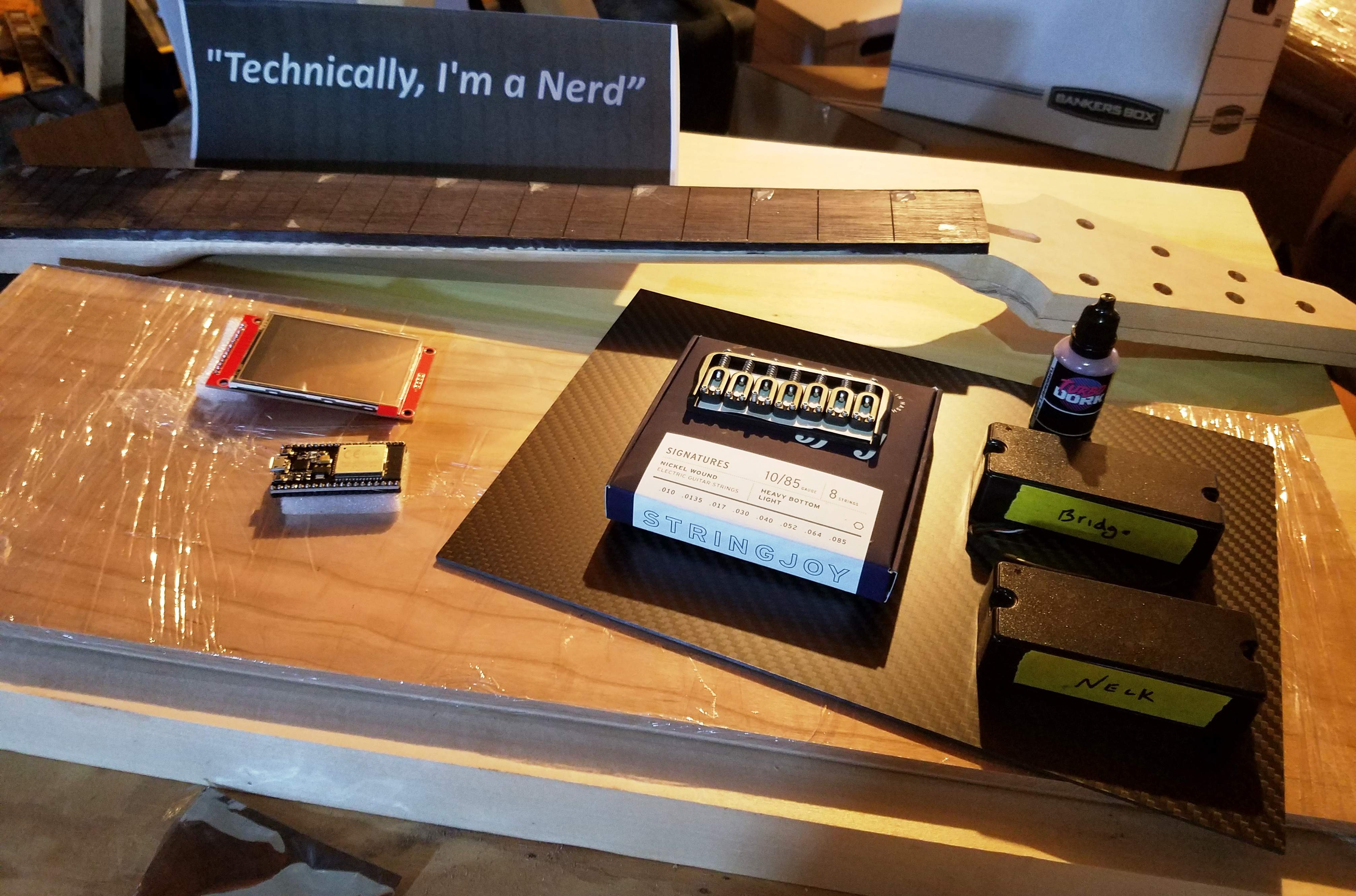

Shown: 2.8" TFT touchscreen, ESP-32 microcontroller w/bluetooth, GFS neck, Hipshot 7-string bridge, Strandberg 7-string pickups from eBay, StringJoy 10/85 8-string set, cherry for Carbon fiber for the pickguards, cherry top, poplar body blank. The touch screen will be used to control off-board effects. Overall paint scheme will be a satin-black base with TurboDork Dark Net color-shift paint.



[Reedt2000]

So cool

Sub'd



[mapleglo]

This is quite nerdy, my friend. You Rock!



[BishopJP]

This build looks to be awesome!
Also, love that your calling it Neuromancer, big William Gibson fan!



[KidAmnesia]

Oh! It's a William Gibson RD!



[Crawforde]

I’m in. ‘cause it’s cool, and I’m a Gibson Fan
And I think the idea of a built in drum machine and looper on top of everything else would make this a lot of fun to play.



[AbnormalForms]

Been thinking of doing something rather similar for a long while, just don't really have the electronic-know-how to set it up without being super bulky and awkward to control. Really looking forward to what you come up with!



[Jon Clegg]

Oh! It's a William Gibson RD!

I hadn't even made connection

Been thinking of doing something rather similar for a long while, just don't really have the electronic-know-how to set it up without being super bulky and awkward to control. Really looking forward to what you come up with!

There have been a few commercial products that do similar things like the Livid Guitar Wing and the AcPad . I may have taken a few ideas for control layout from the AcPad

I’m in. ‘cause it’s cool, and I’m a Gibson Fan
And I think the idea of a built in drum machine and looper on top of everything else would make this a lot of fun to play.

The drum machine and looper (and other effects) will be off-board, but controlled from the buttons on the guitar via Bluetooth MIDI. One of the hardest things on the Outlaw that I did last year was getting the noise under control. I'm keeping the the audio path separate and just doing MIDI controls for offboard effects for this reason.



[Standalone]

No octagons?



[Jon Clegg]

No octagons?

Octagons or Hexagons would be visually pretty cool, but a lot more work since I don't have a CNC machine.



[Jon Clegg]

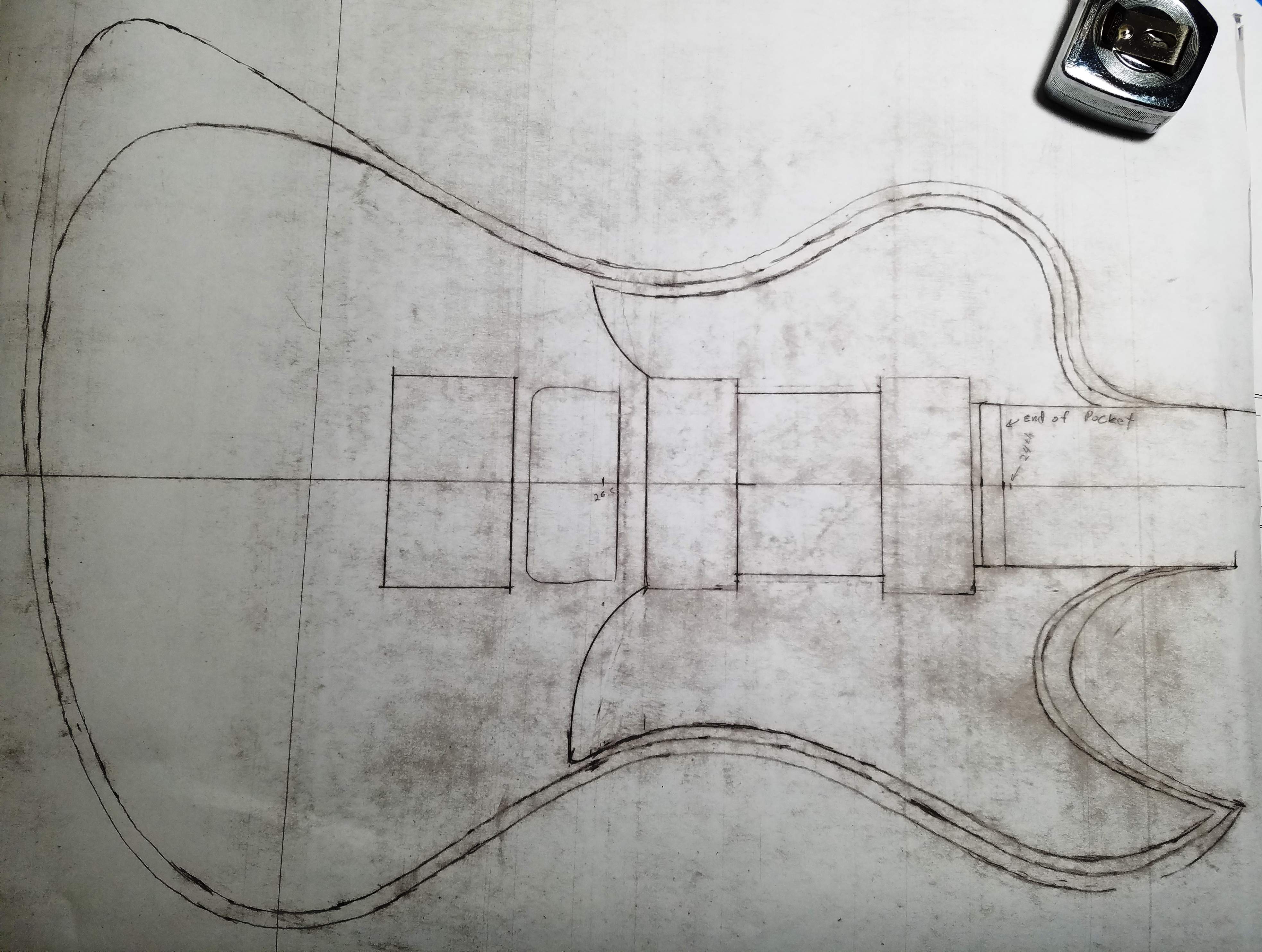

Full scale drawing:

Inner line is where I'll be putting a hard bevel.



[kmon]

I’ve read that book 50x … love it!!



[Hout]

This is pretty cool! Curious to see it unfold!



[Flying B]

Very cool, your builds always blow my mind, man.



[Reedt2000]

This is pretty cool! Curious to see it unfold!

It folds up too!?!?!?



[Jon Clegg]

It folds up too!?!?!?

It folds space and time



[Standalone]

Octagons or Hexagons would be visually pretty cool, but a lot more work since I don't have a CNC machine.

It’s ok. Case couldn’t use Octagons either.



[NKBassman]

wow!



[Jon Clegg]

It’s ok. Case couldn’t use Octagons either.

Been a long time since I read that book. I had to look up that reference.



[Max Bogosity]

The screen should display static on startup, just for a subtle Snow Crash reference.
