WBO-2023 : Neuromancer
- Thread starter Jon Clegg
- Start date
Please tell me you are going to make a custom Case for this.
I love that there are multiple RD-style builds going on right now.

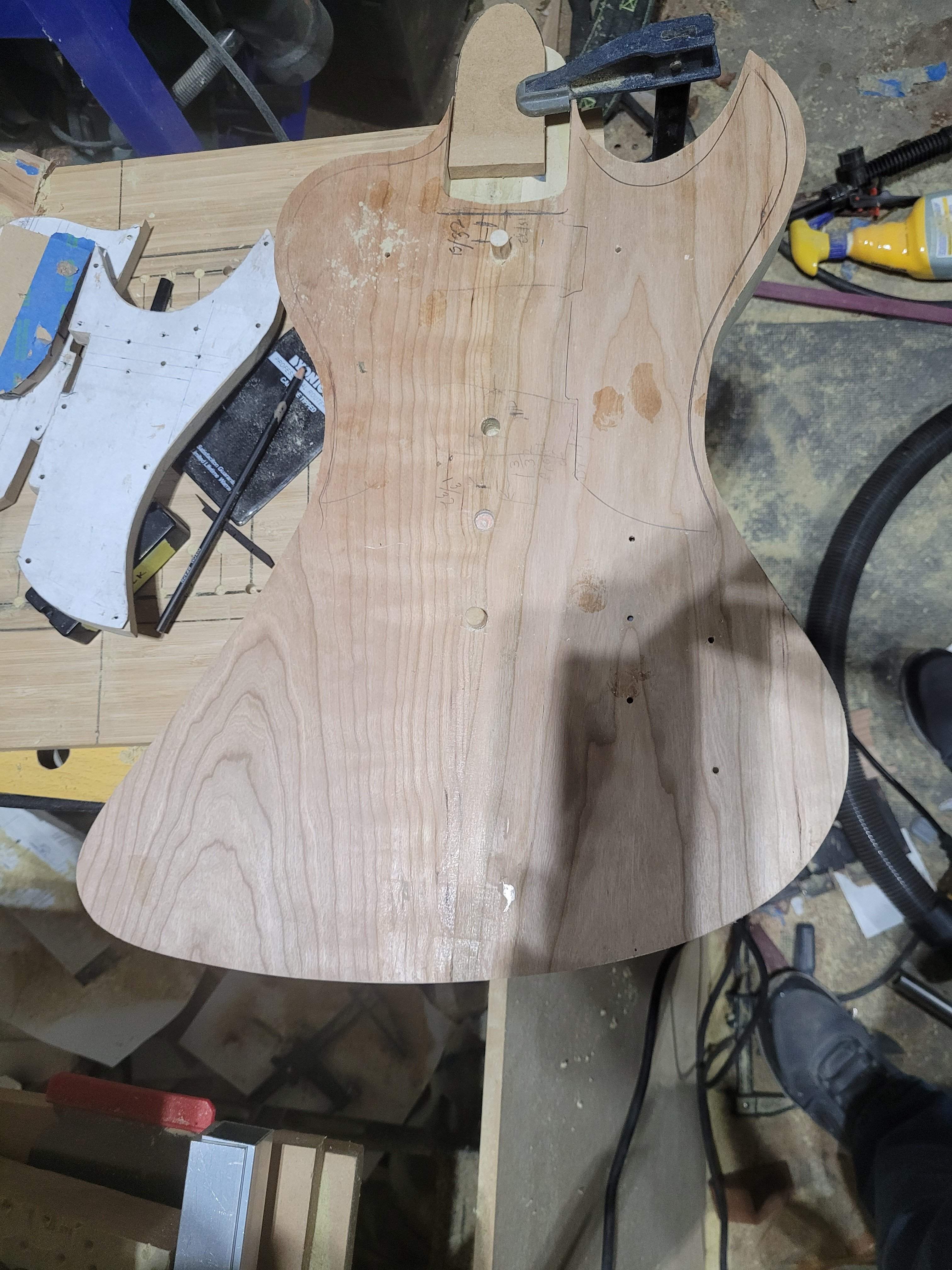

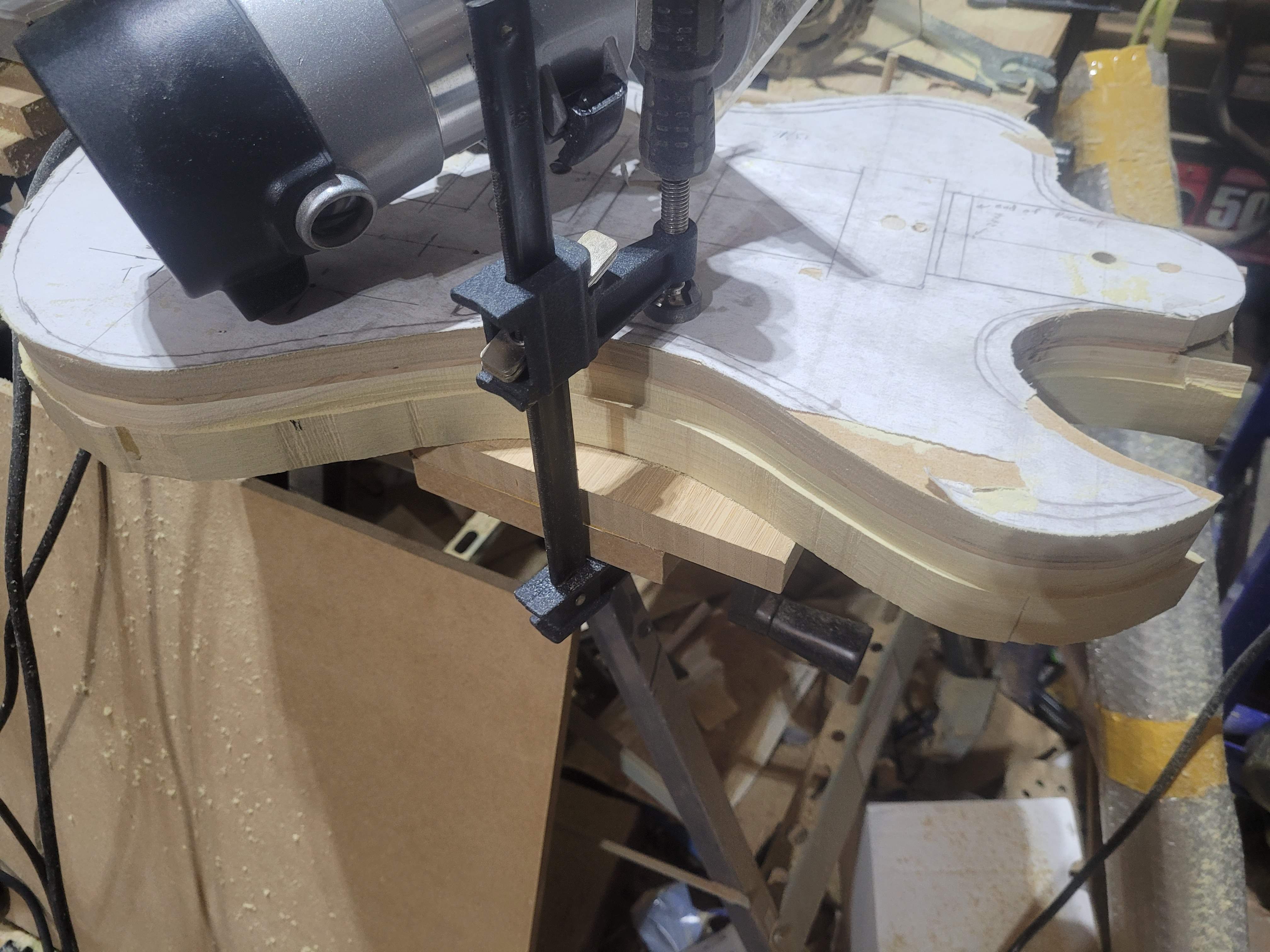

Halfway through trimming with a pattern bit

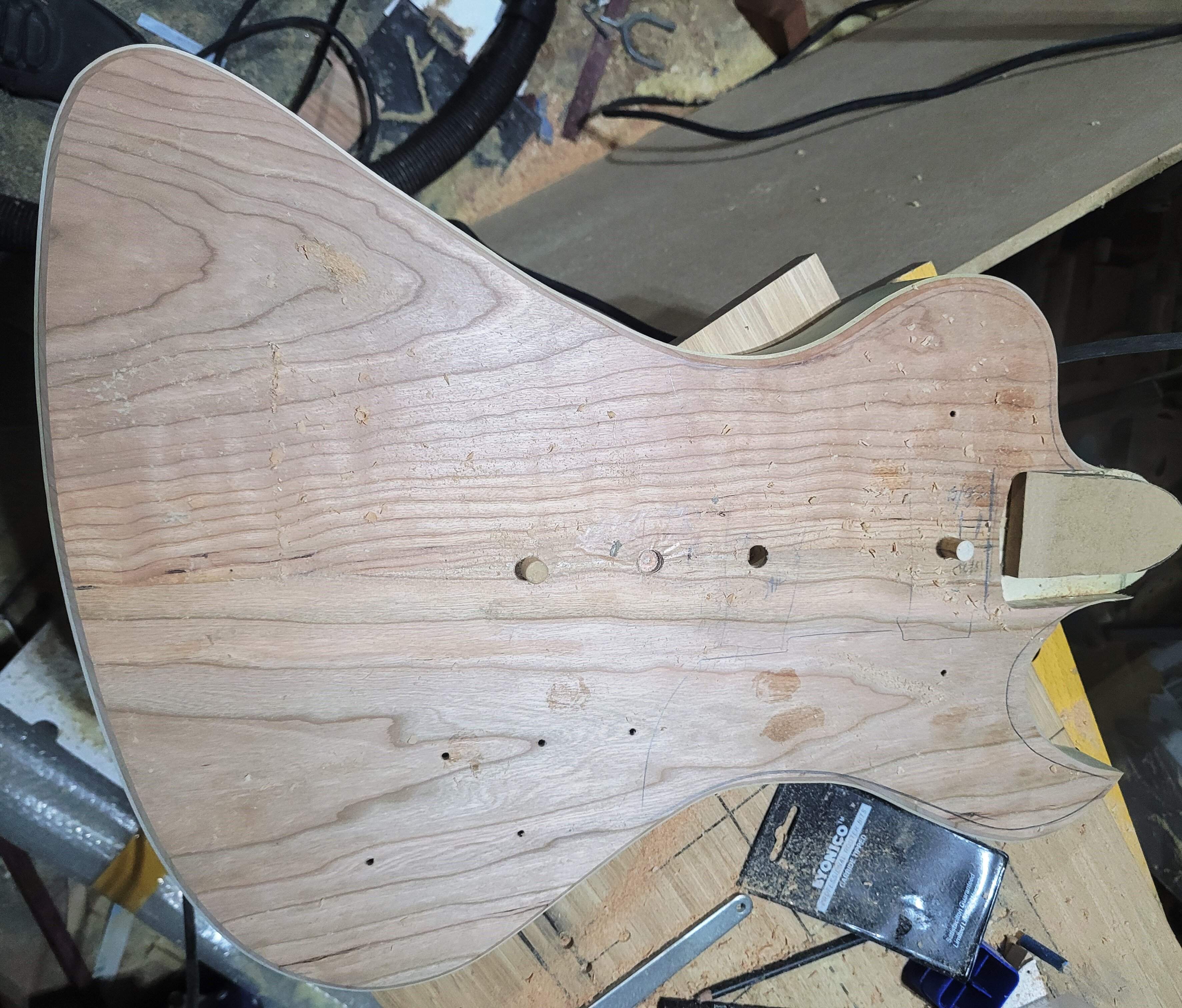

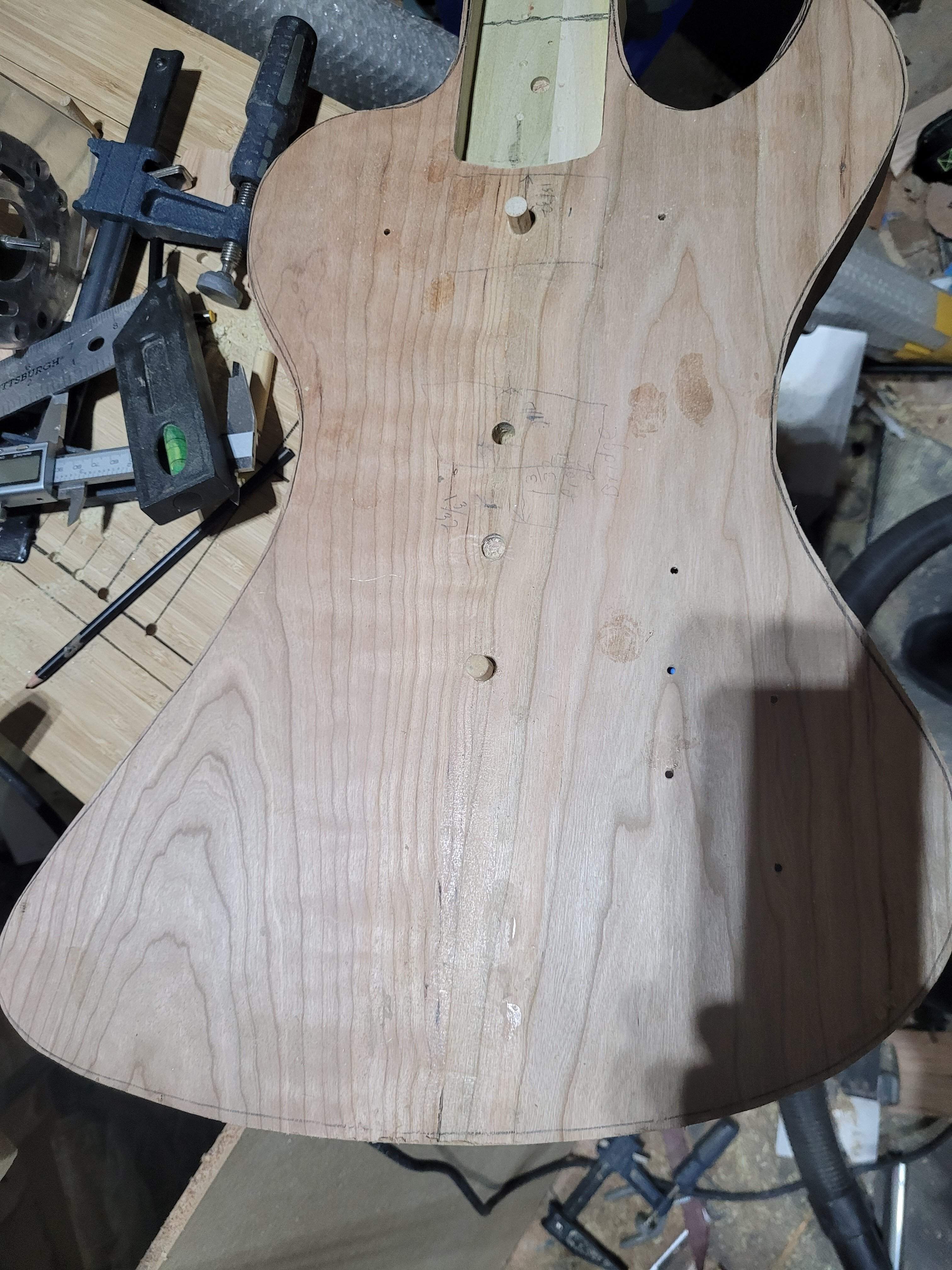

The 1/4" hard bevel is done:

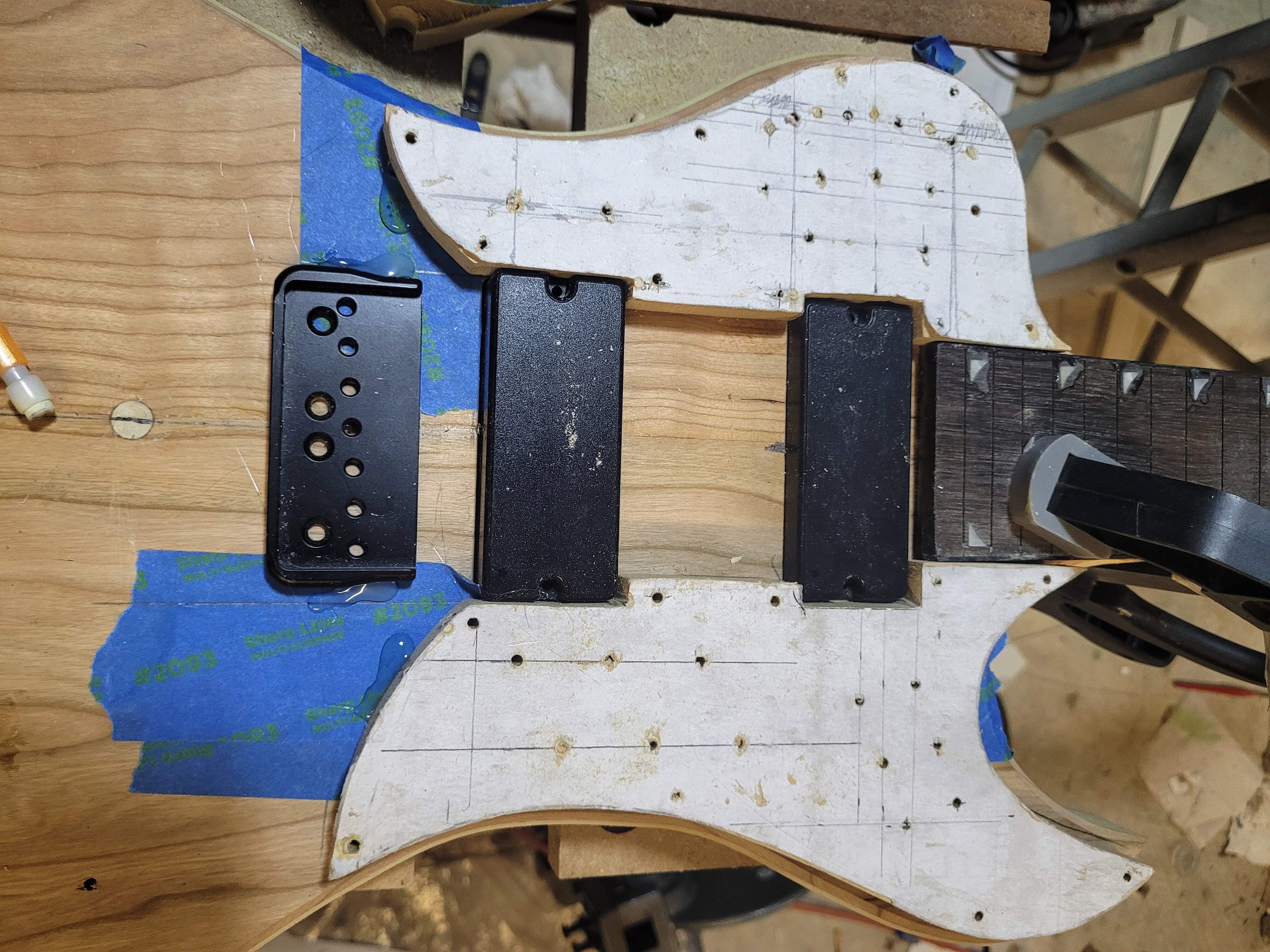

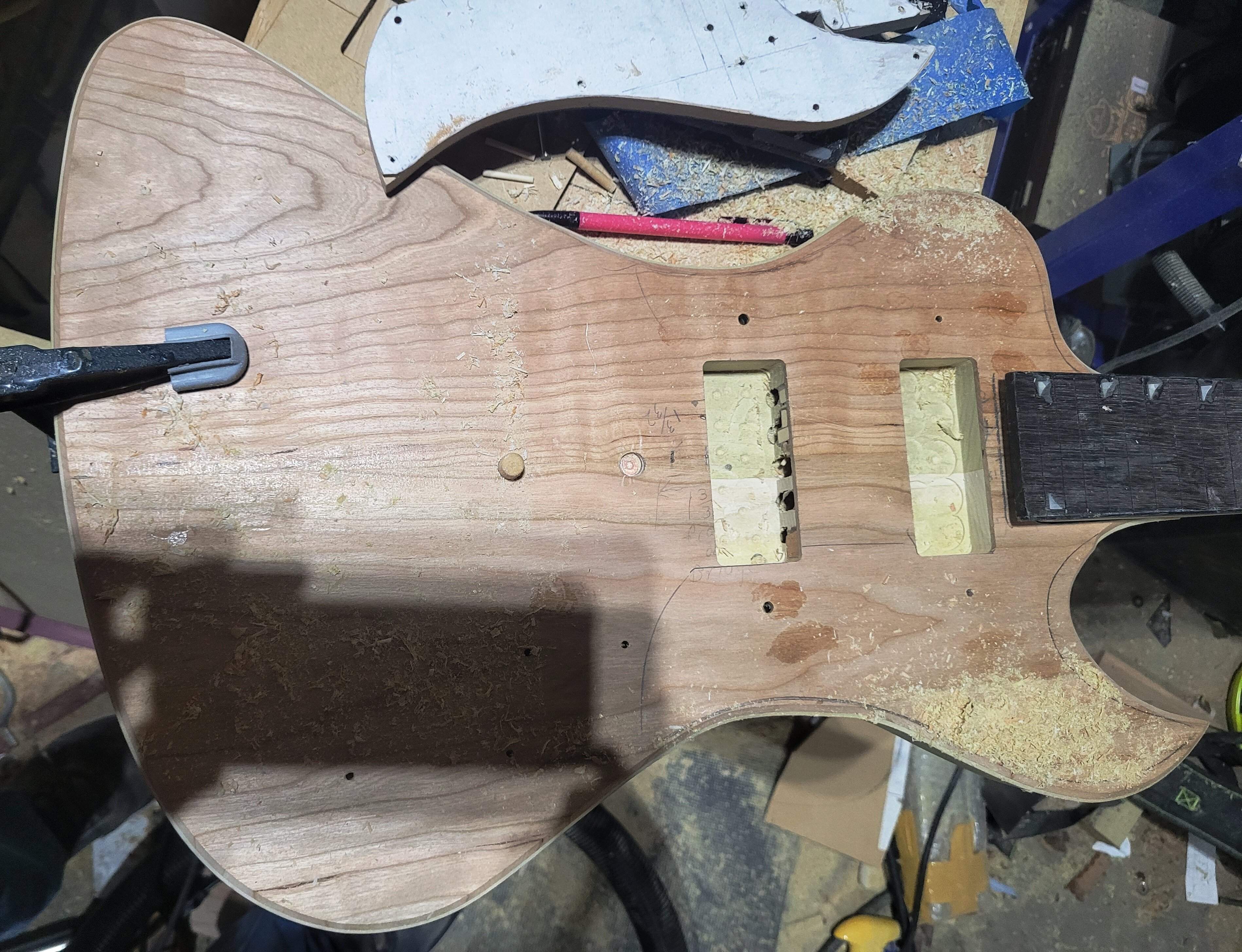

Pickup cavities routed:

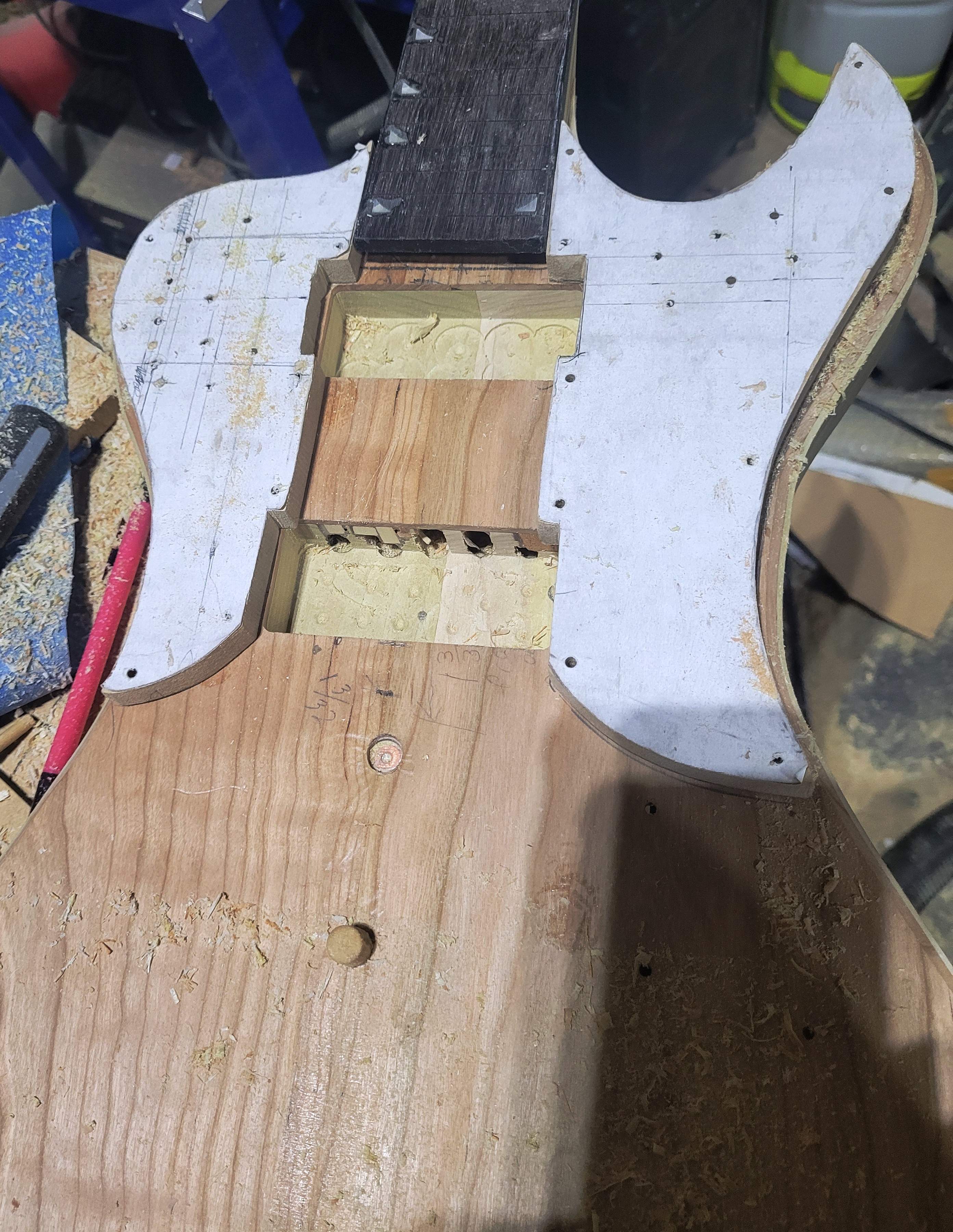

Minor adjustment to the pickguards will be required, the bridge pickup ended up about 1/8" closer to the neck than originally planned.
Pickup cavities routed:
Minor adjustment to the pickguards will be required, the bridge pickup ended up about 1/8" closer to the neck than originally planned.
Last edited:
Everything aligned and hot-glued into place in preparation for drilling

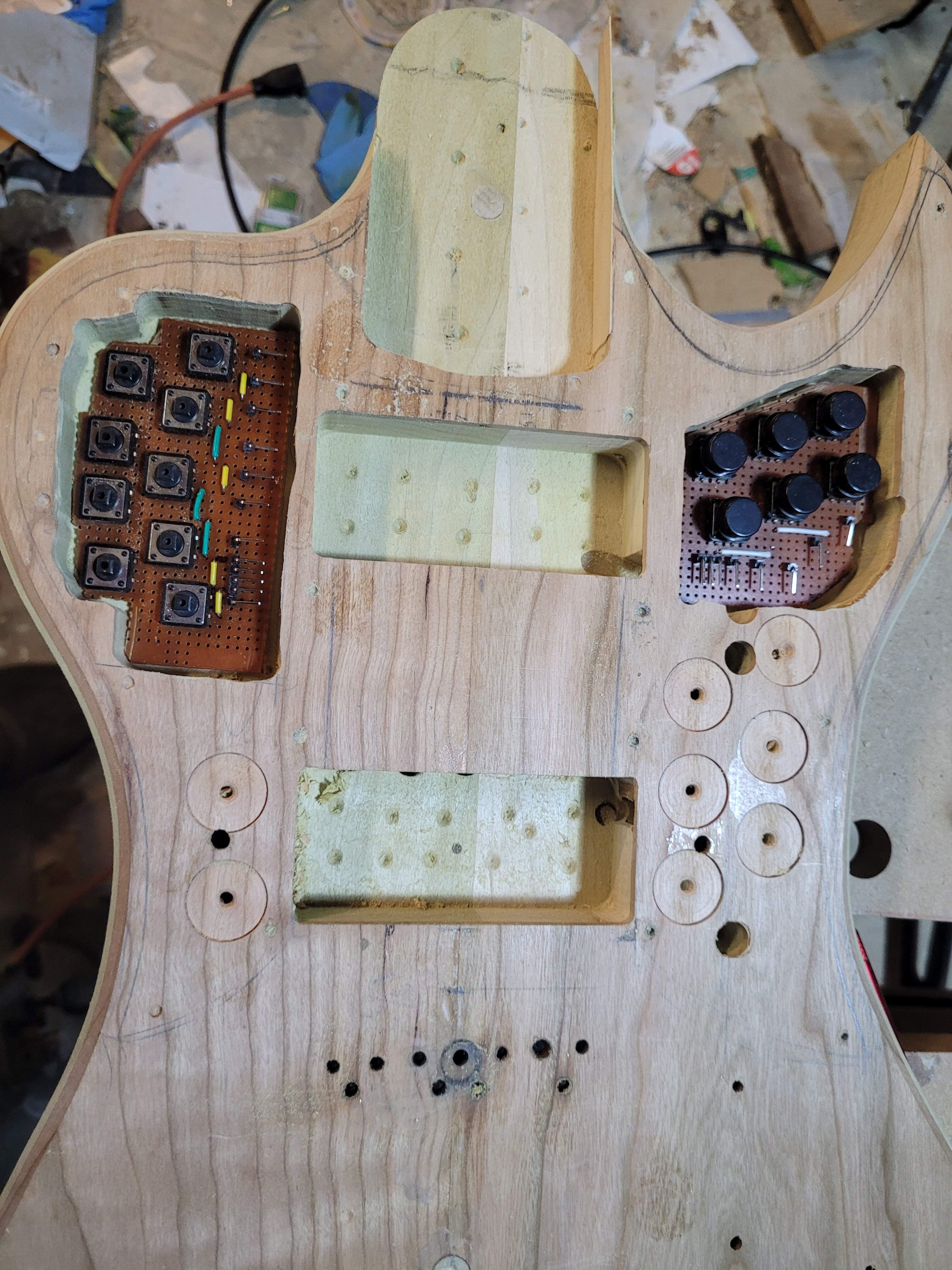

The bridge mount has been drilled and tapped for 6/32 screws, and the string-through holes drilled out. And I've routed the cavities for the push-button panels.

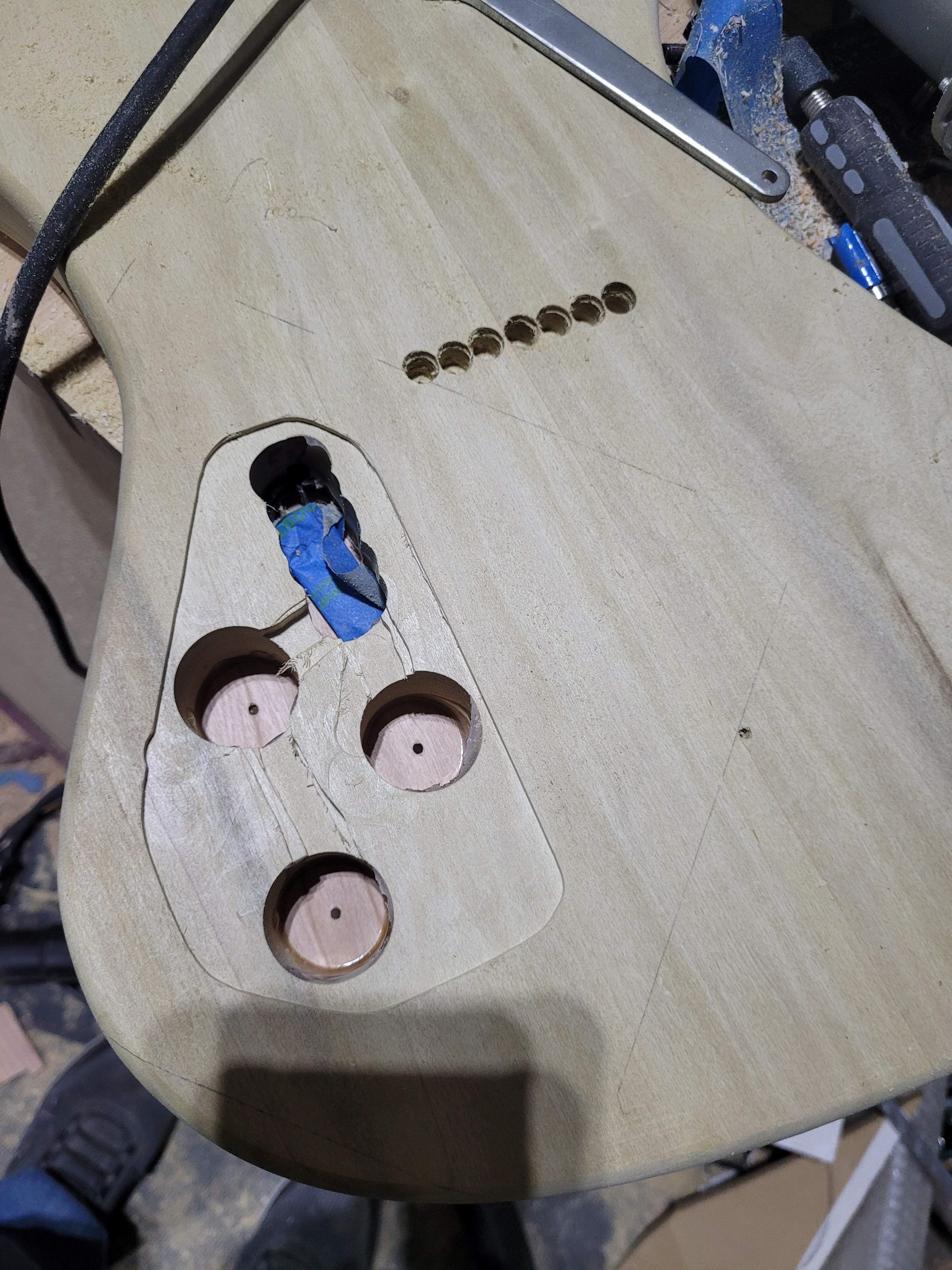

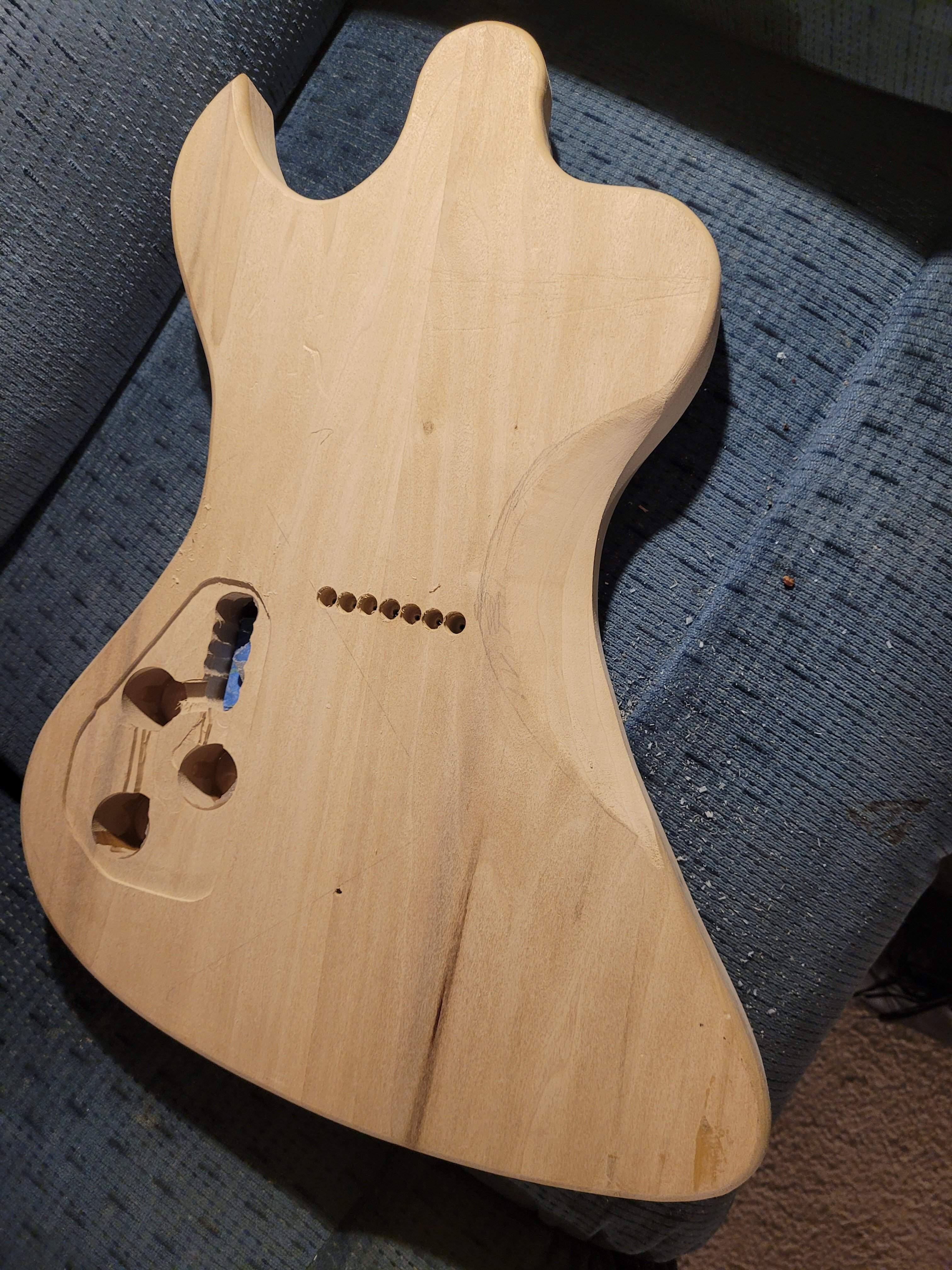

and routed the rear control cavity and drilled for the ferrules:
and routed the rear control cavity and drilled for the ferrules:

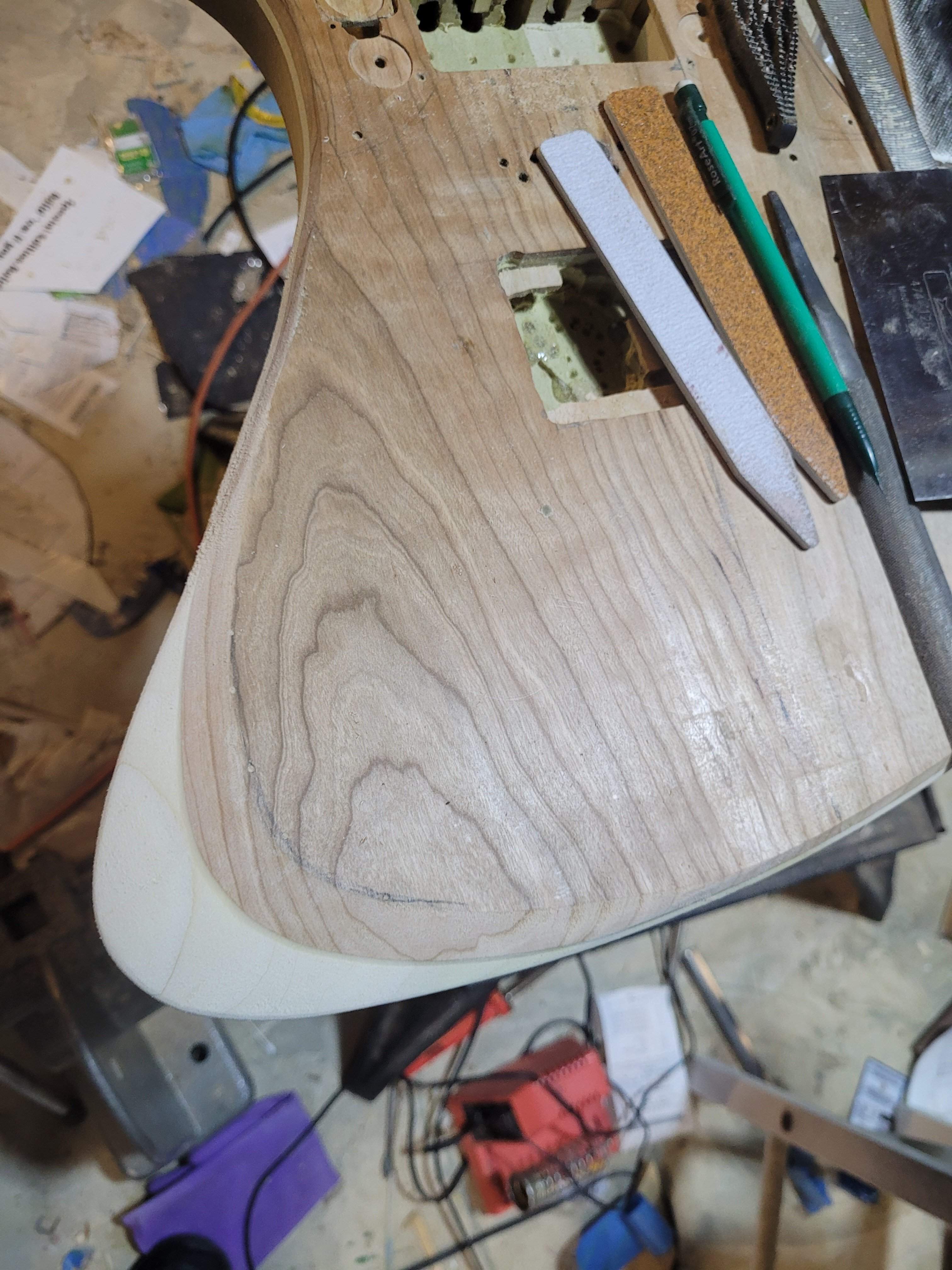

A few pleasant moments with hand tools and the belly carve is done
Added the treble side rout for the pressure triggers wiring
Added the treble side rout for the pressure triggers wiring

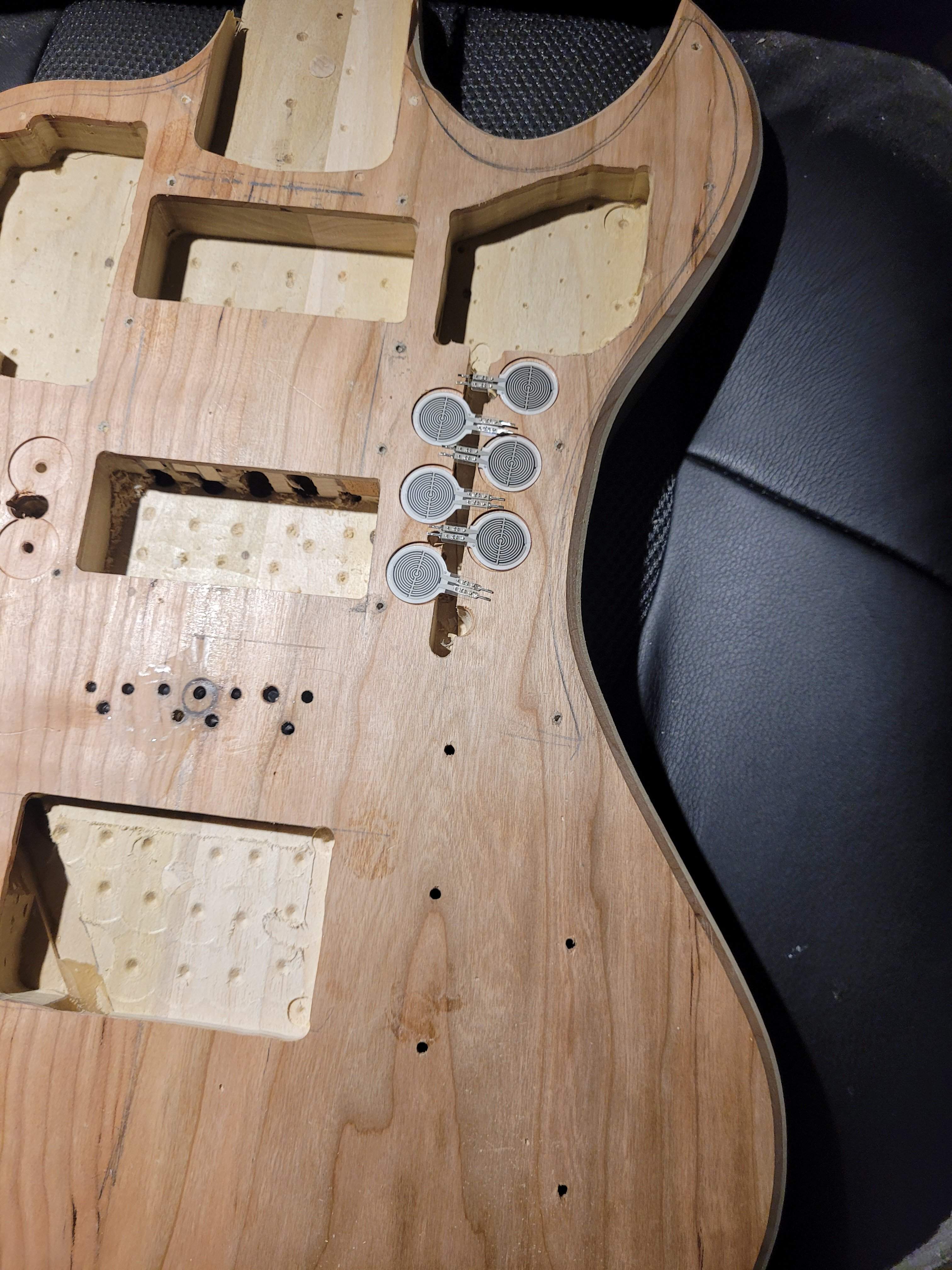

Pressure Sensitive Resistors (PSRs) which will serve as drum triggers or keys depending on the settings

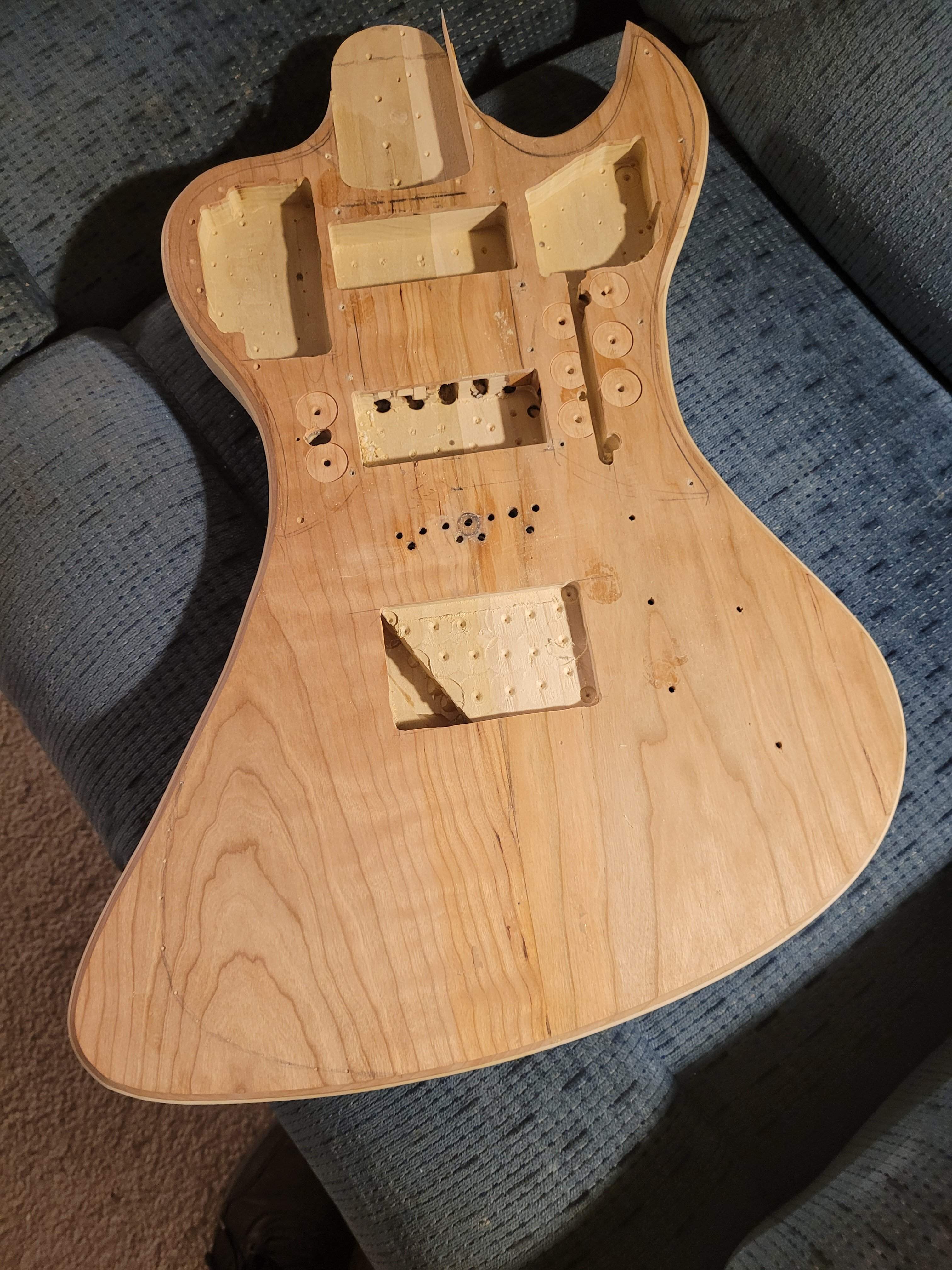

Finishing up the body... Little shelf for the slider pot (soft-pot)
Attachments
Last edited:

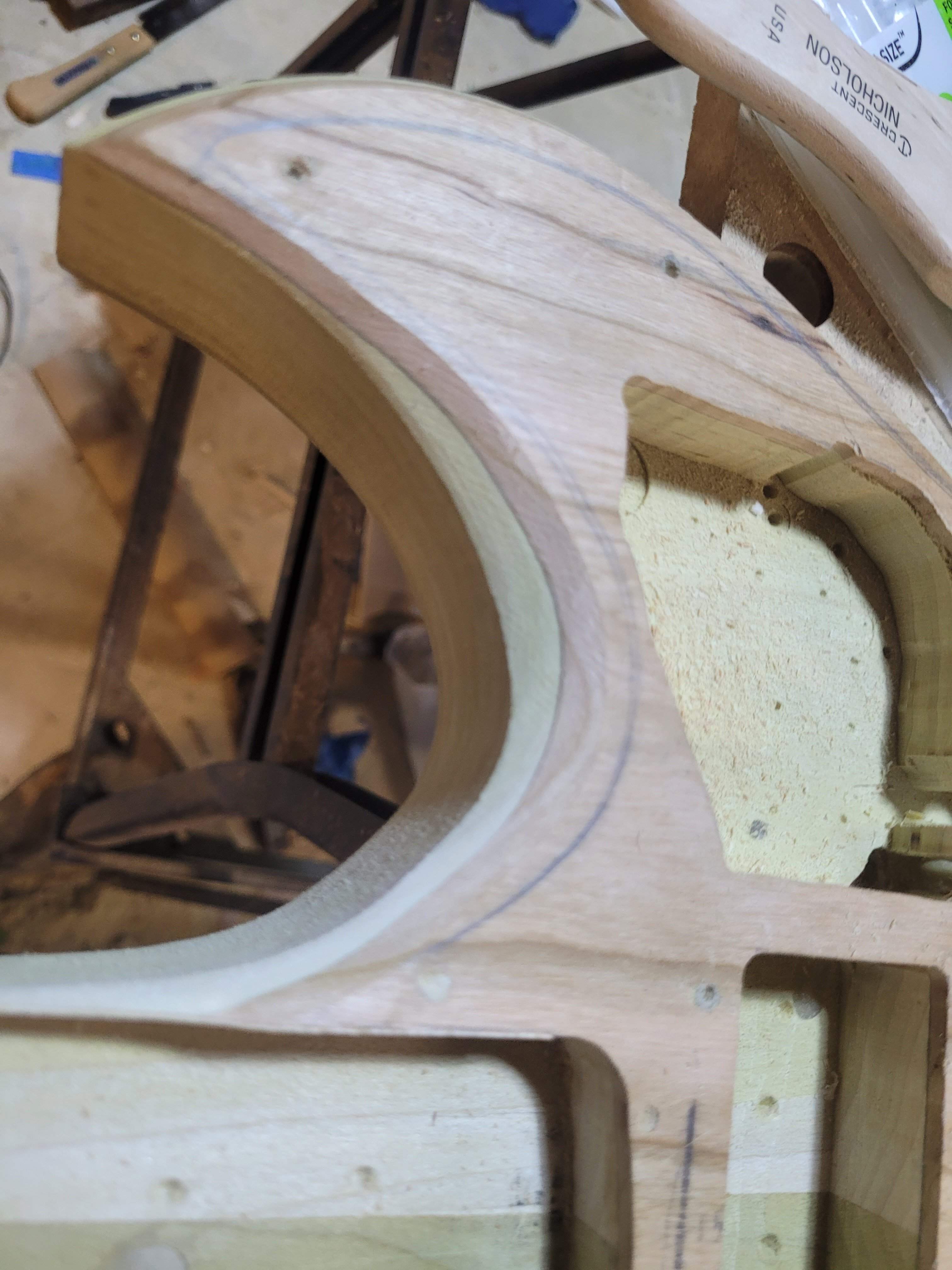

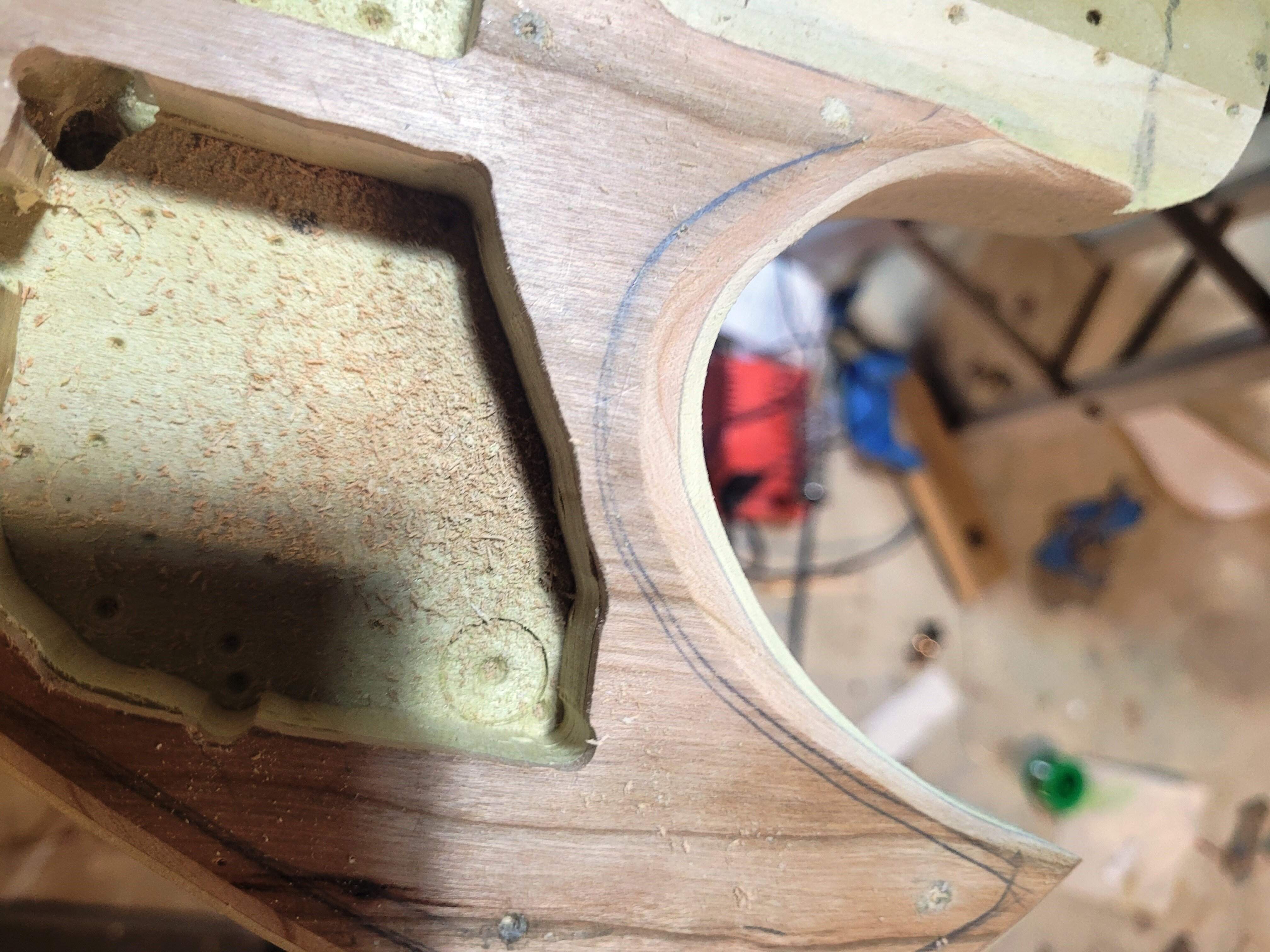

Bevel on the cutaway:

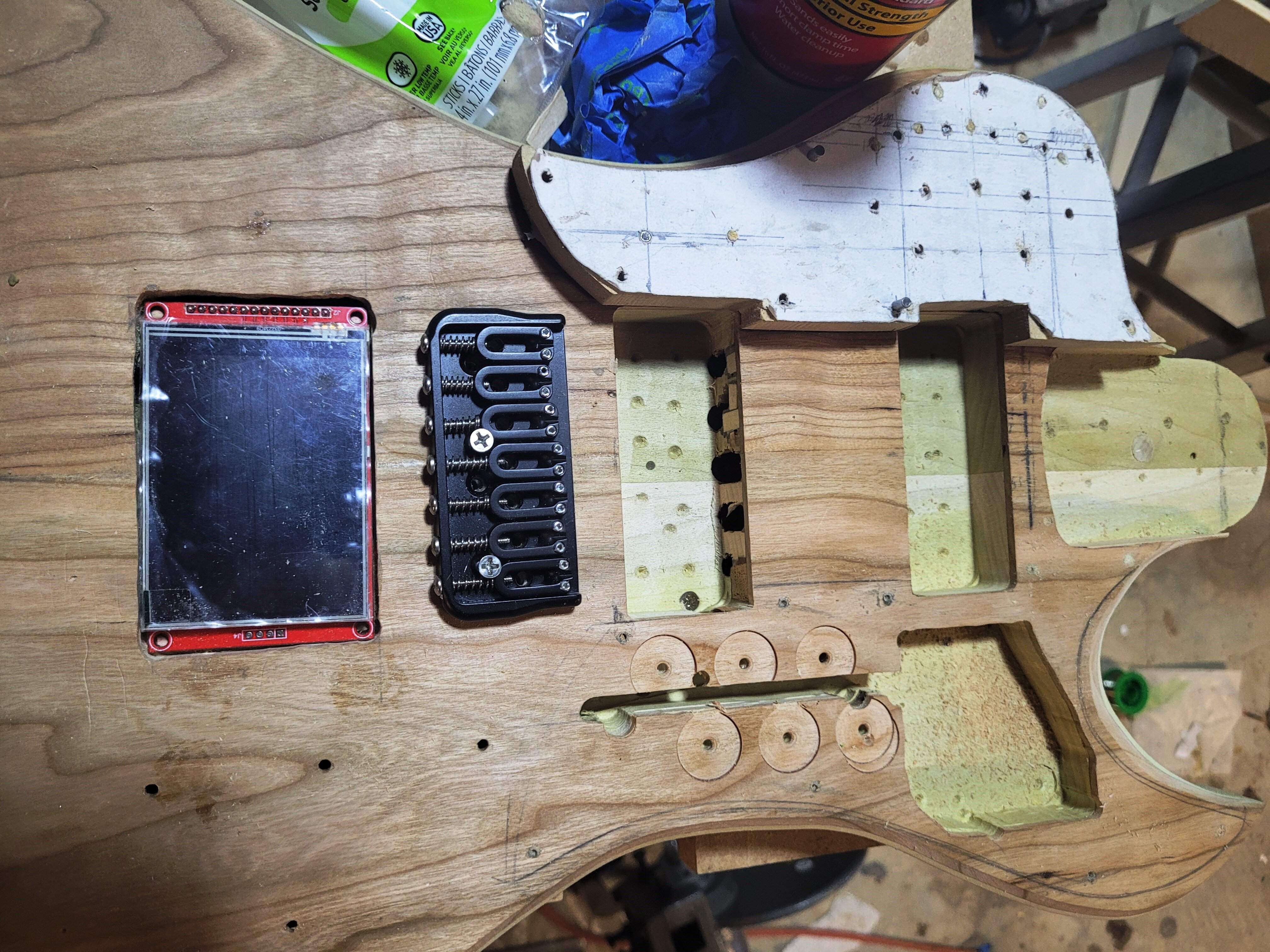

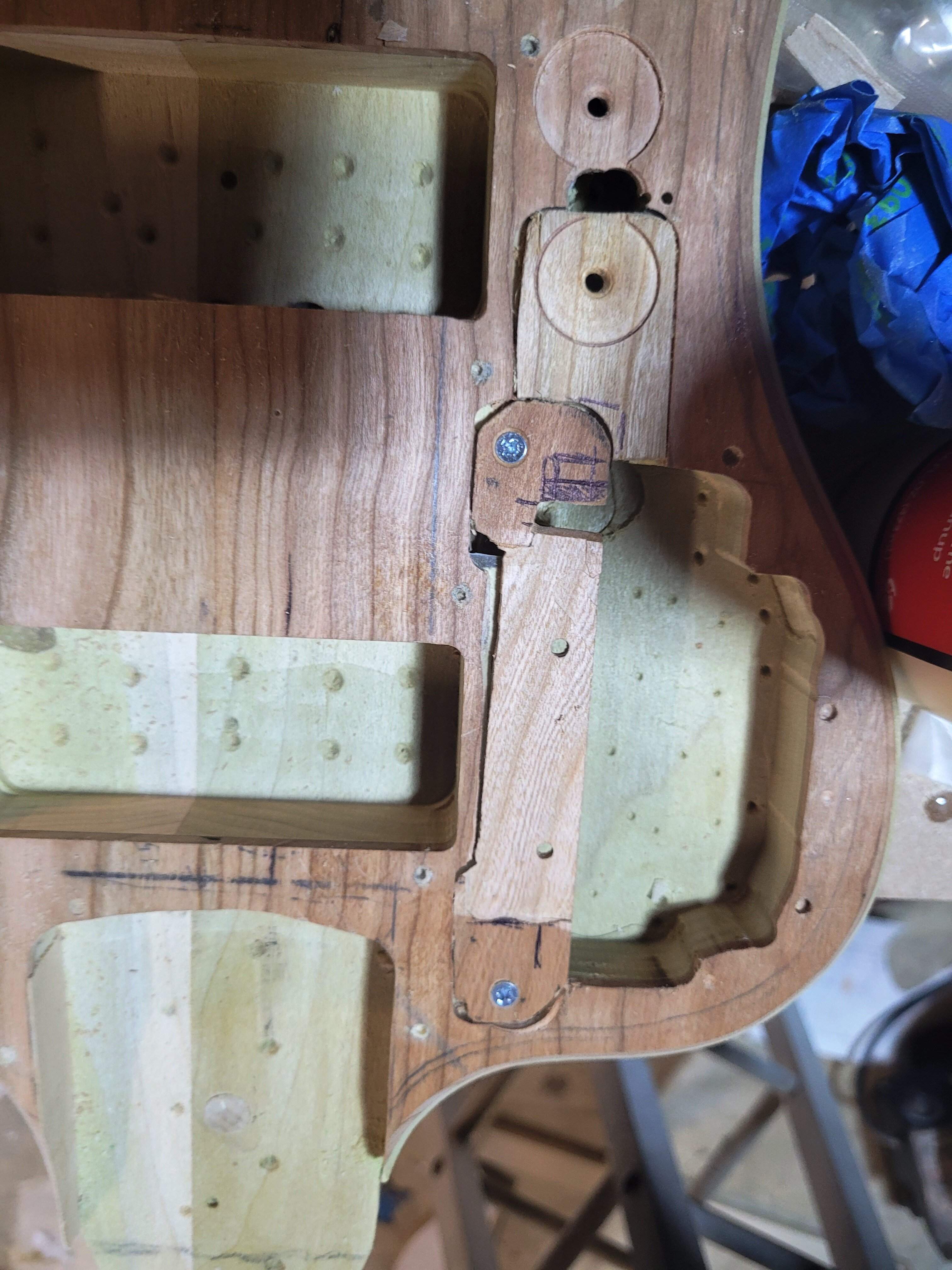

Overall layout

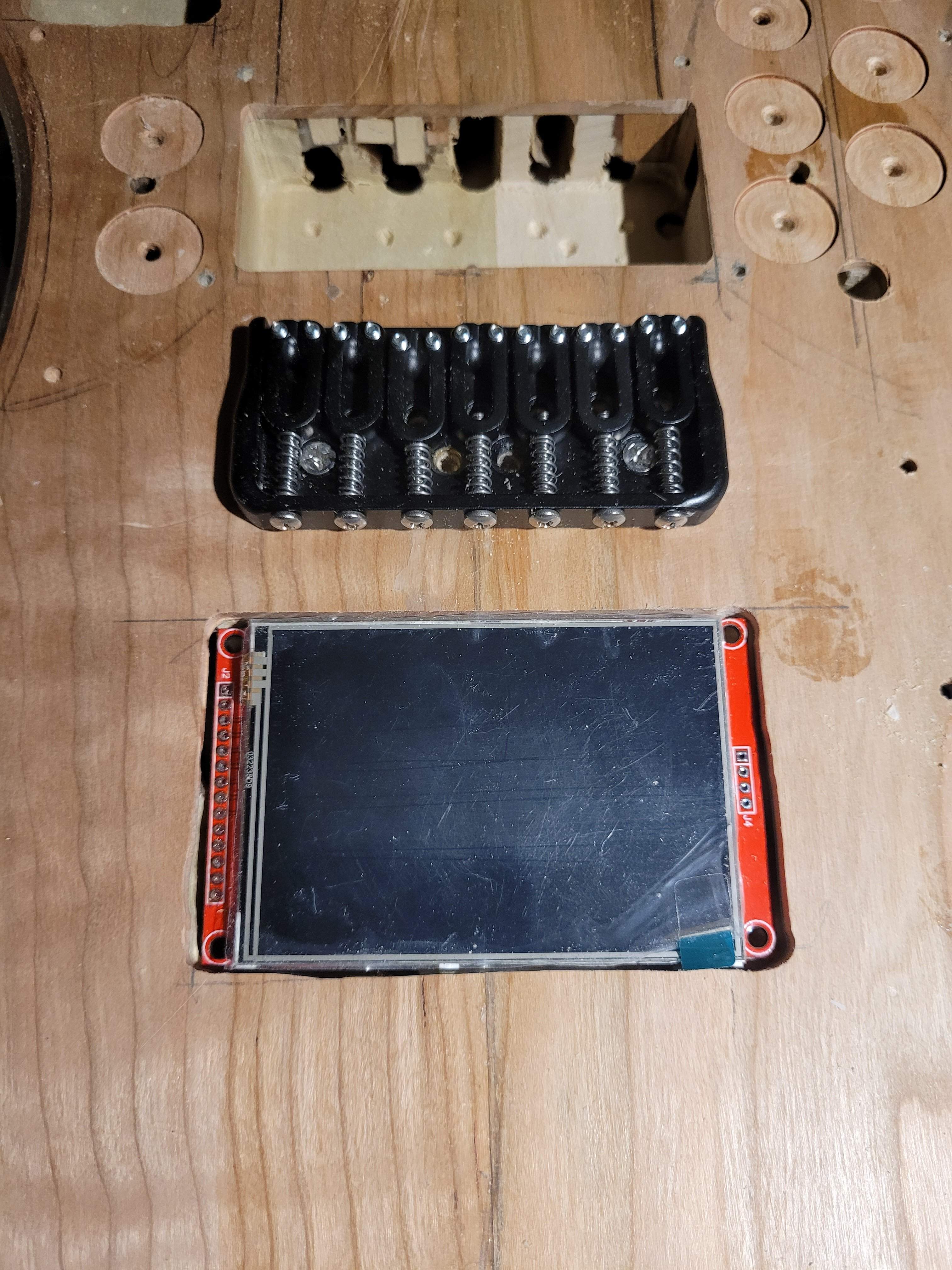

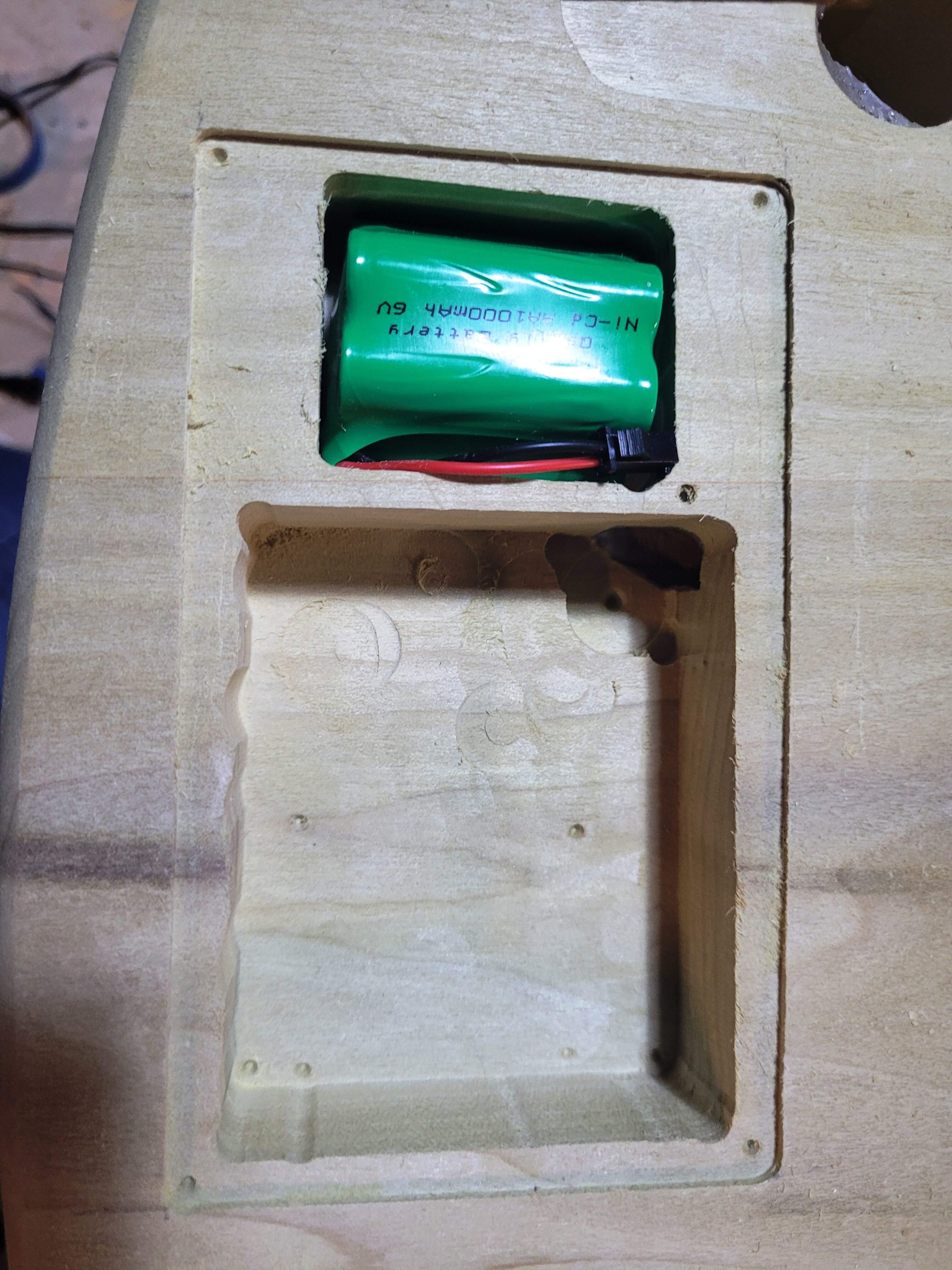

Cavity for the processor and battery:
Overall layout
Cavity for the processor and battery:
Freekmagnet
Commercial User
Dude the Kaos Pad and the MIDI drum triggers?! Count me in! I was kinda sad when those Ibanez Kaos Pad instruments didn’t take off. I wouldn’t know what to do with a Kaos pad, but I still though they were cool!
I like WG, too. I ought to read more of his books.
I like WG, too. I ought to read more of his books.
More of a MIDI pad than a Kaos pad -- It will be sending MIDI commands to a processor similar to the one I did for the Outlaw. I'll probably just have a minimal set by the deadline; let me know what your favorite Kaos pad setups are.
A bit more carving, the armrest:
Deepened the bevel on the cutaway, a bit:
Deepened the bevel on the cutaway, a bit:
Not gonna lie, even though I've had my Kaoss Pad for nearly a year now, I have not messed with it enough to figure out what I enjoy the most out of it. For bass, it's probably the loop function that they demo'd on the video for the Ibanez with the "built in" pad. Lots of fun skipping around the loop. I'd imagine you could hear some of the effects better on the higher registers of a guitar than a bass like what you have set up here. Can't wait to see the finished project!
