Winter Build off 2022 - Sardonyx F

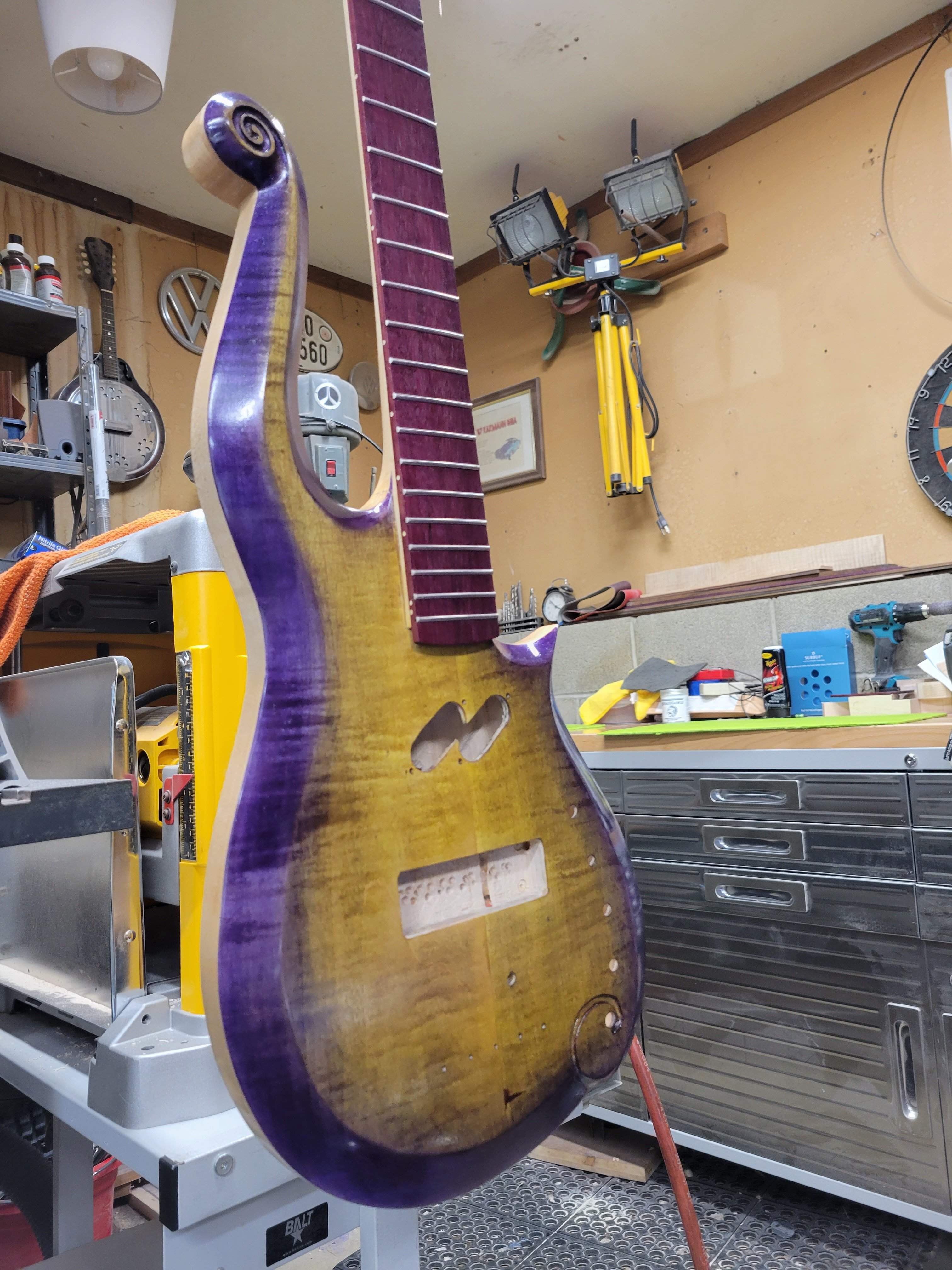

And suddenly an interesting bass became a stunning bass!

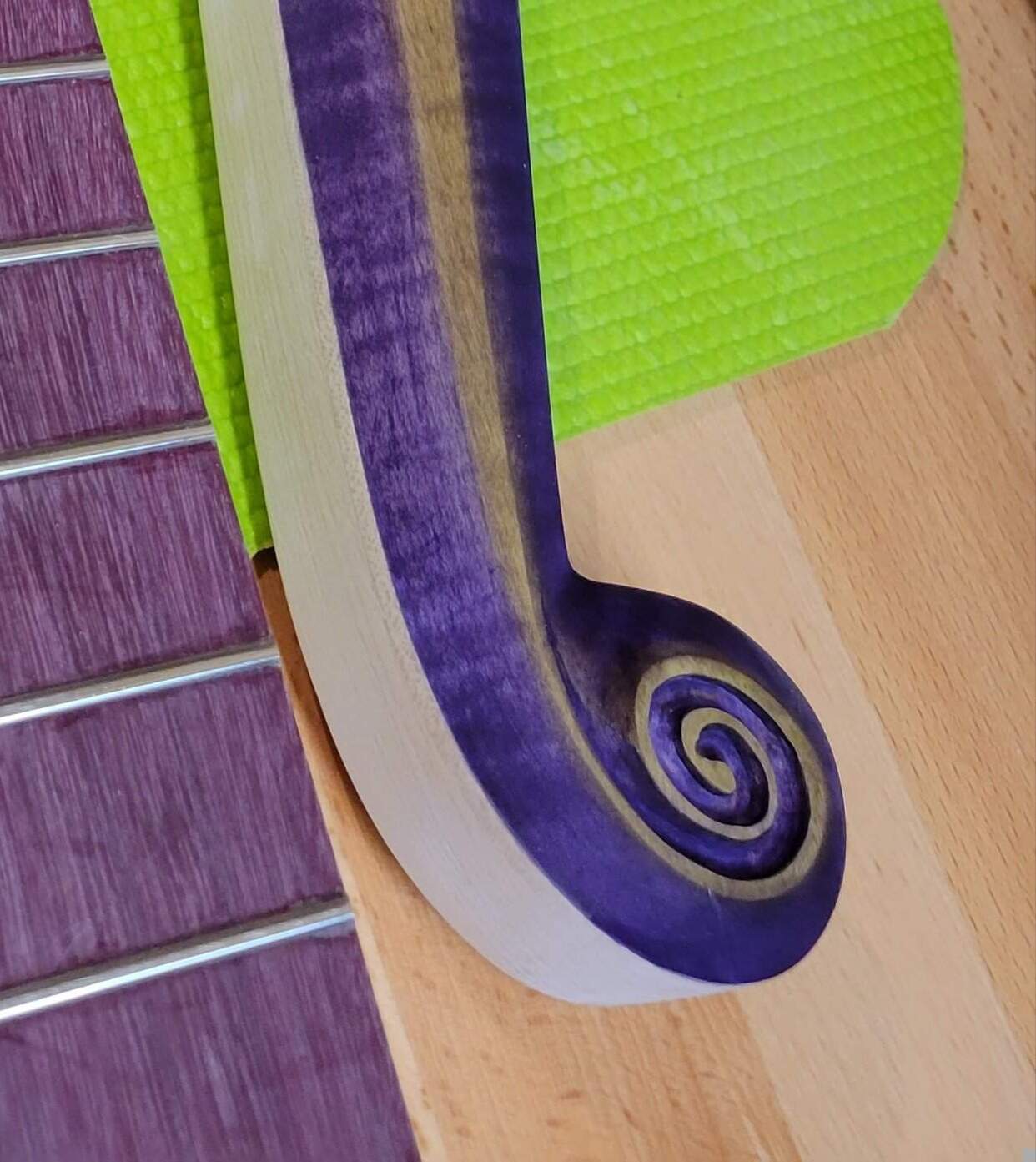

I couldn't resist zooming in on that curl:

Well, back on hold until the weekend. Started to put Tru-oil on and decided that the bottle I have left from last year is just a little too thick. It spread around ok, but just didn't feel right. Hopefully it will dry ok, I made sure it was super thin and nothing was standing on top of the wood, plus it's just going to hang until the new bottle arrives.
Come on Amazon, hurry up!

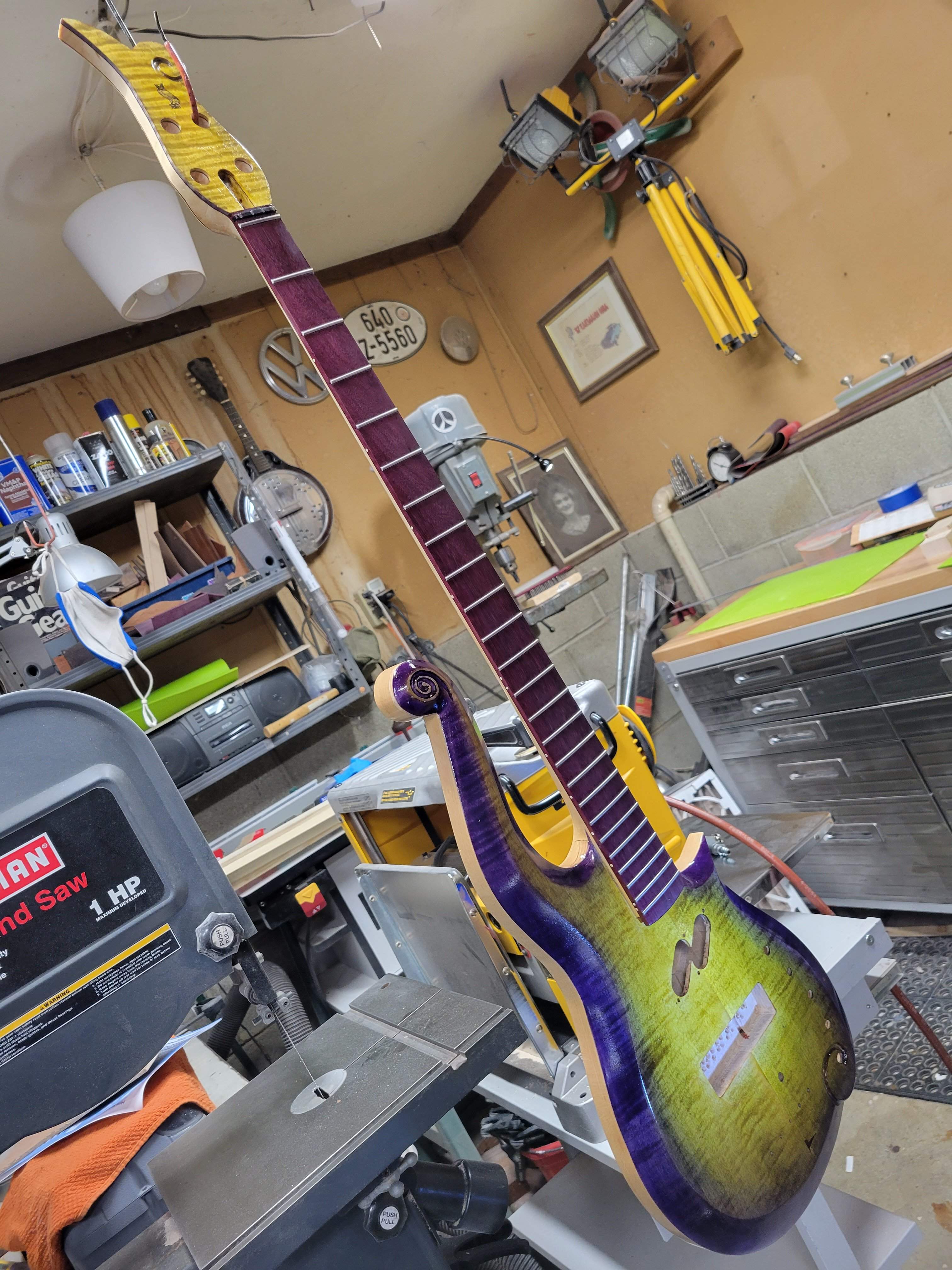

Put a total of 14 coats of tru-oil on, got a nice even shine and figured better stop while I was ahead and not risk goofing something up or having it look too thick.

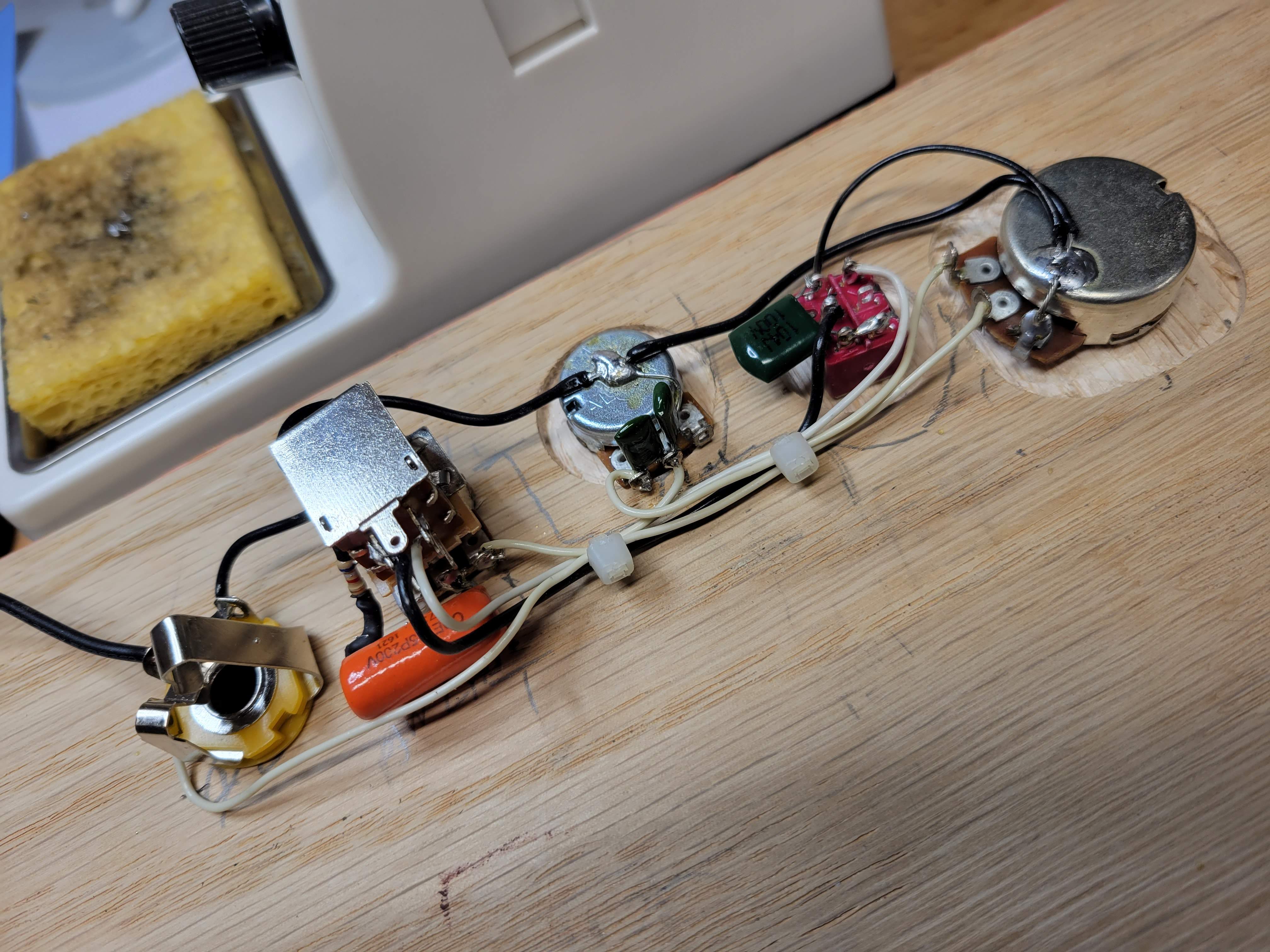

So while that cures I went ahead and soldered up the wiring harness. I had already drilled a piece of thin plywood to hold the parts in their proper position and mounted the pots, switch and jack to it.
I honestly don't know why I've never done it this way before... sooooooooo much easier to solder outside of the guitar.


All that's left to do after the harness is installed is to solder in the pickups.
Easy-peasy

Put a total of 14 coats of tru-oil on, got a nice even shine and figured better stop while I was ahead and not risk goofing something up or having it look too thick.

So while that cures I went ahead and soldered up the wiring harness. I had already drilled a piece of thin plywood to hold the parts in their proper position and mounted the pots, switch and jack to it.
I honestly don't know why I've never done it this way before... sooooooooo much easier to solder outside of the guitar.
View attachment 4598568

All that's left to do after the harness is installed is to solder in the pickups.
Easy-peasy

Yeah, man. Looks good. I do it the same way and it just drops right in to the cavity for installation. :thumbsup:

  • Like
Reactions: postalflunkie
Brought out the shine in the finish today. First scuffed it down with a Grey scotchbright pad, then Meguires Scratch-X worked in with a Surbuf pad on the ROS, then two coats of Renaissance wax and a final buff with a clean dry Surbuff pad.


I'm still not sure how I feel about the tru-oil, this is only my second time using it. I like how it drys faster and you can apply several coats in a day, but I really like the results of Formbys tung oil finish better. Only reason I didn't go that route on this bass is I like how tru-oil doesn't amber the maple.

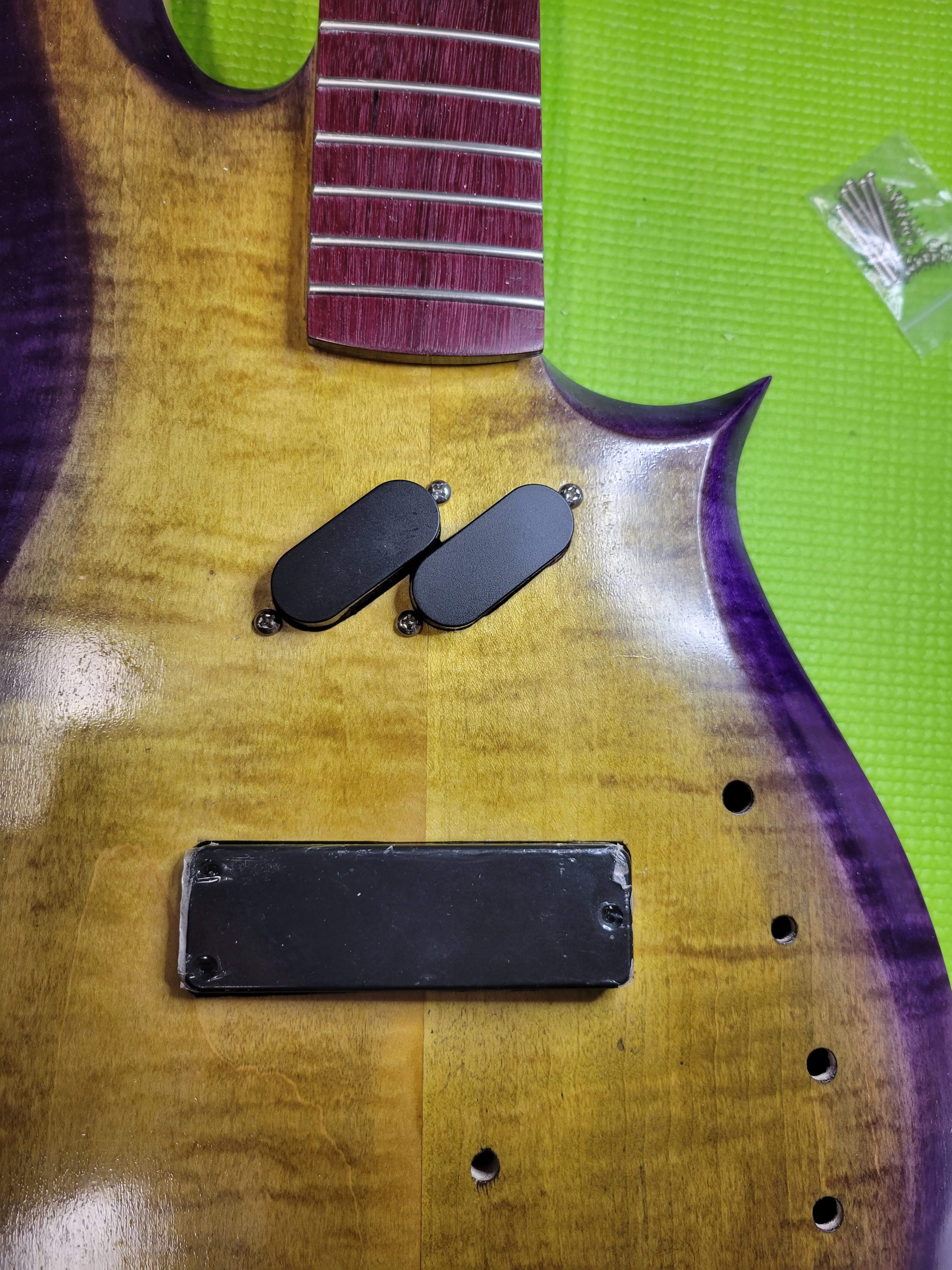

Neck pickup mounted! What a pain in the patutie o_O For anyone wondering how I do this (with the screws through the body), the secret is dental floss, it's strong enough to pull the pickup up into the hole and you can start the threads of the screws while holding it in place. The floss goes in the screw hole in the body, then through a spring, then through the screw holes in the pickup, another spring and out the other screw hole. Tie it all off leaving about a six inch loop of floss, pull the pickup into place (the springs automatically fall into place) then start the screws. Once the screws are started in the pickup I pull the floss until it breaks, the tighten the pickup down. Pain in the butt, but the results are worth it.


Later on I'll put the wiring harness in and feed the ground wire to the bridge. Then I can mount the bridge pickup.

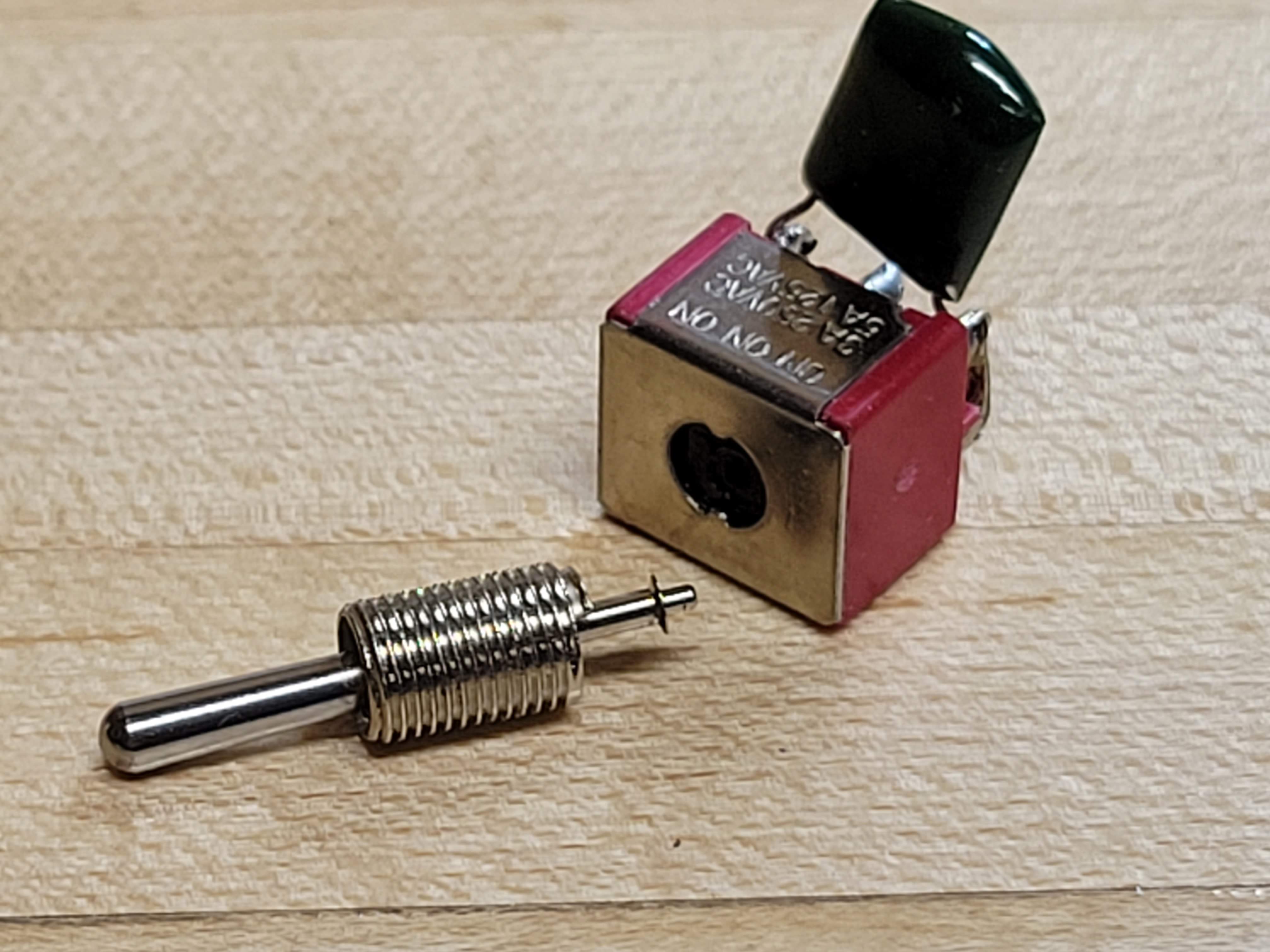

Did it actually break or just come off those little tabs? I don't think I would ever use a repaired switch but it would be fun to try to put it back together. Or rip it the rest of the way apart as an experiment. I wonder what it looks like inside, if you pry off the stamped metal part from the plastic part?

Brought out the shine in the finish today. First scuffed it down with a Grey scotchbright pad, then Meguires Scratch-X worked in with a Surbuf pad on the ROS, then two coats of Renaissance wax and a final buff with a clean dry Surbuff pad.
View attachment 4602520

I'm still not sure how I feel about the tru-oil, this is only my second time using it. I like how it drys faster and you can apply several coats in a day, but I really like the results of Formbys tung oil finish better. Only reason I didn't go that route on this bass is I like how tru-oil doesn't amber the maple.

This looks great! I was just at Paisley Park over the weekend and they have the OG cloud bass on display there. I don't know if this was intentional, but the original bass has a lot of horizontal checking in the finish and the flamed figuring in your bass feels like a thematic match.

  • Like
Reactions: postalflunkie
