Wiring diagram - bridge earth

[rt1995]

Hi all

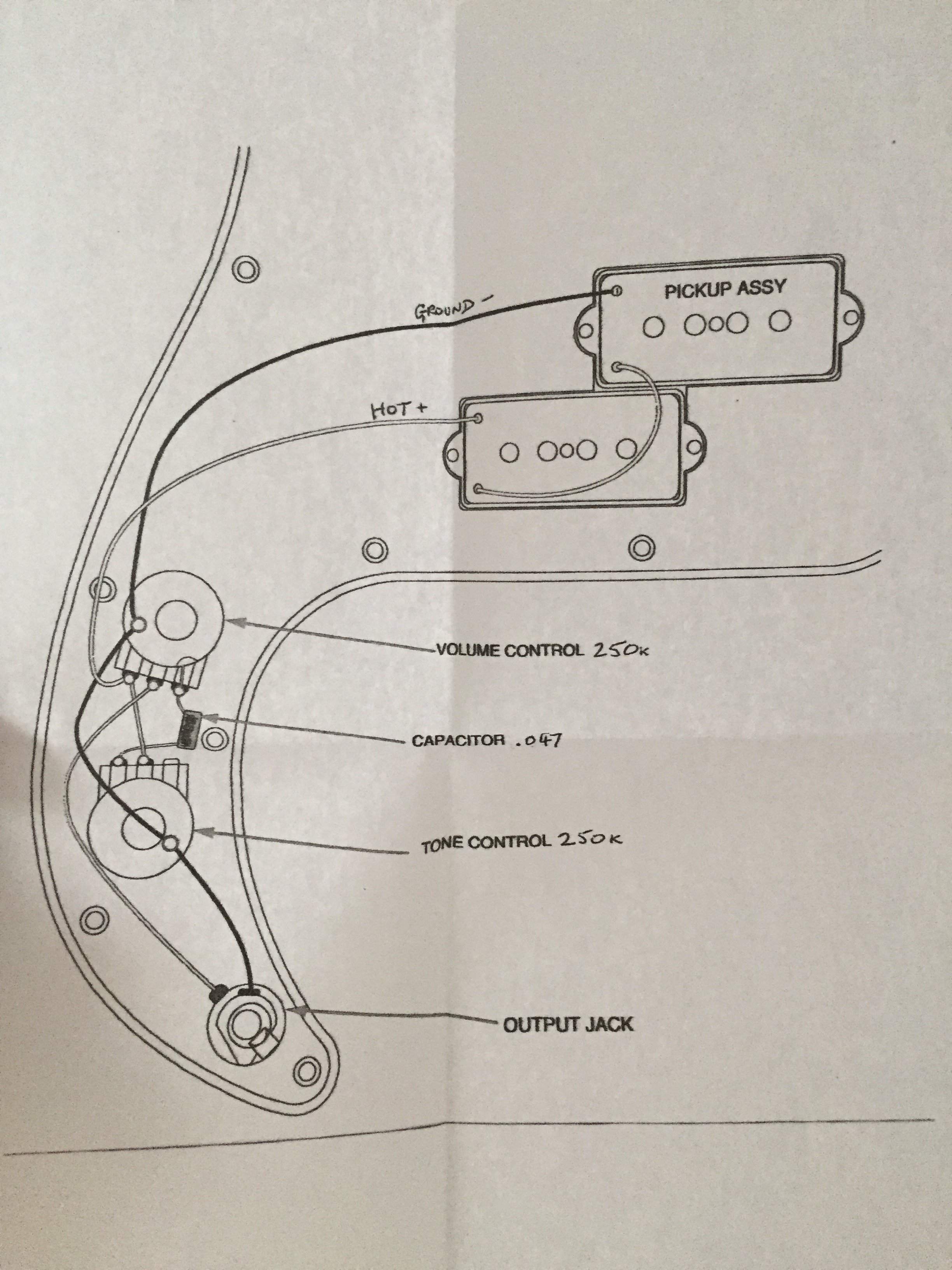

I've got a nice wiring kit through the post today for my project P bass, and this is the wiring diagram that came with it

Noticed there is no bridge earth as there often is, is this required with the cloth covered wire etc?

I am handy with a soldering iron etc but this is the first time I have wired a bass/guitar up

Thanks



[ex-tension]

The bridge can be connected at any ground point.
A better diagram: https://www.seymourduncan.com/wp-content/uploads/2016/05/PrecisionBass_Standard.pdf



[TheBassPreacher]

Noticed there is no bridge earth as there often is, is this required with the cloth covered wire etc?

It isn't "required", but you'll notice a huge buzz if you don't.



[ctmullins]

It isn't "required", but you'll notice a huge buzz if you don't.

Maybe. Depends on the shielding and the pickups. Most of my builds omit the bridge ground. It’s only been a problem on a few of them.



[Killed_by_Death]

Don't use that drawing. It's a no-no to suspend the capacitor between two pots like that.

Here's the correct diagram:

A better diagram: https://www.seymourduncan.com/wp-content/uploads/2016/05/PrecisionBass_Standard.pdf

If you want the option of a brighter timbre when the knobs are dimed, use 500K Ohm pots.



[96tbird]

Don't use that drawing. It's a no-no to suspend the capacitor between two pots like that.

Here's the correct diagram:




If you want the option of a brighter timbre when the knobs are dimed, use 500K Ohm pots.

Bartolini would disagree about the cap strung between pots. Thats how its drawn on their diagram.



[Killed_by_Death]

Gibson does it as well, it's still bad practice.

Gibson also wires their LPs & SGs in such a way that when both pickups are selected either volume acts as a master volume. This makes it impossible to blend!
That should tell you something...

Don't even get me started about Bartolini

It makes no sense to solder a stiff wire between two pots that can rotate, when it would be more sensible to use a flexible wire.



[rt1995]

Thanks for the replies all!

I'll use the SD diagram plus to me it is easier to follow

The pups I have coming are Dimarzio model Ps won't make any difference though I guess ?
