Mystery extra wire in battery cavity - 2019 Strandberg Boden Bass Original

Hi everyone,


I recently acquired a 2019 Strandberg Boden Bass Original (equipped with Nordstrand Zenblade pickups).


When testing the bass initially, everything sounded completely fine and all controls/EQ functioned normally. However, I’ve recently moved and currently don't have an amplifier set up to do further testing.

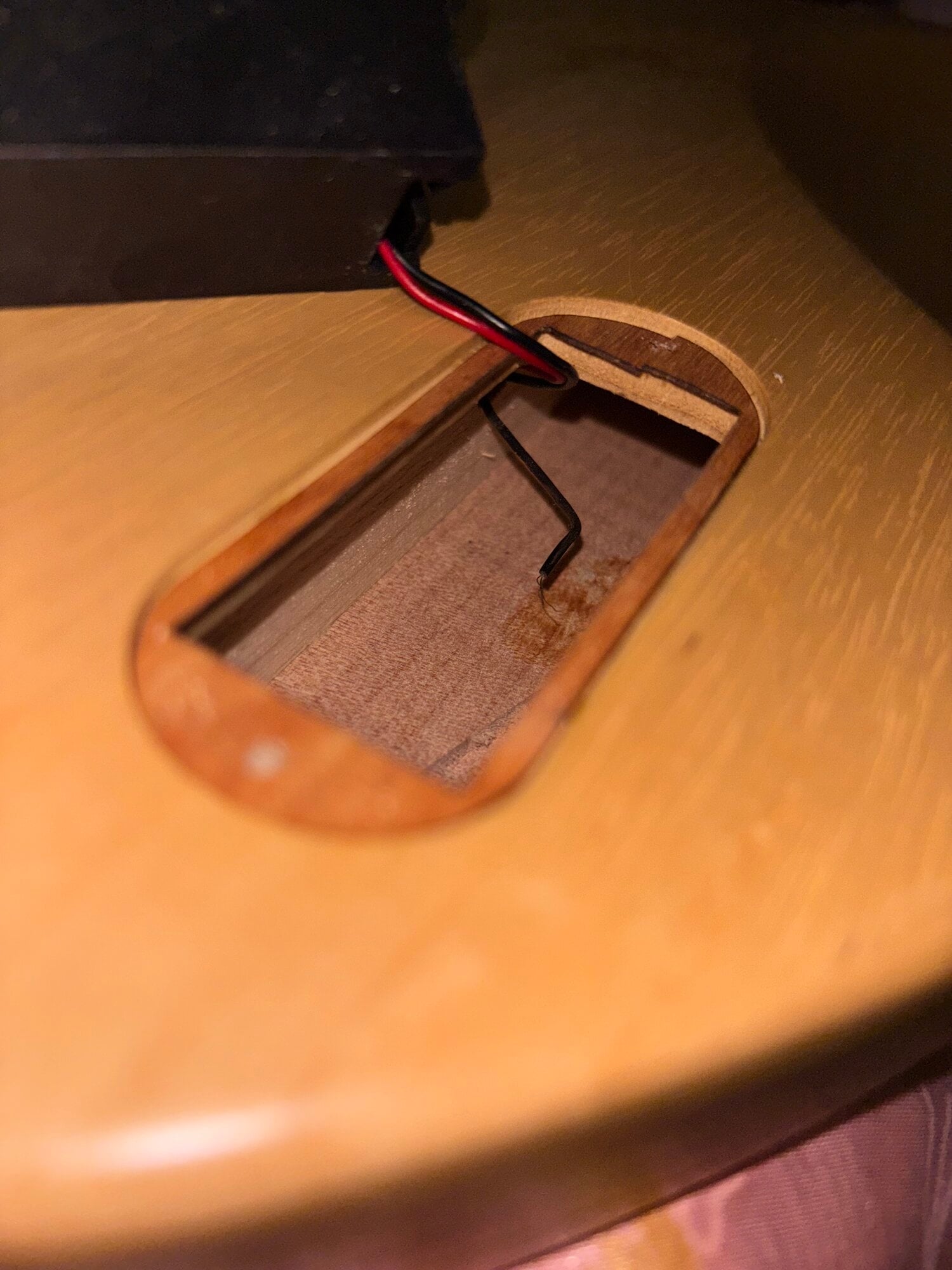

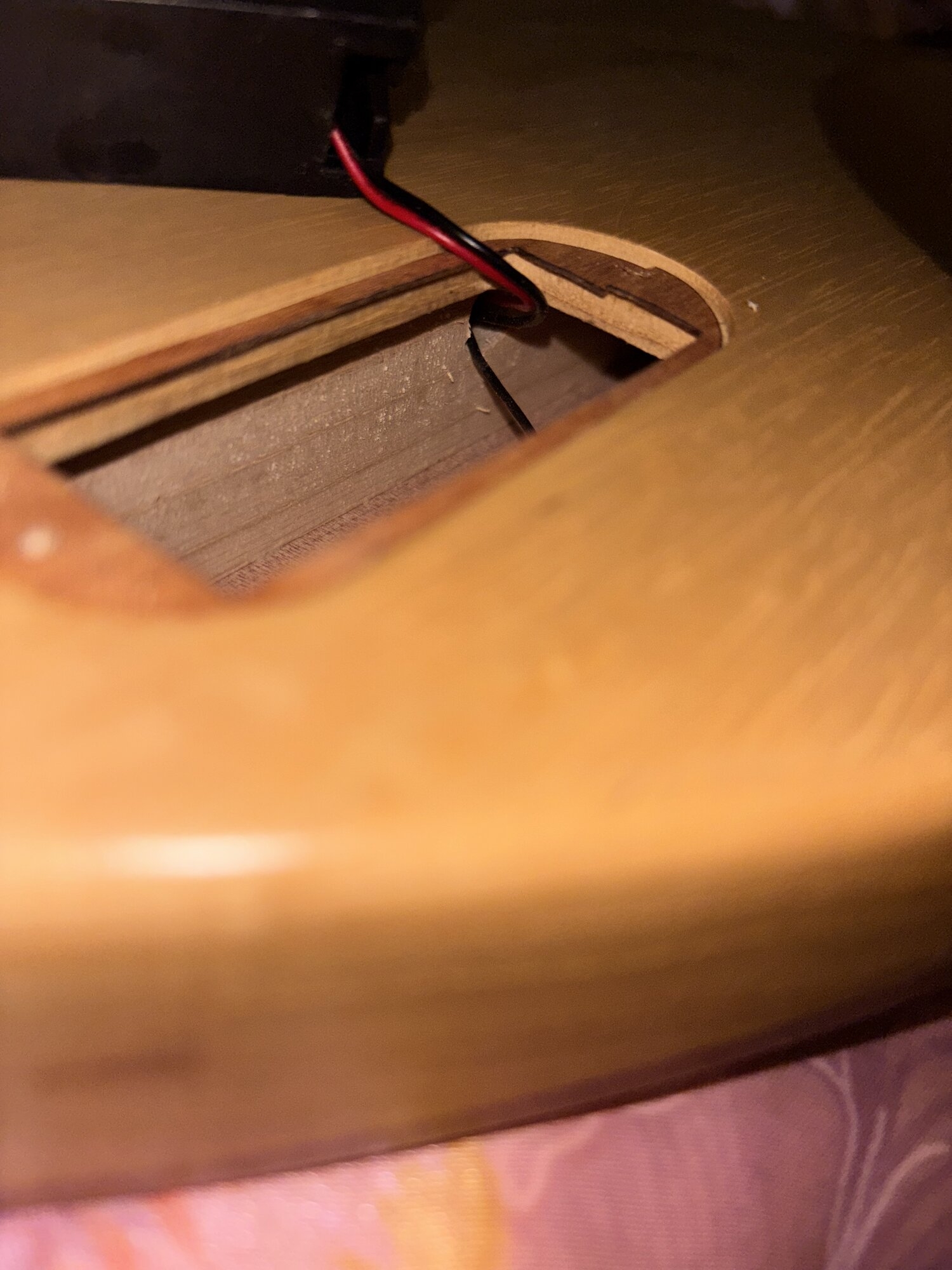

While replacing/checking the battery compartment, I noticed an extra black wire running alongside the main battery harness through the route into the battery cavity.


Here is what I've observed so far:

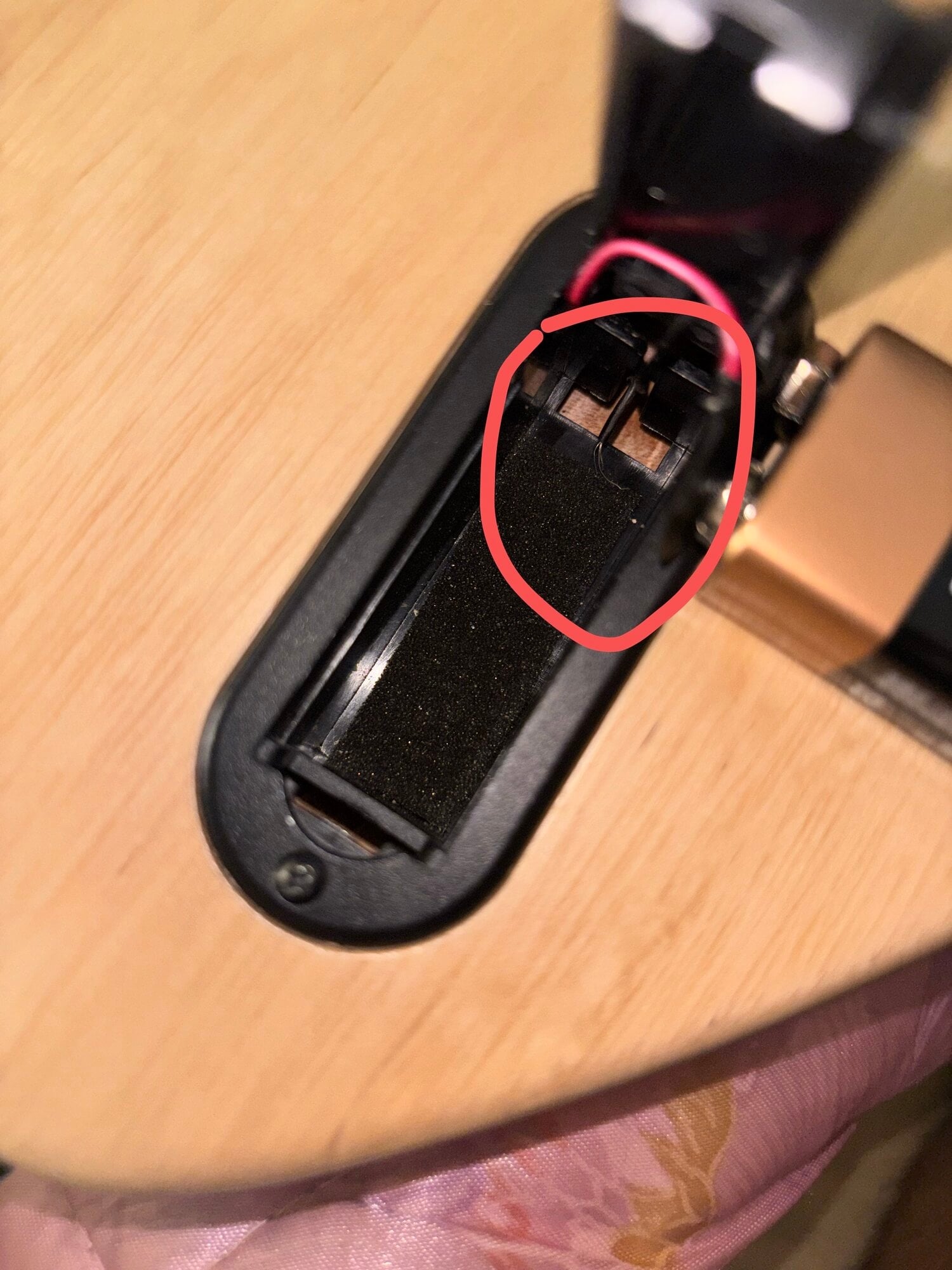

The 9V battery snap connector itself is fully intact, with its own red and black wires connected properly.


This extra black wire is unconnected in the battery cavity, with about 3 fine strands of copper exposed at the tip.


The battery cavity is made of plain plastic with no shielding foil or metal contact plates, so there are no signs of a snapped solder joint inside the battery compartment.

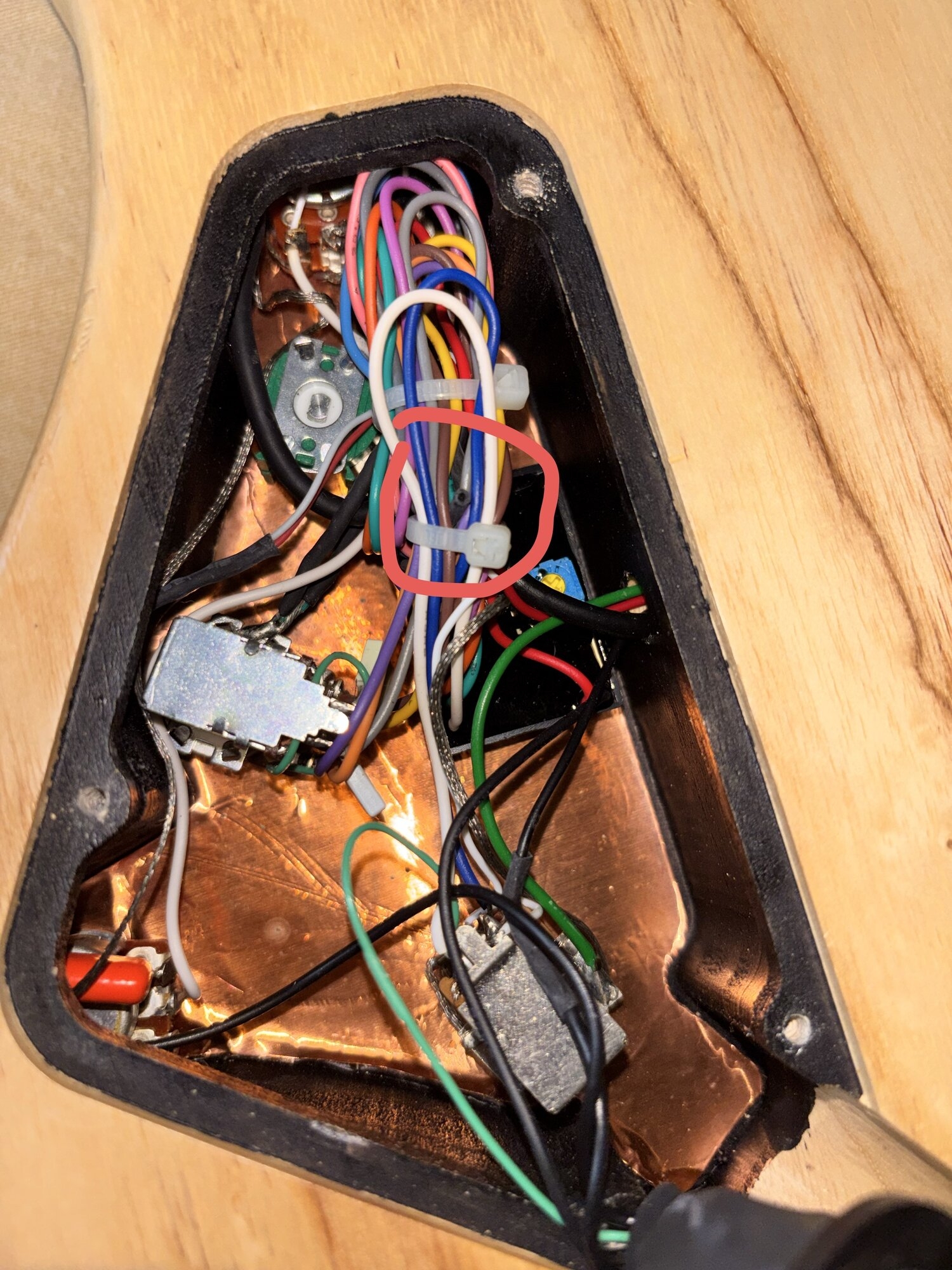

I opened the main control cavity to inspect the harness: all solder joints on the pots and jack look factory-clean. The bundle of wires includes a sleeve/tubing end that appears to be unused/empty, matching this wire's path.


Since I can't plug in and test for noise or active/passive output right now due to the move, I wanted to ask:


1. Is this extra black wire simply a factory dummy/spare ground wire from the harness for this model?


2. Should I just insulate the bare copper tip with electrical tape and leave it inside the cavity?


I've attached photos of the battery cavity and the control cavity for reference.


Thanks in advance for your help!

View attachment 7555292View attachment 7555293View attachment 7555294View attachment 7555295
As someone else mentioned, I'd suspect a bridge ground wire that came disconnected either under the bridge or from its ground connection in the control cavity. Can you point out which of the wires in the control cavity this is?
