15-string Prat Bass for Jauqo III-X

[JAUQO III-X]

Jauqo, I've seen your vids and can only say you've got "mad skills". Your input as a player and gear head is also valuable on this forum. Much Thanx to you. Hope to hear you live sometime in the near future.

Thank you. And thanks for taking the time to check out some of the music.



[pratbasses]

I think you should add a few more clamps.......



[pratbasses]

Ok, so a lot of work before Cristmas.

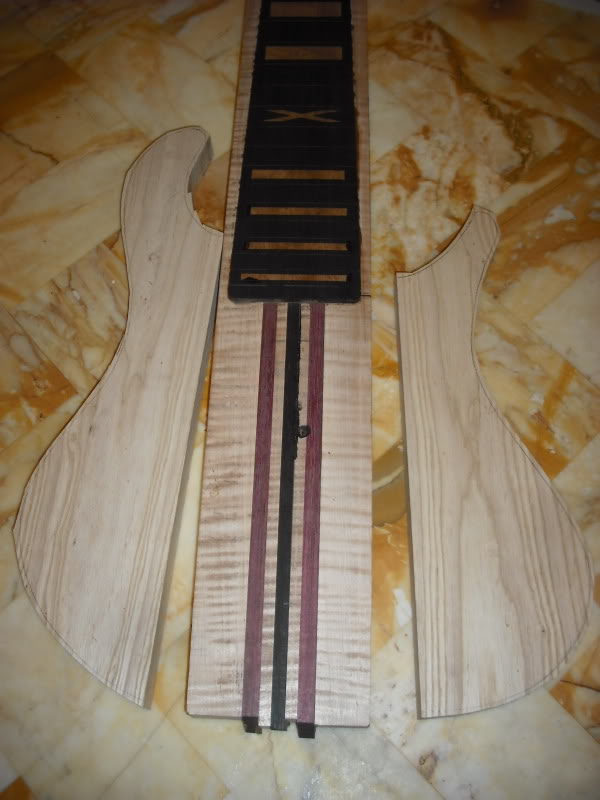

First, i was cutting the swamp ash for the "wings".



[pratbasses]

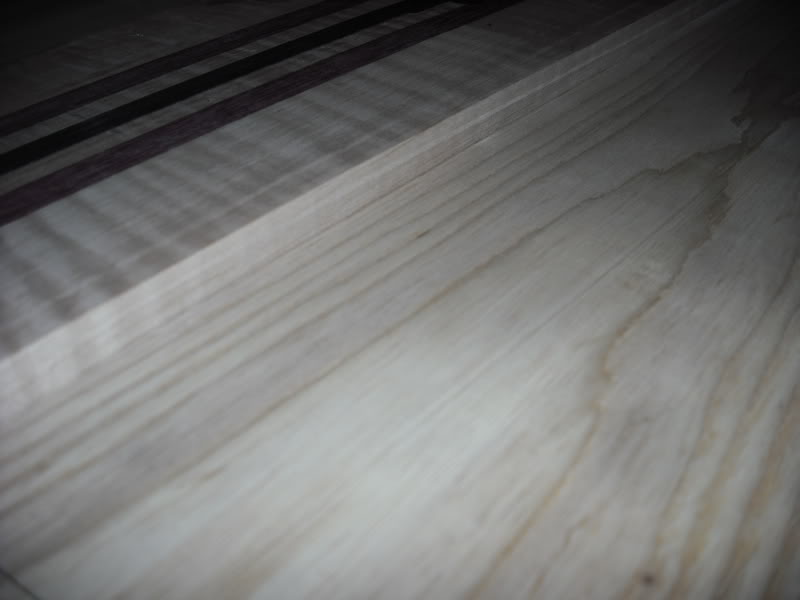

Like you can see, this wings are pretty thin (like 2/3 of a full ones), because we need to glue the top and the back to have the total body thickness.



[pratbasses]

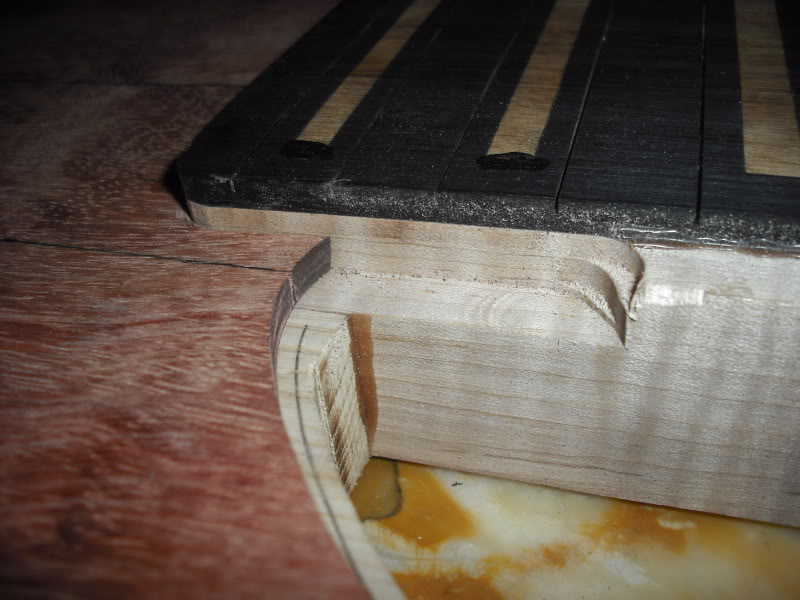

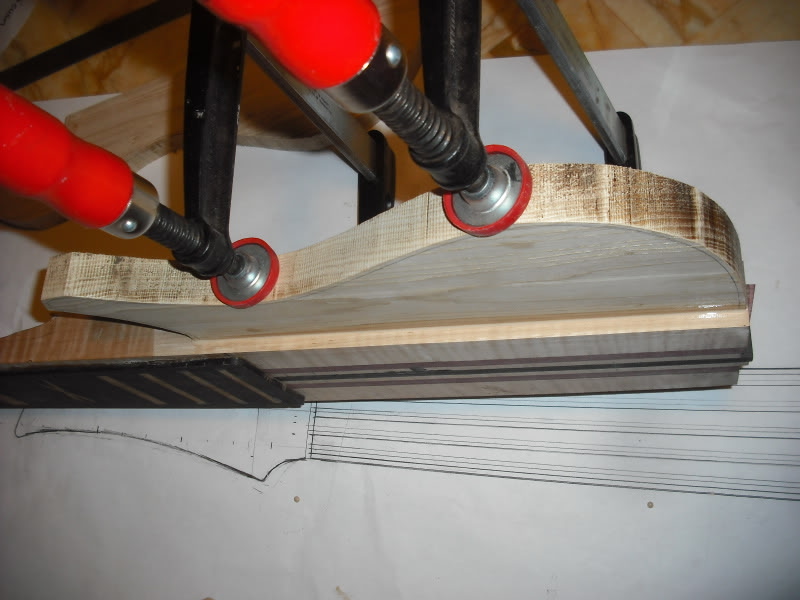

Then, I have removed the rest of the neck at the body, right up to the fingerboard. Here is a detailed picture



[pratbasses]

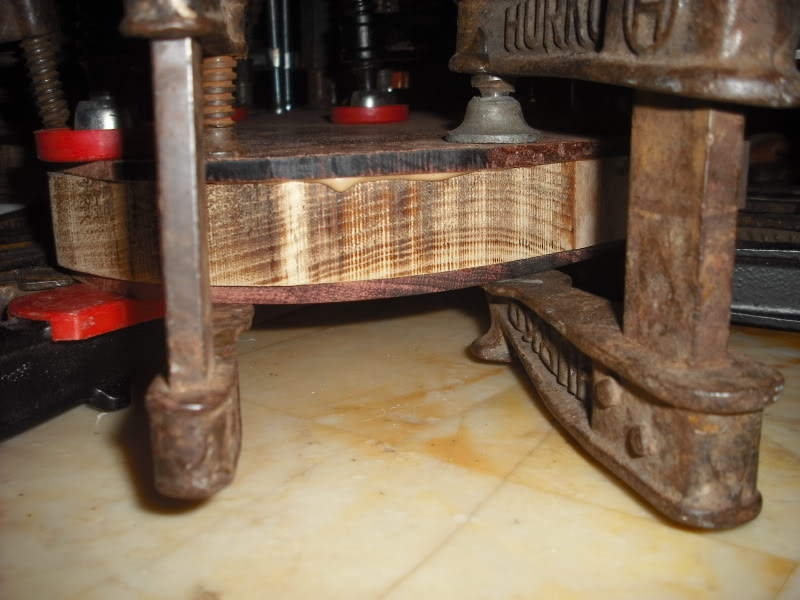

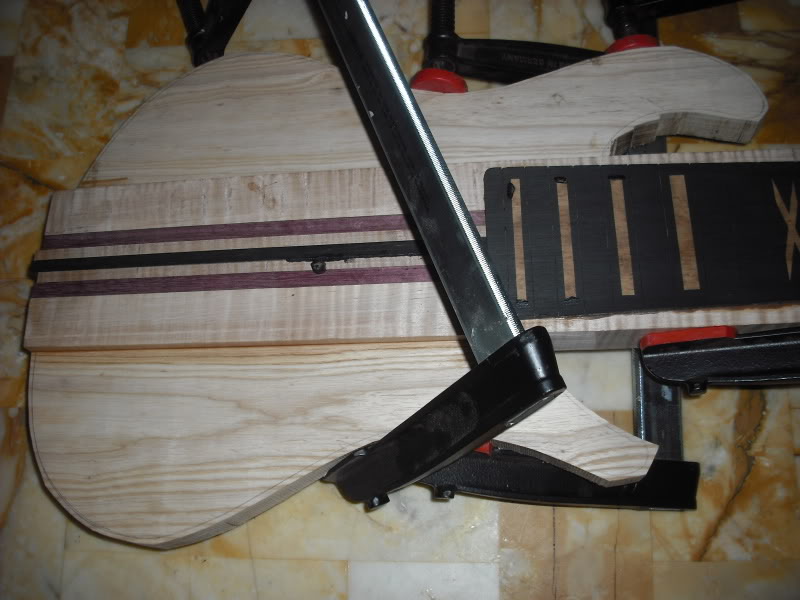

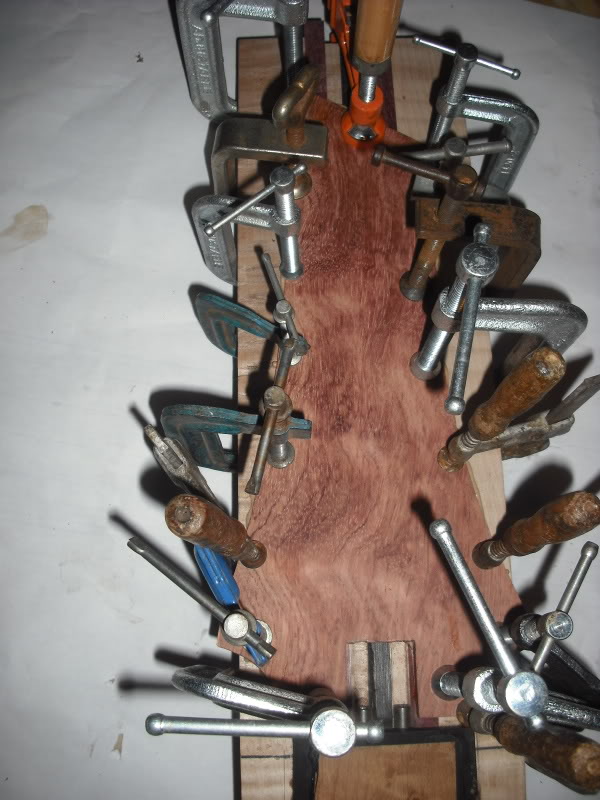

Gluing top and back



[pratbasses]

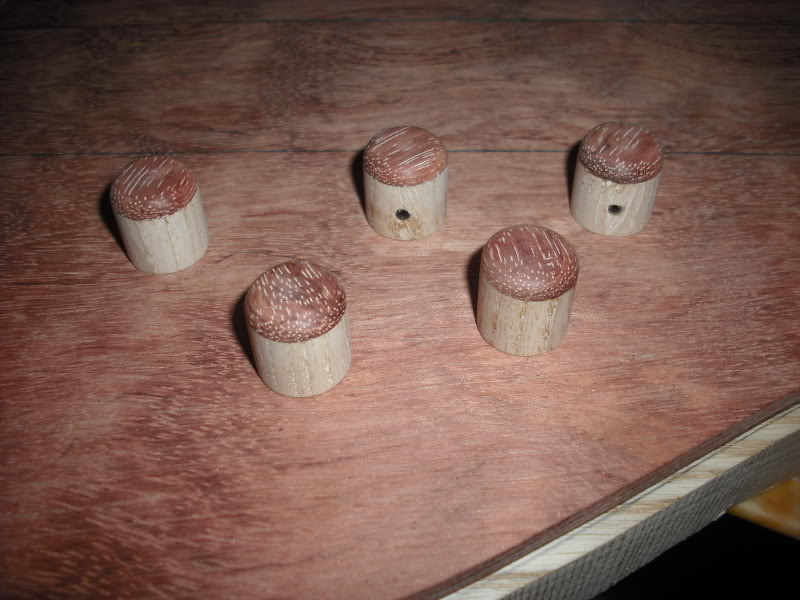

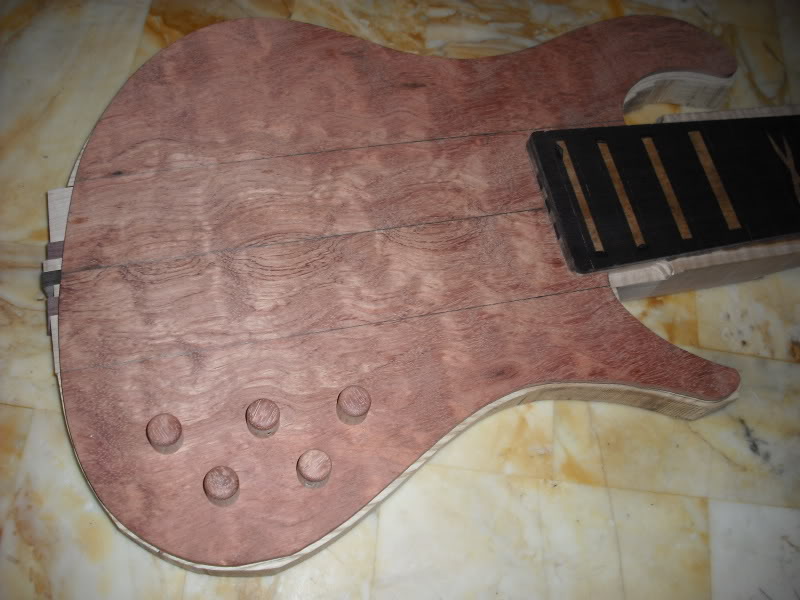

Looks good! pickup covers and knobs matching the body, too!



[pratbasses]

Ok, so pickup covers. William Villex craft the electronics for this bass. No too easy to buid a good pickups for a 15 string bass!!! He is making a master piece, with volume-volume-bass-mid-treble.... but all passive!!!

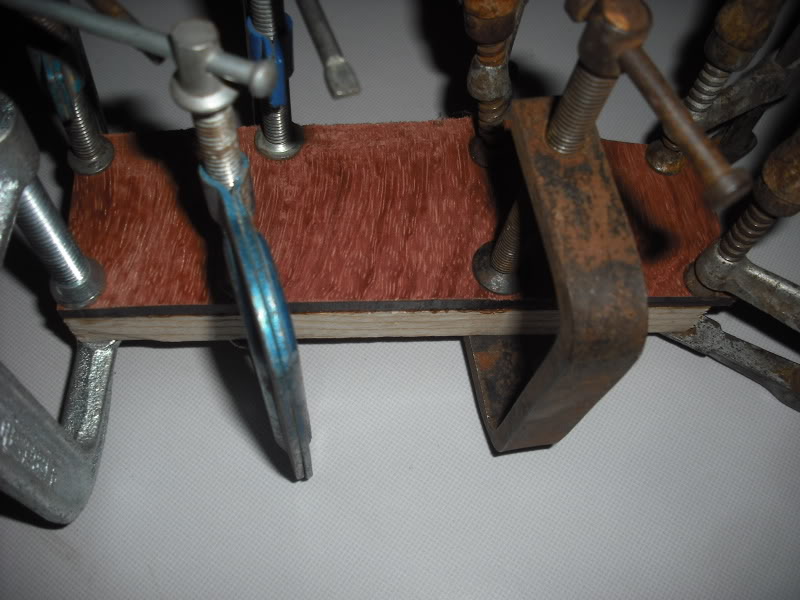

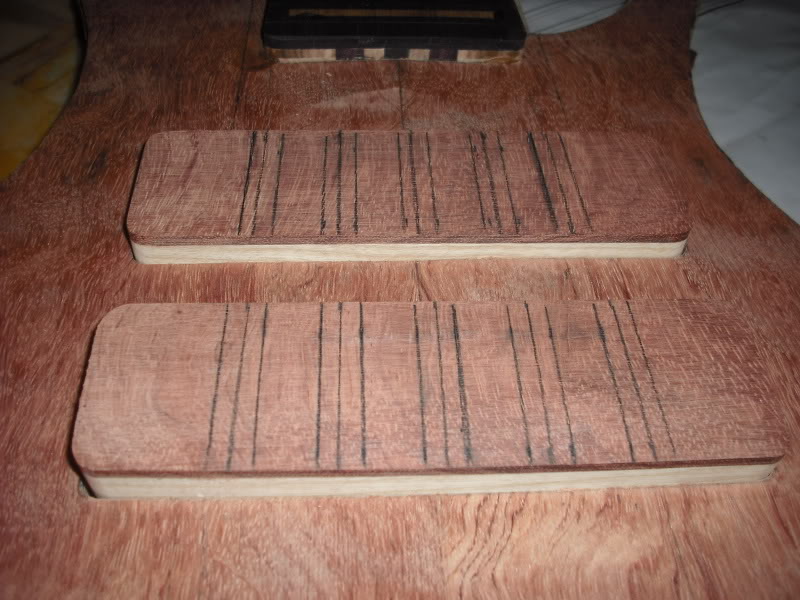

Here some pictures of the pickup covers



[pratbasses]

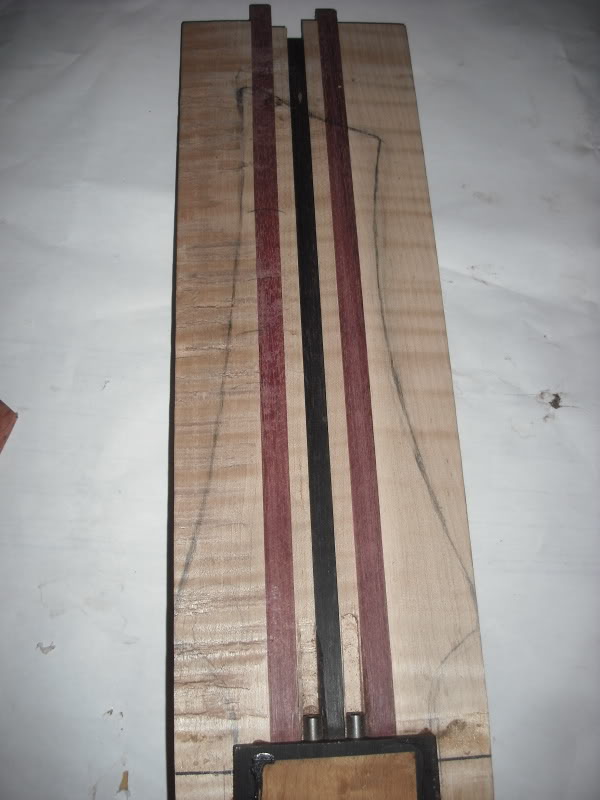

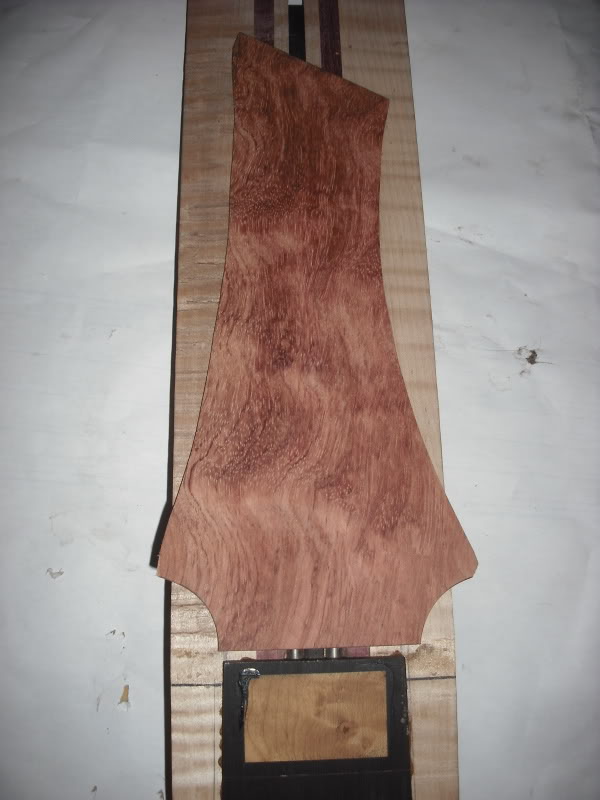

Finally, the headstock. It will be, of course, big... but I have designed a headstock as small as possible



[pratbasses]

Merry Cristmas!!!



[elros]

A very interesting project! I'm looking forward to seeing and hearing the finished product. It'll sound awesome, I'm sure!
Merry Christmas!



[Jamestrouton]

.



[MooneyDriver]

Can I just add to what everyone has already said about this bass.
Amazing shape. Beautiful contours and the longer horn has a really nice profile!
Also, the layering of the wooods gives a really nice layering of different colours! Especially at the neck heel.
Great job so far on this bass! Looks amazing.

I have a plan of a 4 string bolt on in the pipeline. I was wondering would the way you have an extra bit of wood added at the heel work for a bolt on? Because it would save alot of wood and time!!

Oscar's been busy!!!!

James,
Oscar does bolt-on jazz style basses with neck-thru construction. I'd really consider it if I were you! I'll try to snag a pic for you. I think I'm going to have him build a short scale piccolo that way.



[Rickett Customs]

Oscar, looks great... Happy holiday to you too.



[pratbasses]

Oscar, looks great... Happy holiday to you too.

All the best, my friend!



[pratbasses]

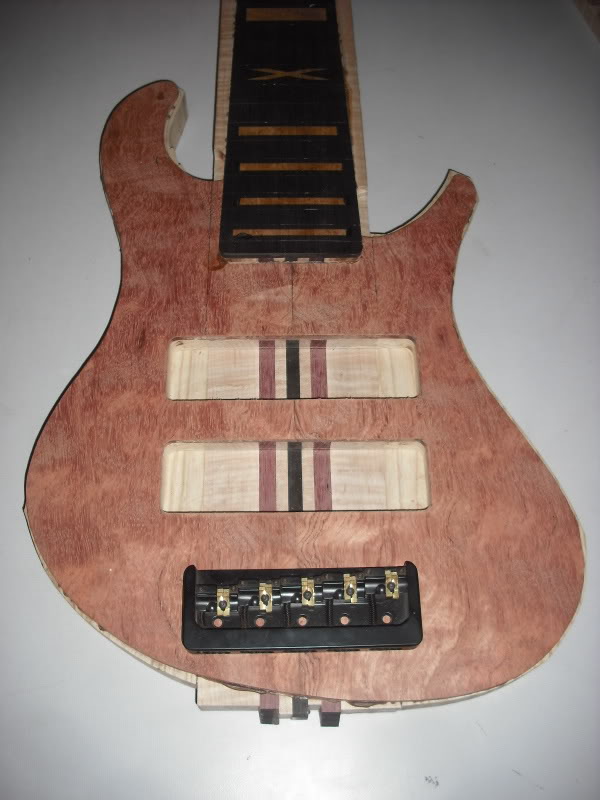

working working working...

Shape is clean and done. Well, headstock is not finish, yet.
Now needs to file and sand. Only One week! I will beat my own record!
To fit all these tuners, was not easy!



[pilotjones]

Those pickup routs look very wide compared to the spread of the string paths. What's the story there?



[pratbasses]

Those pickup routs look very wide compared to the spread of the string paths. What's the story there?

Hi Pilotjones
Yes, pickups are big. I was using my "big" 8 string templates, because we need enough space to fit all the Villex system. It is the first time for the passive eq. system, so I want to be sure that all fit inside

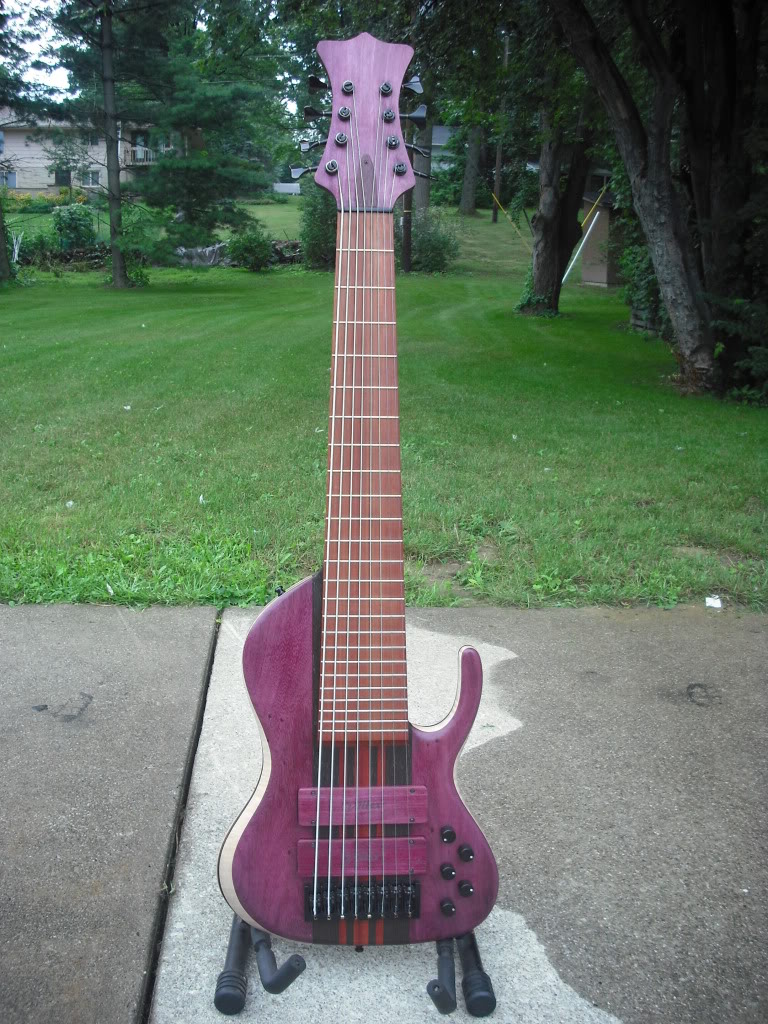

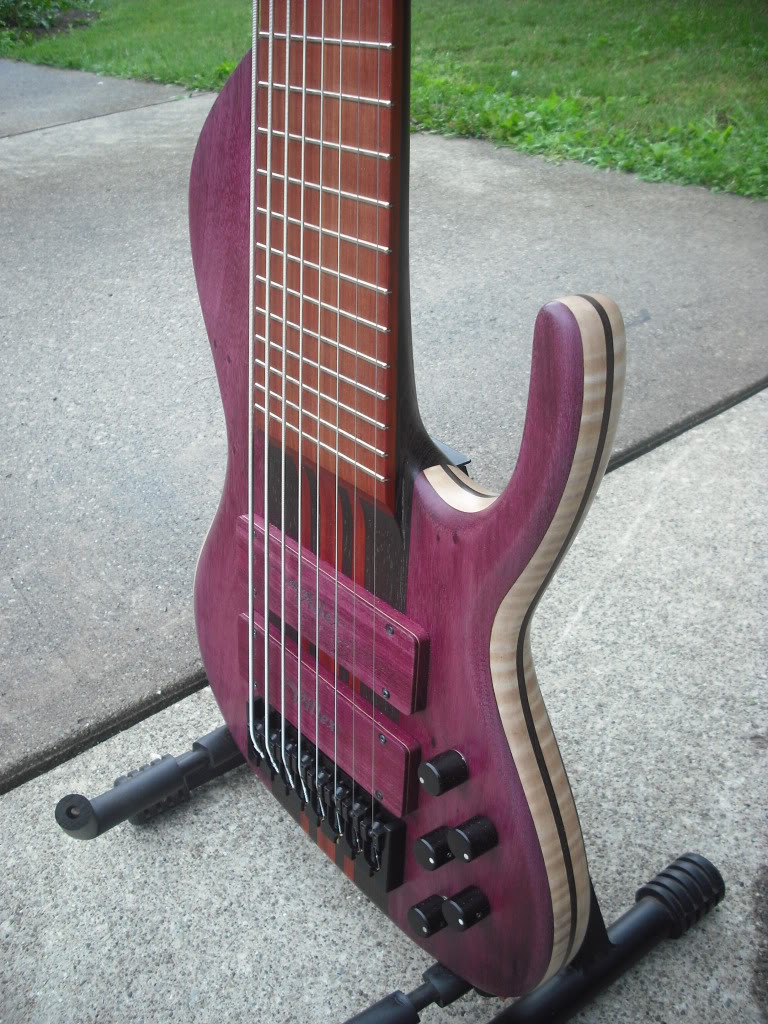

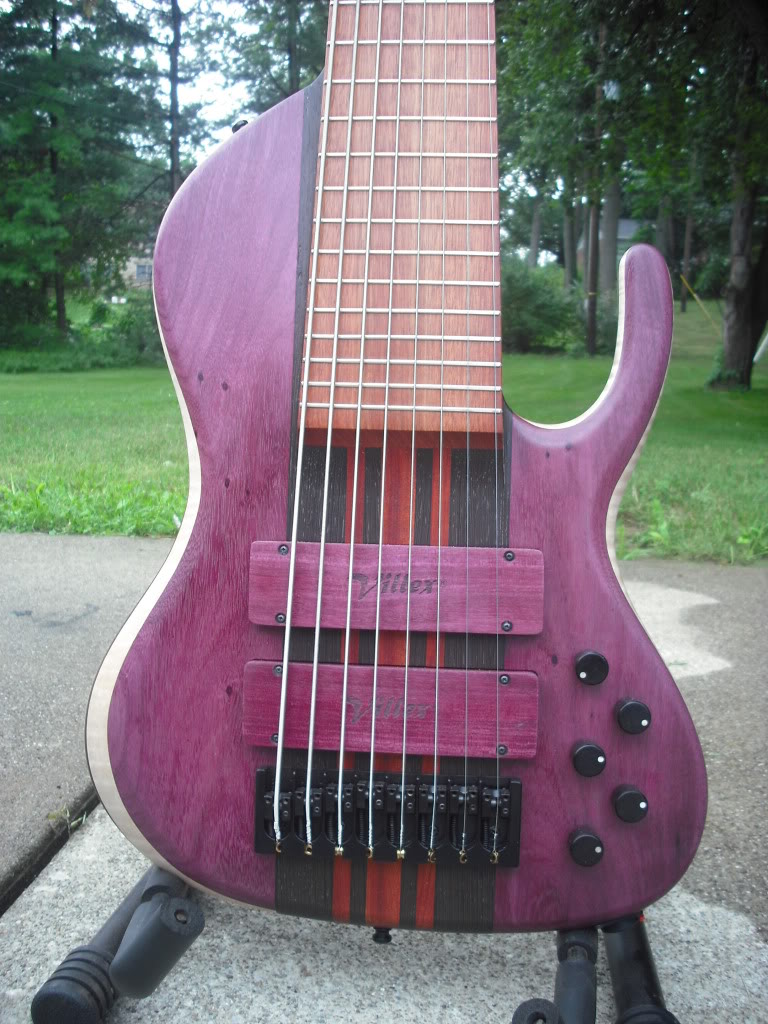

Here is a picture of James Walker 8 string bass with these big pickups.
Pickups looks bigger in Jauqo's bass, because he wants a smaller body.



[CopperheadLXXIX]

Looks awesome. Can't wait to see it finished and maybe hear Jauqo play it!



[pratbasses]

Looks awesome. Can't wait to see it finished and maybe hear Jauqo play it!

Thank you!
Are you comming to the NAMM next week? You are welcome to my booth and check it. Jauqo will be, too.
