5 string fan fretted 36"-34" all in Wenge

Discussion in 'Luthier's Corner' started by Matteo Marziali, Mar 15, 2014.

  1. Hi my TB friends! It's time for a new build!

    I designed this bass two/three years ago, the idea was to make a "metal looking" bass, but inspired by '77 CT style, and also by the works of my friend Triad of Prometeus guitar

    I choose Wenge because of its "Growl" and its punchy midrange. I would like a bass that can come out clearly from the mixer, so i choose EMG J pickup. initialy i was thinking of using EMG DC, but J have more mids. To add bass or treble i will put an EMG BTS preamp. The strings are DR red devil. For the tuner i choose Gotoh GB350, they are the lightest tuner in the market, about 40 gr per pieces.
    The bridge is a Kahler with single saddles, i will make a custom mounting plate, to place inside the body.
    I will make some chambering in the body for the weight...


    5 string fan fretted
    36"-34" scale
    DR Red Devils string 45-125
    Deep-set-neck construction

    One-piece neck/fretboard of quatersaw Wenge
    Singol action TR with access from the rear of the headstock
    Width at nut 45mm
    Thickness at nut 19mm

    Two pieces Wenge chambered body core
    Top and back Wenge with red veneer
    Body thickness 30mm (edit)

    Neck PU EMG 40J
    Bridge PU EMG 45J
    Preamp EMG BTC control Bass/Treble with stacked pot

    Tuners: Gotoh Res-O-Lite GB350 black
    Bridge: Kahler 2450-W5 black

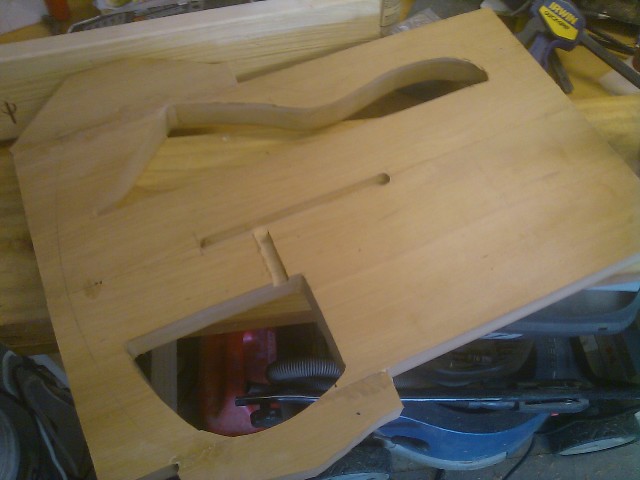

    A mockup:

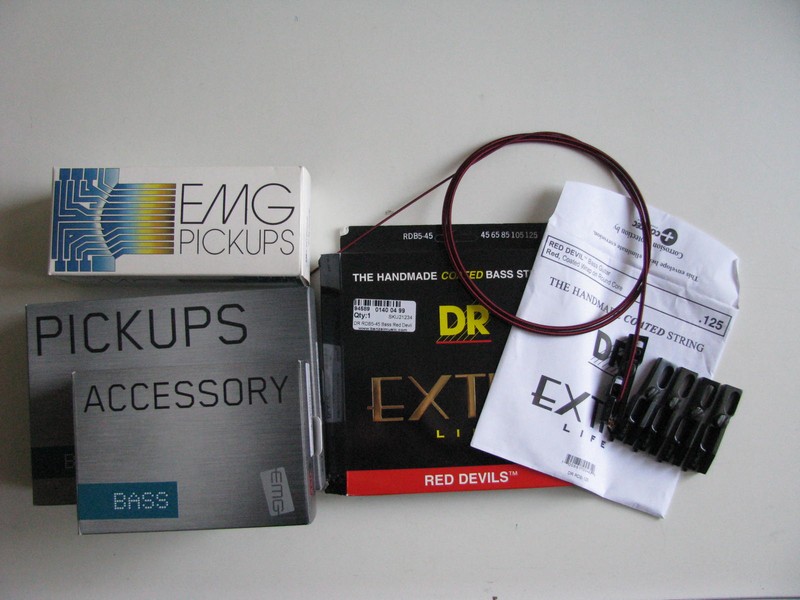

    Some hardware, i'm still waiting for the tuners from Japan:

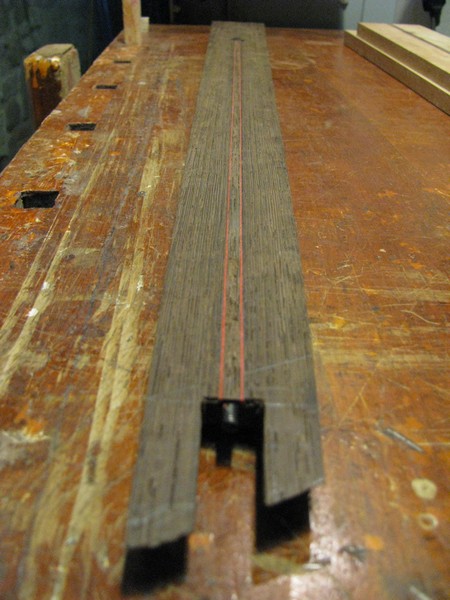

    The neck i made 2 years ago:

    It's a one-piece neck, the TR is installed from the back

    Last edited: May 25, 2014
  2. I'm looking forward to see this come together. Subbed.
  3. kris pung

    kris pung

    Jul 25, 2003
    Chicago, IL
    The design looks really cool but a warning wenge is very heavy so you may want to do some chambering to bring the weight down.
  4. TheJoshinator


    Sep 23, 2012
    WOW. That is one intense-looking bass! Metal for sure. Also, funny coincidence... I've got a design sitting around for a fan-fret 5er with bloodwood laminates in a wenge body - I'd better hurry up and start building it before someone else does! XD Looking forward to seeing this develop. Those "barbs" look like fun to carve...
  5. It's a good issue, i've already made a chamber in the upper side of the body core, i can make some hole here and there, but i want to try with the neck on, to avoid neck-diving


    It's a good choice! ;) Probably better then mine, because the veneer is so thin and probably it will not look like i figured...
  6. Bassgeer


    Nov 6, 2011
    This build will forever lay to rest the best bass for metal conversation. That design is amazing!!!!!!!! Can't wait to see it as it progresses!

  7. Buchada Azeda

    Buchada Azeda

    Mar 25, 2009
    There's a typo in the title - it's 36"-34" instead of 36"-34", right?
  8. Yes! 36"-34"! Thanks! But... how can i change it?!?

    .. you made a typo also :smug:
  9. This looks awesome. Can't wait to see it come along!
  10. Love the design. Looks great.

    Keep cutting! Here's one of mine...

  11. Buchada Azeda

    Buchada Azeda

    Mar 25, 2009
    I think that makes us even :D

    Try editing the original post.
  12. TheJoshinator


    Sep 23, 2012
    If it looks even half as good as you figured by the time you're finished, you're gonna have to lock it away to avoid exposing the public to such extremely potent amounts of awesome. ;-P I've seen a couple red/wenge basses here, and you're right, it's a pretty cool combo.
    TheCrimsonKing likes this.
  13. IMG_1991_zps341966ab.

    This is a mockup for the bridge, the string space is (about) 16.5mm. What do you think about? Also the neck is narrow....
    The cardboard on the left is the model for the new baseplate. It will be made of steel, and i'll solder the nuts on it. It should work.

    Now i'm going to order the fretwire, probably i will go for this: 18% Nickel Silver, Crown width: 2.50 mm, Crown height: 1.1 mm. Or could I choose something bigger for an "heavy" use?!?...

  14. Flump


    Feb 20, 2012
    The bass design makes me think of some of the weapons in the elder scrolls games. I forget what they are called. The dark weapons or whatever.

    Love the design.
  15. HaMMerHeD


    May 20, 2005
    Norman, OK, USA
  16. Daedric Bass! Sound cool!
    Blackjac97, couchsofa and Mikaelbass like this.
  17. I love that there are some other game nerds here! :)
    Blackjac97 likes this.
  18. GrumpiusMaximus

    GrumpiusMaximus I've Seen Things You People Wouldn't Believe

    Mar 11, 2013
    Kent, United Kingdom
    All you need is the Daedric guitar and you're sorted. Enchanted bound versions of standard [DEL]weapons[/DEL] guitars may work, too. Albeit for a limited period.
  19. HaMMerHeD


    May 20, 2005
    Norman, OK, USA
    Make sure you stock up on some grand soul gems. Might make good inlays.
    Thisguy likes this.
  20. IMG_2080_zpsa55b9d1b.

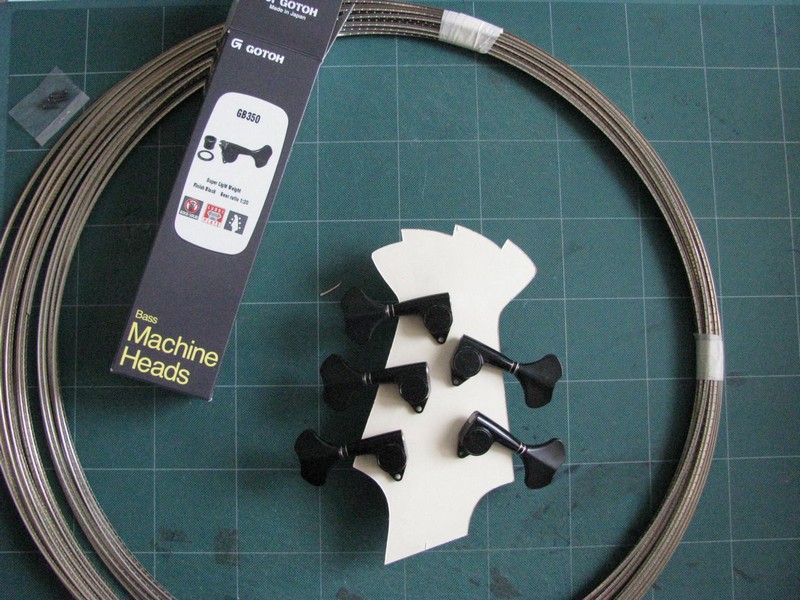

    Machine heads just arrived form Japan! So light!

    And 1 Kg of fretwire! Probably i will use it until 2020... :)
