62 MIJ reissue P bass diagram needed

Discussion in 'Pickups & Electronics [BG]' started by happychicken, Jun 7, 2014.


  1. happychicken

    happychicken

    Jan 24, 2012
    Hi all. I am a total chowder head and took this bass apart to paint it now i can't get the electronics to work right. It works but both pots turn volume off. Boo! HELP!!!

  2. happychicken

    happychicken

    Jan 24, 2012
    Thanks but that is not it I have a resistor from pot to pot it's close but not quite it. Thank for help though

  3. jwsturgis

    jwsturgis

    Apr 2, 2014

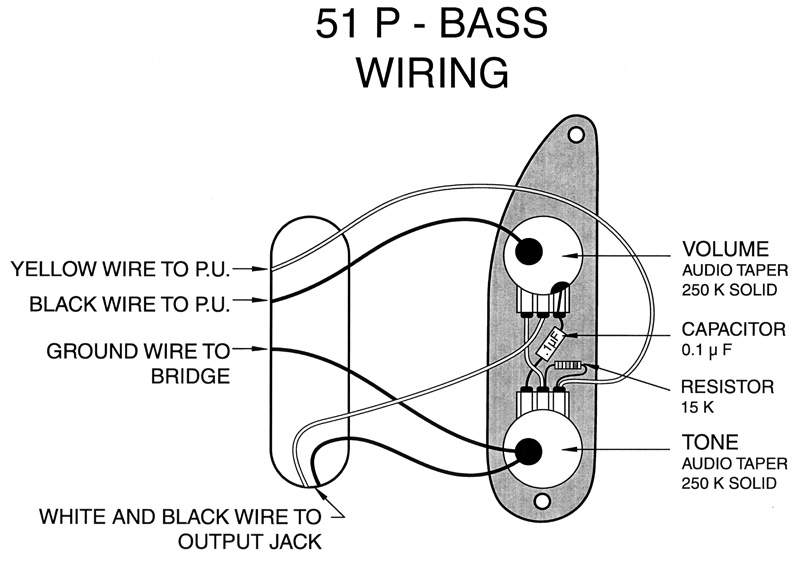

    The one I put up has the cap grounded to the volume. Still technically the same since it's grounded together anyways. Someone could have set it up like a 51 P, with the 15K resistor.


    Attached Files:
